Fox Peak Details

Property	Value
Rupture Count	1,993
Ruptures Above Sect Min Mag	1,991
Ruptures w/ Nonzero Rates	44
Magnitude Range	[7.13, 8.22]
Length Range	[28, 454] km
Total Rate	5.6602113E-4 /yr
Multi-Fault Rate	1.1116102E-4 /yr (19.64%)
Directly-Connected Faults	8
All Co-Rupturing Faults	48

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

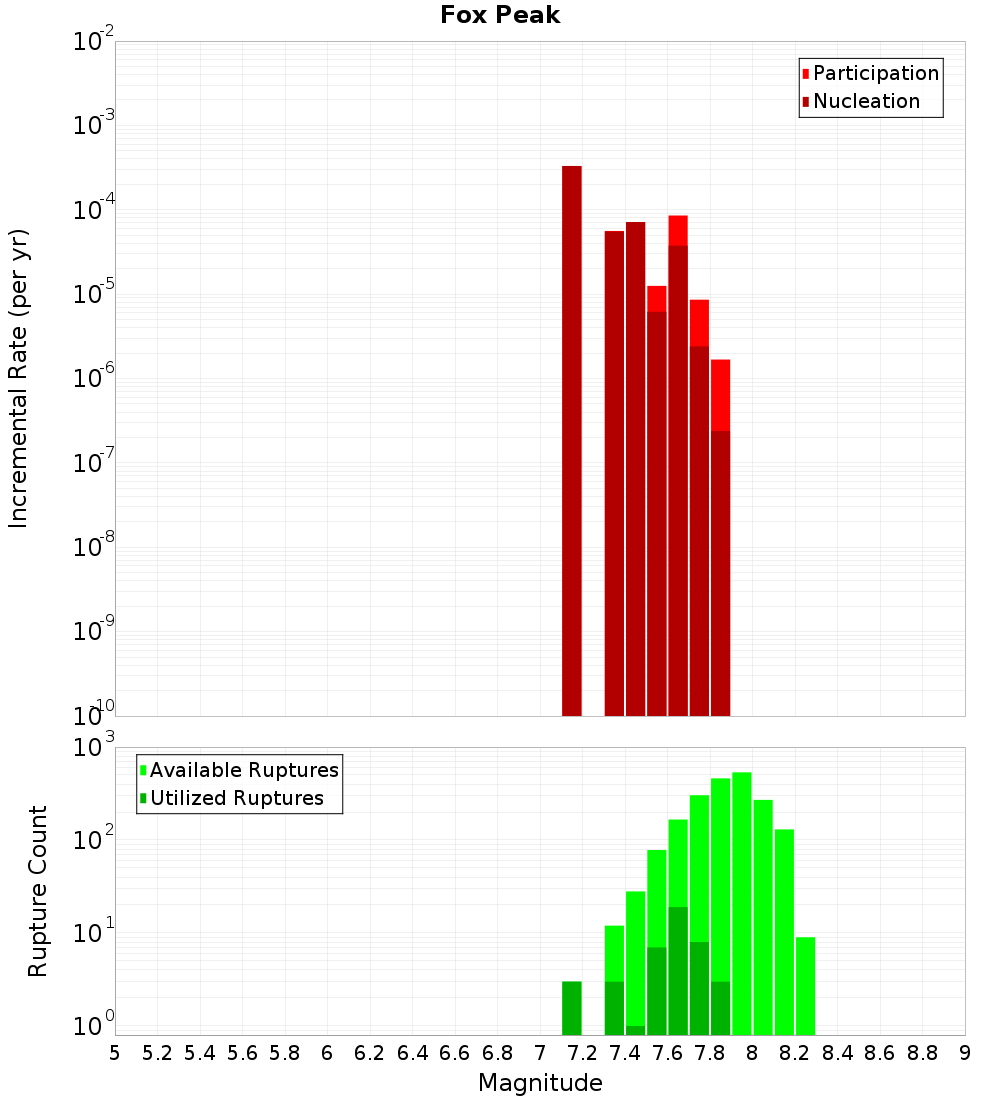

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Irishman Creek, 0.28 km away
Ben McLeod, 0.38 km away
Sugarloaf, 0.68 km away
Opawa, 1.29 km away
Brothers, 1.31 km away
Albury, 2.46 km away
Dalgety, 3.59 km away
Lake Heron, 13.35 km away
Catherine, 13.66 km away
Chamberlain, 14.1 km away

Irishman Creek, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4NzAuMHFWTjhL
Connected?	true
Directly Connected?	true
Co-rupture Count	446
Co-rupture Rate	8.916458E-5

Ben McLeod, 0.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4NzAuMHFWTjhL
Connected?	true
Directly Connected?	true
Co-rupture Count	1,395
Co-rupture Rate	8.317923E-7

Sugarloaf, 0.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4NzAuMHFWTjhL
Connected?	true
Directly Connected?	true
Co-rupture Count	29
Co-rupture Rate	1.6047957E-6

Opawa, 1.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4NzAuMHFWTjhL
Connected?	true
Directly Connected?	true
Co-rupture Count	202
Co-rupture Rate	1.4517351E-5

Brothers, 1.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4NzAuMHFWTjhL
Connected?	true
Directly Connected?	true
Co-rupture Count	214
Co-rupture Rate	6.3342836E-6

Albury, 2.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4NzAuMHFWTjhL
Connected?	true
Directly Connected?	true
Co-rupture Count	317
Co-rupture Rate	1.0801128E-5

Dalgety, 3.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4NzAuMHFWTjhL
Connected?	true
Directly Connected?	true
Co-rupture Count	1,307
Co-rupture Rate	1.3795742E-5

Lake Heron, 13.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4NzAuMHFWTjhL
Connected?	true
Directly Connected?	false
Co-rupture Count	159
Co-rupture Rate	8.317923E-7

Catherine, 13.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4NzAuMHFWTjhL
Connected?	true
Directly Connected?	true
Co-rupture Count	51
Co-rupture Rate	2.8782936E-6

Chamberlain, 14.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4NzAuMHFWTjhL
Connected?	true
Directly Connected?	false
Co-rupture Count	209
Co-rupture Rate	5.8450087E-6
