Ariel Bank Details

PropertyValue
Rupture Count272
Ruptures Above Sect Min Mag267
Ruptures w/ Nonzero Rates32
Magnitude Range[6.61, 7.89]
Length Range[13, 220] km
Total Rate4.0269014E-4 /yr
Multi-Fault Rate4.0269014E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults10

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

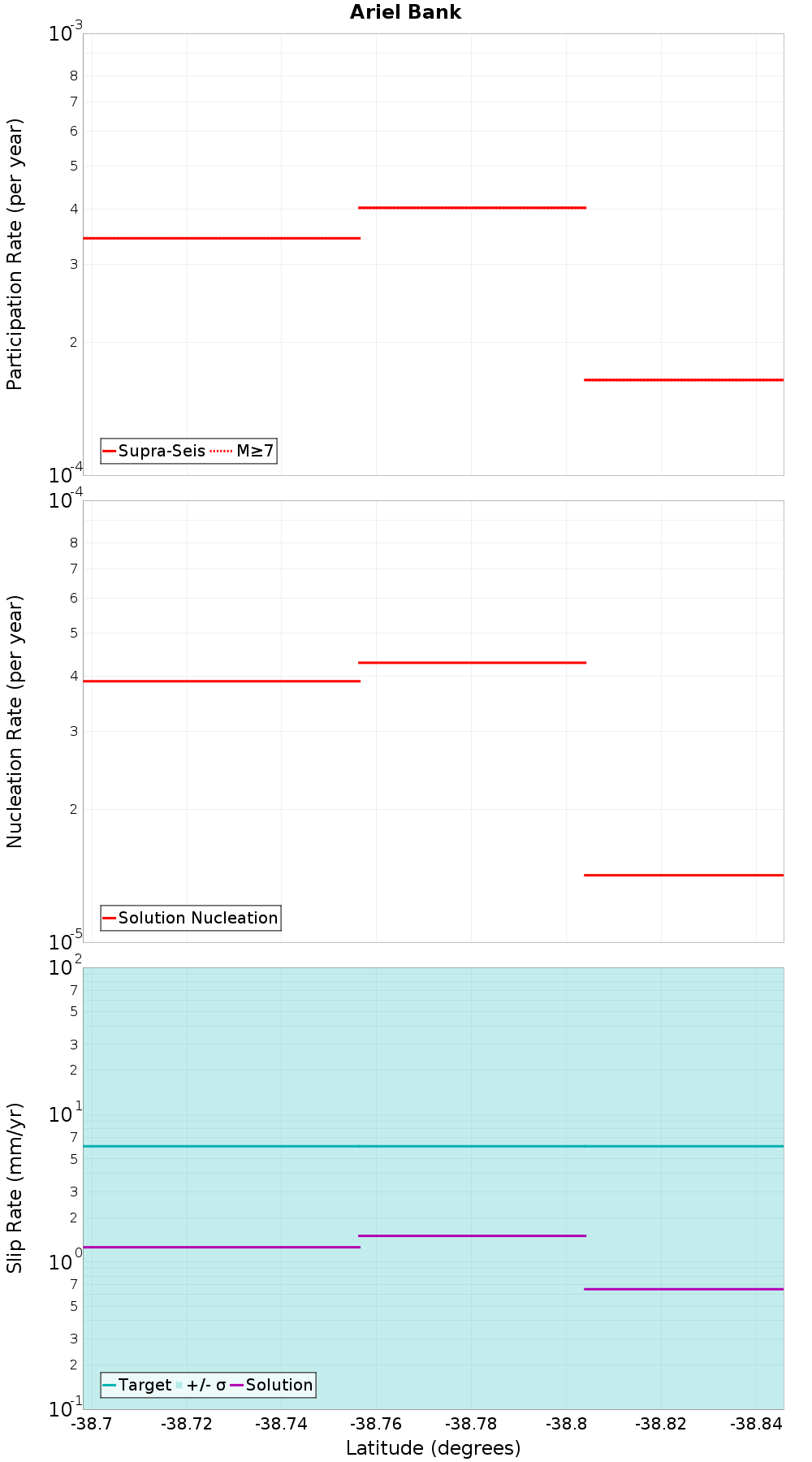

Along-Strike Values

(top)

Along-strike plot

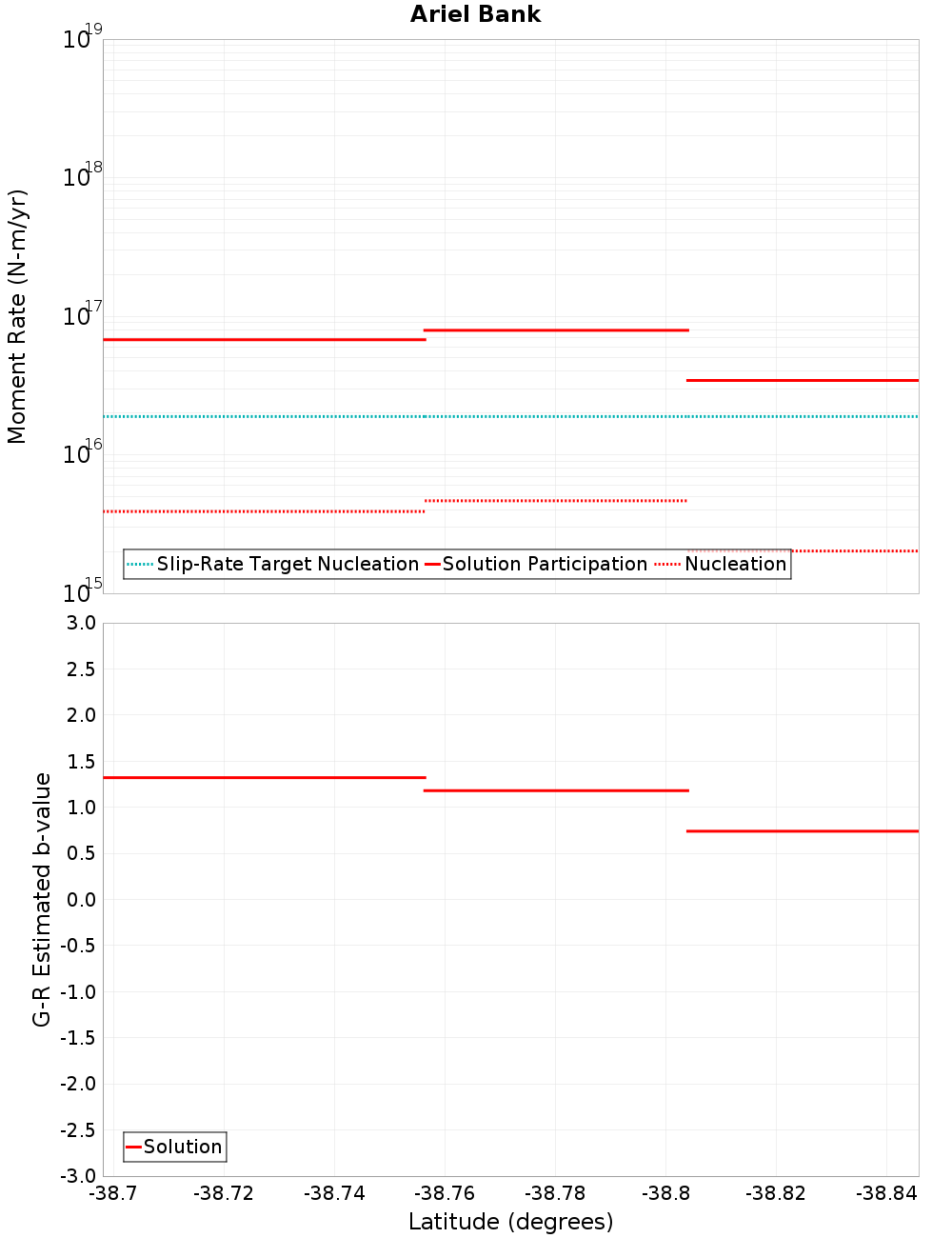

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Te Ikaarongamai, 0.36 km away
Ariel East, 0.48 km away
Gable End North, 2.13 km away
Lachlan 3, 6.74 km away
Gable End South, 7.12 km away
Poverty Bay, 8.84 km away
Pakarae, 10.5 km away

Te Ikaarongamai, 0.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4ODIuMHpFd3dN
Connected?true
Directly Connected?true
Co-rupture Count25
Co-rupture Rate5.912402E-5

Ariel East, 0.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4ODIuMHpFd3dN
Connected?true
Directly Connected?true
Co-rupture Count109
Co-rupture Rate6.0101596E-5

Gable End North, 2.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4ODIuMHpFd3dN
Connected?true
Directly Connected?true
Co-rupture Count190
Co-rupture Rate3.4356615E-4

Lachlan 3, 6.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4ODIuMHpFd3dN
Connected?true
Directly Connected?true
Co-rupture Count232
Co-rupture Rate2.2425395E-4

Gable End South, 7.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4ODIuMHpFd3dN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Poverty Bay, 8.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4ODIuMHpFd3dN
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Pakarae, 10.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4ODIuMHpFd3dN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
