Kiri Details
| Property | Value |
|---|---|
| Rupture Count | 6 |
| Ruptures Above Sect Min Mag | 5 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [6.75, 7.23] |
| Length Range | [14, 44] km |
| Total Rate | 4.169805E-5 /yr |
| Multi-Fault Rate | 4.169805E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 3 |
Table Of Contents

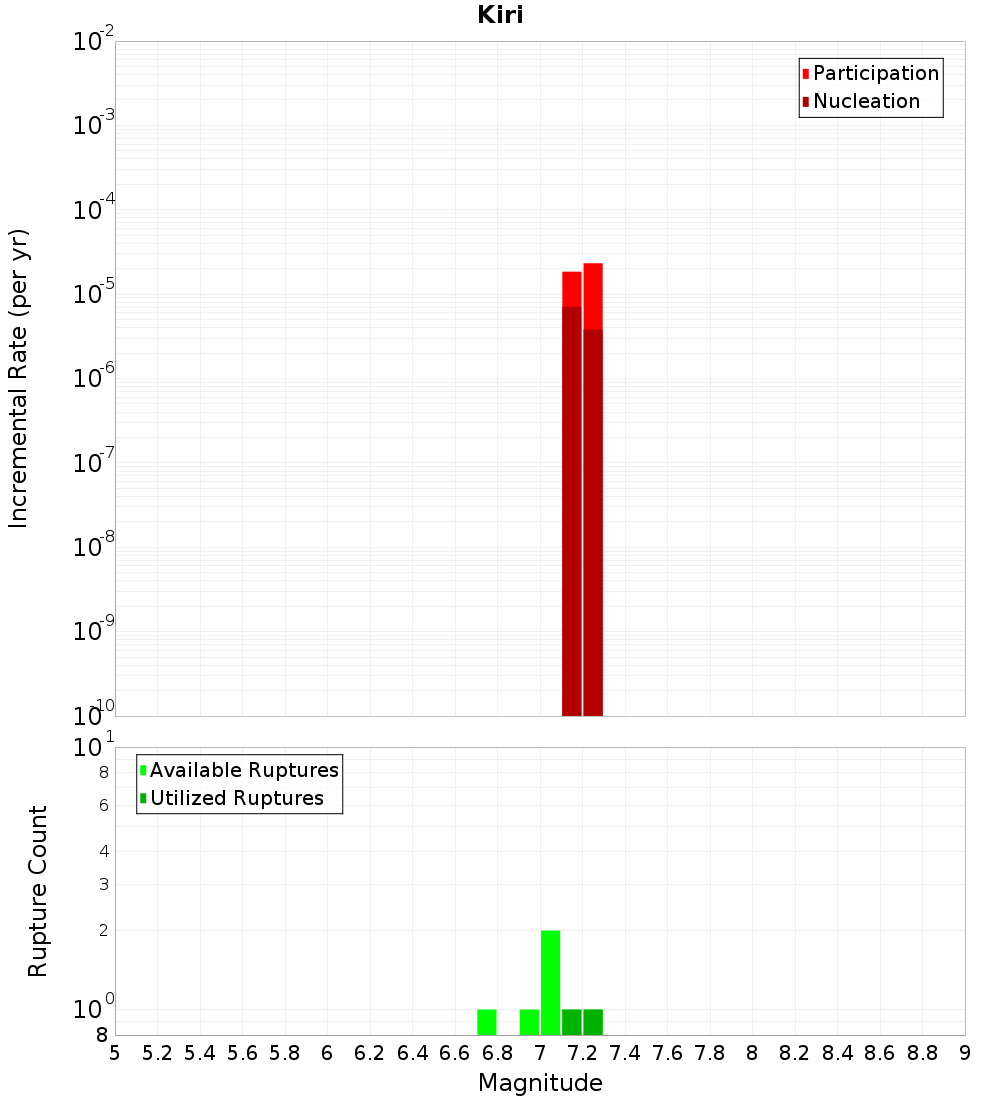

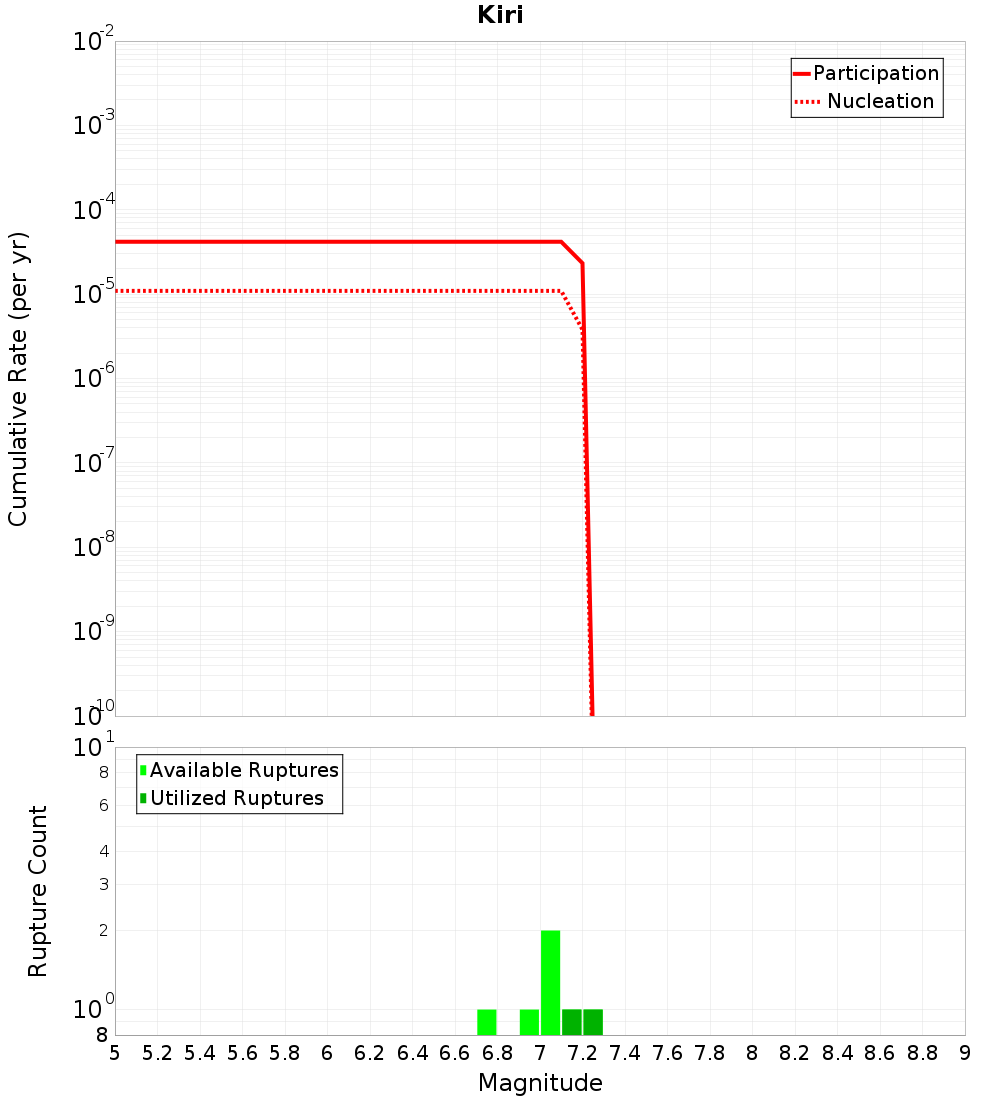

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

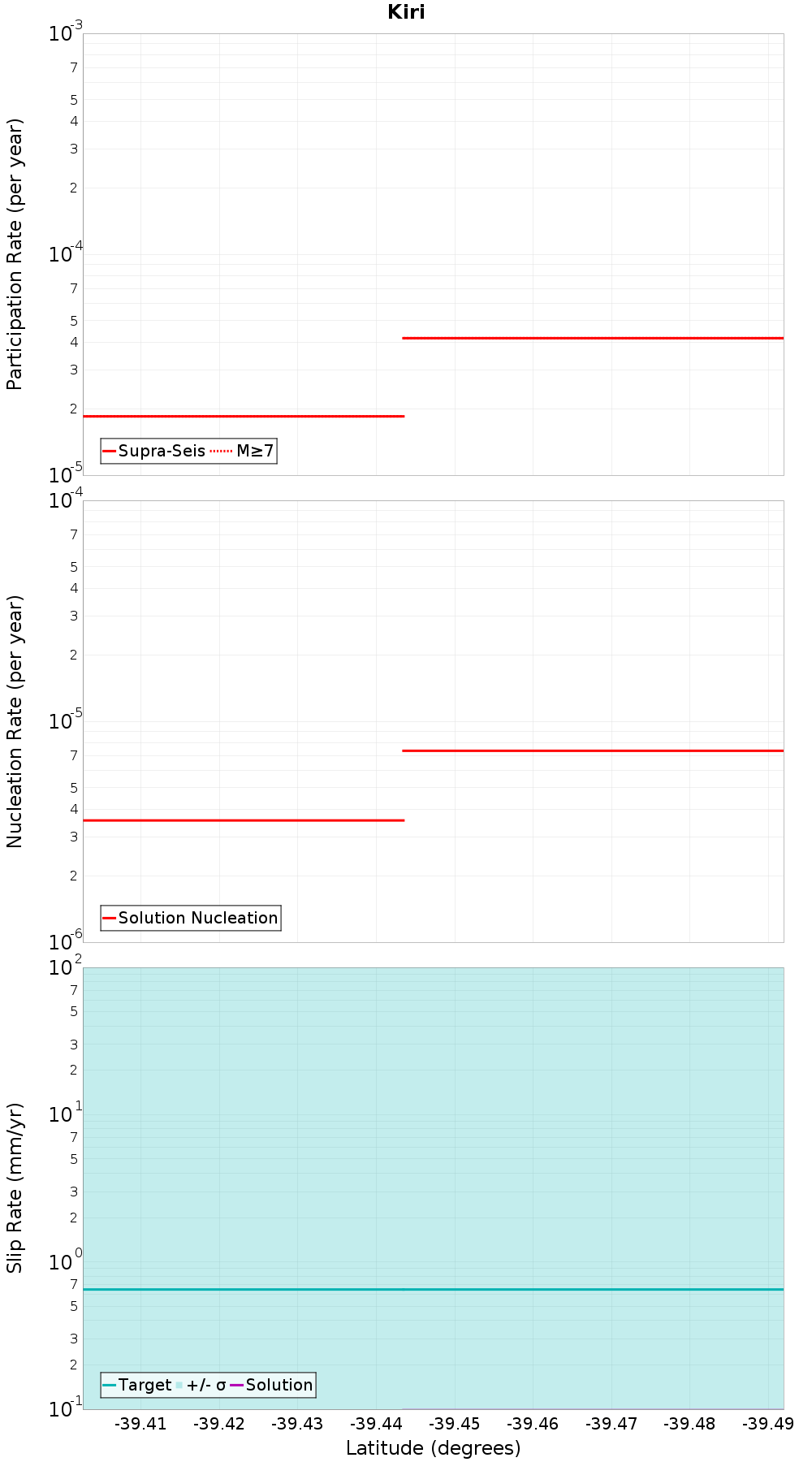

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Rahotu, 0.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4OTMuMFdrVGNo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4 |
| Co-rupture Rate | 4.169805E-5 |
Cape Egmont: North, 0.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4OTMuMFdrVGNo | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Manahi 1, 1.53 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4OTMuMFdrVGNo | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pihama, 2.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4OTMuMFdrVGNo | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Manahi 2, 2.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4OTMuMFdrVGNo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4 |
| Co-rupture Rate | 4.169805E-5 |
Ihaia, 4.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4OTMuMFdrVGNo | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Warea, 4.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4OTMuMFdrVGNo | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Oaonui, 10.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4OTMuMFdrVGNo | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cape Egmont: Central, 10.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjA4OTMuMFdrVGNo | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 2.3241912E-5 |
