OmihiLwrHuru Details

Property	Value
Rupture Count	4,246
Ruptures Above Sect Min Mag	4,239
Ruptures w/ Nonzero Rates	63
Magnitude Range	[6.66, 8.15]
Length Range	[18, 538] km
Total Rate	2.5309253E-4 /yr
Multi-Fault Rate	2.529575E-4 /yr (99.95%)
Directly-Connected Faults	6
All Co-Rupturing Faults	59

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

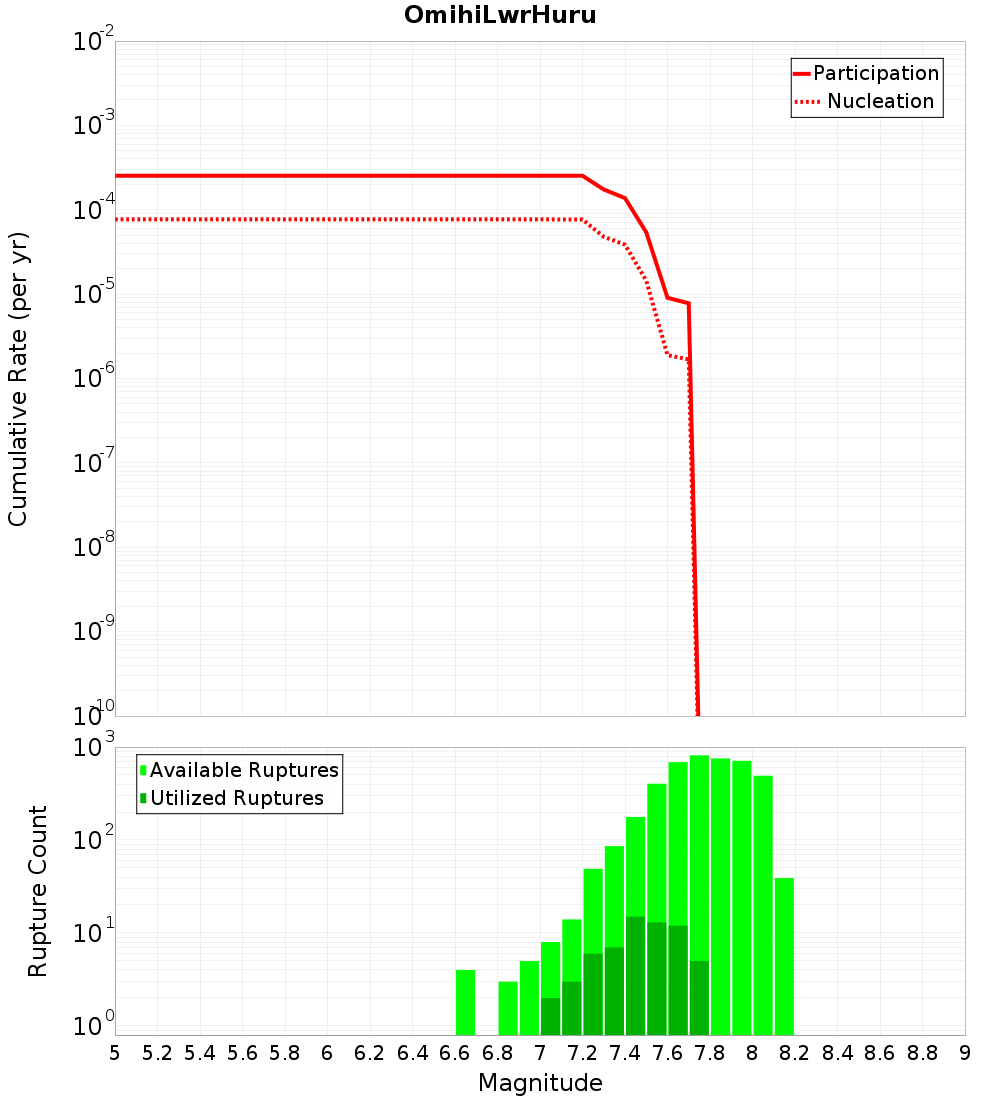

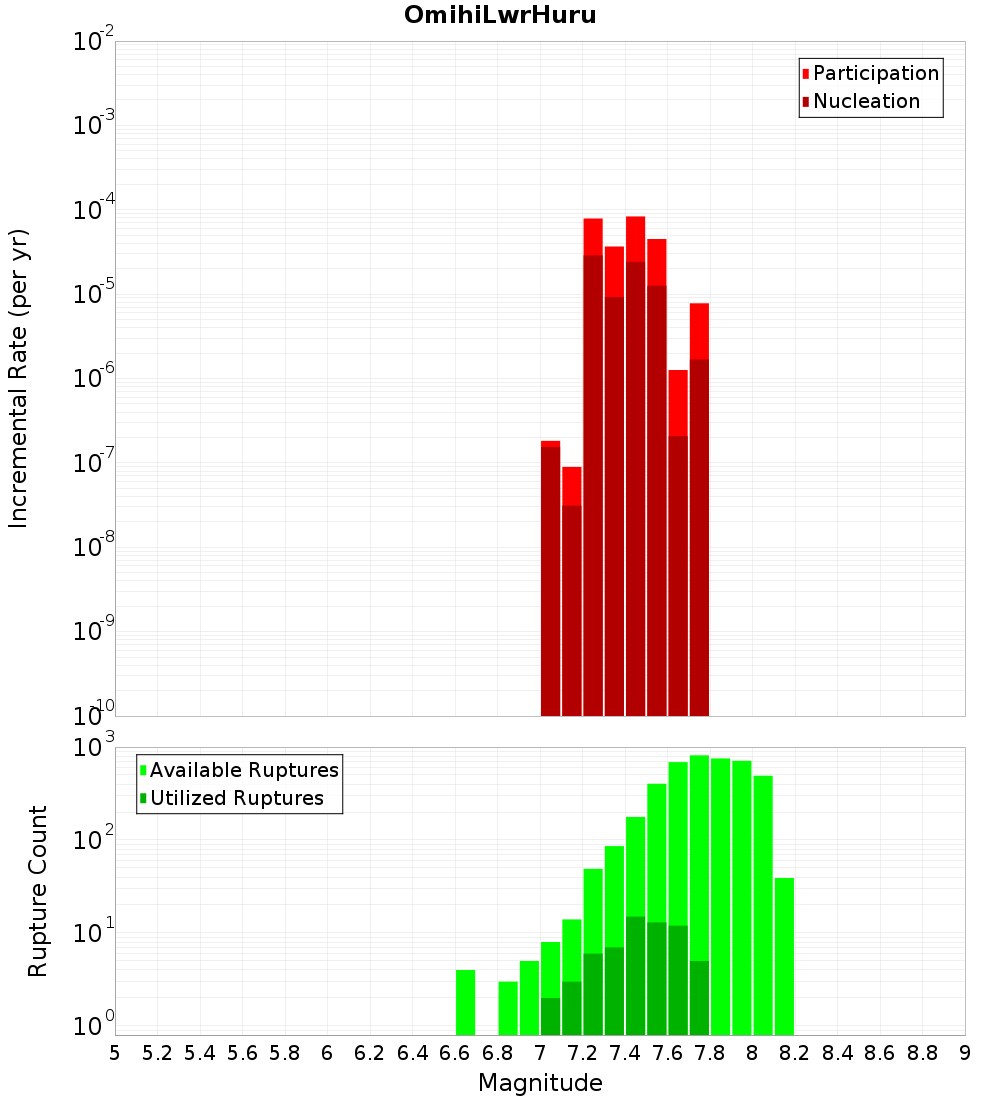

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

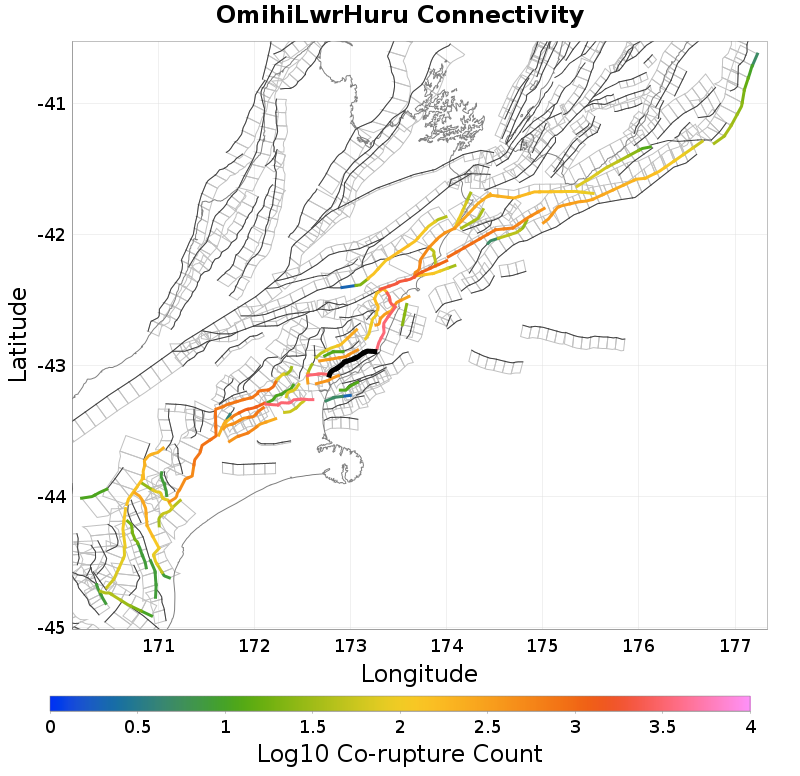

Connectivity

Nearby Sections

Fault Section
Boby Stream, 0.79 km away
AmberBlyth, 1.98 km away
Kaiwara South, 3.01 km away
Hawkswood, 3.06 km away
Alexander, 6.66 km away
Motunau, 8.85 km away
Point Gibson, 9.05 km away
Kaiwara North, 10.71 km away
Leithfield - NCVI - NCVII, 11.17 km away
North Canterbury Shelf 2, 11.23 km away
Lowry, 11.55 km away
North Canterbury Shelf 11, 11.78 km away
Doctors, 12.16 km away
Waikuku, 14.73 km away

Boby Stream, 0.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMDguMFFEbmIz
Connected?	true
Directly Connected?	true
Co-rupture Count	3,217
Co-rupture Rate	5.7465935E-5

AmberBlyth, 1.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMDguMFFEbmIz
Connected?	true
Directly Connected?	true
Co-rupture Count	394
Co-rupture Rate	9.068646E-5

Kaiwara South, 3.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMDguMFFEbmIz
Connected?	true
Directly Connected?	true
Co-rupture Count	405
Co-rupture Rate	5.5345037E-5

Hawkswood, 3.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMDguMFFEbmIz
Connected?	true
Directly Connected?	true
Co-rupture Count	3,422
Co-rupture Rate	1.5195362E-4

Alexander, 6.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMDguMFFEbmIz
Connected?	true
Directly Connected?	false
Co-rupture Count	12
Co-rupture Rate	2.0266063E-5

Motunau, 8.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMDguMFFEbmIz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Point Gibson, 9.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMDguMFFEbmIz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kaiwara North, 10.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMDguMFFEbmIz
Connected?	true
Directly Connected?	false
Co-rupture Count	97
Co-rupture Rate	0.0

Leithfield - NCVI - NCVII, 11.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMDguMFFEbmIz
Connected?	true
Directly Connected?	true
Co-rupture Count	12
Co-rupture Rate	2.7682026E-5

North Canterbury Shelf 2, 11.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMDguMFFEbmIz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Lowry, 11.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMDguMFFEbmIz
Connected?	true
Directly Connected?	true
Co-rupture Count	251
Co-rupture Rate	1.043337E-4

North Canterbury Shelf 11, 11.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMDguMFFEbmIz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Doctors, 12.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMDguMFFEbmIz
Connected?	true
Directly Connected?	false
Co-rupture Count	304
Co-rupture Rate	1.5766043E-5

Waikuku, 14.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMDguMFFEbmIz
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	0.0
