Caswell High 8 Details
| Property | Value |
|---|---|
| Rupture Count | 729 |
| Ruptures Above Sect Min Mag | 721 |
| Ruptures w/ Nonzero Rates | 20 |
| Magnitude Range | [6.66, 8.54] |
| Length Range | [14, 762] km |
| Total Rate | 2.7637283E-4 /yr |
| Multi-Fault Rate | 1.5439907E-4 /yr (55.87%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 21 |
Table Of Contents

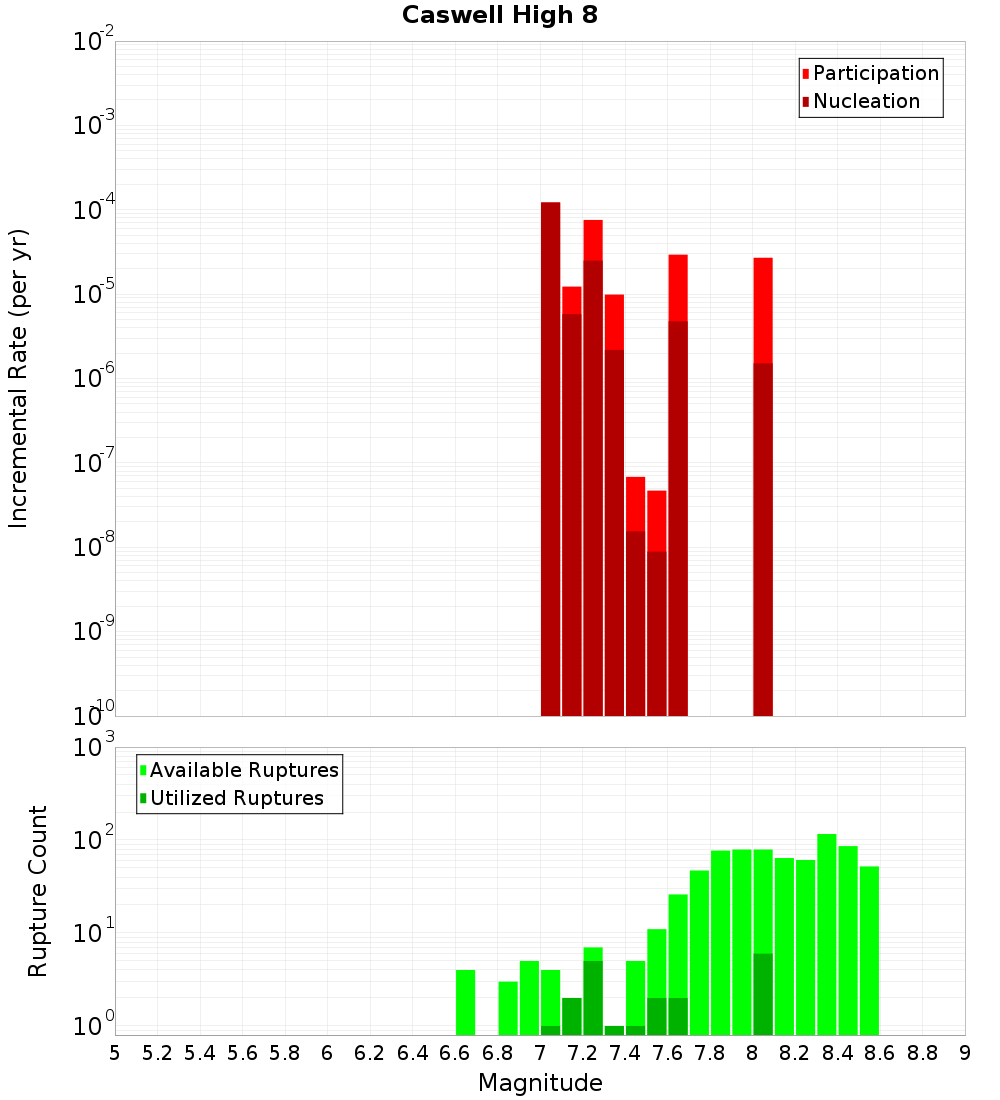

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

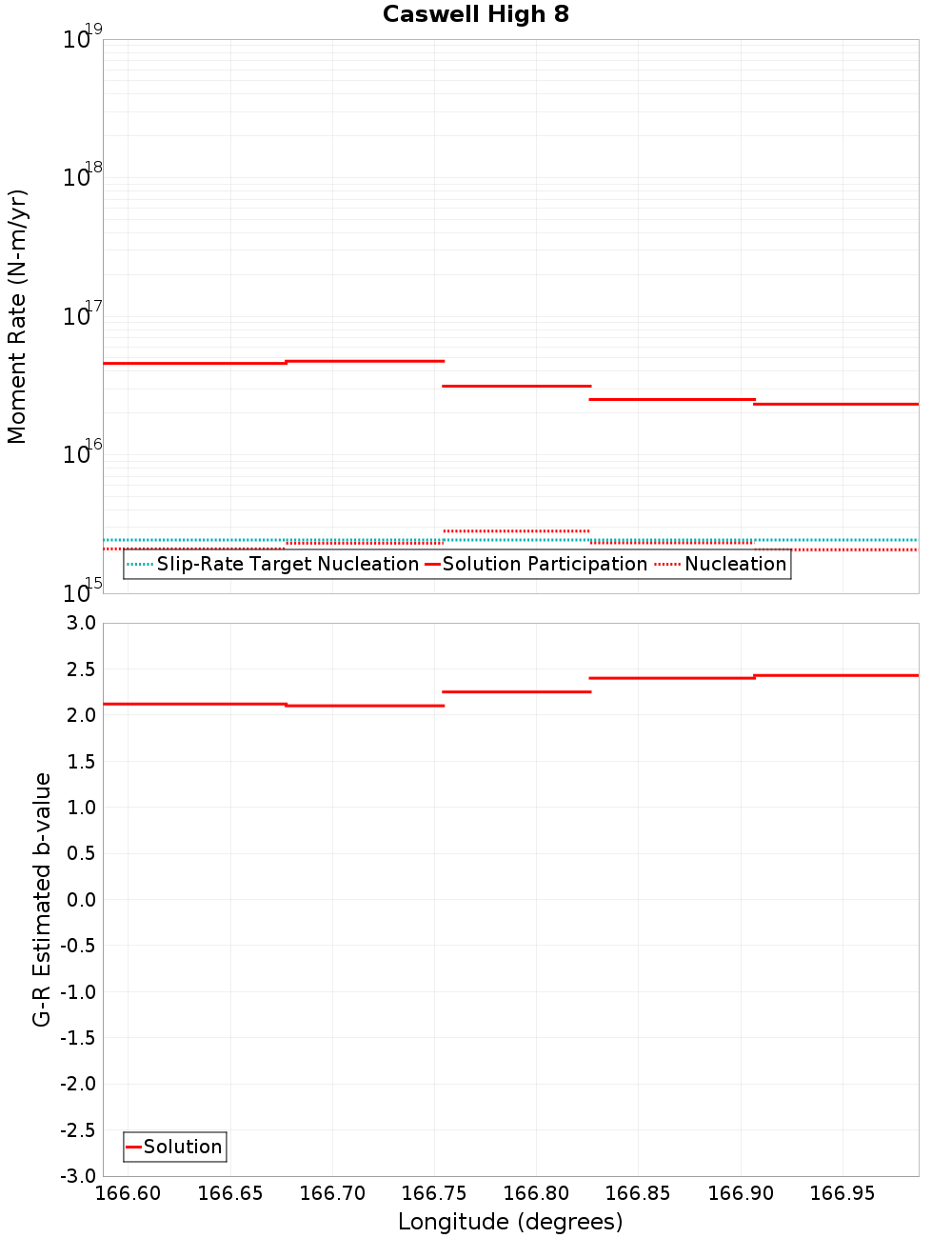

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Caswell High 9, 4.19 km away |
| Caswell High 10, 6.72 km away |
| Caswell High 67, 10.93 km away |
| Milford Basin 5 to George R2, 12.84 km away |
| Central Wedge 1 & 2 & 3, 13.72 km away |
Caswell High 9, 4.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMDkuNWFDYVRO | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 63 |
| Co-rupture Rate | 6.2792344E-5 |
Caswell High 10, 6.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMDkuNWFDYVRO | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 24 |
| Co-rupture Rate | 1.2740449E-4 |
Caswell High 67, 10.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMDkuNWFDYVRO | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Milford Basin 5 to George R2, 12.84 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMDkuNWFDYVRO | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 12 |
| Co-rupture Rate | 2.9486046E-5 |
Central Wedge 1 & 2 & 3, 13.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMDkuNWFDYVRO | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 691 |
| Co-rupture Rate | 2.6994576E-5 |
