Ostler South Details

PropertyValue
Rupture Count3,541
Ruptures Above Sect Min Mag3,540
Ruptures w/ Nonzero Rates161
Magnitude Range[7.23, 8.54]
Length Range[25, 679] km
Total Rate1.8434858E-4 /yr
Multi-Fault Rate1.8434858E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults80

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

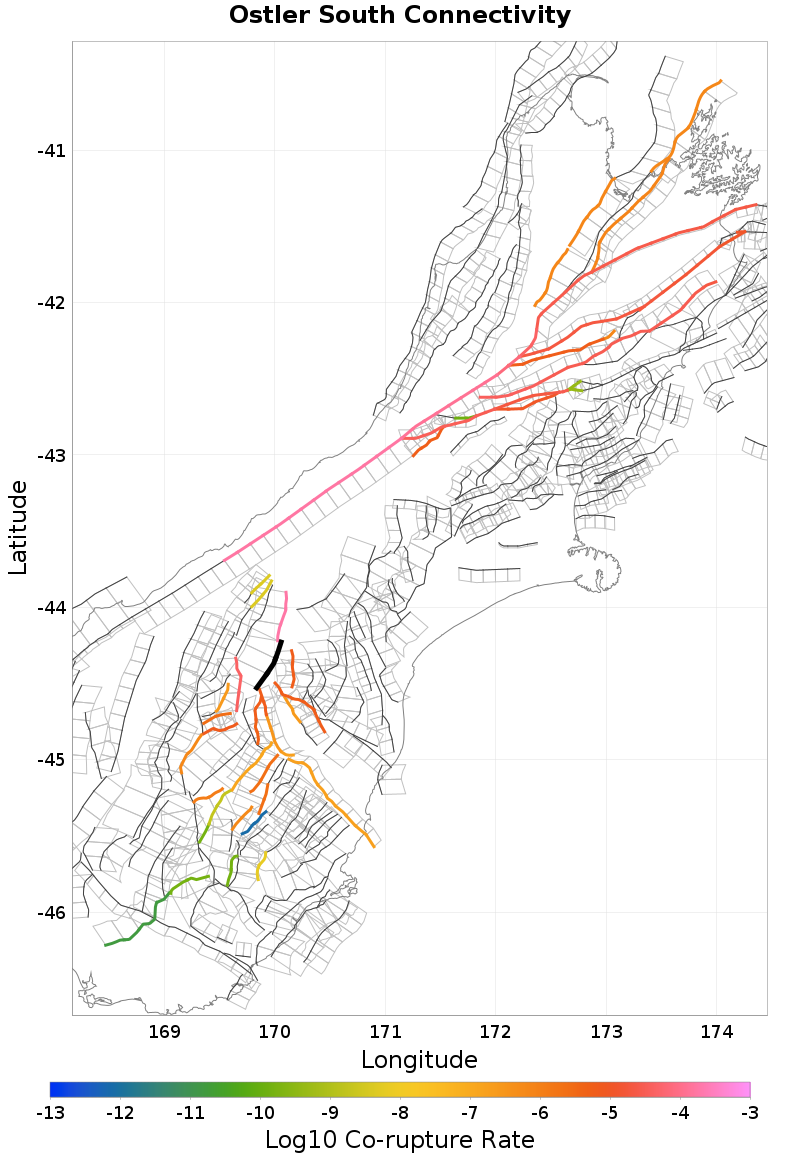

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ostler North, 1.89 km away
Hawkdun, 2.35 km away
Dromedary, 3.83 km away
Lindis River, 7.13 km away
Omarama Saddle, 7.55 km away
Falstone, 8.01 km away
Fern Gully, 8.7 km away
Blue Lake, 9.43 km away
Timaru Creek, 9.79 km away
Barrier Range, 12.24 km away
Grandview, 14.98 km away

Ostler North, 1.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMTQuMFBmTVRY
Connected?true
Directly Connected?true
Co-rupture Count2,995
Co-rupture Rate1.8434595E-4

Hawkdun, 2.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMTQuMFBmTVRY
Connected?true
Directly Connected?true
Co-rupture Count1,846
Co-rupture Rate6.101618E-6

Dromedary, 3.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMTQuMFBmTVRY
Connected?true
Directly Connected?true
Co-rupture Count481
Co-rupture Rate4.542115E-5

Lindis River, 7.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMTQuMFBmTVRY
Connected?true
Directly Connected?false
Co-rupture Count53
Co-rupture Rate2.344779E-7

Omarama Saddle, 7.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMTQuMFBmTVRY
Connected?true
Directly Connected?false
Co-rupture Count1,033
Co-rupture Rate5.7996776E-6

Falstone, 8.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMTQuMFBmTVRY
Connected?true
Directly Connected?false
Co-rupture Count54
Co-rupture Rate6.002379E-6

Fern Gully, 8.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMTQuMFBmTVRY
Connected?true
Directly Connected?false
Co-rupture Count37
Co-rupture Rate6.002379E-6

Blue Lake, 9.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMTQuMFBmTVRY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Timaru Creek, 9.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMTQuMFBmTVRY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Barrier Range, 12.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMTQuMFBmTVRY
Connected?true
Directly Connected?false
Co-rupture Count68
Co-rupture Rate0.0

Grandview, 14.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMTQuMFBmTVRY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
