North Canterbury Shelf 4 Details

PropertyValue
Rupture Count188
Ruptures Above Sect Min Mag173
Ruptures w/ Nonzero Rates8
Magnitude Range[6.51, 7.94]
Length Range[15, 311] km
Total Rate1.0178402E-4 /yr
Multi-Fault Rate1.0178402E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults21

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

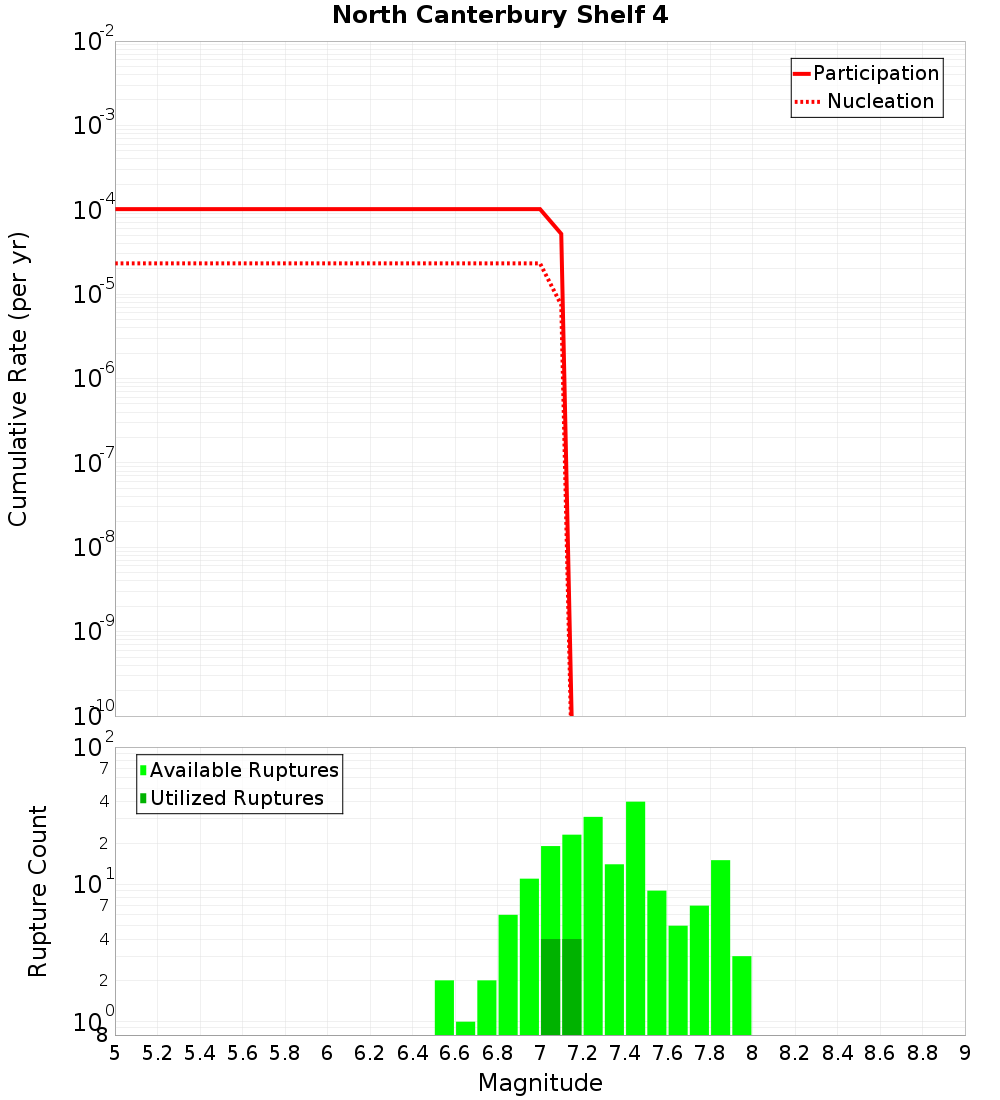

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Pegasus Bay, 1.54 km away
Leithfield - NCVI - NCVII, 4.53 km away
Waikuku, 5.12 km away
North Canterbury Shelf 11, 5.86 km away
Motunau, 6 km away
North Canterbury Shelf 2, 7.11 km away
Point Gibson, 10.06 km away
AmberBlyth, 12.25 km away

Pegasus Bay, 1.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMjYuMGVEZFdT
Connected?true
Directly Connected?true
Co-rupture Count65
Co-rupture Rate8.677151E-5

Leithfield - NCVI - NCVII, 4.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMjYuMGVEZFdT
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate5.45875E-5

Waikuku, 5.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMjYuMGVEZFdT
Connected?true
Directly Connected?true
Co-rupture Count124
Co-rupture Rate0.0

North Canterbury Shelf 11, 5.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMjYuMGVEZFdT
Connected?true
Directly Connected?true
Co-rupture Count46
Co-rupture Rate3.1517975E-5

Motunau, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMjYuMGVEZFdT
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

North Canterbury Shelf 2, 7.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMjYuMGVEZFdT
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Point Gibson, 10.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMjYuMGVEZFdT
Connected?true
Directly Connected?false
Co-rupture Count38
Co-rupture Rate0.0

AmberBlyth, 12.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMjYuMGVEZFdT
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
