Waitangi Details

PropertyValue
Rupture Count157
Ruptures Above Sect Min Mag156
Ruptures w/ Nonzero Rates38
Magnitude Range[6.86, 7.90]
Length Range[18, 157] km
Total Rate3.9366663E-5 /yr
Multi-Fault Rate3.9366663E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults14

Table Of Contents

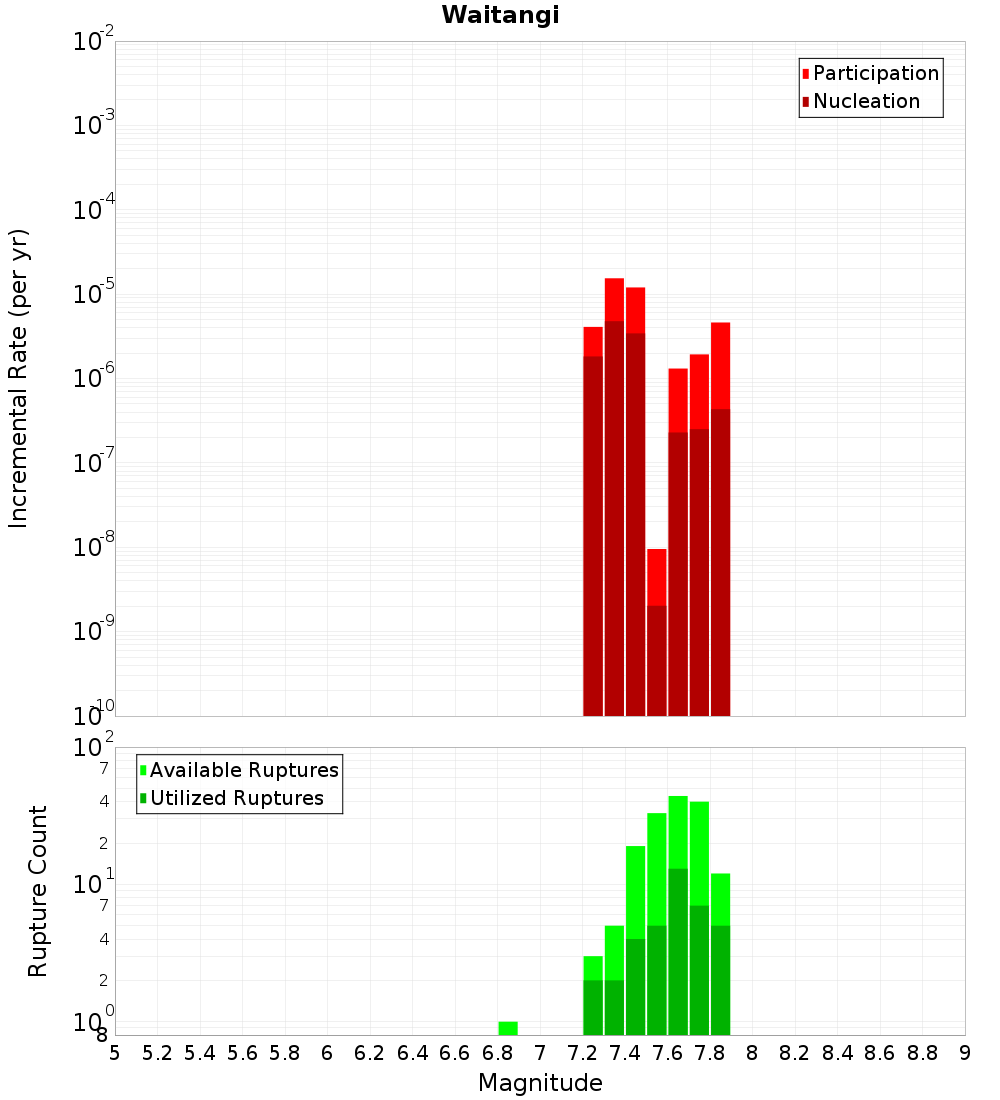

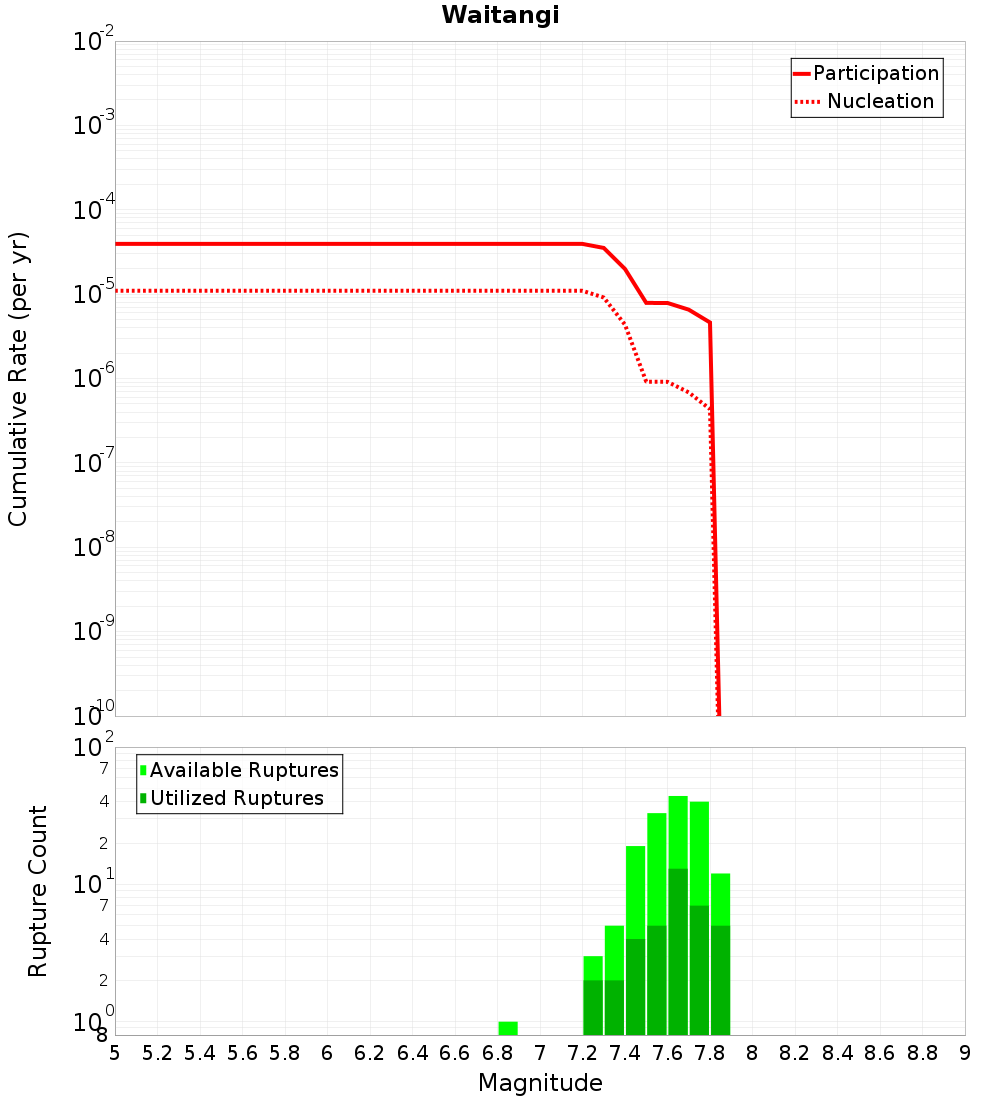

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

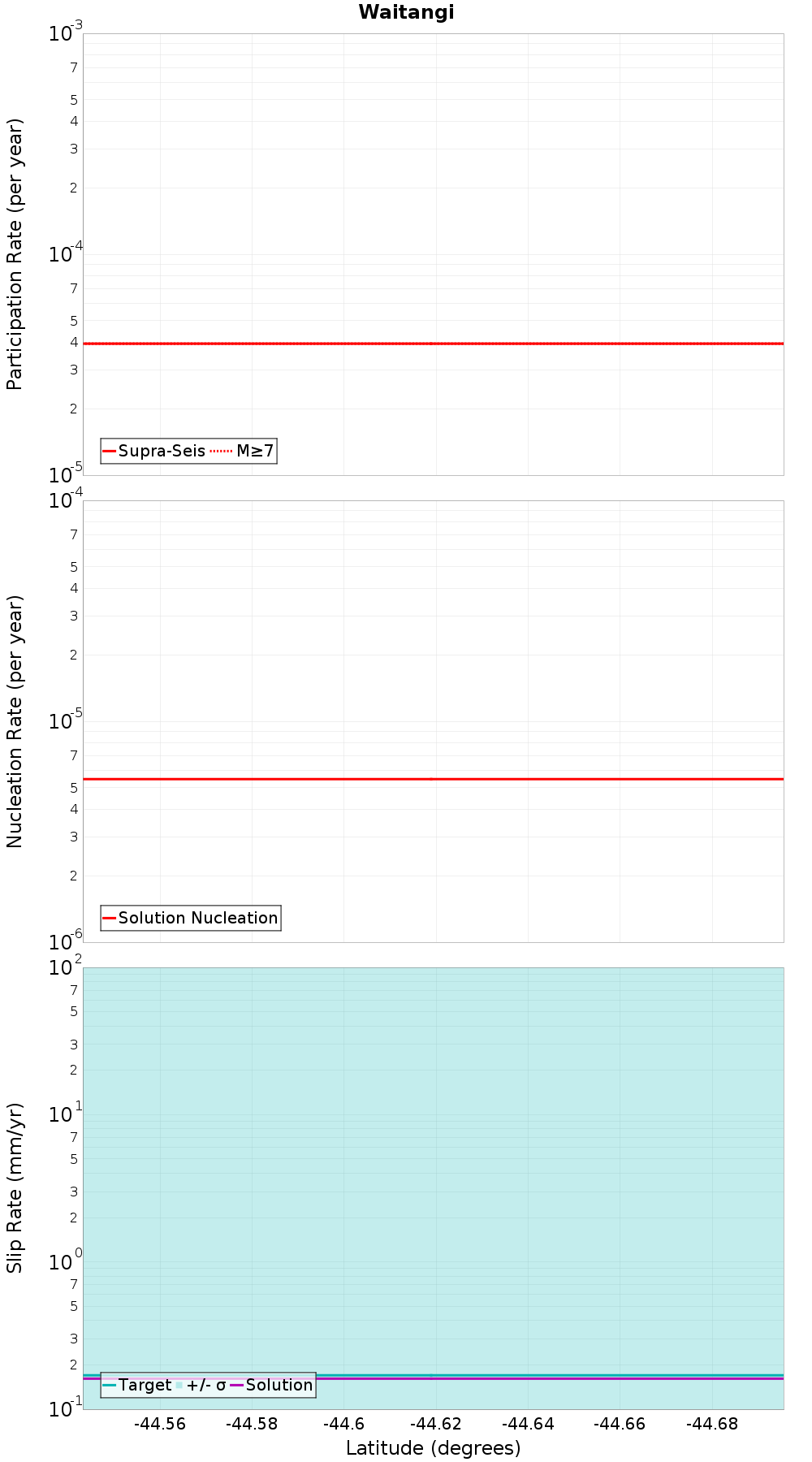

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

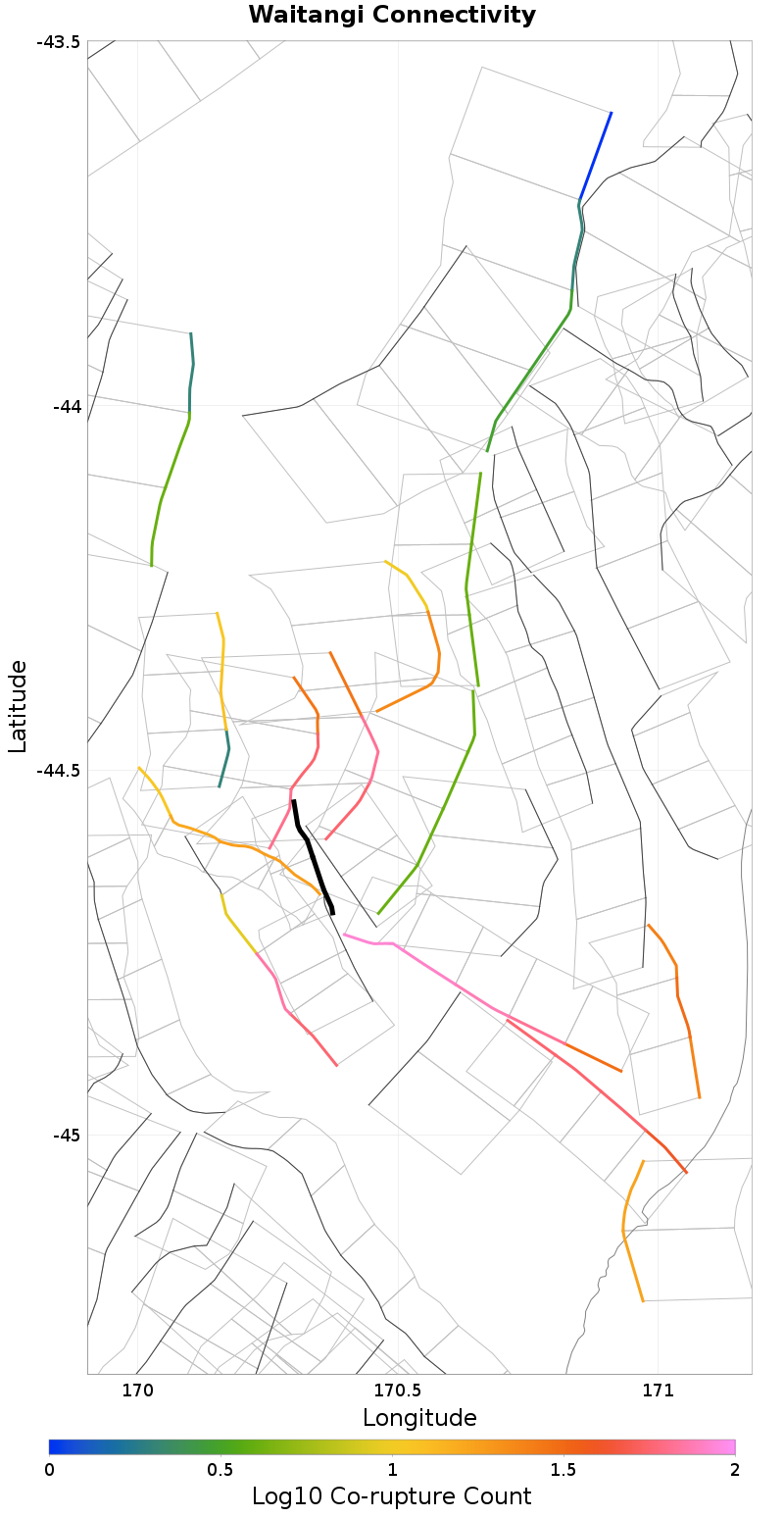

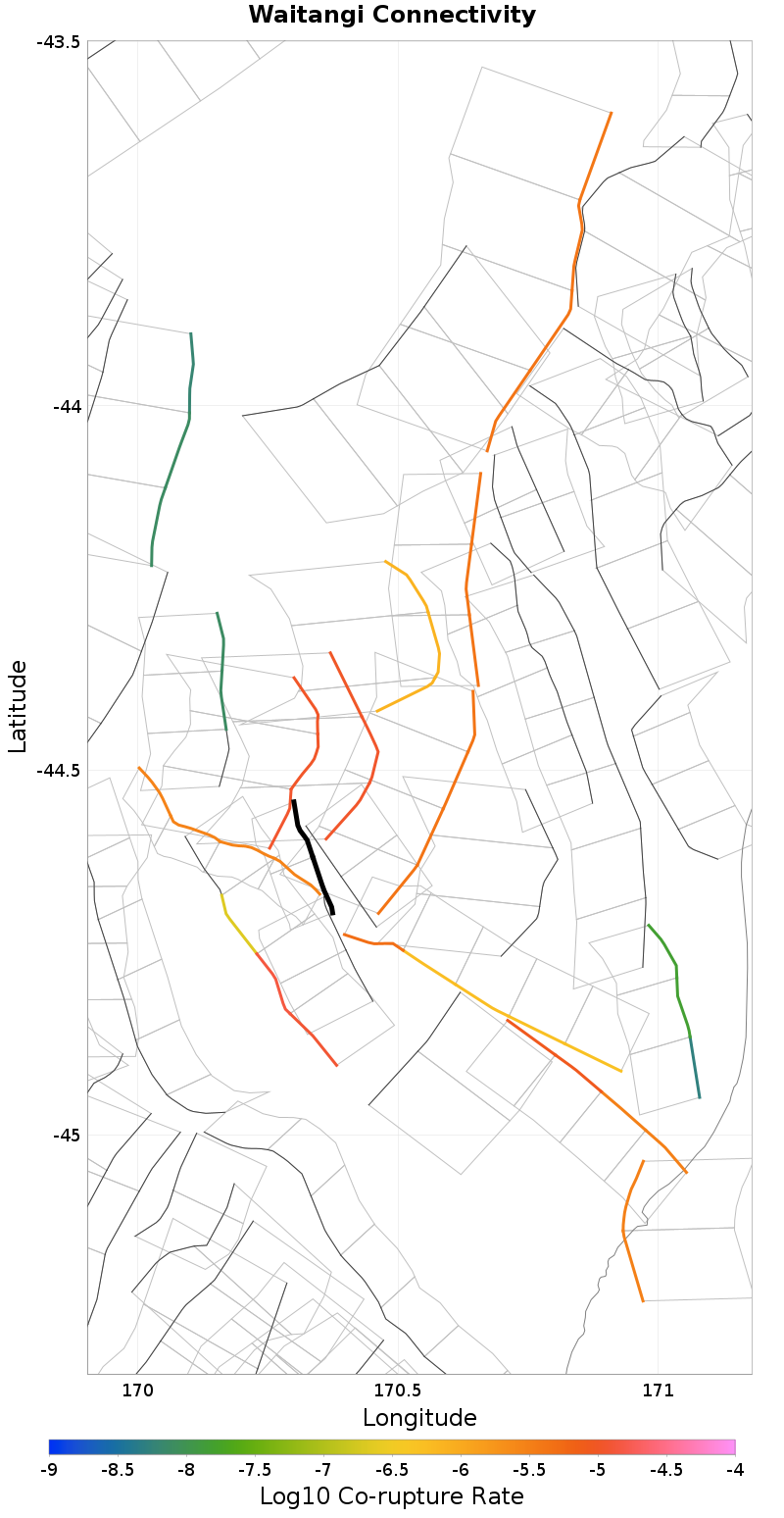

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mt Sutton, 0.22 km away
Fern Gully, 0.29 km away
Middle Range, 0.37 km away
Awahokomo, 0.42 km away
Gibson, 0.56 km away
Dryburgh, 1.08 km away
Kirkliston, 1.41 km away
Stonewall, 3.51 km away
Falstone, 11.14 km away
Campbell Hills, 12.79 km away
Grampian, 14.38 km away

Mt Sutton, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzAuME42Y3RM
Connected?true
Directly Connected?true
Co-rupture Count66
Co-rupture Rate1.0914688E-5

Fern Gully, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzAuME42Y3RM
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate2.866823E-6

Middle Range, 0.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzAuME42Y3RM
Connected?true
Directly Connected?true
Co-rupture Count71
Co-rupture Rate1.4218455E-5

Awahokomo, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzAuME42Y3RM
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Gibson, 0.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzAuME42Y3RM
Connected?true
Directly Connected?true
Co-rupture Count64
Co-rupture Rate1.1315045E-5

Dryburgh, 1.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzAuME42Y3RM
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kirkliston, 1.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzAuME42Y3RM
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate4.2796837E-6

Stonewall, 3.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzAuME42Y3RM
Connected?true
Directly Connected?true
Co-rupture Count85
Co-rupture Rate4.8356014E-6

Falstone, 11.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzAuME42Y3RM
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate7.688366E-9

Campbell Hills, 12.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzAuME42Y3RM
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Grampian, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzAuME42Y3RM
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate7.5189985E-7
