Wellington: Tararua 3 Details

Property	Value
Rupture Count	50,840
Ruptures Above Sect Min Mag	50,838
Ruptures w/ Nonzero Rates	278
Magnitude Range	[6.87, 8.54]
Length Range	[16, 777] km
Total Rate	8.5391314E-4 /yr
Multi-Fault Rate	8.5391314E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	128

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

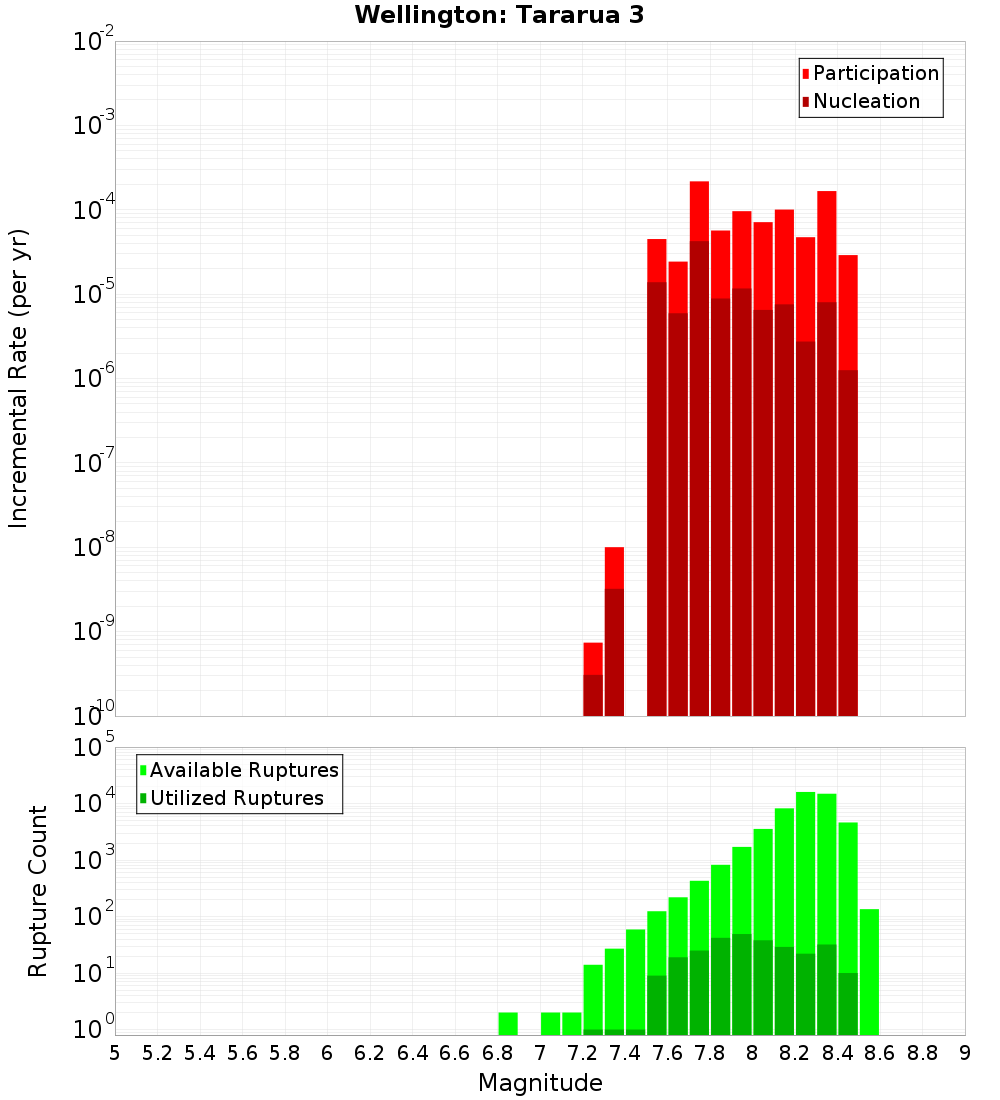

Magnitude-Frequency Distribution

Incremental	Cumulative

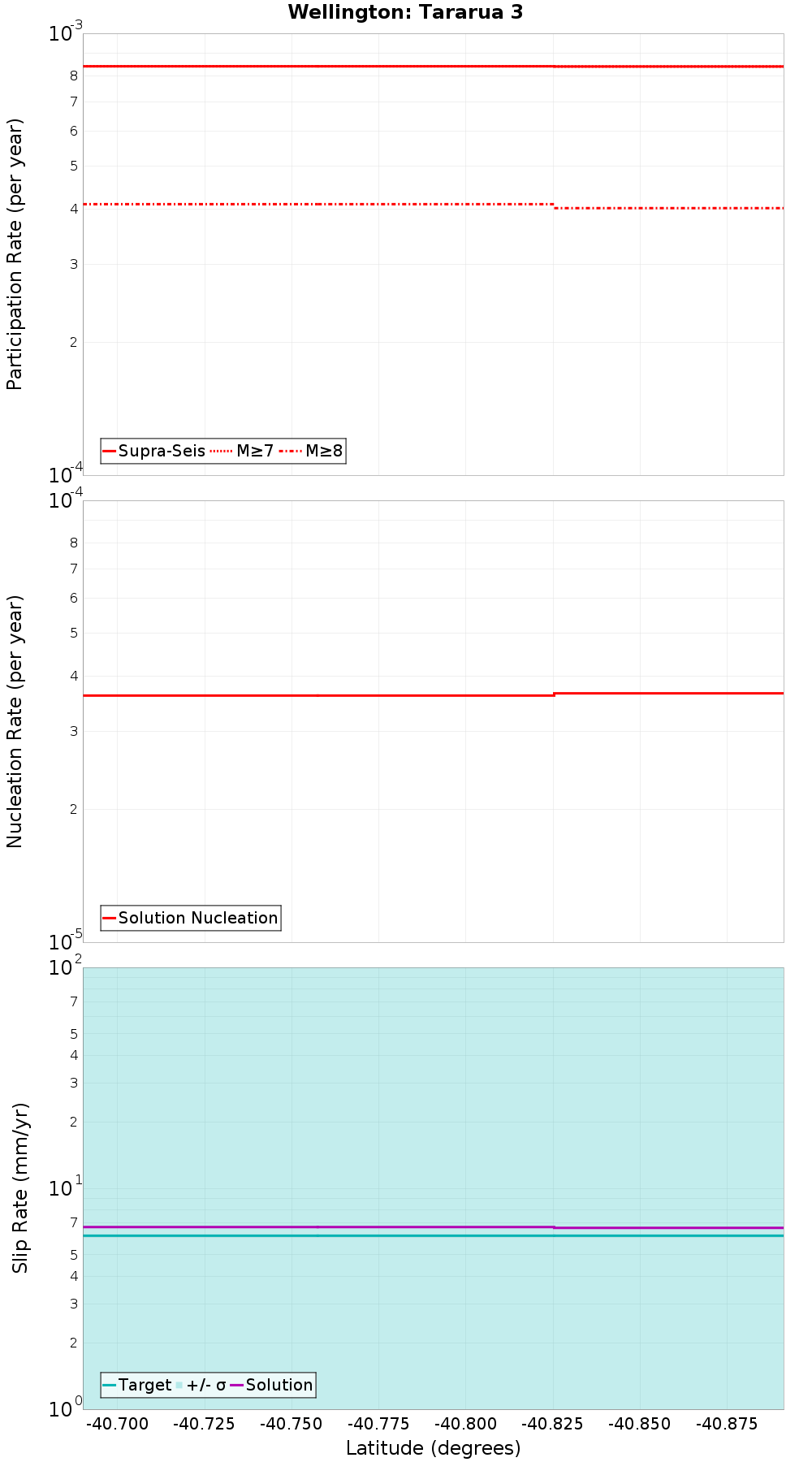

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Wellington: Tararua 2, 0 km away
Wellington: Pahiatua, 0.03 km away
Otaki Forks: 2, 0.3 km away
Tokomaru, 1.29 km away
Northern Ohariu, 1.86 km away
Wairarapa: 3, 9.13 km away
Mokonui Southwest, 9.81 km away
Otaki Forks: 1, 11.36 km away
Masterton, 11.85 km away
Carterton, 13.79 km away
Wairarapa: 2, 14.29 km away

Wellington: Tararua 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzAuME42Y3RM
Connected?	true
Directly Connected?	true
Co-rupture Count	42,630
Co-rupture Rate	7.6908723E-4

Wellington: Pahiatua, 0.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzAuME42Y3RM
Connected?	true
Directly Connected?	true
Co-rupture Count	49,026
Co-rupture Rate	8.2117814E-4

Otaki Forks: 2, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzAuME42Y3RM
Connected?	true
Directly Connected?	true
Co-rupture Count	2,035
Co-rupture Rate	5.097569E-9

Tokomaru, 1.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzAuME42Y3RM
Connected?	true
Directly Connected?	true
Co-rupture Count	1,044
Co-rupture Rate	2.5080864E-5

Northern Ohariu, 1.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzAuME42Y3RM
Connected?	true
Directly Connected?	true
Co-rupture Count	1,334
Co-rupture Rate	2.9708348E-5

Wairarapa: 3, 9.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzAuME42Y3RM
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mokonui Southwest, 9.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzAuME42Y3RM
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otaki Forks: 1, 11.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzAuME42Y3RM
Connected?	true
Directly Connected?	false
Co-rupture Count	1,638
Co-rupture Rate	5.097569E-9

Masterton, 11.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzAuME42Y3RM
Connected?	true
Directly Connected?	false
Co-rupture Count	91
Co-rupture Rate	1.397972E-5

Carterton, 13.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzAuME42Y3RM
Connected?	true
Directly Connected?	true
Co-rupture Count	3,082
Co-rupture Rate	1.479785E-4

Wairarapa: 2, 14.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzAuME42Y3RM
Connected?	true
Directly Connected?	false
Co-rupture Count	14,347
Co-rupture Rate	2.215209E-4
