Kaikorai Details

Property	Value
Rupture Count	19
Ruptures Above Sect Min Mag	18
Ruptures w/ Nonzero Rates	4
Magnitude Range	[6.81, 7.66]
Length Range	[15, 109] km
Total Rate	1.9607032E-5 /yr
Multi-Fault Rate	1.9607032E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	7

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

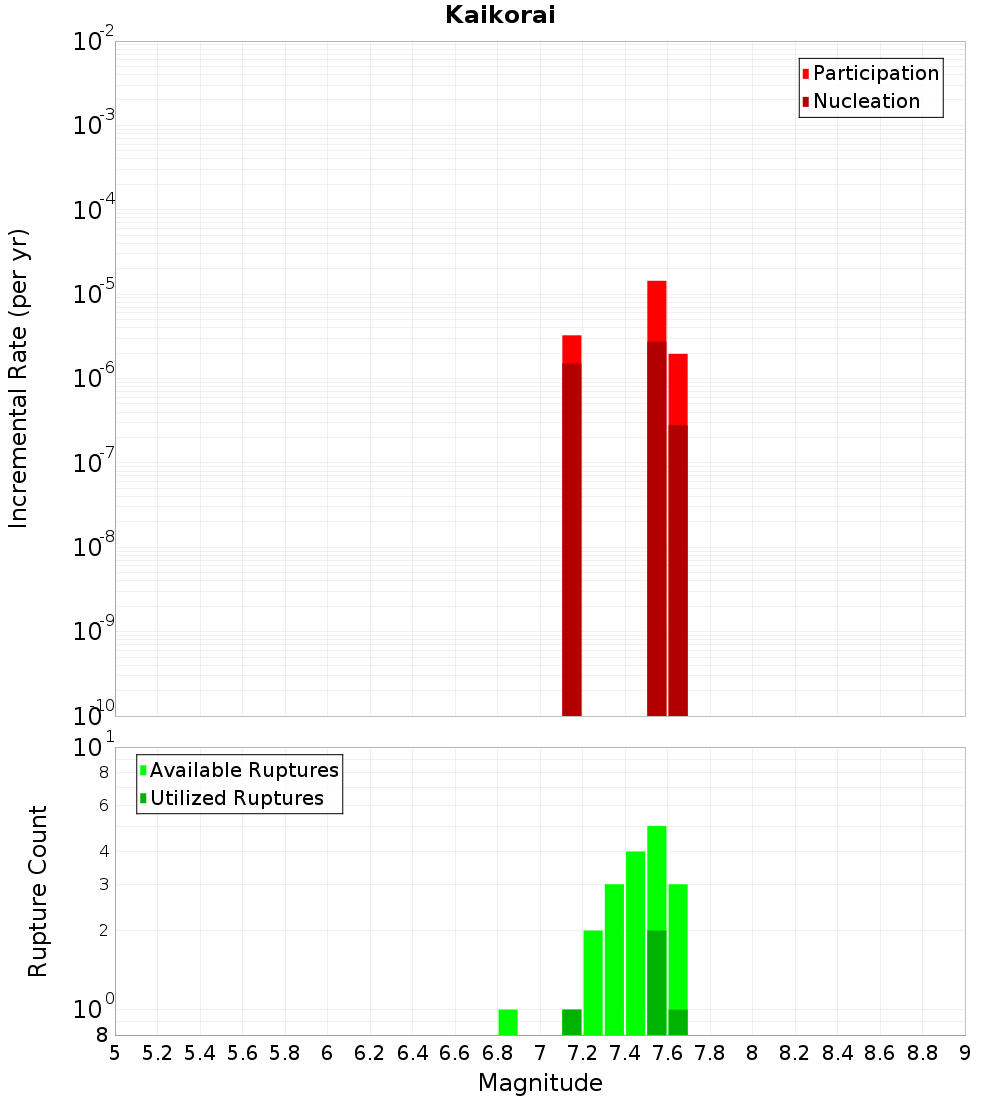

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

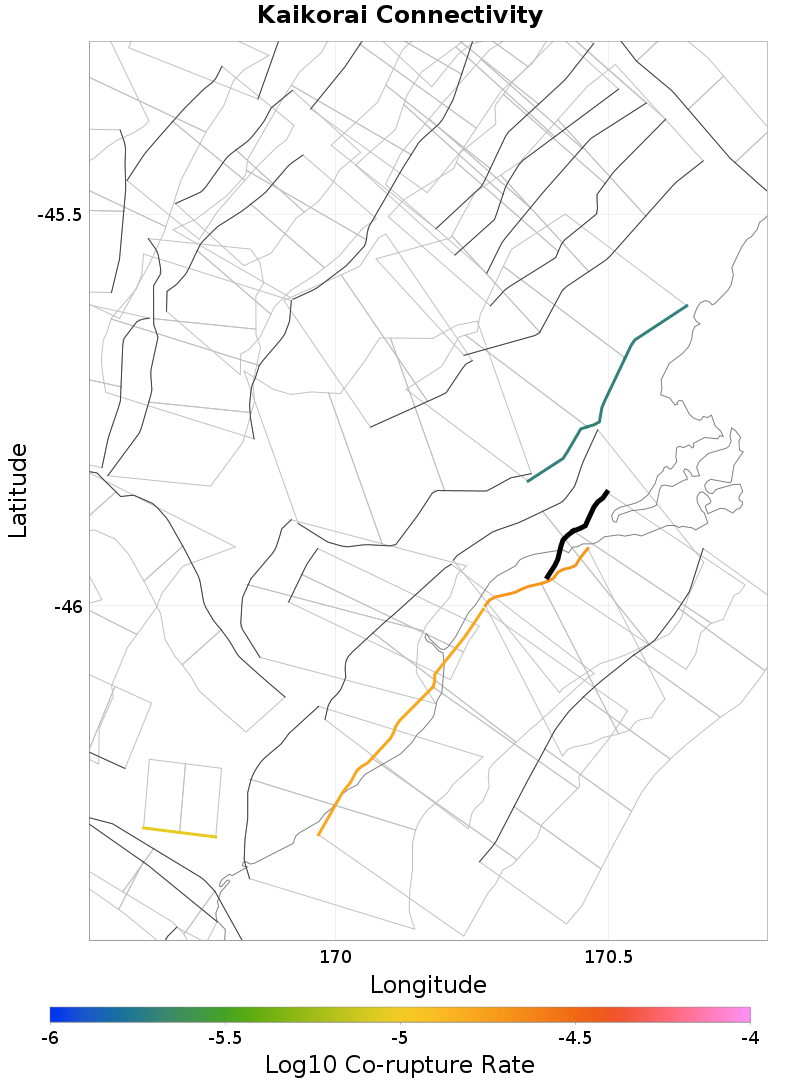

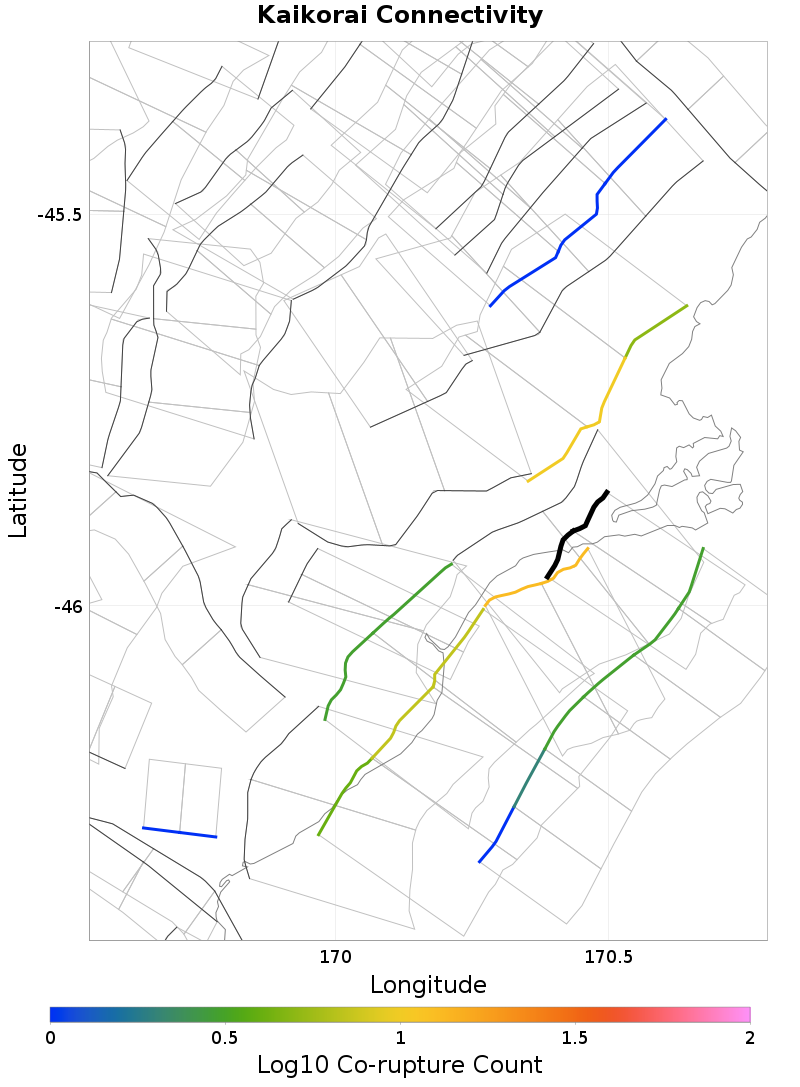

Connectivity

Nearby Sections

Fault Section
Green Island, 0.54 km away
Titri North, 2.67 km away
Sliver Stream - Merton, 7.87 km away
Akatore, 9.64 km away
Maungatua - North Taieri, 10.06 km away
Titri Central, 10.87 km away
Takapu, 11.17 km away

Green Island, 0.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzIuMGM5OWNj
Connected?	true
Directly Connected?	true
Co-rupture Count	13
Co-rupture Rate	1.9607032E-5

Titri North, 2.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzIuMGM5OWNj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Sliver Stream - Merton, 7.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzIuMGM5OWNj
Connected?	true
Directly Connected?	true
Co-rupture Count	10
Co-rupture Rate	1.9609174E-6

Akatore, 9.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzIuMGM5OWNj
Connected?	true
Directly Connected?	false
Co-rupture Count	7
Co-rupture Rate	1.635656E-5

Maungatua - North Taieri, 10.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzIuMGM5OWNj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Titri Central, 10.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzIuMGM5OWNj
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

Takapu, 11.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzIuMGM5OWNj
Connected?	true
Directly Connected?	true
Co-rupture Count	3
Co-rupture Rate	0.0
