Starvation - Ashley Details

PropertyValue
Rupture Count12,580
Ruptures Above Sect Min Mag12,573
Ruptures w/ Nonzero Rates152
Magnitude Range[6.77, 8.15]
Length Range[21, 538] km
Total Rate1.9899095E-4 /yr
Multi-Fault Rate1.9899095E-4 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults87

Table Of Contents

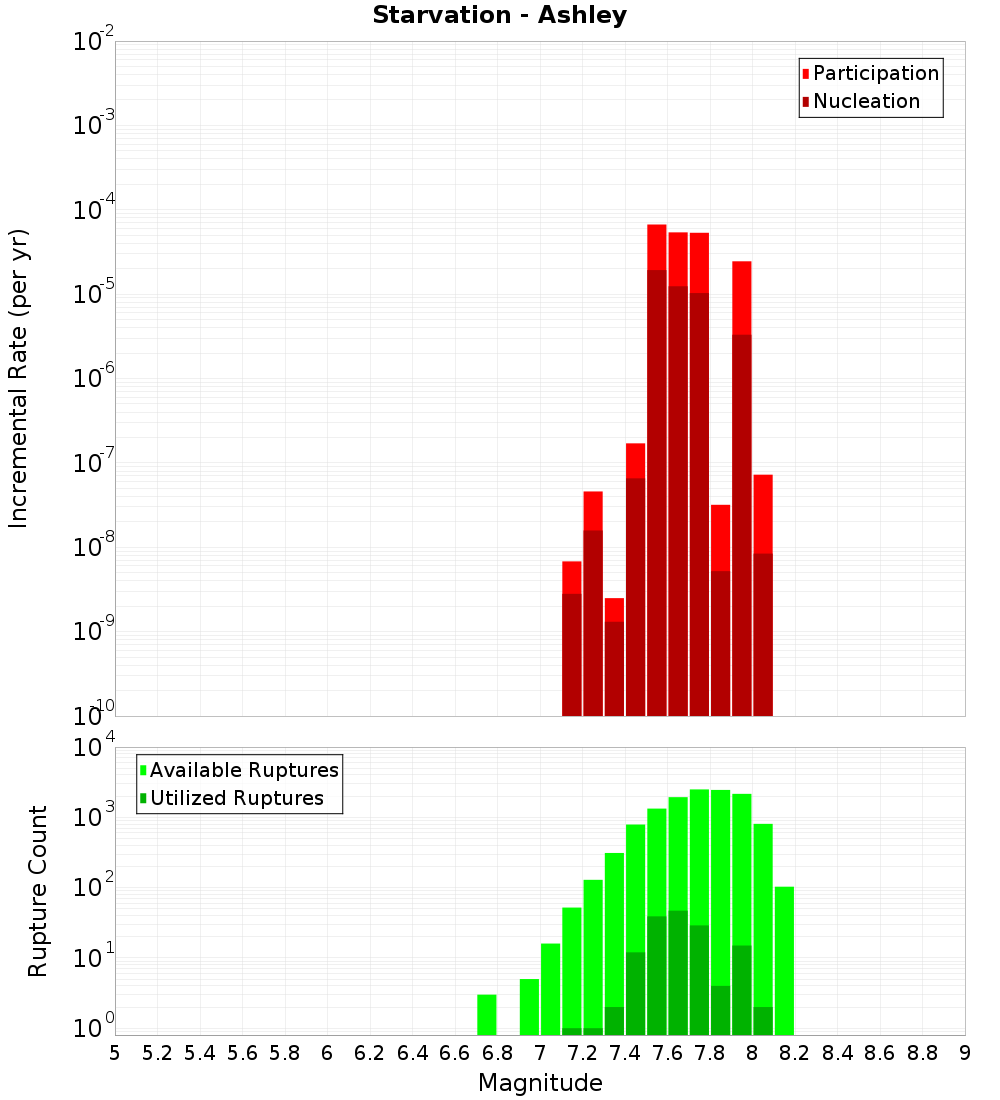

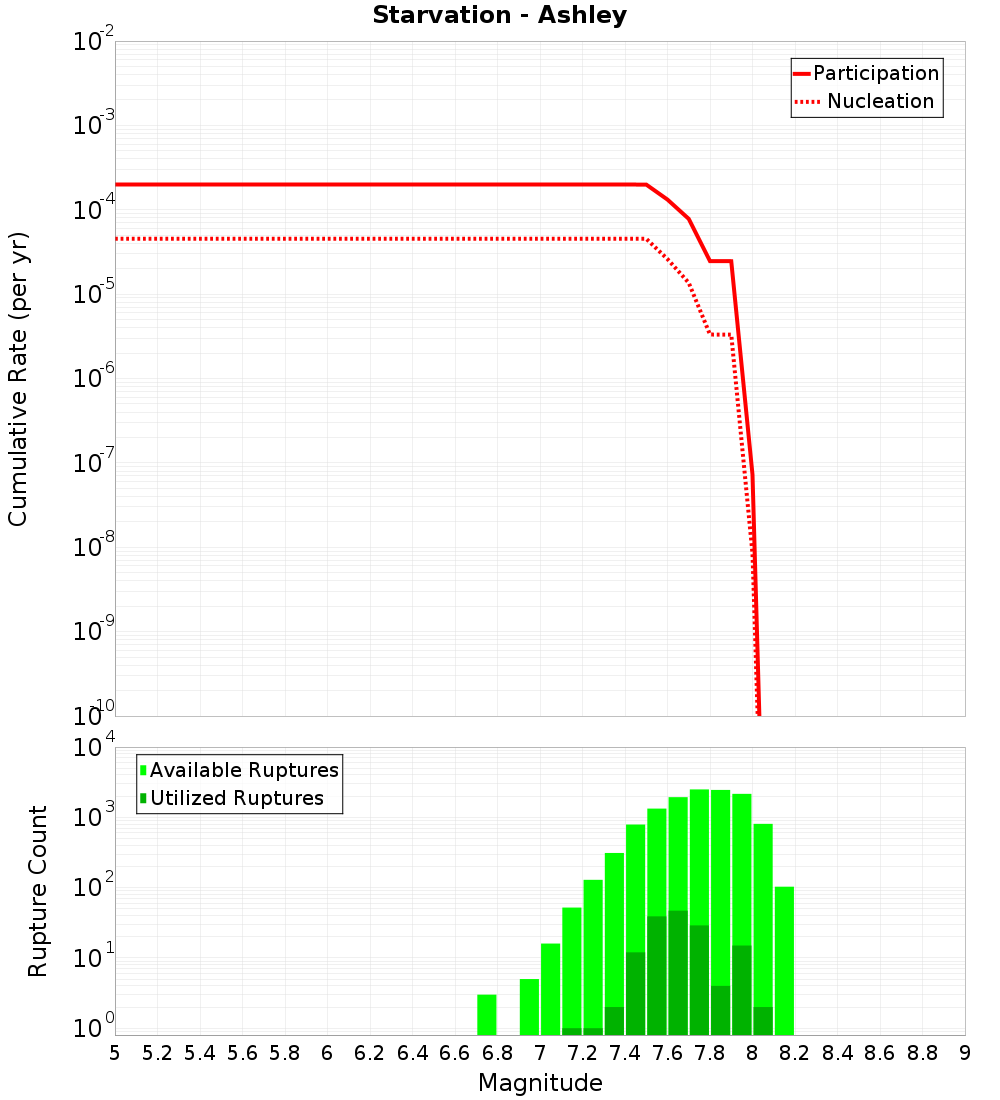

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Springbank, 0.14 km awayHigh Peak - Sheffield, 3.73 km away
Mt Lawry, 0.17 km awayHororata, 6.38 km away
Lees Valley, 0.3 km awayAmberBlyth, 7.86 km away
Pancake, 0.4 km awayDoctors, 8.76 km away
Boby Stream, 0.62 km awayPorters Pass, 10.36 km away
Esk South, 0.76 km awayWaikuku, 11.22 km away
Kowai - View Hill, 0.87 km awayPegasus Bay, 12.18 km away
Knowles Top, 1.58 km awayTorlesse, 12.83 km away

Springbank, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzIuMGM5OWNj
Connected?true
Directly Connected?true
Co-rupture Count338
Co-rupture Rate3.0159828E-5

Mt Lawry, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzIuMGM5OWNj
Connected?true
Directly Connected?true
Co-rupture Count225
Co-rupture Rate0.0

Lees Valley, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzIuMGM5OWNj
Connected?true
Directly Connected?true
Co-rupture Count2,884
Co-rupture Rate1.018178E-4

Pancake, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzIuMGM5OWNj
Connected?true
Directly Connected?false
Co-rupture Count34
Co-rupture Rate0.0

Boby Stream, 0.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzIuMGM5OWNj
Connected?true
Directly Connected?true
Co-rupture Count8,865
Co-rupture Rate4.2673278E-6

Esk South, 0.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzIuMGM5OWNj
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kowai - View Hill, 0.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzIuMGM5OWNj
Connected?true
Directly Connected?true
Co-rupture Count5,335
Co-rupture Rate3.598568E-5

Knowles Top, 1.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzIuMGM5OWNj
Connected?true
Directly Connected?false
Co-rupture Count53
Co-rupture Rate1.3296558E-5

High Peak - Sheffield, 3.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzIuMGM5OWNj
Connected?true
Directly Connected?true
Co-rupture Count3,893
Co-rupture Rate5.1069026E-5

Hororata, 6.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzIuMGM5OWNj
Connected?true
Directly Connected?false
Co-rupture Count3,481
Co-rupture Rate8.121458E-5

AmberBlyth, 7.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzIuMGM5OWNj
Connected?true
Directly Connected?true
Co-rupture Count3,404
Co-rupture Rate1.9212102E-4

Doctors, 8.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzIuMGM5OWNj
Connected?true
Directly Connected?false
Co-rupture Count4,915
Co-rupture Rate3.6656225E-9

Porters Pass, 10.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzIuMGM5OWNj
Connected?true
Directly Connected?false
Co-rupture Count1,606
Co-rupture Rate6.754618E-5

Waikuku, 11.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzIuMGM5OWNj
Connected?true
Directly Connected?true
Co-rupture Count474
Co-rupture Rate2.5632658E-6

Pegasus Bay, 12.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzIuMGM5OWNj
Connected?true
Directly Connected?false
Co-rupture Count31
Co-rupture Rate1.2976374E-9

Torlesse, 12.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzIuMGM5OWNj
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
