Dromedary Details

PropertyValue
Rupture Count12,381
Ruptures Above Sect Min Mag12,380
Ruptures w/ Nonzero Rates168
Magnitude Range[7.14, 8.64]
Length Range[26, 810] km
Total Rate5.798533E-5 /yr
Multi-Fault Rate5.798533E-5 /yr (100.00%)
Directly-Connected Faults10
All Co-Rupturing Faults99

Table Of Contents

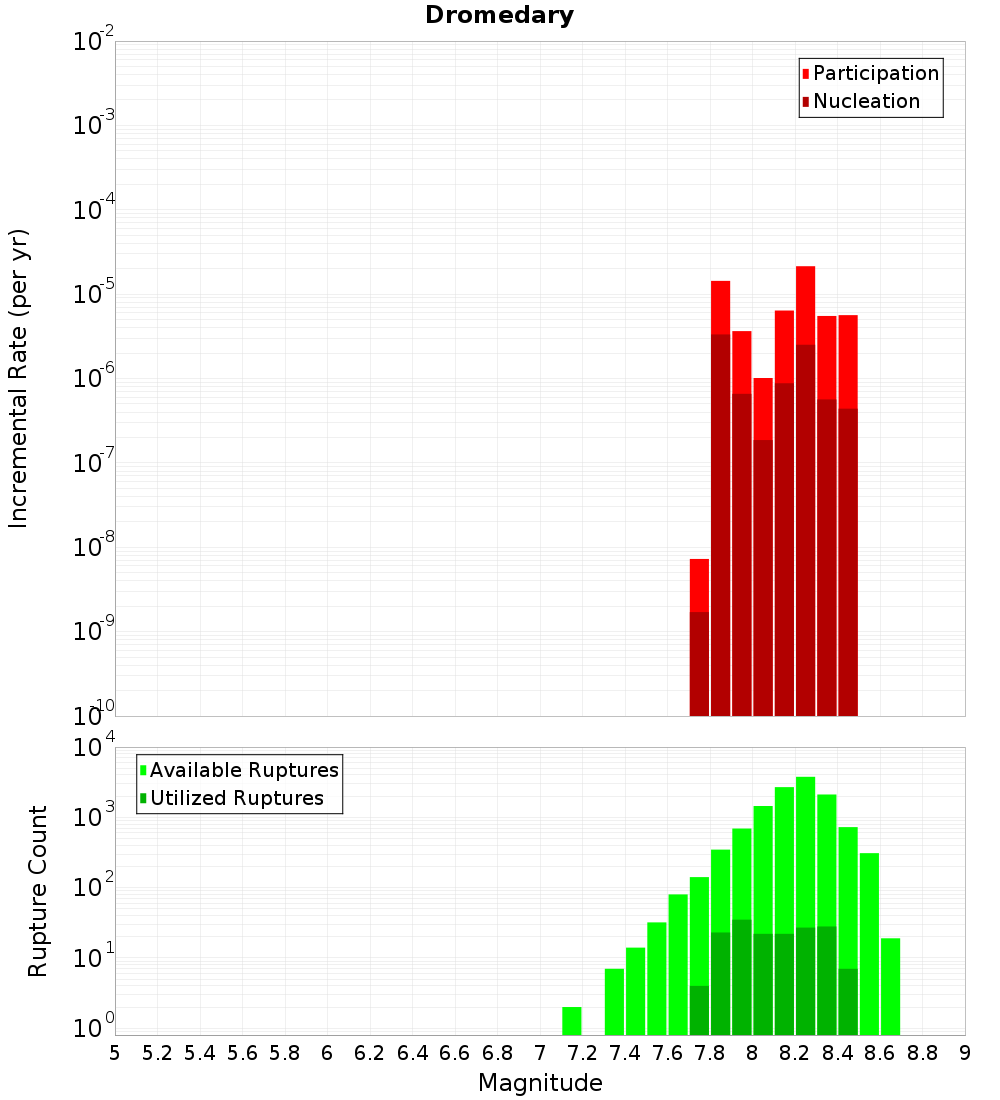

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

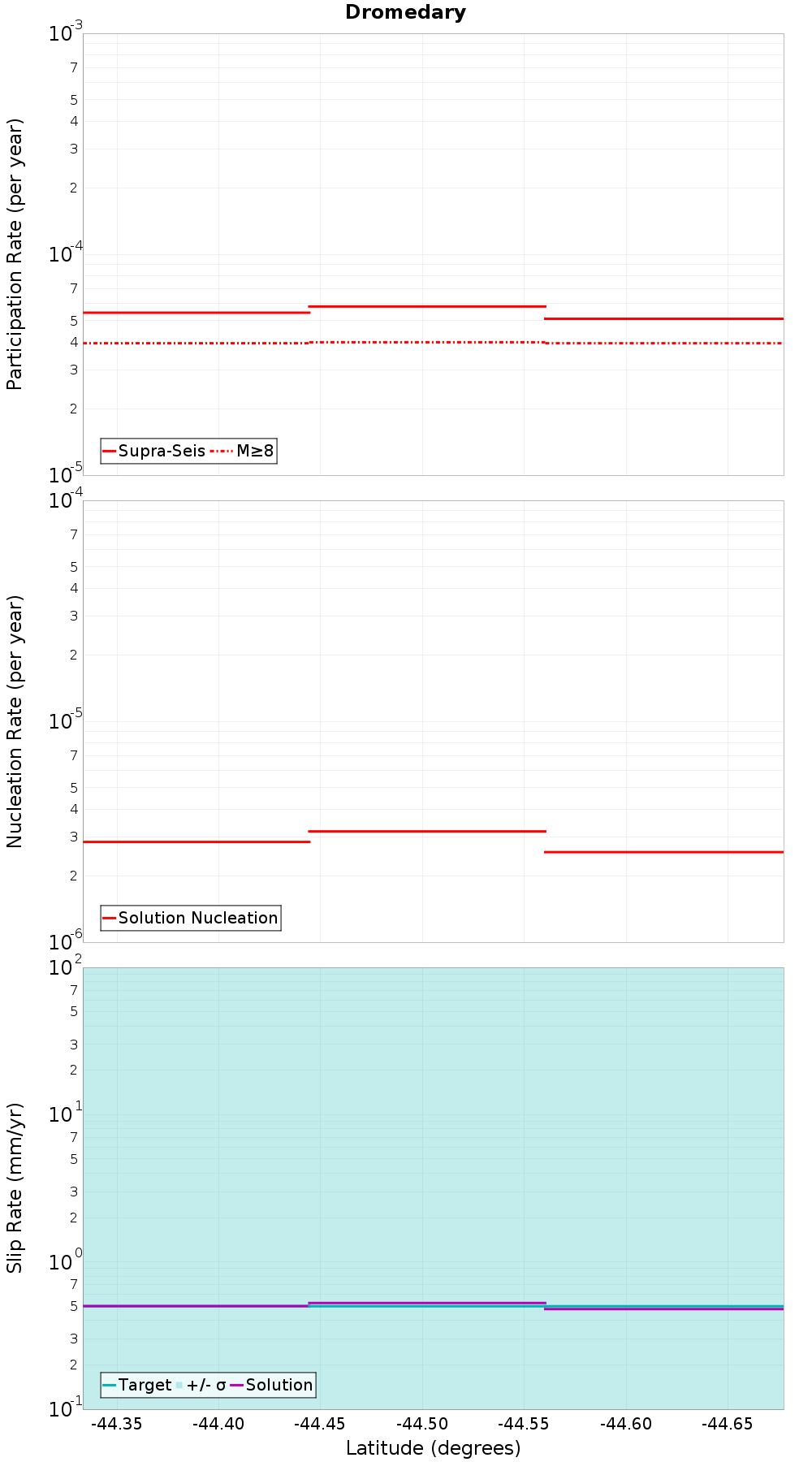

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Timaru Creek, 0.12 km away
Lindis River, 0.15 km away
Cluden, 1.29 km away
Grandview, 1.36 km away
Barrier Range, 1.72 km away
Ostler South, 3.83 km away
Goodger, 4.03 km away
Blue Lake, 4.84 km away
Dunstan, 6.46 km away
Dingle, 7.73 km away
Wanaka, 10.85 km away
Omarama Saddle, 13.1 km away
Hawkdun, 14.4 km away
Hunter Valley, 14.89 km away

Timaru Creek, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuMEVwbkUz
Connected?true
Directly Connected?true
Co-rupture Count123
Co-rupture Rate0.0

Lindis River, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuMEVwbkUz
Connected?true
Directly Connected?true
Co-rupture Count1,772
Co-rupture Rate4.545742E-7

Cluden, 1.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuMEVwbkUz
Connected?true
Directly Connected?true
Co-rupture Count648
Co-rupture Rate7.5793087E-6

Grandview, 1.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuMEVwbkUz
Connected?true
Directly Connected?true
Co-rupture Count2,521
Co-rupture Rate0.0

Barrier Range, 1.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuMEVwbkUz
Connected?true
Directly Connected?true
Co-rupture Count8,900
Co-rupture Rate2.6189758E-7

Ostler South, 3.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuMEVwbkUz
Connected?true
Directly Connected?true
Co-rupture Count481
Co-rupture Rate4.842879E-5

Goodger, 4.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuMEVwbkUz
Connected?true
Directly Connected?true
Co-rupture Count2,075
Co-rupture Rate3.0916003E-6

Blue Lake, 4.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuMEVwbkUz
Connected?true
Directly Connected?true
Co-rupture Count4,582
Co-rupture Rate8.358902E-6

Dunstan, 6.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuMEVwbkUz
Connected?true
Directly Connected?false
Co-rupture Count3,961
Co-rupture Rate3.6970425E-6

Dingle, 7.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuMEVwbkUz
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate0.0

Wanaka, 10.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuMEVwbkUz
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate0.0

Omarama Saddle, 13.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuMEVwbkUz
Connected?true
Directly Connected?true
Co-rupture Count467
Co-rupture Rate6.919026E-7

Hawkdun, 14.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuMEVwbkUz
Connected?true
Directly Connected?false
Co-rupture Count160
Co-rupture Rate6.7360037E-7

Hunter Valley, 14.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuMEVwbkUz
Connected?true
Directly Connected?true
Co-rupture Count311
Co-rupture Rate2.4781402E-6
