Ruatoria South 4 Details
| Property | Value |
|---|---|
| Rupture Count | 25 |
| Ruptures Above Sect Min Mag | 22 |
| Ruptures w/ Nonzero Rates | 15 |
| Magnitude Range | [6.82, 7.58] |
| Length Range | [17, 97] km |
| Total Rate | 6.120307E-4 /yr |
| Multi-Fault Rate | 5.542256E-4 /yr (90.56%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 3 |
Table Of Contents

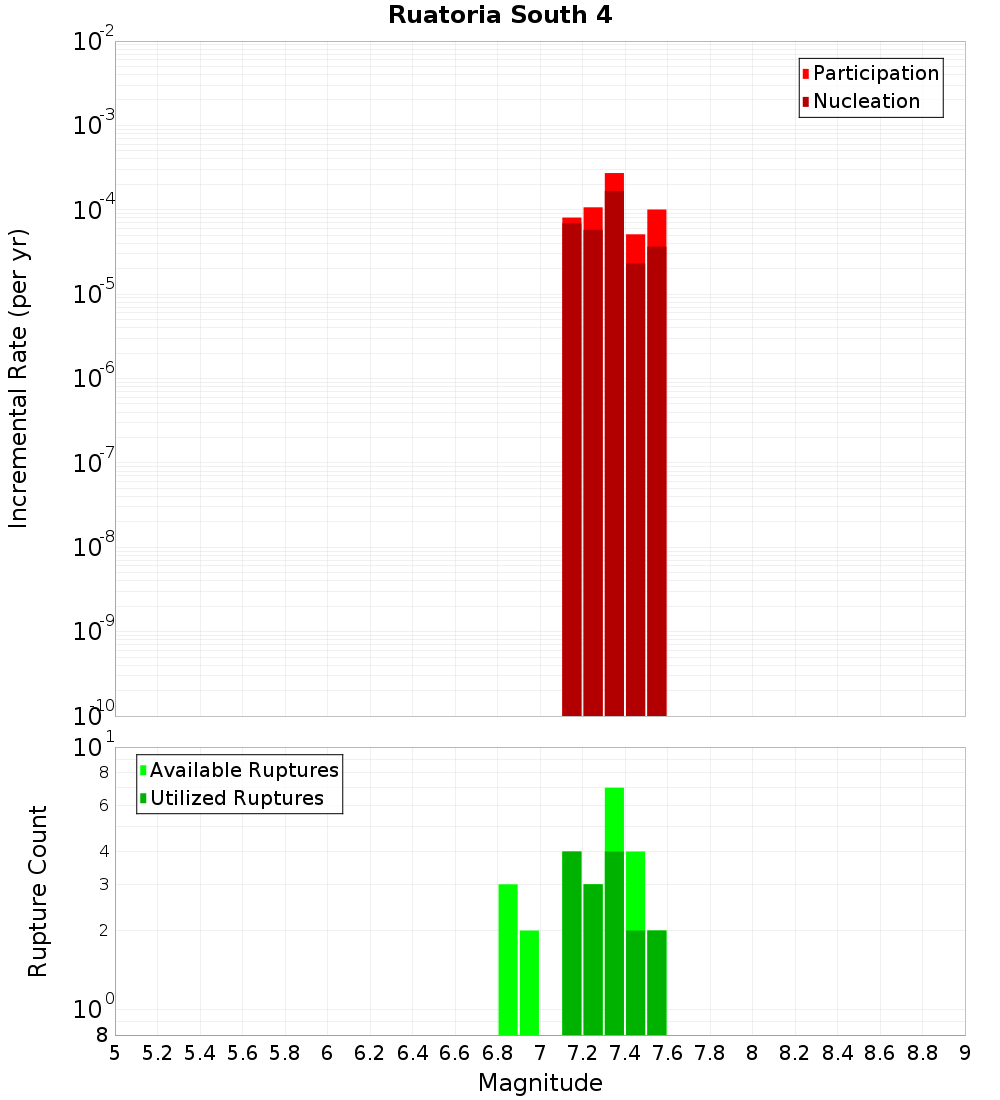

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

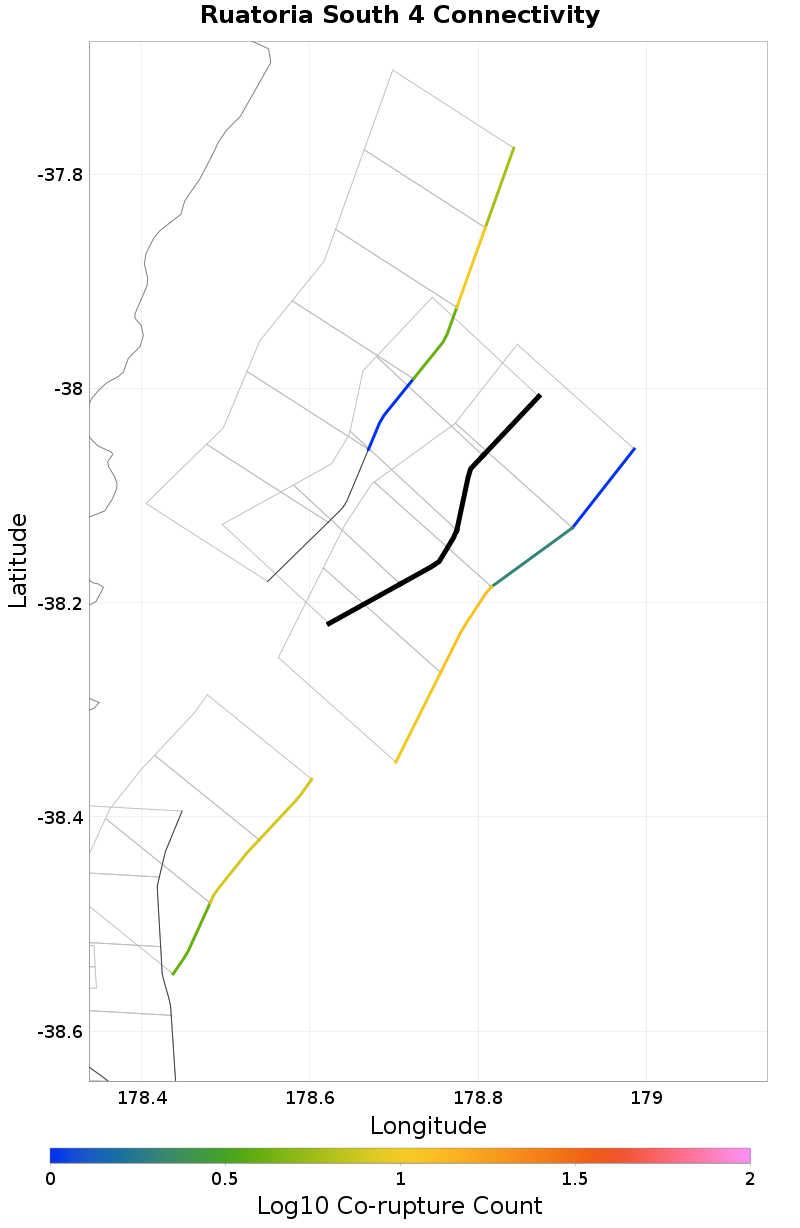

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Ruatoria South 3, 3.77 km away |
| Houtunui, 4.74 km away |
| Ariel Bank 2, 14.82 km away |
Ruatoria South 3, 3.77 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuMEVwbkUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 12 |
| Co-rupture Rate | 1.733841E-4 |
Houtunui, 4.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuMEVwbkUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 10 |
| Co-rupture Rate | 5.204909E-4 |
Ariel Bank 2, 14.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuMEVwbkUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 8 |
| Co-rupture Rate | 1.1299452E-4 |
