Mt Arden Details

PropertyValue
Rupture Count2,833
Ruptures Above Sect Min Mag2,832
Ruptures w/ Nonzero Rates8
Magnitude Range[6.90, 8.15]
Length Range[21, 499] km
Total Rate4.746534E-5 /yr
Multi-Fault Rate4.746534E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults59

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

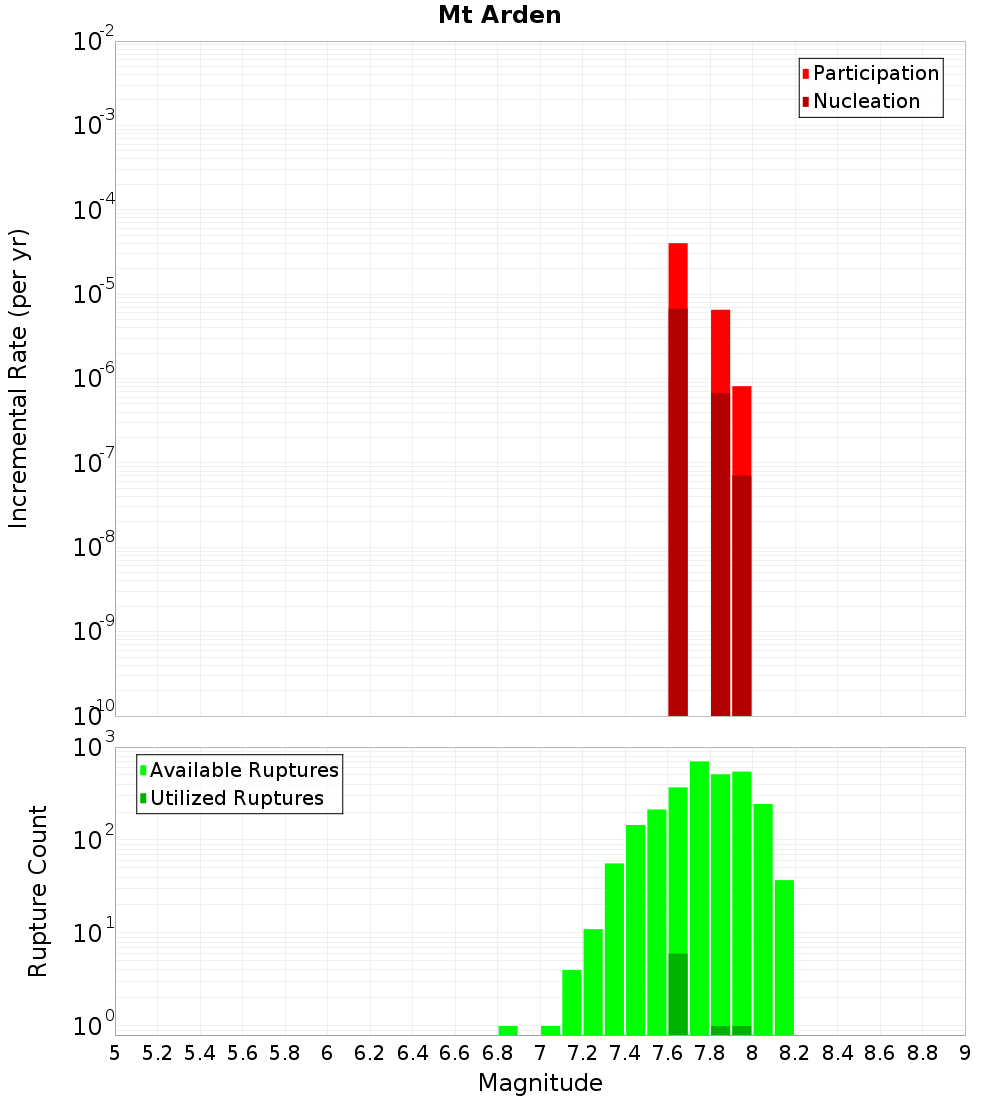

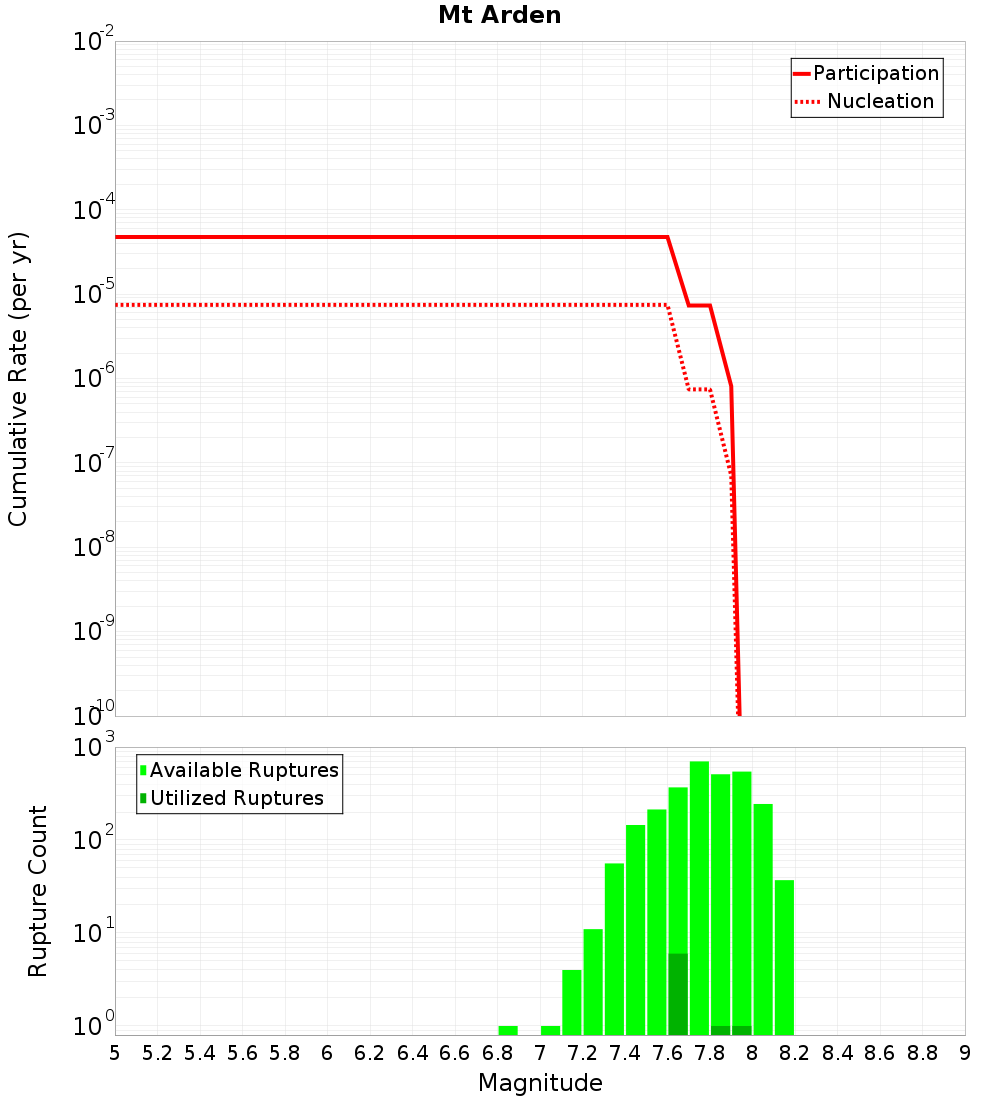

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

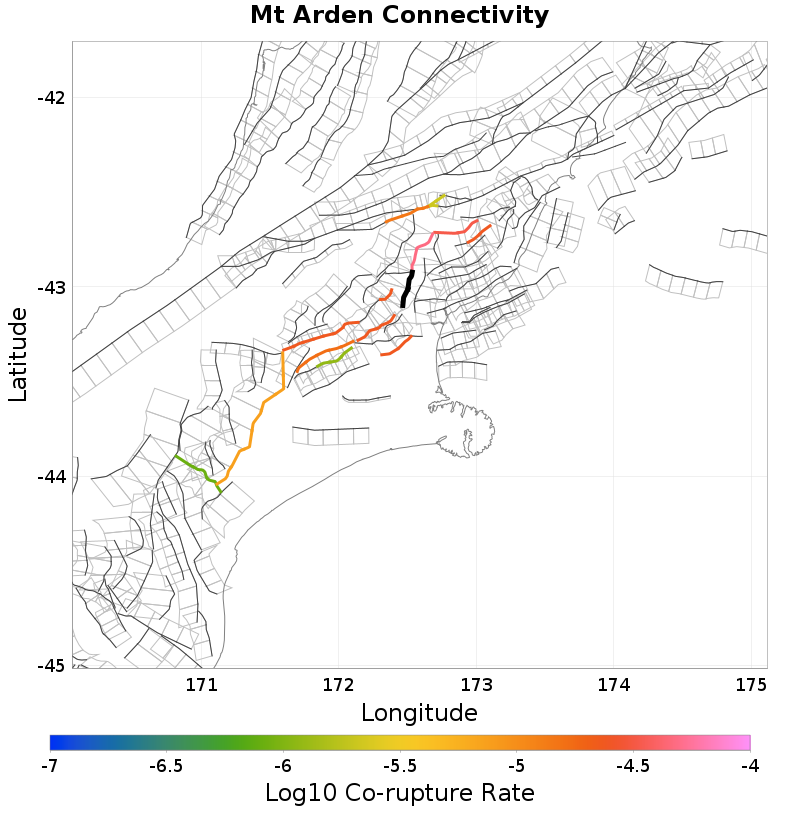

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Lees Valley, 0.14 km away
Pancake, 0.23 km away
Esk South, 0.24 km away
Virginia, 0.31 km away
Hurunui Peak, 0.35 km away
Knowles Top, 2.59 km away
Mt Lawry, 5.15 km away
Doctors, 5.9 km away
Boby Stream, 6.78 km away
Esk North, 9.01 km away
Lowry, 9.01 km away
Springbank, 11.68 km away
Kaiwara South, 12.38 km away
Balmoral, 14.35 km away

Lees Valley, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuNWdLWFo2
Connected?true
Directly Connected?true
Co-rupture Count2,236
Co-rupture Rate4.719726E-5

Pancake, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuNWdLWFo2
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Esk South, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuNWdLWFo2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Virginia, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuNWdLWFo2
Connected?true
Directly Connected?true
Co-rupture Count74
Co-rupture Rate0.0

Hurunui Peak, 0.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuNWdLWFo2
Connected?true
Directly Connected?true
Co-rupture Count2,465
Co-rupture Rate4.746534E-5

Knowles Top, 2.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuNWdLWFo2
Connected?true
Directly Connected?true
Co-rupture Count695
Co-rupture Rate2.3866709E-5

Mt Lawry, 5.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuNWdLWFo2
Connected?true
Directly Connected?true
Co-rupture Count232
Co-rupture Rate0.0

Doctors, 5.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuNWdLWFo2
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate0.0

Boby Stream, 6.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuNWdLWFo2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk North, 9.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuNWdLWFo2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lowry, 9.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuNWdLWFo2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Springbank, 11.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuNWdLWFo2
Connected?true
Directly Connected?false
Co-rupture Count291
Co-rupture Rate2.359863E-5

Kaiwara South, 12.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuNWdLWFo2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Balmoral, 14.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwMzUuNWdLWFo2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
