Kakapo Details

Property	Value
Rupture Count	8,213
Ruptures Above Sect Min Mag	8,205
Ruptures w/ Nonzero Rates	201
Magnitude Range	[6.76, 8.39]
Length Range	[20, 862] km
Total Rate	0.0010312597 /yr
Multi-Fault Rate	0.0010312597 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	137

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

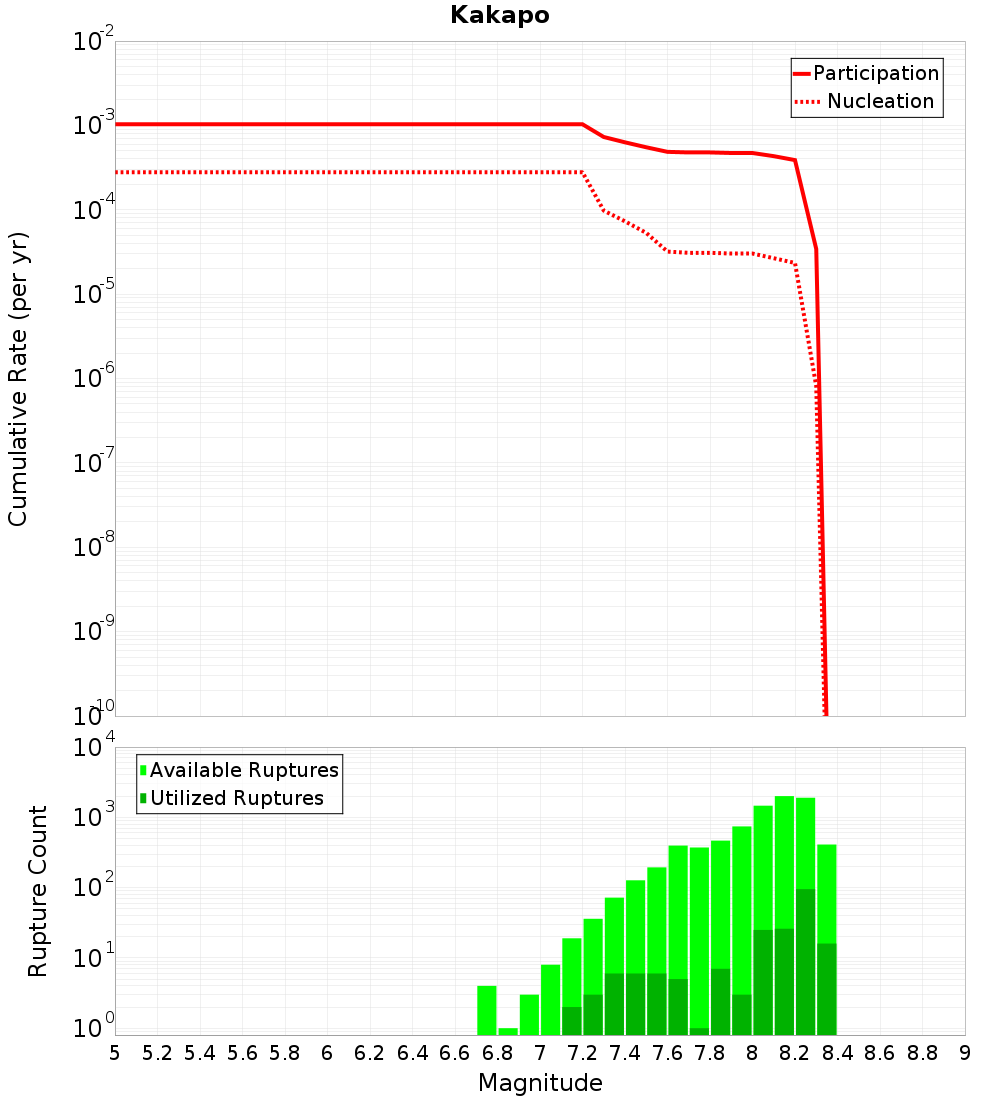

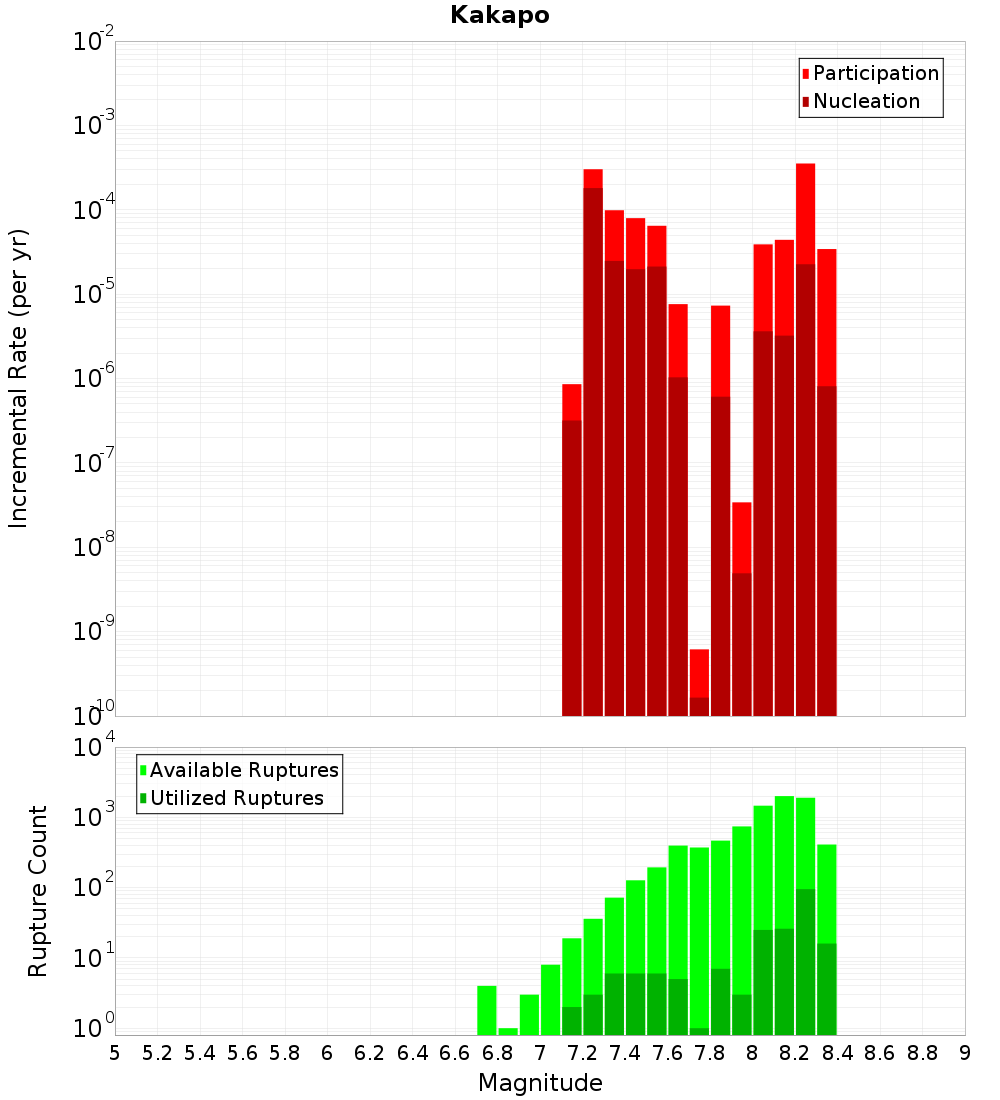

Magnitude-Frequency Distribution

Incremental	Cumulative

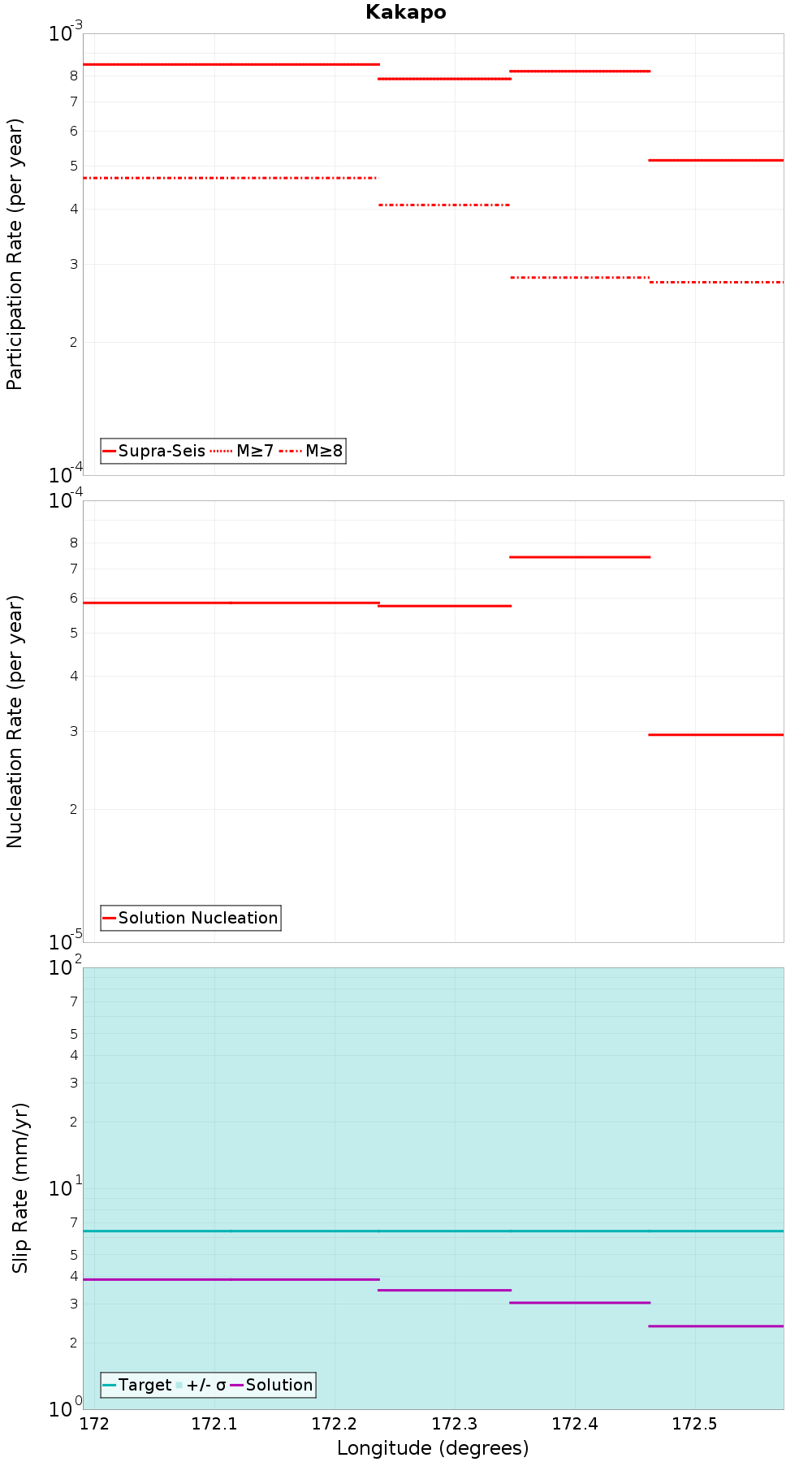

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Hope: Kakapo-2-Hamner, 0 km away
Hope: Hurunui, 0 km away
Hope: Hope River, 0 km away
Esk North, 0.09 km away
Poulter, 5.65 km away
Hurunui Peak, 5.94 km away
Hope: Hanmer NW, 6.3 km away
Hope: Hamner SW, 6.3 km away
Alpine: Kaniere to Springs Junction, 6.32 km away
Clarence: Southwest, 8.64 km away
Hanmer, 12.92 km away
Hope: Taramakau, 14.38 km away
Kelly, 14.38 km away

Hope: Kakapo-2-Hamner, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	true
Directly Connected?	true
Co-rupture Count	2,436
Co-rupture Rate	4.844424E-4

Hope: Hurunui, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	true
Directly Connected?	true
Co-rupture Count	6,997
Co-rupture Rate	5.333659E-4

Hope: Hope River, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	true
Directly Connected?	true
Co-rupture Count	686
Co-rupture Rate	1.4760606E-4

Esk North, 0.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	true
Directly Connected?	true
Co-rupture Count	107
Co-rupture Rate	9.627836E-5

Poulter, 5.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	true
Directly Connected?	true
Co-rupture Count	522
Co-rupture Rate	3.1507877E-4

Hurunui Peak, 5.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	true
Directly Connected?	true
Co-rupture Count	1,326
Co-rupture Rate	8.63466E-5

Hope: Hanmer NW, 6.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	true
Directly Connected?	false
Co-rupture Count	847
Co-rupture Rate	3.0376581E-5

Hope: Hamner SW, 6.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	true
Directly Connected?	false
Co-rupture Count	1,618
Co-rupture Rate	9.4543146E-5

Alpine: Kaniere to Springs Junction, 6.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	true
Directly Connected?	false
Co-rupture Count	939
Co-rupture Rate	2.080731E-4

Clarence: Southwest, 8.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	true
Directly Connected?	true
Co-rupture Count	1,940
Co-rupture Rate	4.8461192E-5

Hanmer, 12.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Taramakau, 14.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	true
Directly Connected?	false
Co-rupture Count	1,146
Co-rupture Rate	4.4148345E-4

Kelly, 14.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	true
Directly Connected?	false
Co-rupture Count	7,156
Co-rupture Rate	5.332321E-4
