Little Hillfoot Details

Property	Value
Rupture Count	1,164
Ruptures Above Sect Min Mag	1,162
Ruptures w/ Nonzero Rates	12
Magnitude Range	[6.89, 8.30]
Length Range	[21, 587] km
Total Rate	1.5100932E-5 /yr
Multi-Fault Rate	1.5100932E-5 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	62

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

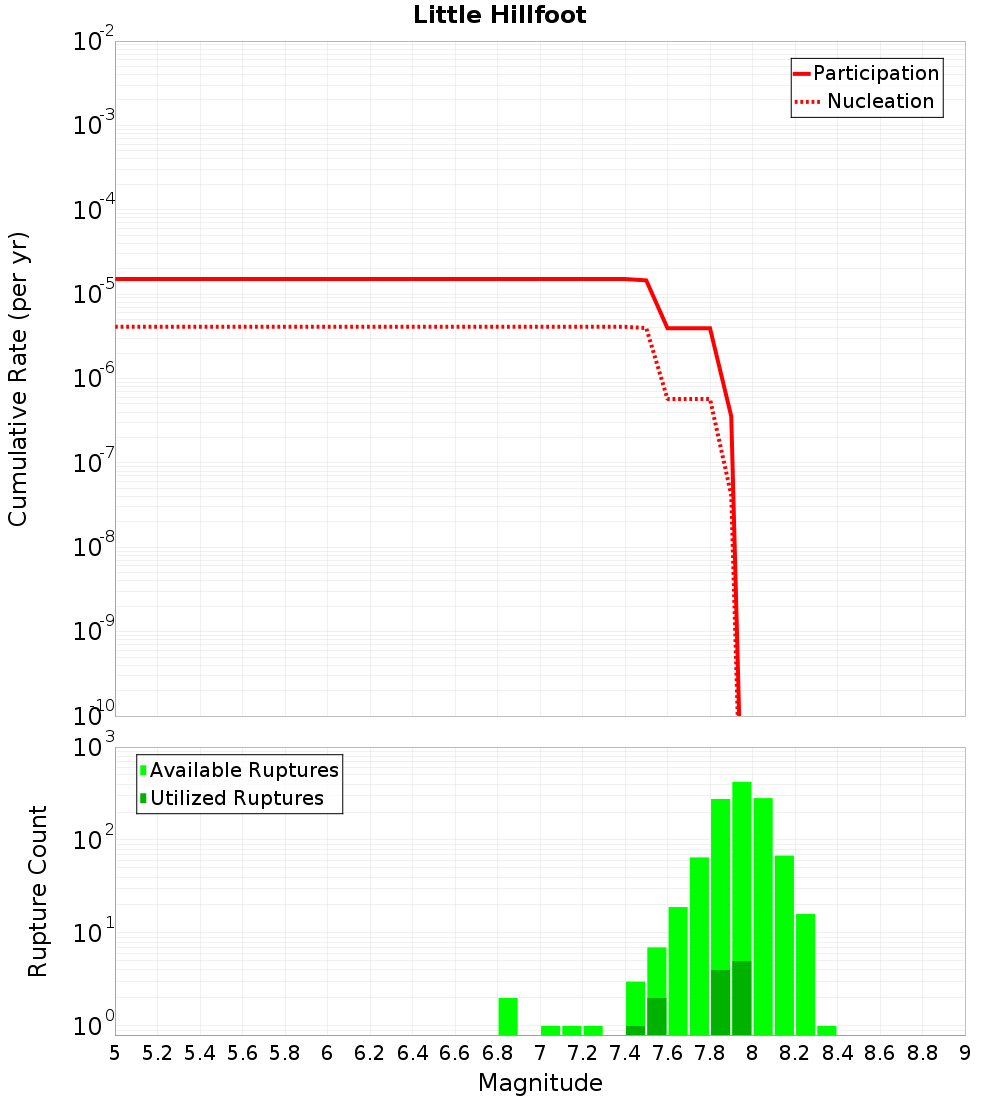

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

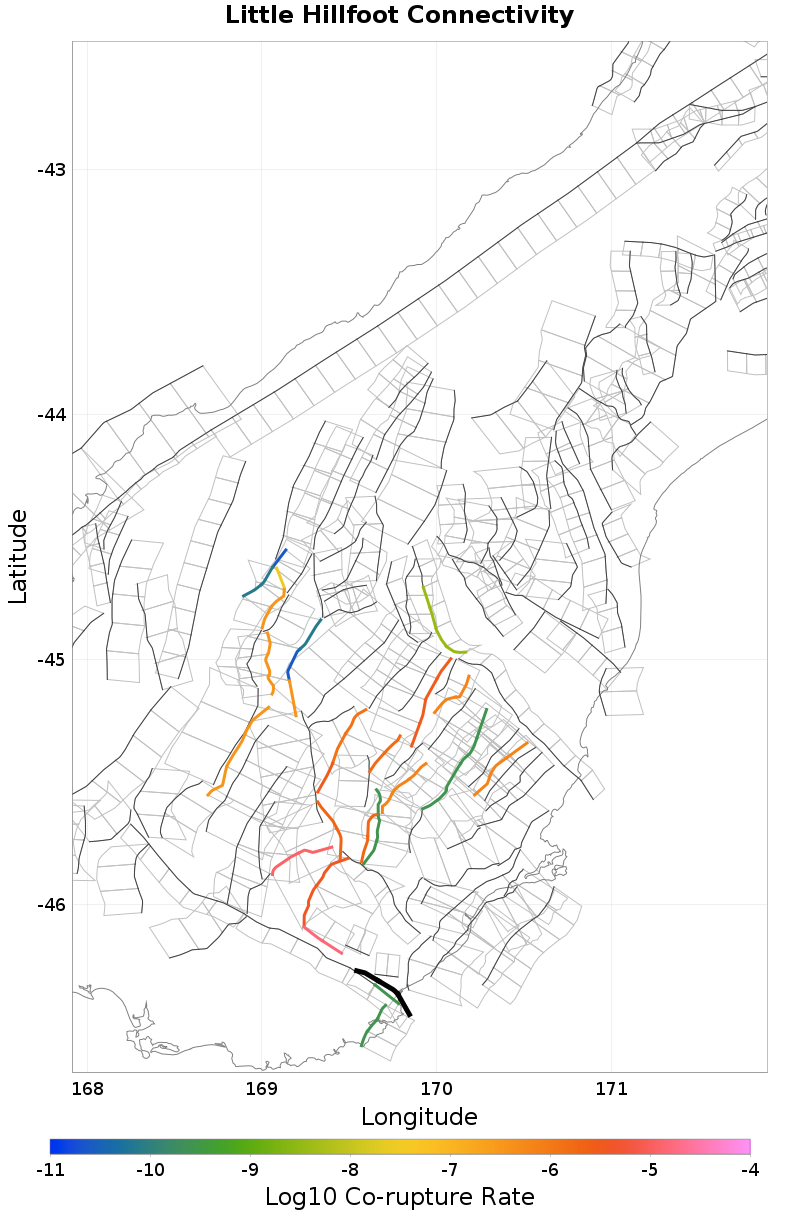

Connectivity

Nearby Sections

Fault Section
Settlement, 0.3 km away
Hillfoot, 0.55 km away
Otanomomo, 1.78 km away
Titri South, 5.15 km away
Clifton, 8.06 km away
Beacon Hill, 10.39 km away
Blue Mountain, 14.21 km away

Settlement, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	true
Directly Connected?	false
Co-rupture Count	58
Co-rupture Rate	2.5783148E-10

Hillfoot, 0.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	true
Directly Connected?	true
Co-rupture Count	383
Co-rupture Rate	2.5783148E-10

Otanomomo, 1.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Titri South, 5.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Clifton, 8.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Beacon Hill, 10.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	true
Directly Connected?	true
Co-rupture Count	1,021
Co-rupture Rate	1.5100932E-5

Blue Mountain, 14.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	true
Directly Connected?	false
Co-rupture Count	375
Co-rupture Rate	3.5015034E-6
