Otaraia Details

Property	Value
Rupture Count	3,493
Ruptures Above Sect Min Mag	3,482
Ruptures w/ Nonzero Rates	62
Magnitude Range	[6.59, 8.37]
Length Range	[17, 864] km
Total Rate	5.178816E-5 /yr
Multi-Fault Rate	5.178816E-5 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	103

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

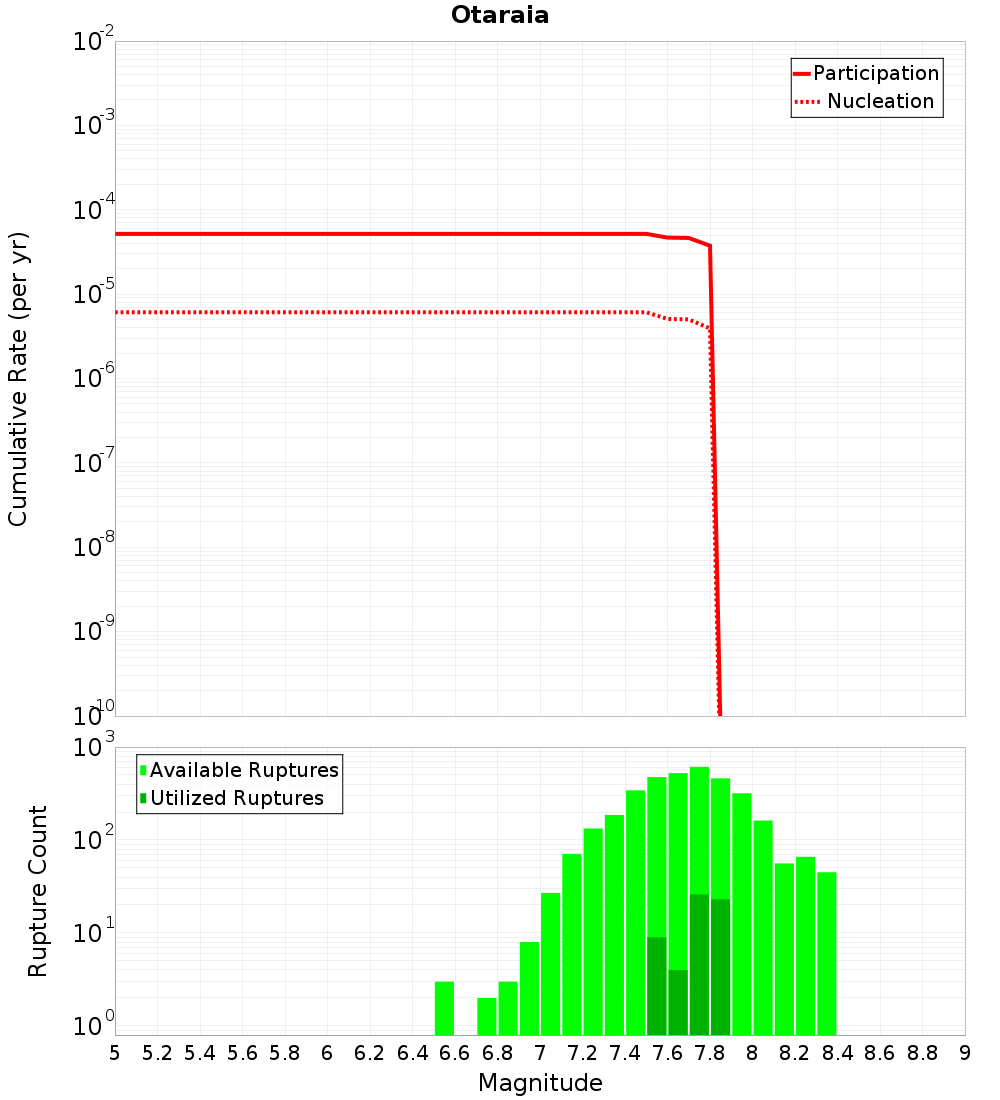

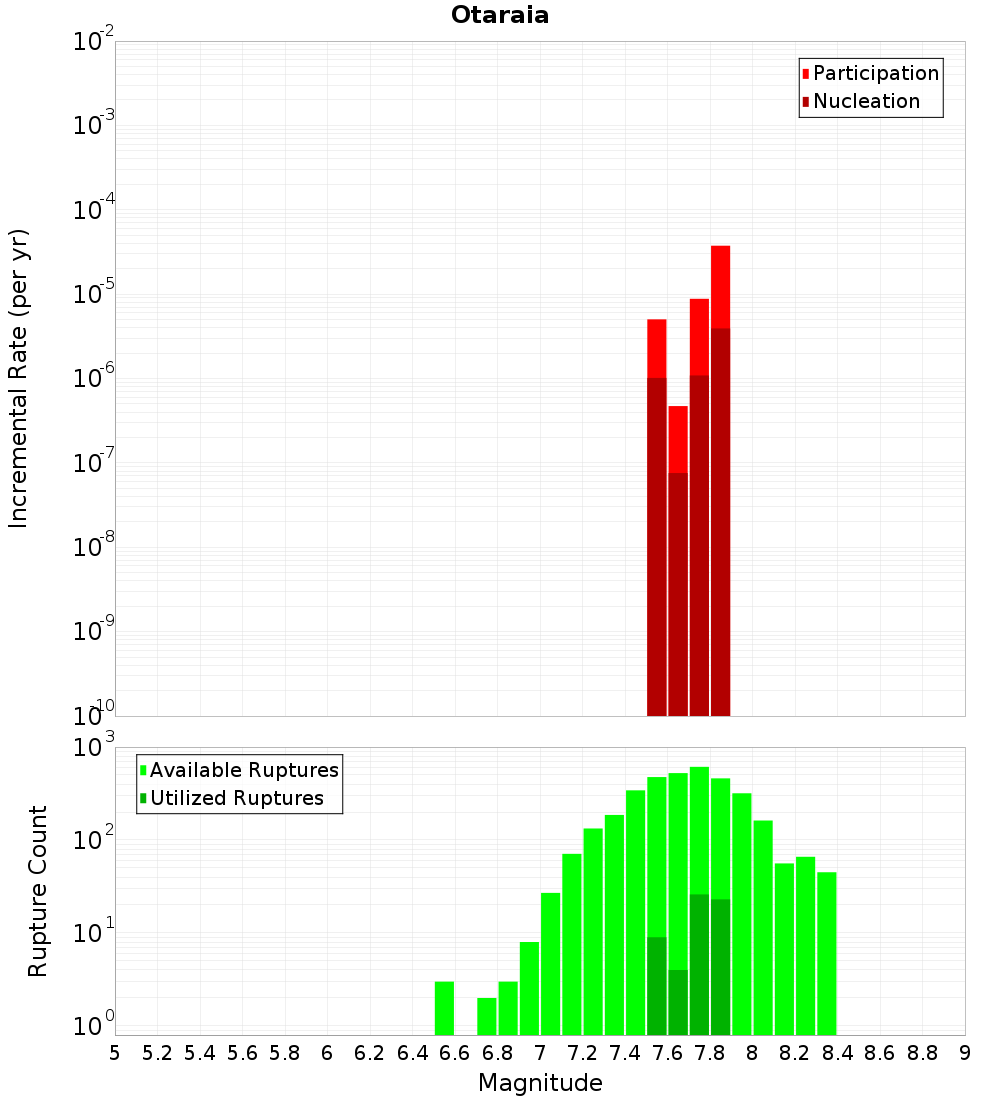

Magnitude-Frequency Distribution

Incremental	Cumulative

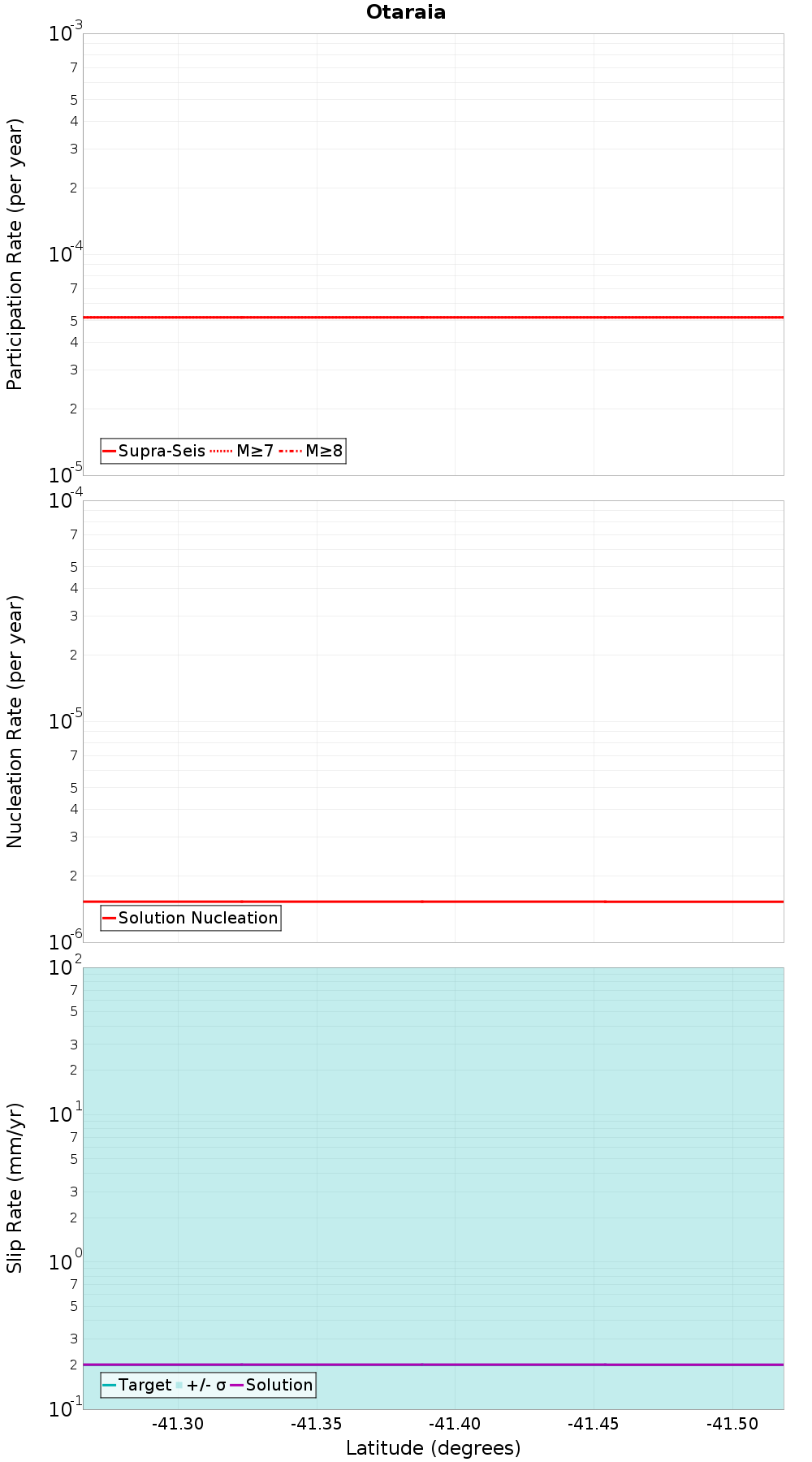

Along-Strike Values

Moment-Rates and b-Values

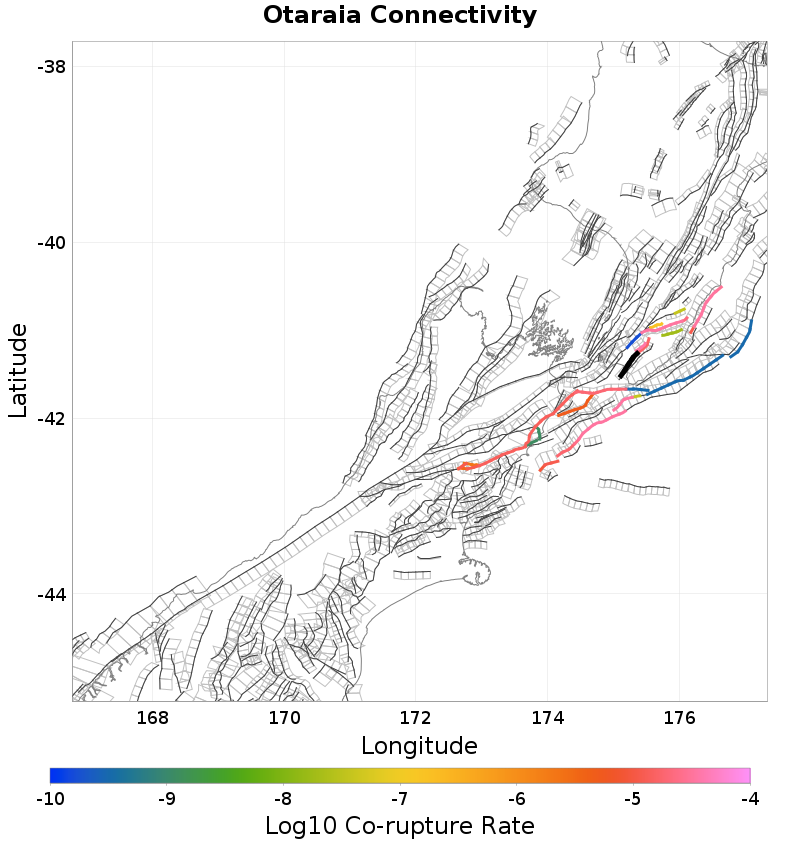

Connectivity

Nearby Sections

Fault Section
Dry River - Huangarua: 1, 0.39 km away
Palliser - Kaiwhata, 1.7 km away
Martinborough, 1.89 km away
Bidwill, 3.57 km away
BooBoo, 5.91 km away
Dry River - Huangarua: 2, 7.52 km away
Opouawe - Uruti, 7.95 km away
Wharekauhau, 12.78 km away
Dry River - Huangarua: 3, 13.48 km away
Wairarapa: 2, 13.88 km away

Dry River - Huangarua: 1, 0.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	true
Directly Connected?	true
Co-rupture Count	307
Co-rupture Rate	0.0

Palliser - Kaiwhata, 1.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	true
Directly Connected?	true
Co-rupture Count	131
Co-rupture Rate	0.0

Martinborough, 1.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	true
Directly Connected?	true
Co-rupture Count	1,492
Co-rupture Rate	1.5643556E-5

Bidwill, 3.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	true
Directly Connected?	true
Co-rupture Count	1,068
Co-rupture Rate	3.6144604E-5

BooBoo, 5.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	true
Directly Connected?	true
Co-rupture Count	1,306
Co-rupture Rate	1.8671866E-5

Dry River - Huangarua: 2, 7.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	true
Directly Connected?	false
Co-rupture Count	20
Co-rupture Rate	0.0

Opouawe - Uruti, 7.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	true
Directly Connected?	true
Co-rupture Count	1,430
Co-rupture Rate	3.3098342E-5

Wharekauhau, 12.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dry River - Huangarua: 3, 13.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	true
Directly Connected?	false
Co-rupture Count	21
Co-rupture Rate	0.0

Wairarapa: 2, 13.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNDIuMEdOc0E2
Connected?	true
Directly Connected?	false
Co-rupture Count	168
Co-rupture Rate	1.6938771E-10
