Akatore Details
| Property | Value |
|---|---|
| Rupture Count | 34 |
| Ruptures Above Sect Min Mag | 33 |
| Ruptures w/ Nonzero Rates | 12 |
| Magnitude Range | [7.08, 7.72] |
| Length Range | [27, 131] km |
| Total Rate | 1.1428964E-4 /yr |
| Multi-Fault Rate | 1.1428964E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 8 |
Table Of Contents

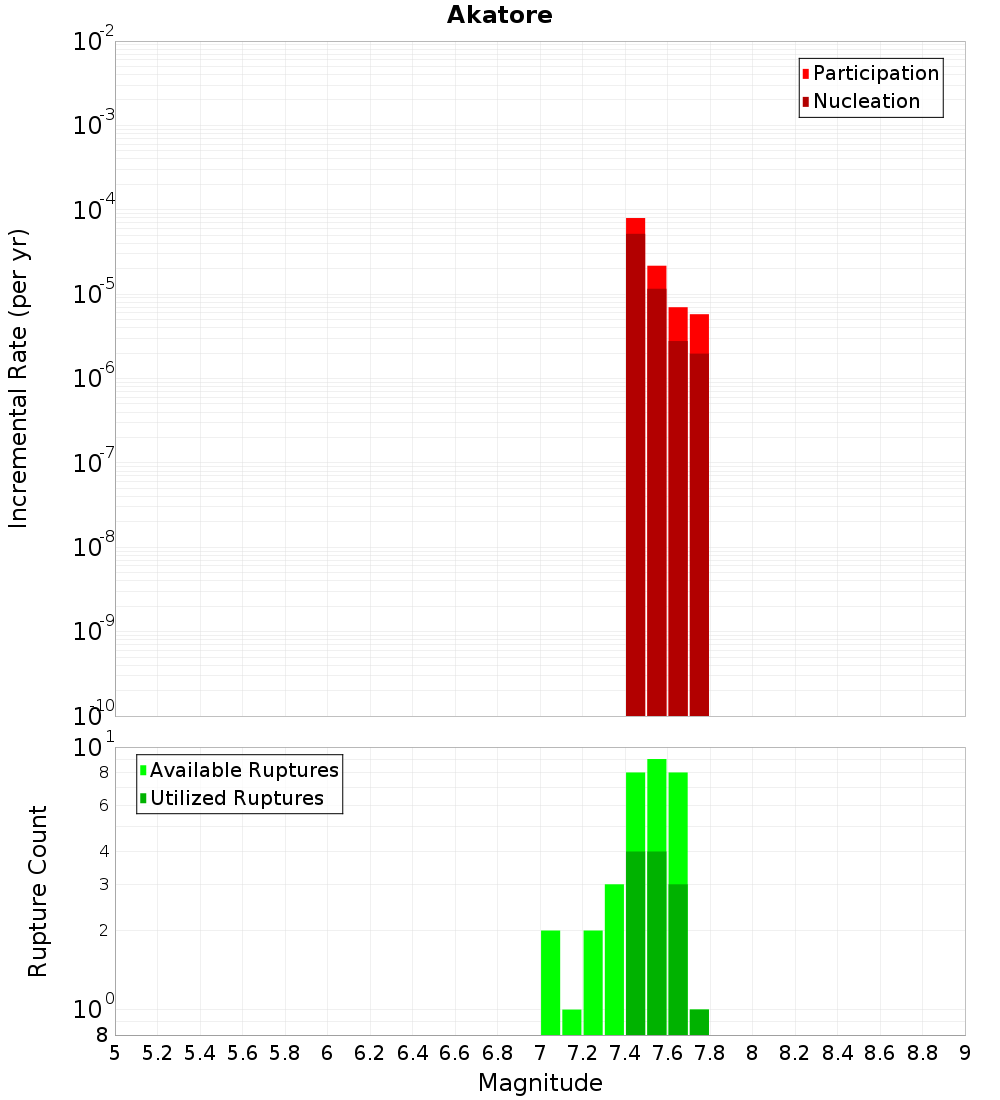

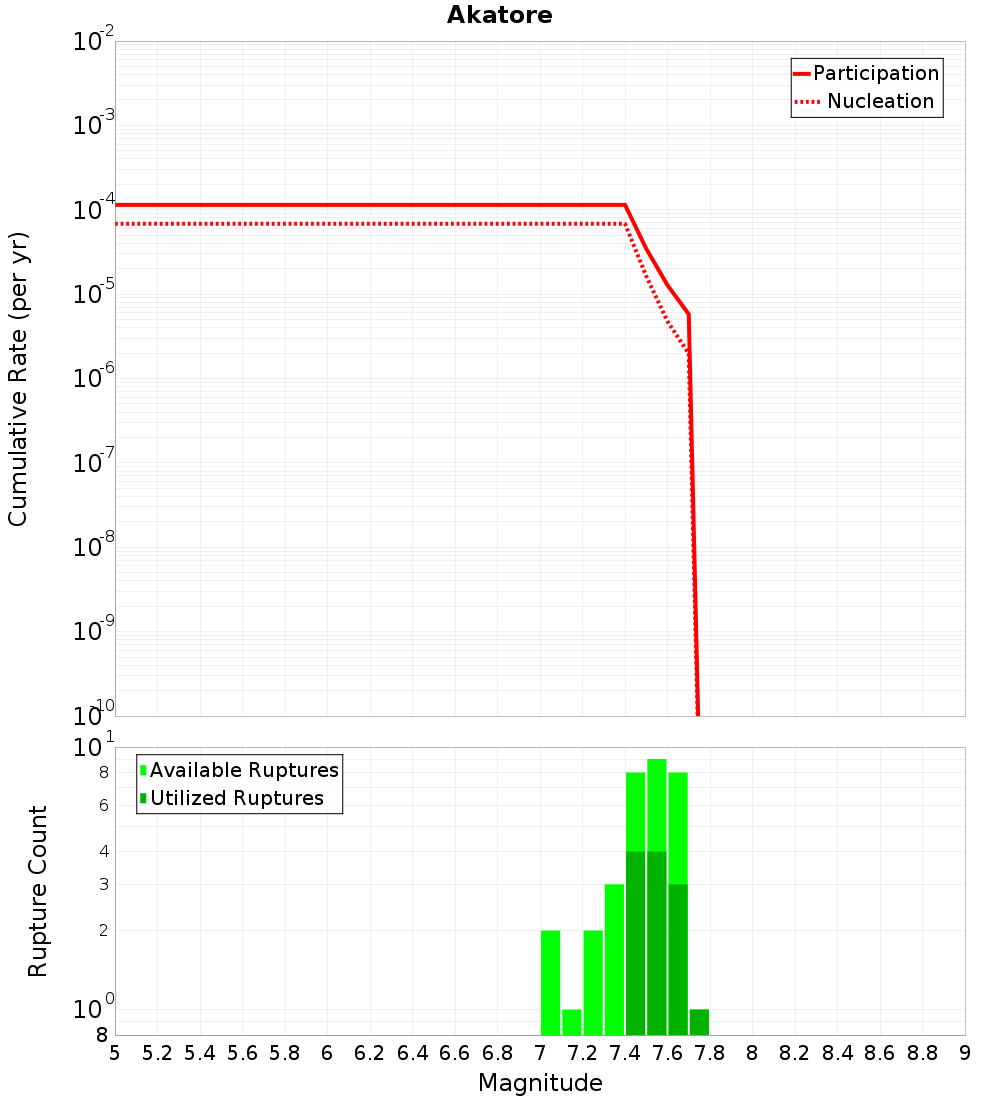

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

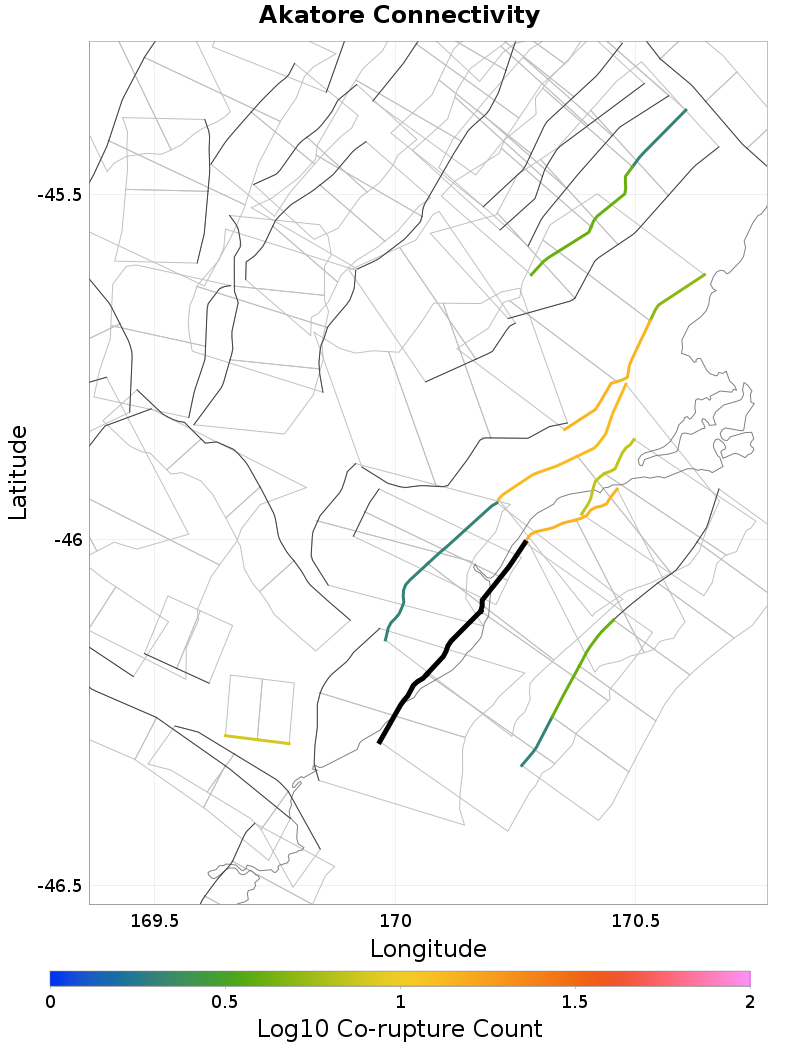

Connectivity
 |  |
|---|
Nearby Sections
Green Island, 0.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 14 |
| Co-rupture Rate | 7.170164E-5 |
Titri South, 5.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Titri North, 5.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 13 |
| Co-rupture Rate | 4.258801E-5 |
Titri Central, 5.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
Kaikorai, 9.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 7 |
| Co-rupture Rate | 1.5922027E-5 |
Takapu, 12.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 9.997573E-7 |
Otanomomo, 14.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8 |
| Co-rupture Rate | 3.082877E-5 |
Tuapeka, 14.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
