Alfredton South Details

Property	Value
Rupture Count	6,036
Ruptures Above Sect Min Mag	6,013
Ruptures w/ Nonzero Rates	138
Magnitude Range	[6.35, 8.40]
Length Range	[10, 906] km
Total Rate	0.0010408586 /yr
Multi-Fault Rate	0.0010408586 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	88

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

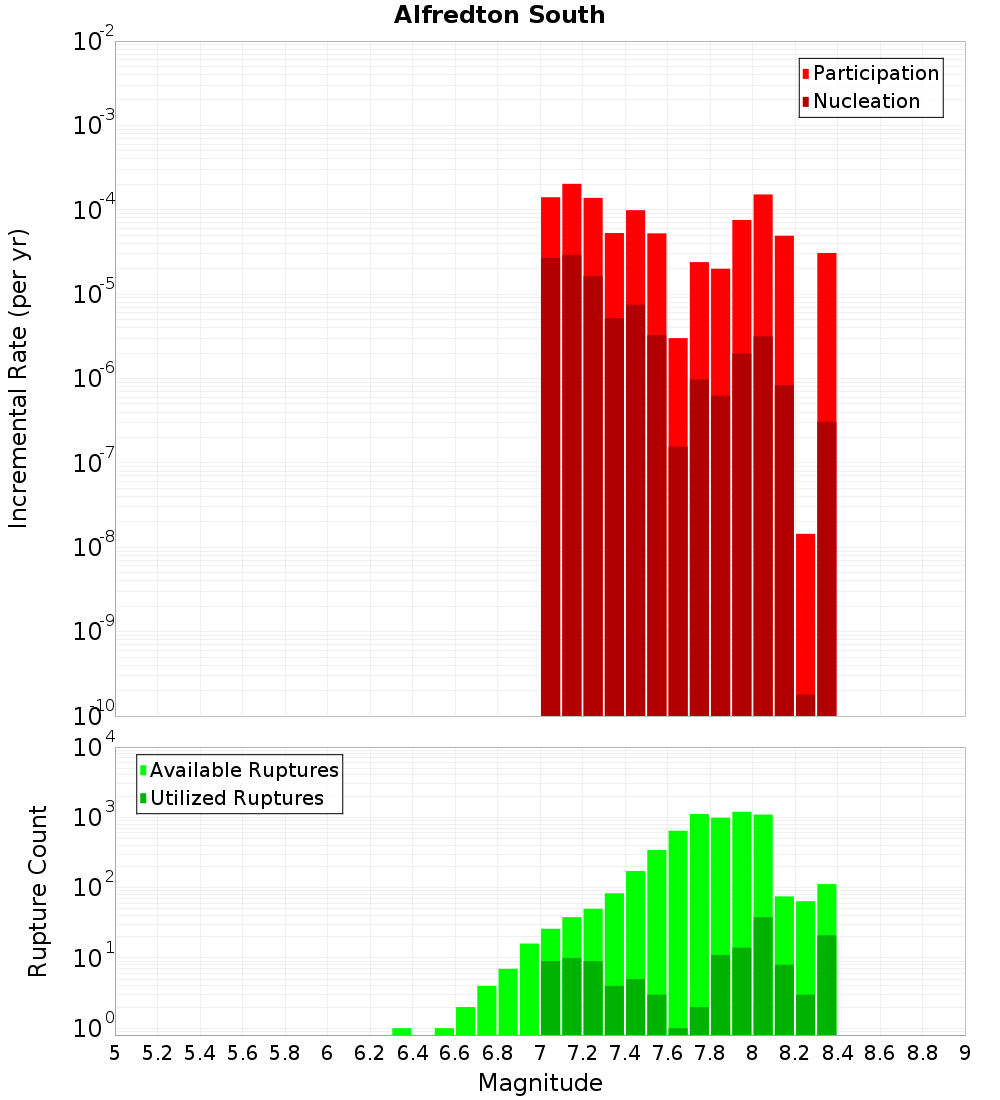

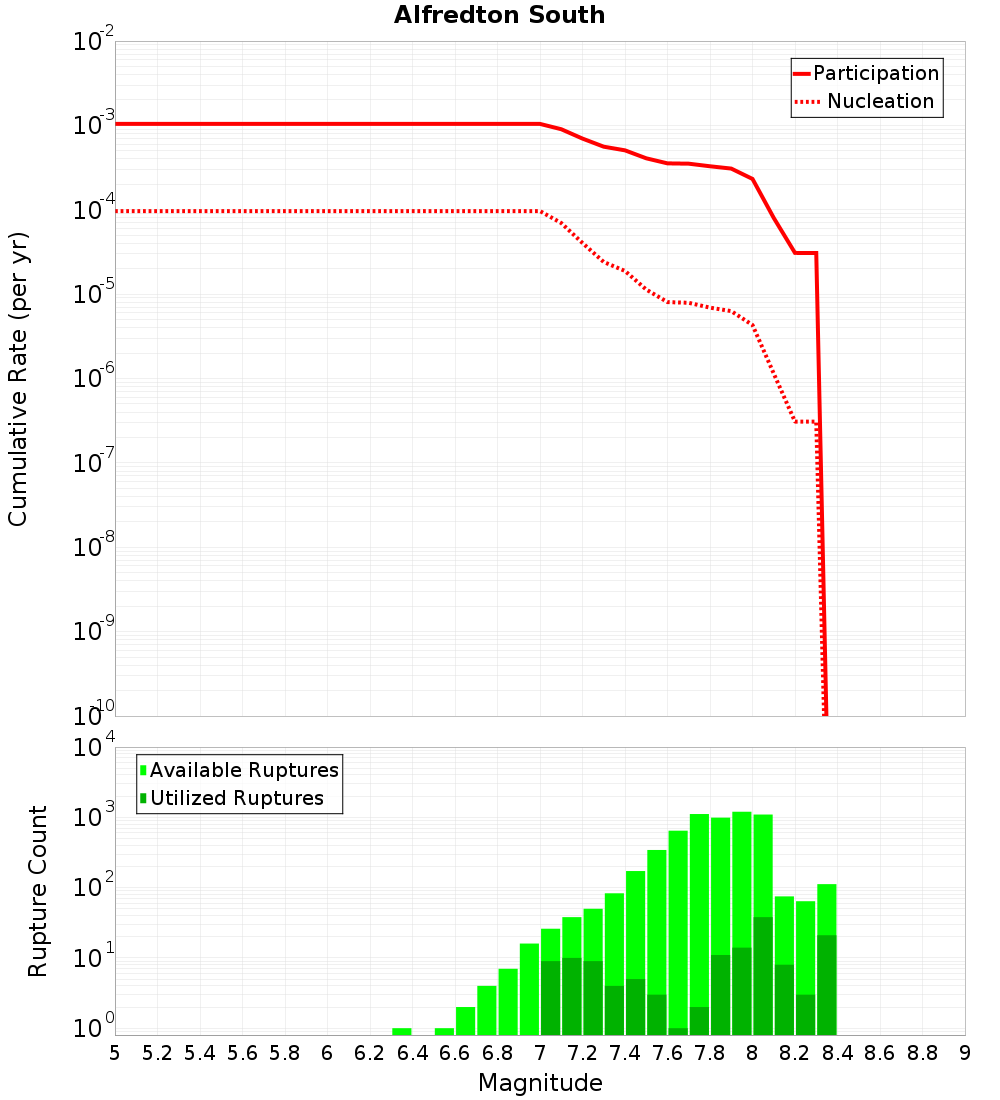

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

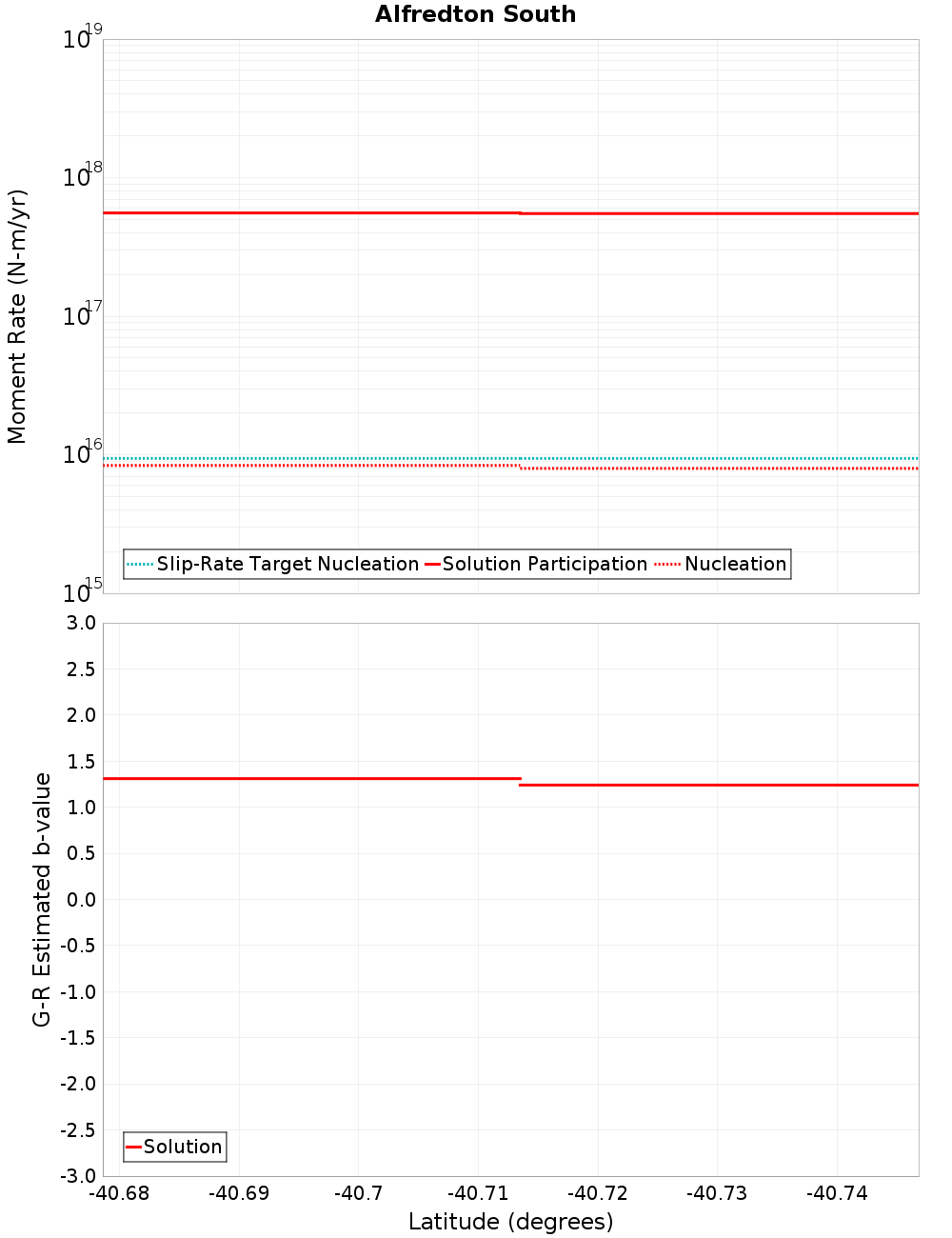

Moment-Rates and b-Values

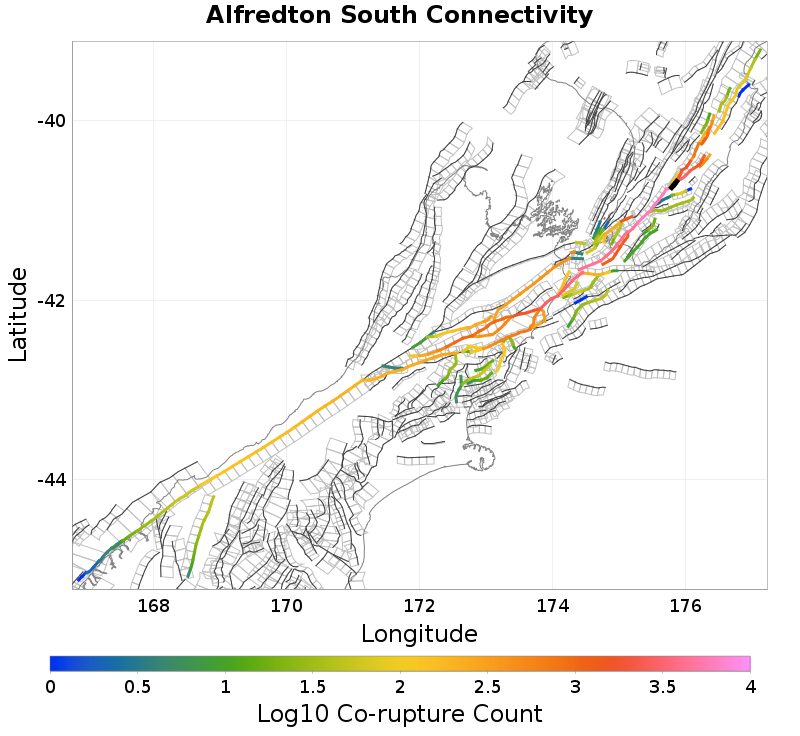

Connectivity

Nearby Sections

Fault Section
Saunders Road, 0 km away
Alfredton North, 0 km away
Dreyers Rock, 0 km away
Pa Valley, 0.07 km away
Wairarapa: 3, 7.46 km away
Mokonui Northeast, 9.5 km away
Mokonui Southwest, 9.66 km away

Saunders Road, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	true
Directly Connected?	true
Co-rupture Count	3,182
Co-rupture Rate	3.6907854E-4

Alfredton North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	true
Directly Connected?	true
Co-rupture Count	1,947
Co-rupture Rate	5.611359E-4

Dreyers Rock, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	true
Directly Connected?	true
Co-rupture Count	5,924
Co-rupture Rate	6.761875E-4

Pa Valley, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	true
Directly Connected?	true
Co-rupture Count	119
Co-rupture Rate	5.0395196E-5

Wairarapa: 3, 7.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	true
Directly Connected?	false
Co-rupture Count	5,917
Co-rupture Rate	5.877224E-4

Mokonui Northeast, 9.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	true
Directly Connected?	true
Co-rupture Count	75
Co-rupture Rate	2.8052524E-4

Mokonui Southwest, 9.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	2.563555E-4
