Edgecumbe Coastal Details

Property	Value
Rupture Count	7,654
Ruptures Above Sect Min Mag	7,640
Ruptures w/ Nonzero Rates	476
Magnitude Range	[6.34, 8.28]
Length Range	[7, 679] km
Total Rate	6.6320214E-4 /yr
Multi-Fault Rate	6.6320214E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	76

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

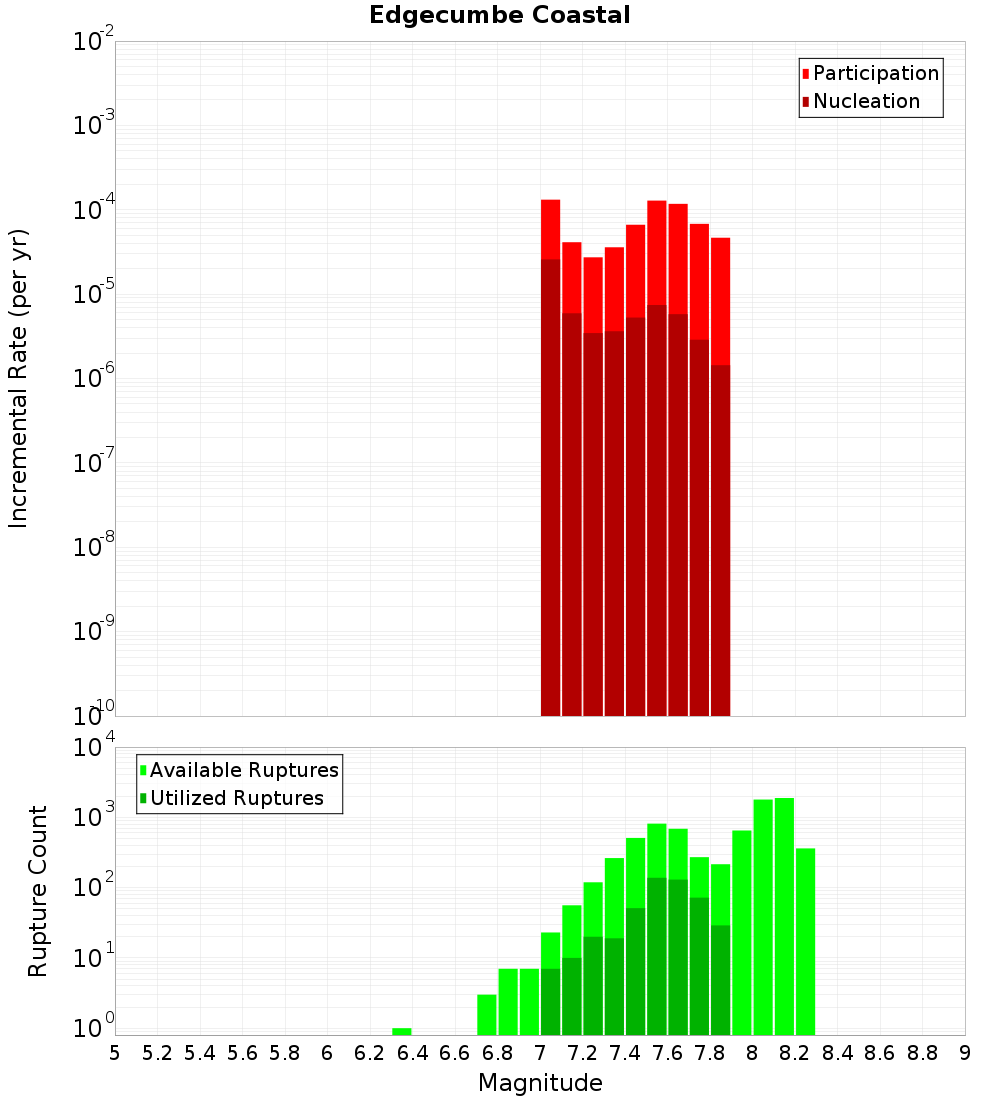

Magnitude-Frequency Distribution

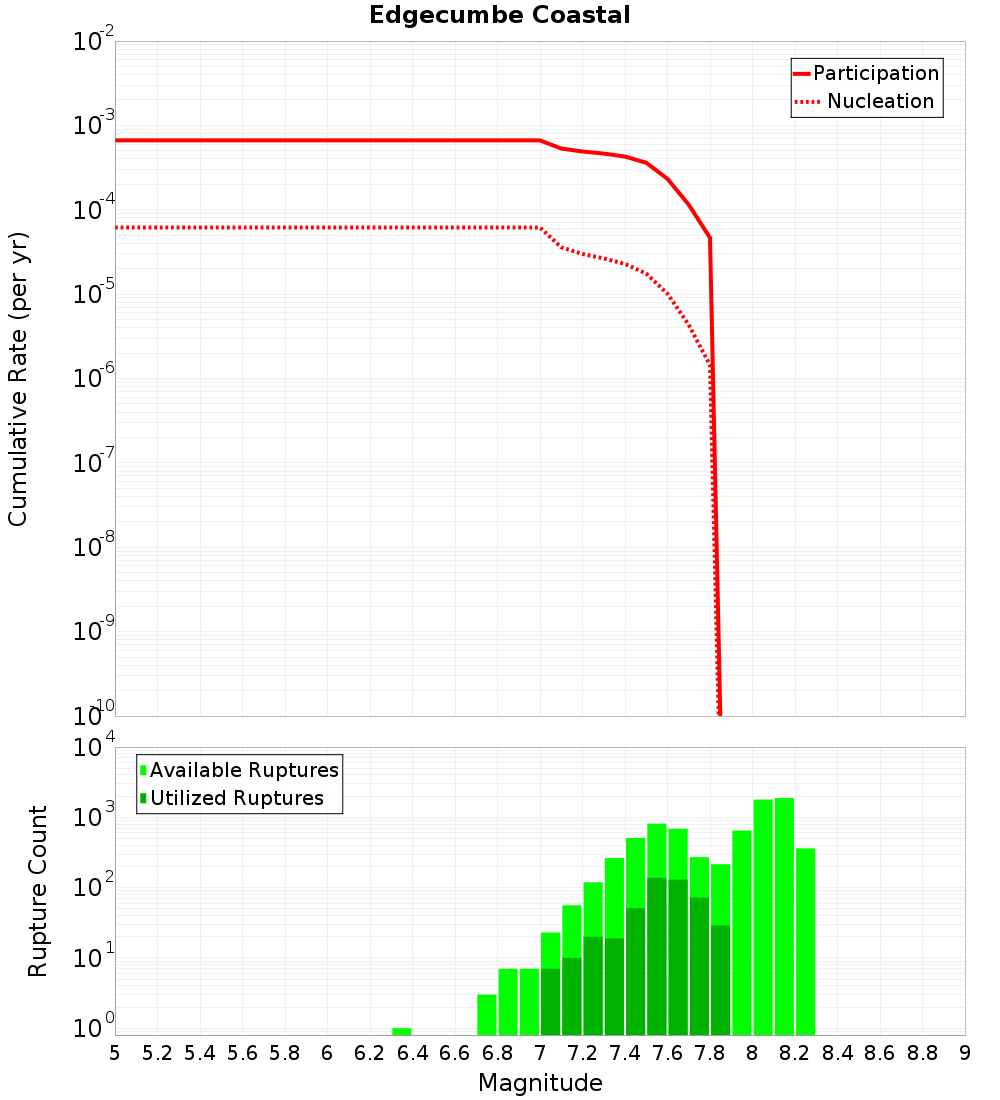

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
White Island 1, 0 km away
Edgecumbe 1987, 0 km away
Otakiri, 0.1 km away
Matata, 0.14 km away
Keepa, 3.06 km away
Whakatane: North, 3.09 km away
Braemar, 4.62 km away
Rangitaiki 1, 8.81 km away
Waiohau: North, 11.47 km away
Rangitaiki 2, 14.83 km away

White Island 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	true
Directly Connected?	true
Co-rupture Count	7,417
Co-rupture Rate	5.192002E-4

Edgecumbe 1987, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	true
Directly Connected?	true
Co-rupture Count	6,312
Co-rupture Rate	5.02574E-4

Otakiri, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	true
Directly Connected?	true
Co-rupture Count	1,128
Co-rupture Rate	9.733803E-5

Matata, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	true
Directly Connected?	true
Co-rupture Count	941
Co-rupture Rate	7.2092305E-5

Keepa, 3.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	true
Directly Connected?	false
Co-rupture Count	530
Co-rupture Rate	6.7843353E-9

Whakatane: North, 3.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Braemar, 4.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	true
Directly Connected?	true
Co-rupture Count	558
Co-rupture Rate	1.3436336E-4

Rangitaiki 1, 8.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	true
Directly Connected?	false
Co-rupture Count	2,379
Co-rupture Rate	1.7247736E-4

Waiohau: North, 11.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	true
Directly Connected?	false
Co-rupture Count	5,761
Co-rupture Rate	3.7298872E-4

Rangitaiki 2, 14.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	true
Directly Connected?	false
Co-rupture Count	1,625
Co-rupture Rate	1.585591E-4
