Horse Flat Details

Property	Value
Rupture Count	649
Ruptures Above Sect Min Mag	647
Ruptures w/ Nonzero Rates	29
Magnitude Range	[6.90, 7.99]
Length Range	[23, 263] km
Total Rate	2.3731043E-5 /yr
Multi-Fault Rate	1.9280842E-5 /yr (81.25%)
Directly-Connected Faults	7
All Co-Rupturing Faults	36

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

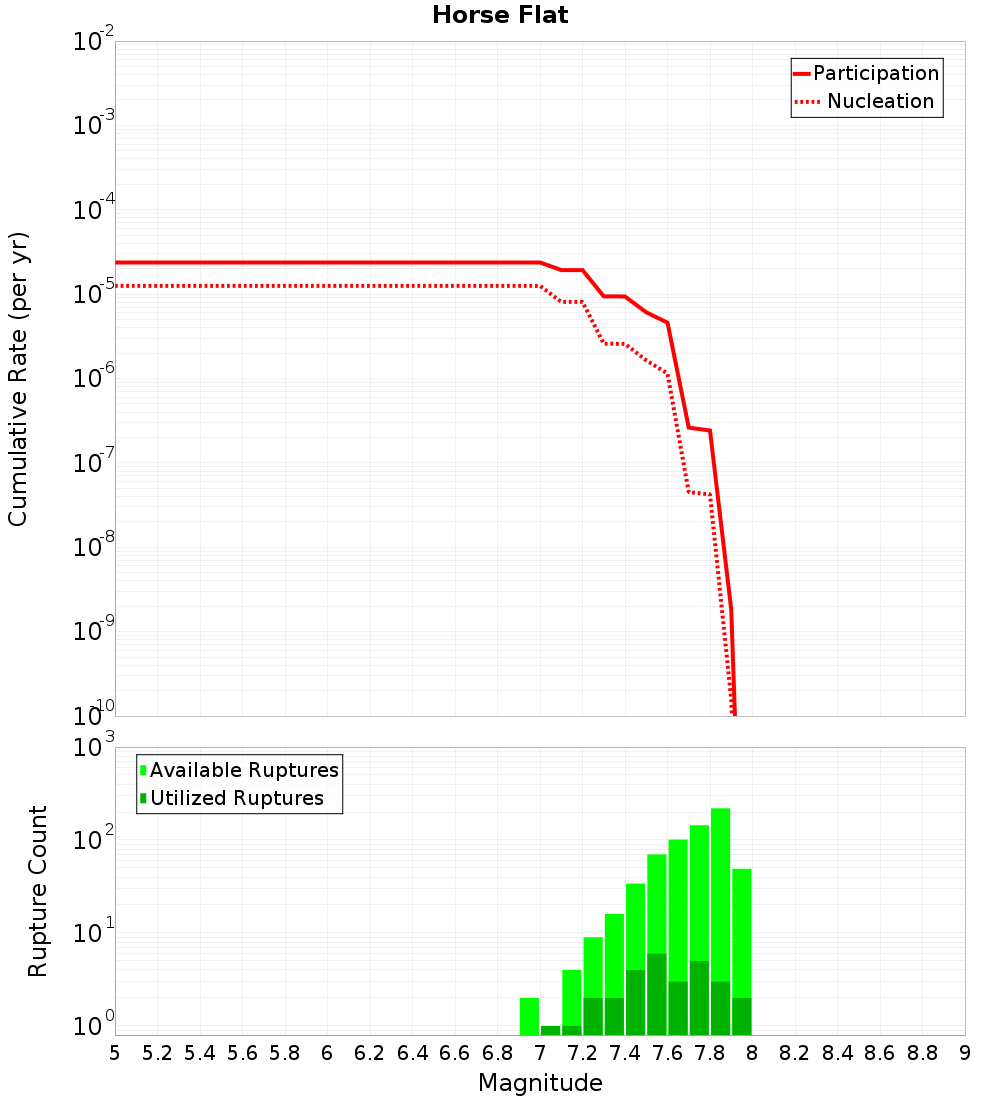

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

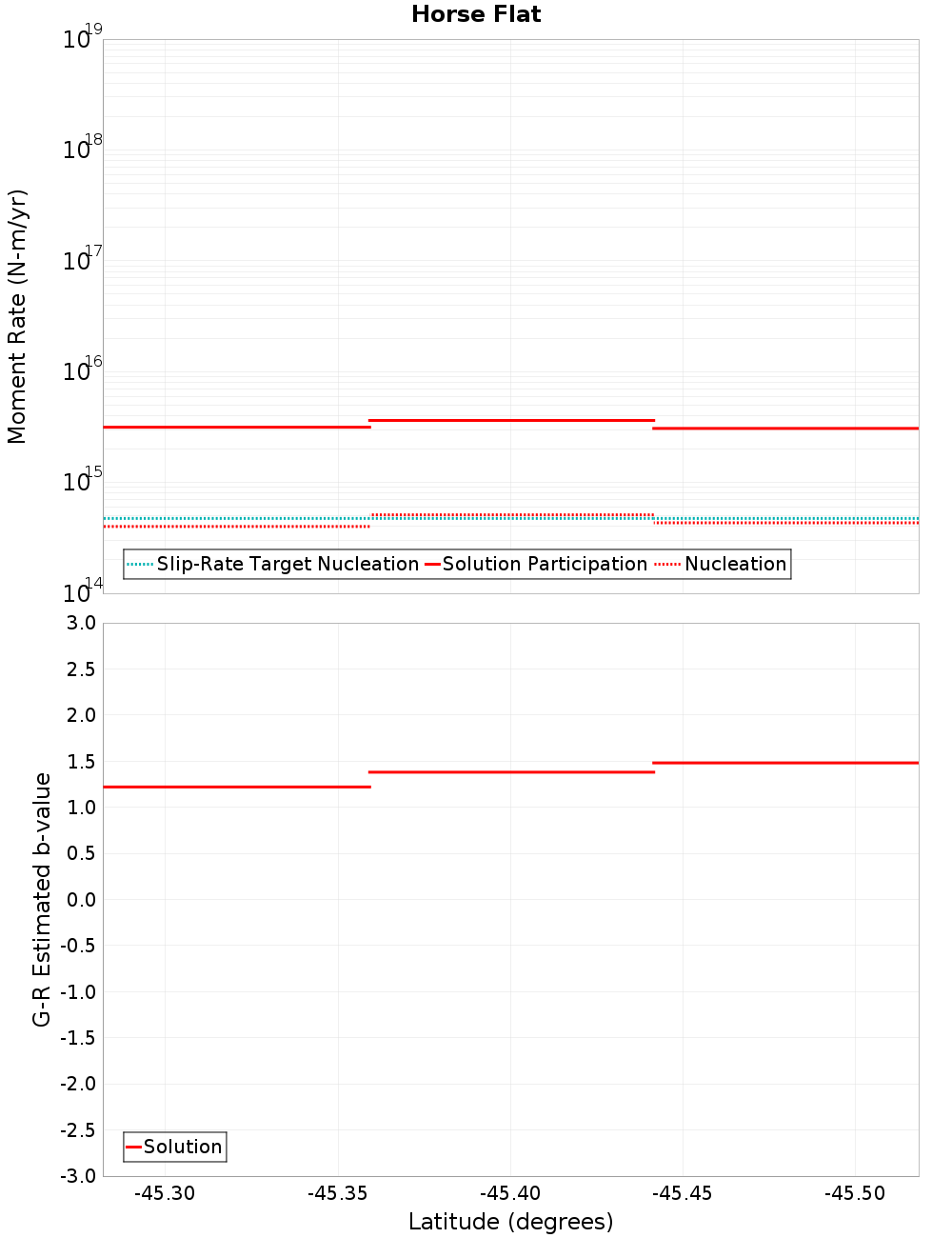

Moment-Rates and b-Values

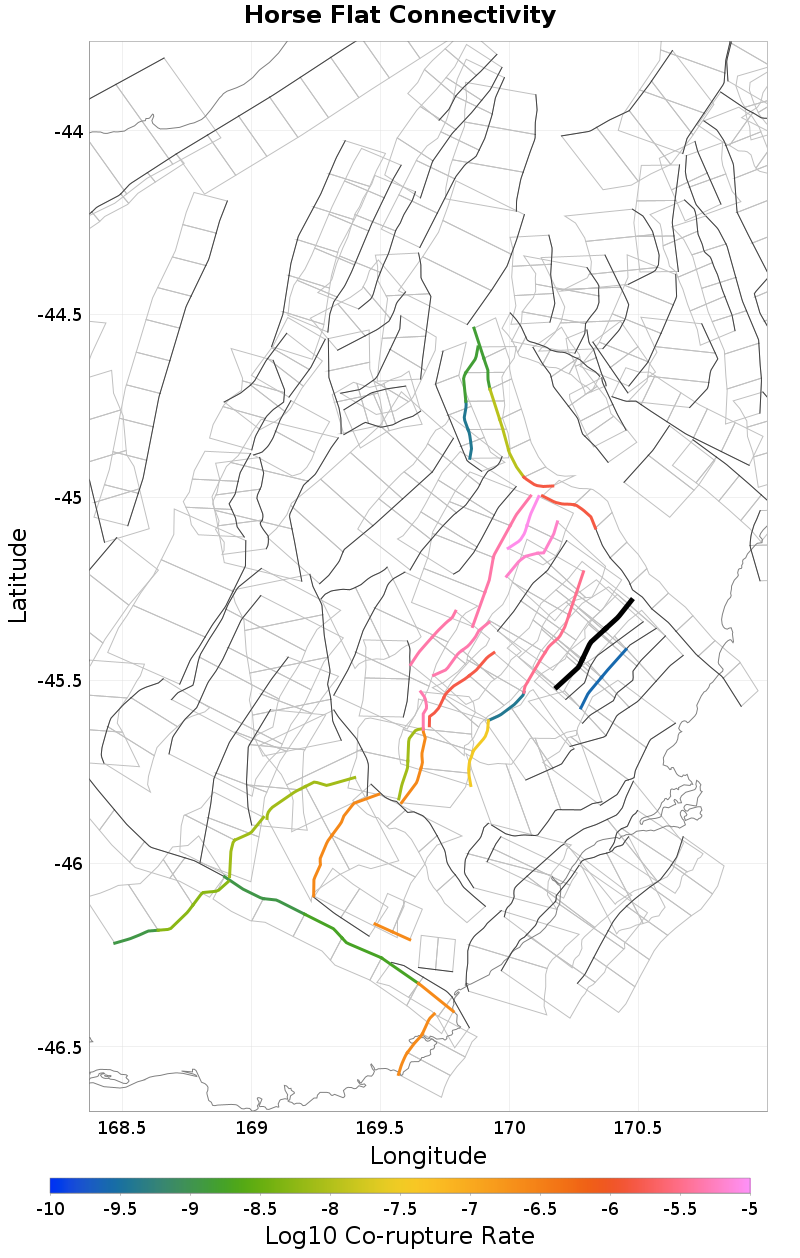

Connectivity

Nearby Sections

Fault Section
Ranfurly, 0.12 km away
Waipiata, 0.24 km away
Pylap, 0.45 km away
Billys Ridge, 2.27 km away
Waihemo, 2.81 km away
Logan Burn, 3.91 km away
Murphys Creek, 5.19 km away
Hyde North, 5.99 km away
Long Valley, 7.19 km away
Cross Eden, 7.44 km away
Dunback Hill, 9.22 km away
Nichols Rock, 12.8 km away
Flat Stream - Glenpark, 13.11 km away

Ranfurly, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	true
Directly Connected?	true
Co-rupture Count	72
Co-rupture Rate	6.0677326E-6

Waipiata, 0.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	true
Directly Connected?	true
Co-rupture Count	55
Co-rupture Rate	0.0

Pylap, 0.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	true
Directly Connected?	true
Co-rupture Count	184
Co-rupture Rate	4.5587003E-6

Billys Ridge, 2.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	0.0

Waihemo, 2.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	1.4735616E-6

Logan Burn, 3.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	true
Directly Connected?	true
Co-rupture Count	324
Co-rupture Rate	1.5576935E-6

Murphys Creek, 5.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	true
Directly Connected?	true
Co-rupture Count	17
Co-rupture Rate	2.5662045E-10

Hyde North, 5.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	true
Directly Connected?	true
Co-rupture Count	130
Co-rupture Rate	3.2964294E-6

Long Valley, 7.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	true
Directly Connected?	false
Co-rupture Count	11
Co-rupture Rate	4.3240025E-6

Cross Eden, 7.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	true
Directly Connected?	true
Co-rupture Count	151
Co-rupture Rate	8.654006E-6

Dunback Hill, 9.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Nichols Rock, 12.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Flat Stream - Glenpark, 13.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNTAuMGV2TWpB
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
