Conway Trough West Details

PropertyValue
Rupture Count181
Ruptures Above Sect Min Mag174
Ruptures w/ Nonzero Rates31
Magnitude Range[6.60, 7.78]
Length Range[18, 260] km
Total Rate1.0561067E-4 /yr
Multi-Fault Rate1.0561067E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults24

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

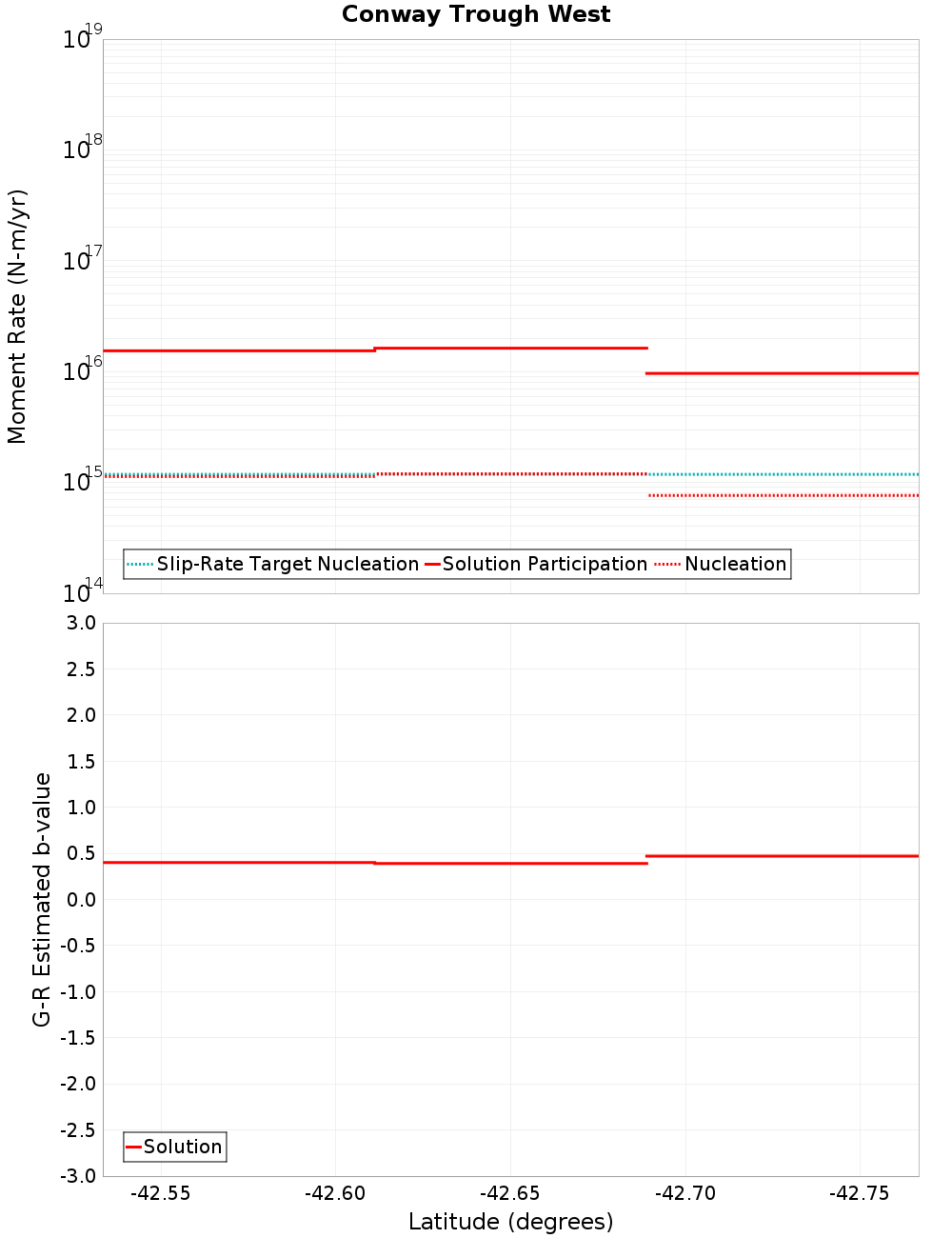

Moment-Rates and b-Values

(top)

Along-strike plot

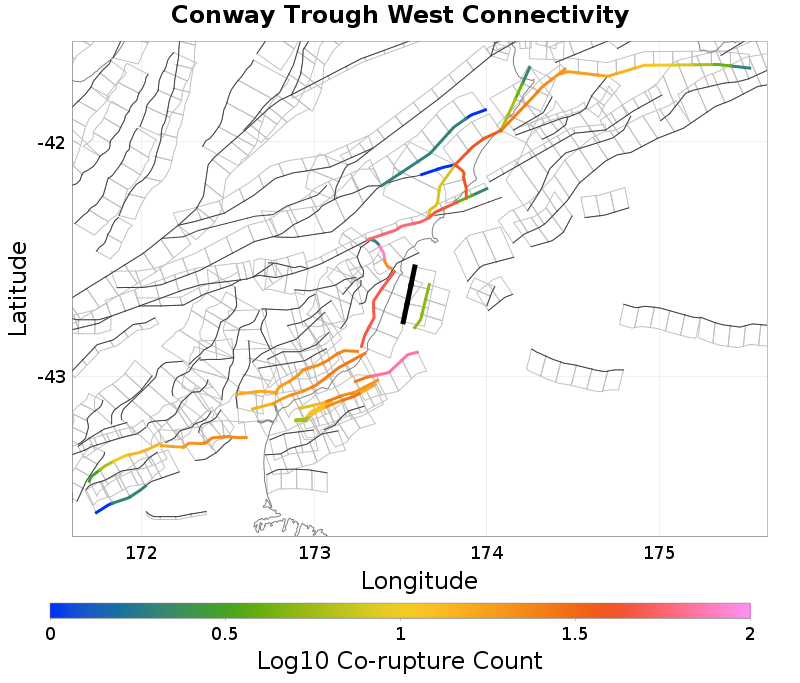

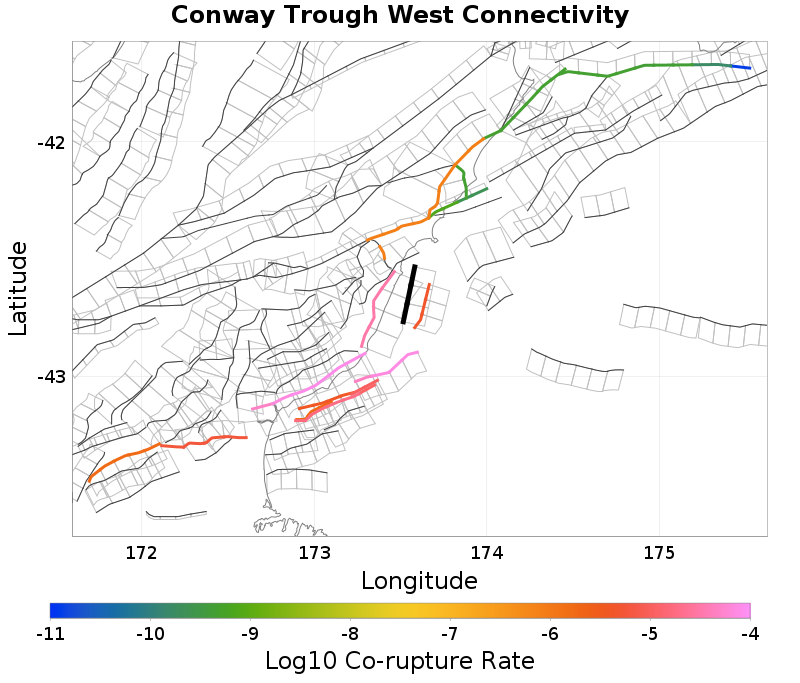

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hawkswood, 4 km away
Conway Trough East, 5.06 km away
Hundalee, 5.24 km away
StoneJug, 10.85 km away
Marlborough Slope 2, 12.27 km away
Point Gibson, 14.94 km away

Hawkswood, 4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNjQuMEhFV0Jp
Connected?true
Directly Connected?true
Co-rupture Count48
Co-rupture Rate3.2190186E-5

Conway Trough East, 5.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNjQuMEhFV0Jp
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate4.4733843E-6

Hundalee, 5.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNjQuMEhFV0Jp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

StoneJug, 10.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNjQuMEhFV0Jp
Connected?true
Directly Connected?true
Co-rupture Count80
Co-rupture Rate8.254713E-7

Marlborough Slope 2, 12.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNjQuMEhFV0Jp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Point Gibson, 14.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNjQuMEhFV0Jp
Connected?true
Directly Connected?true
Co-rupture Count69
Co-rupture Rate7.259501E-5
