Ridge Road - Okaia 2 Details

PropertyValue
Rupture Count13
Ruptures Above Sect Min Mag12
Ruptures w/ Nonzero Rates5
Magnitude Range[7.21, 7.75]
Length Range[30, 103] km
Total Rate4.869557E-5 /yr
Multi-Fault Rate4.869557E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults4

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

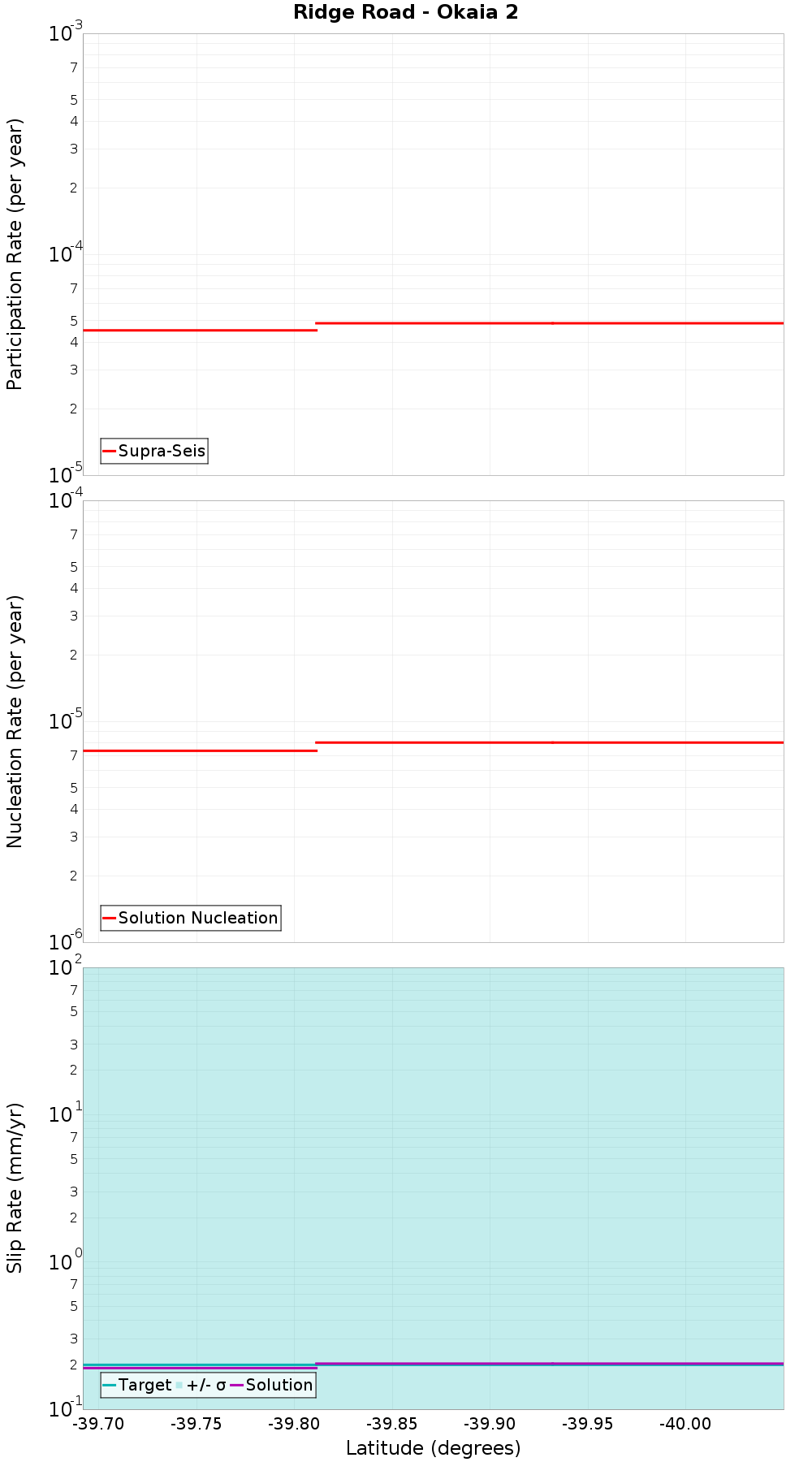

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

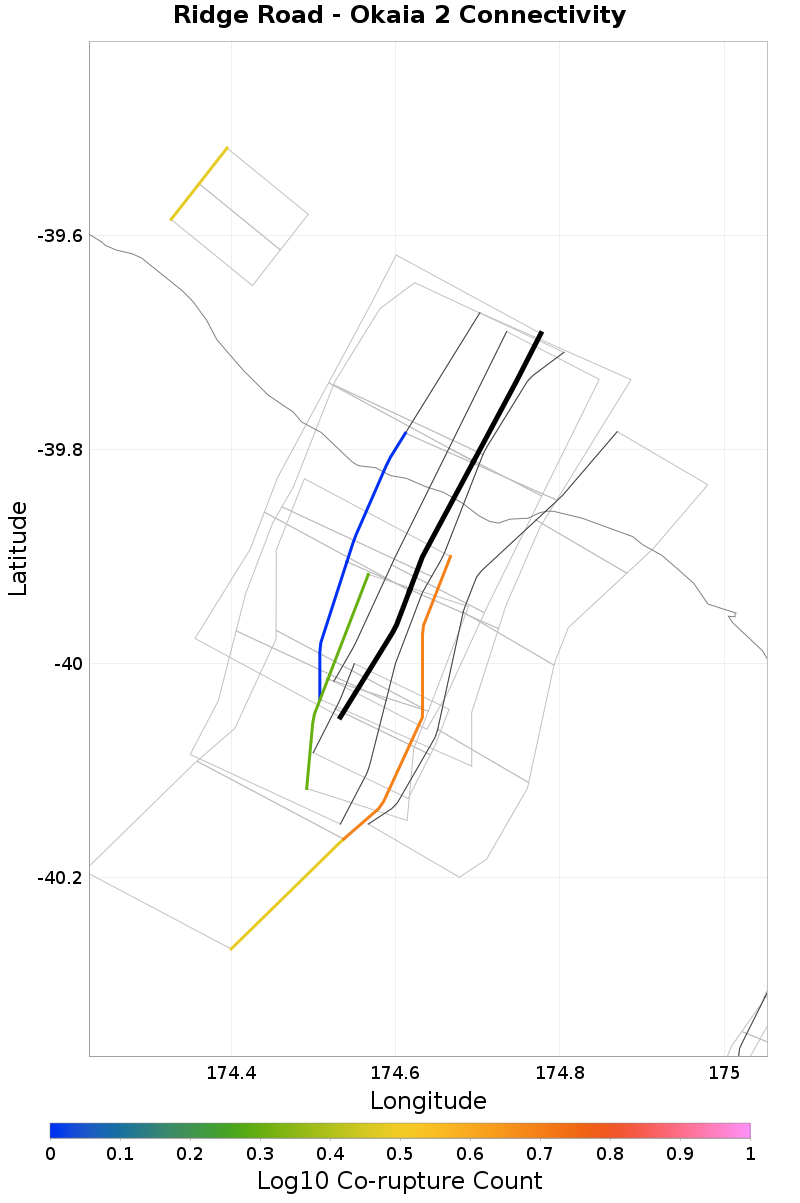

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waverley - Okaia 1, 0.04 km away
Okaia 3, 0.18 km away
Moumahaki - Okaia 4, 0.29 km away
Okaia 5, 0.34 km away
Waitotara 10 & 11, 0.52 km away
Waitotara 8 & 9, 2.25 km away
Nukumuru - Waitotara 1-6, 5.96 km away
Ararata, 10.1 km away

Waverley - Okaia 1, 0.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNjUuMEZpWThL
Connected?true
Directly Connected?true
Co-rupture Count1
Co-rupture Rate2.7420217E-9

Okaia 3, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNjUuMEZpWThL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Moumahaki - Okaia 4, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNjUuMEZpWThL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Okaia 5, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNjUuMEZpWThL
Connected?true
Directly Connected?true
Co-rupture Count2
Co-rupture Rate0.0

Waitotara 10 & 11, 0.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNjUuMEZpWThL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitotara 8 & 9, 2.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNjUuMEZpWThL
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate4.869283E-5

Nukumuru - Waitotara 1-6, 5.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNjUuMEZpWThL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ararata, 10.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNjUuMEZpWThL
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate4.719859E-6
