Wairau Details

PropertyValue
Rupture Count27,936
Ruptures Above Sect Min Mag27,923
Ruptures w/ Nonzero Rates188
Magnitude Range[6.80, 8.61]
Length Range[20, 1,132] km
Total Rate0.0010933415 /yr
Multi-Fault Rate0.0010743388 /yr (98.26%)
Directly-Connected Faults8
All Co-Rupturing Faults126

Table Of Contents

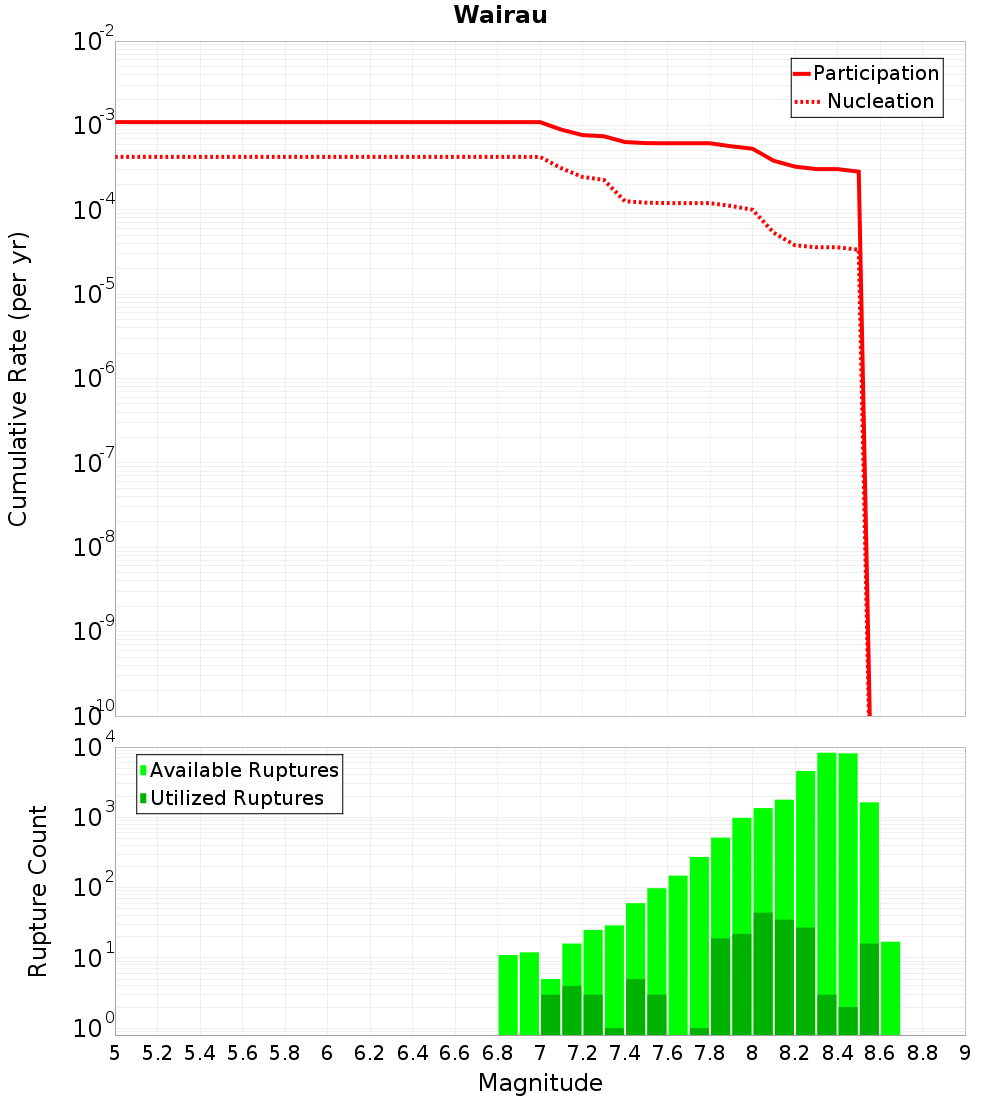

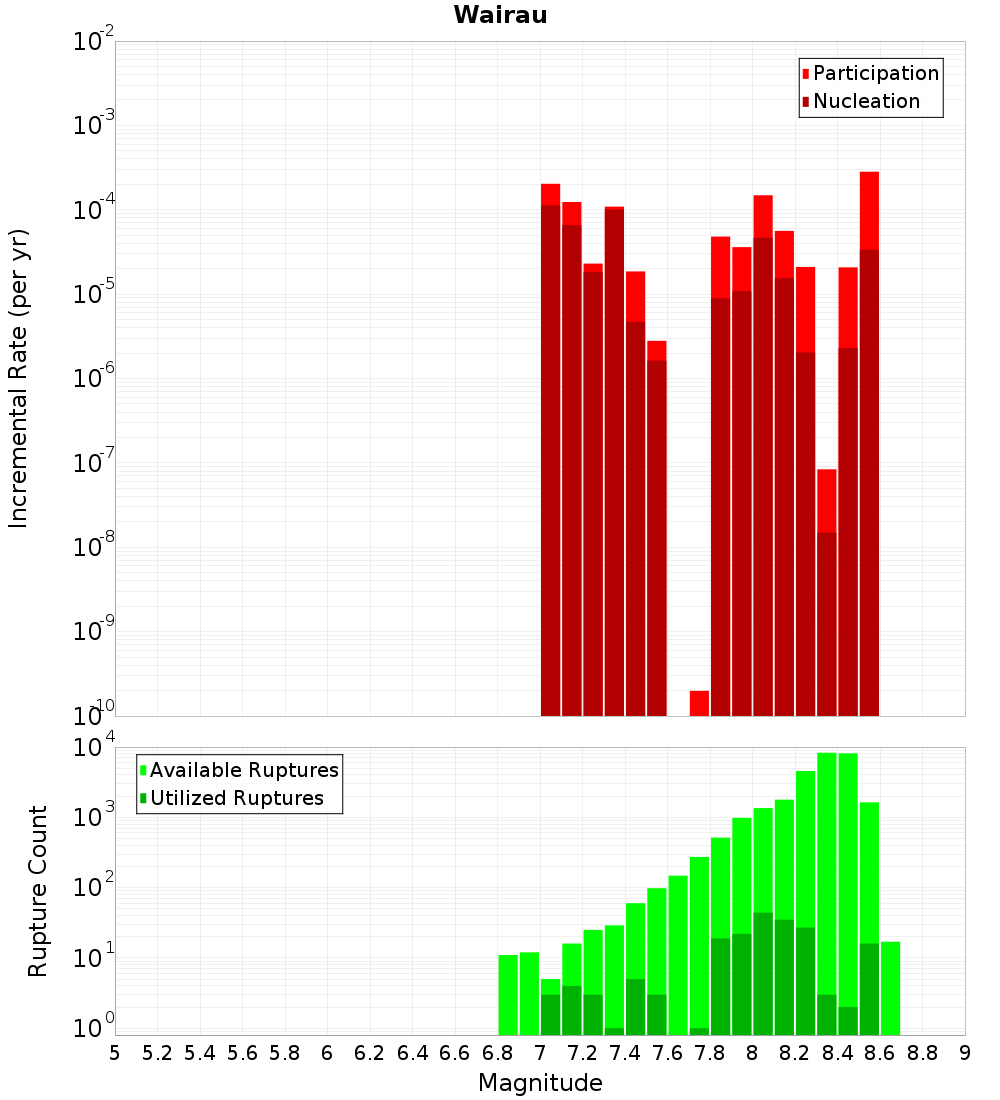

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

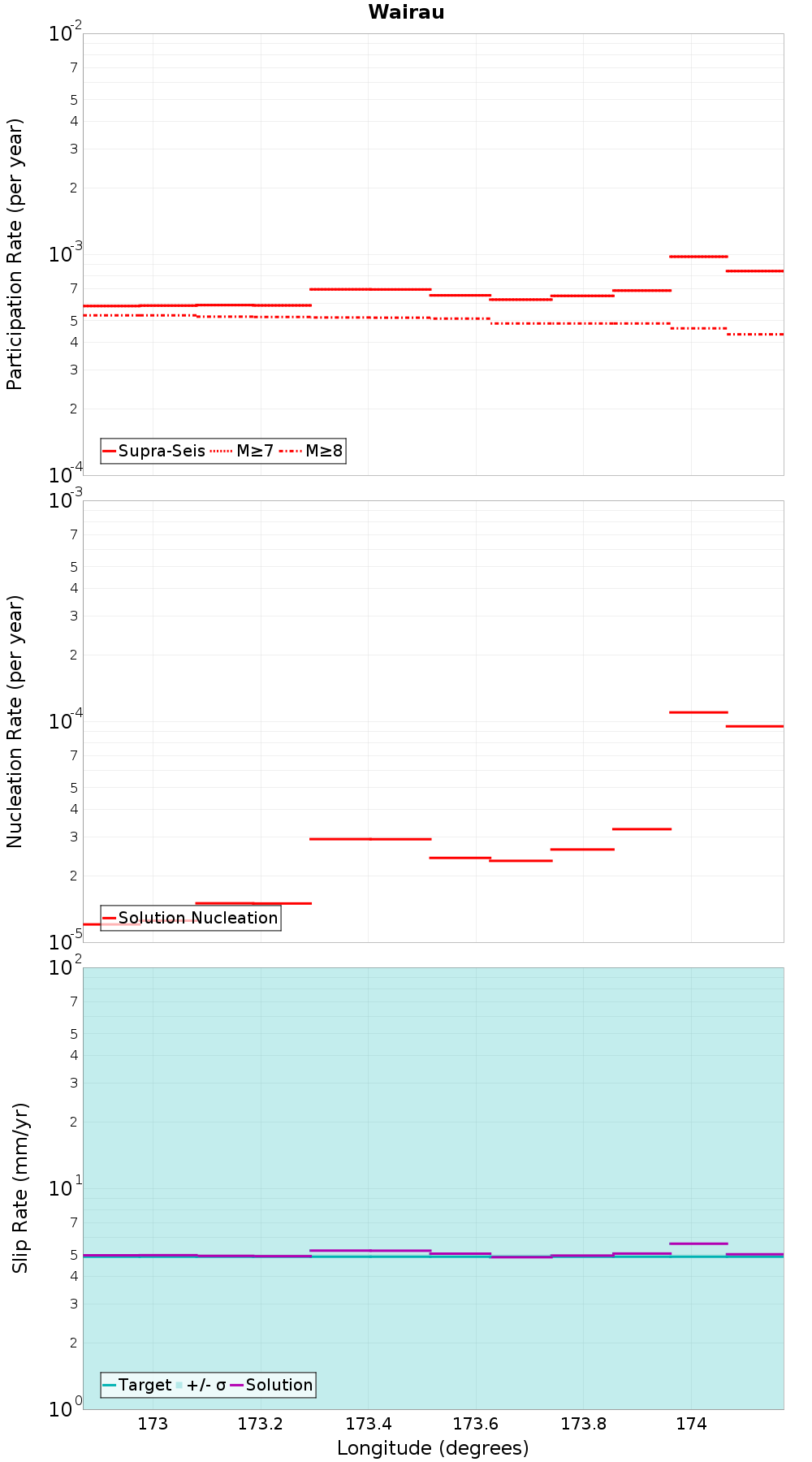

Along-Strike Values

(top)

Along-strike plot

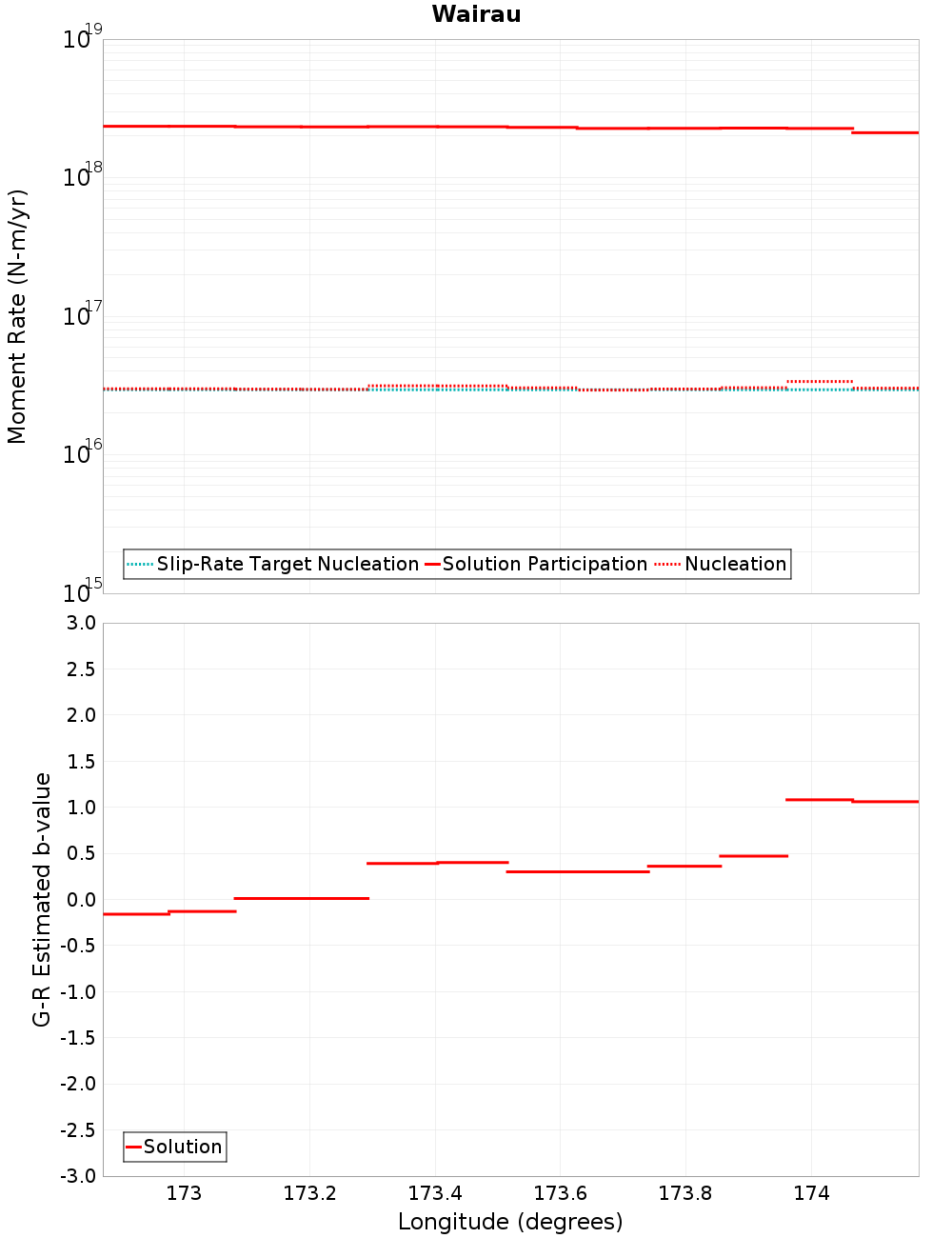

Moment-Rates and b-Values

(top)

Along-strike plot

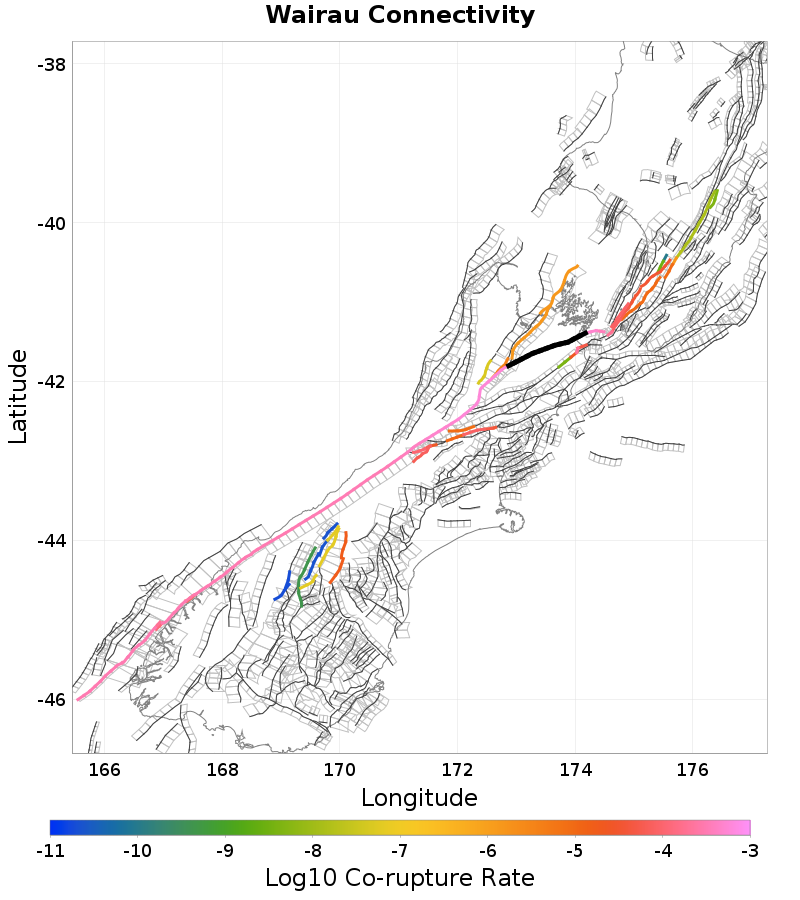

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wairau 2, 0 km away
Whangamoa, 0 km away
Alpine: Springs Junction to Tophouse, 0 km away
Flaxmore - Waimea - Tahunanui, 0.17 km away
Tutaki, 7.34 km away
Awatere: Northeast 1, 11.05 km away
Awatere: Northeast 2, 12.04 km away
Cloudy 2, 12.85 km away
Cloudy 1, 12.85 km away
Wairau 3, 13.7 km away
Vernon 1, 14 km away
Vernon 2, 14 km away
Ruby Bay - Moutere, 14.99 km away

Wairau 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNjUuMEZpWThL
Connected?true
Directly Connected?true
Co-rupture Count6,922
Co-rupture Rate4.8293883E-4

Whangamoa, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNjUuMEZpWThL
Connected?true
Directly Connected?true
Co-rupture Count5,375
Co-rupture Rate1.4557597E-6

Alpine: Springs Junction to Tophouse, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNjUuMEZpWThL
Connected?true
Directly Connected?true
Co-rupture Count25,931
Co-rupture Rate5.7310733E-4

Flaxmore - Waimea - Tahunanui, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNjUuMEZpWThL
Connected?true
Directly Connected?true
Co-rupture Count136
Co-rupture Rate3.952692E-6

Tutaki, 7.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNjUuMEZpWThL
Connected?true
Directly Connected?true
Co-rupture Count295
Co-rupture Rate4.6250136E-8

Awatere: Northeast 1, 11.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNjUuMEZpWThL
Connected?true
Directly Connected?true
Co-rupture Count1,606
Co-rupture Rate2.4258185E-5

Awatere: Northeast 2, 12.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNjUuMEZpWThL
Connected?true
Directly Connected?false
Co-rupture Count263
Co-rupture Rate0.0

Cloudy 2, 12.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNjUuMEZpWThL
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate0.0

Cloudy 1, 12.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNjUuMEZpWThL
Connected?true
Directly Connected?false
Co-rupture Count62
Co-rupture Rate0.0

Wairau 3, 13.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNjUuMEZpWThL
Connected?true
Directly Connected?true
Co-rupture Count389
Co-rupture Rate3.5559444E-4

Vernon 1, 14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNjUuMEZpWThL
Connected?true
Directly Connected?true
Co-rupture Count341
Co-rupture Rate2.2150495E-4

Vernon 2, 14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNjUuMEZpWThL
Connected?true
Directly Connected?false
Co-rupture Count247
Co-rupture Rate5.2095613E-5

Ruby Bay - Moutere, 14.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwNjUuMEZpWThL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
