Alfredton North Details

Property	Value
Rupture Count	2,925
Ruptures Above Sect Min Mag	2,922
Ruptures w/ Nonzero Rates	82
Magnitude Range	[6.65, 8.49]
Length Range	[15, 892] km
Total Rate	3.471535E-4 /yr
Multi-Fault Rate	3.471535E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	77

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

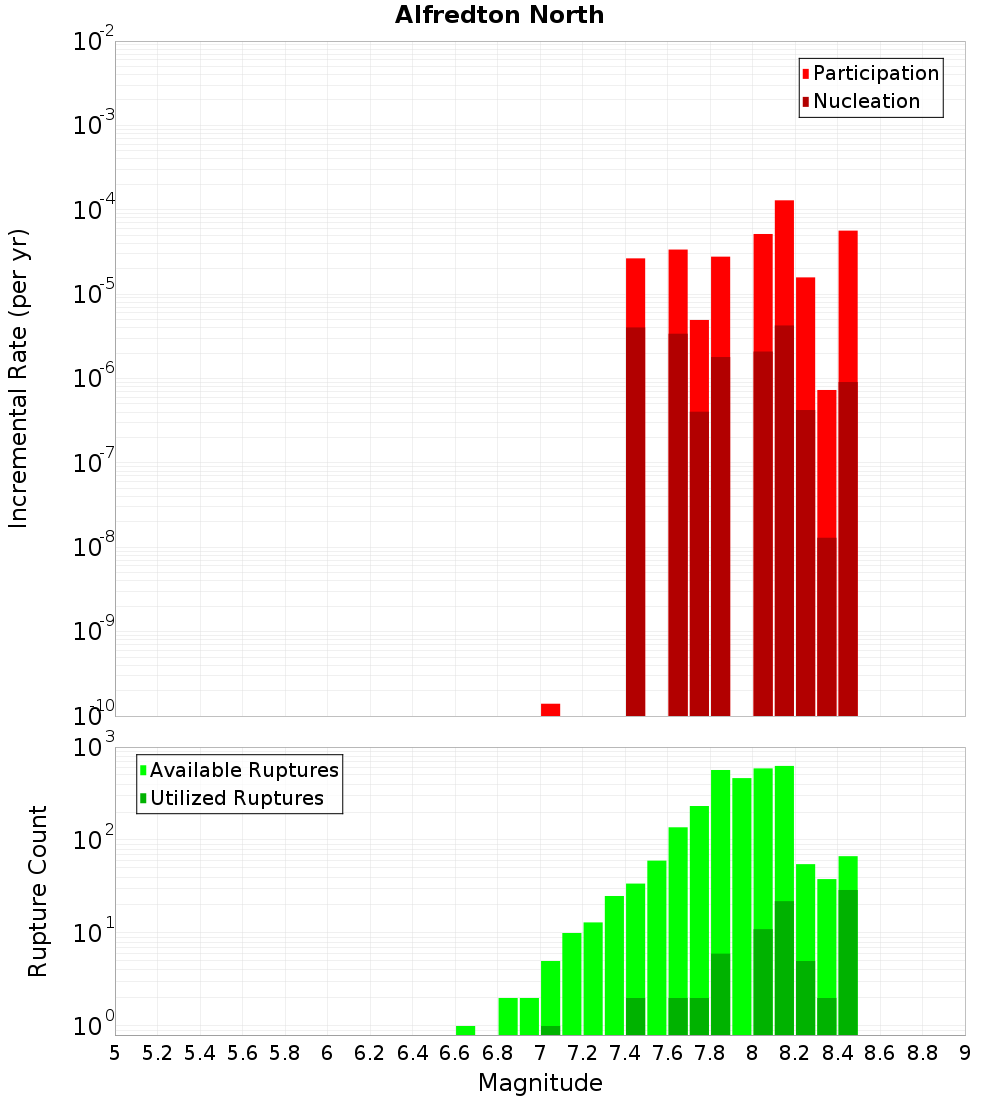

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Alfredton South, 0 km away
Saunders Road, 0 km away
Pa Valley, 0.21 km away
Makuri - Waewaepa, 0.29 km away
Dreyers Rock, 5.12 km away
Pahiatua, 12.97 km away
Waitawhiti, 14.48 km away

Alfredton South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwODMuMGpHVkNh
Connected?	true
Directly Connected?	true
Co-rupture Count	1,947
Co-rupture Rate	2.8700163E-4

Saunders Road, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwODMuMGpHVkNh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pa Valley, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwODMuMGpHVkNh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Makuri - Waewaepa, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwODMuMGpHVkNh
Connected?	true
Directly Connected?	true
Co-rupture Count	2,266
Co-rupture Rate	3.4704033E-4

Dreyers Rock, 5.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwODMuMGpHVkNh
Connected?	true
Directly Connected?	true
Co-rupture Count	2,872
Co-rupture Rate	2.6151064E-4

Pahiatua, 12.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwODMuMGpHVkNh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitawhiti, 14.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwODMuMGpHVkNh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
