Mokonui Southwest Details
| Property | Value |
|---|---|
| Rupture Count | 342 |
| Ruptures Above Sect Min Mag | 334 |
| Ruptures w/ Nonzero Rates | 7 |
| Magnitude Range | [6.54, 8.14] |
| Length Range | [13, 400] km |
| Total Rate | 3.580607E-4 /yr |
| Multi-Fault Rate | 3.580607E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 42 |
Table Of Contents

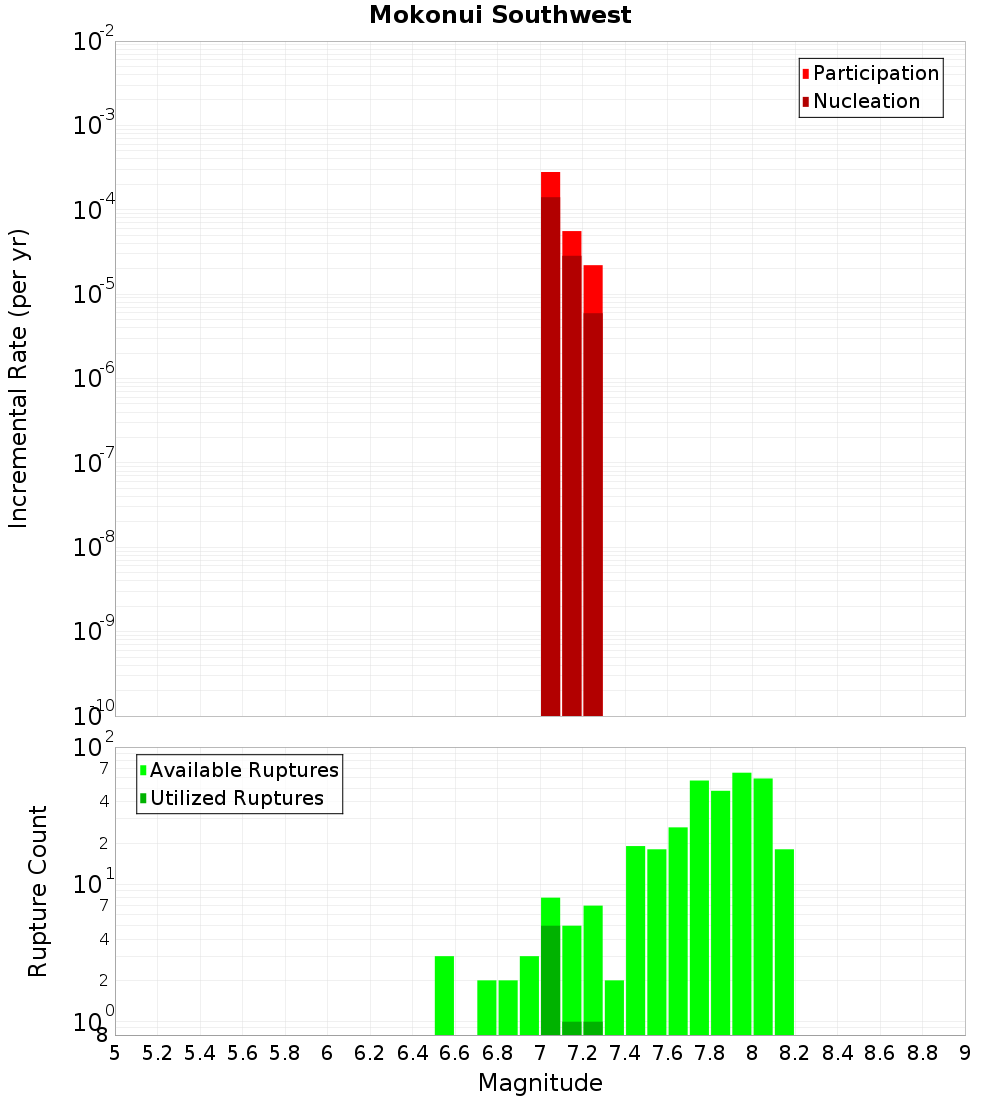

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

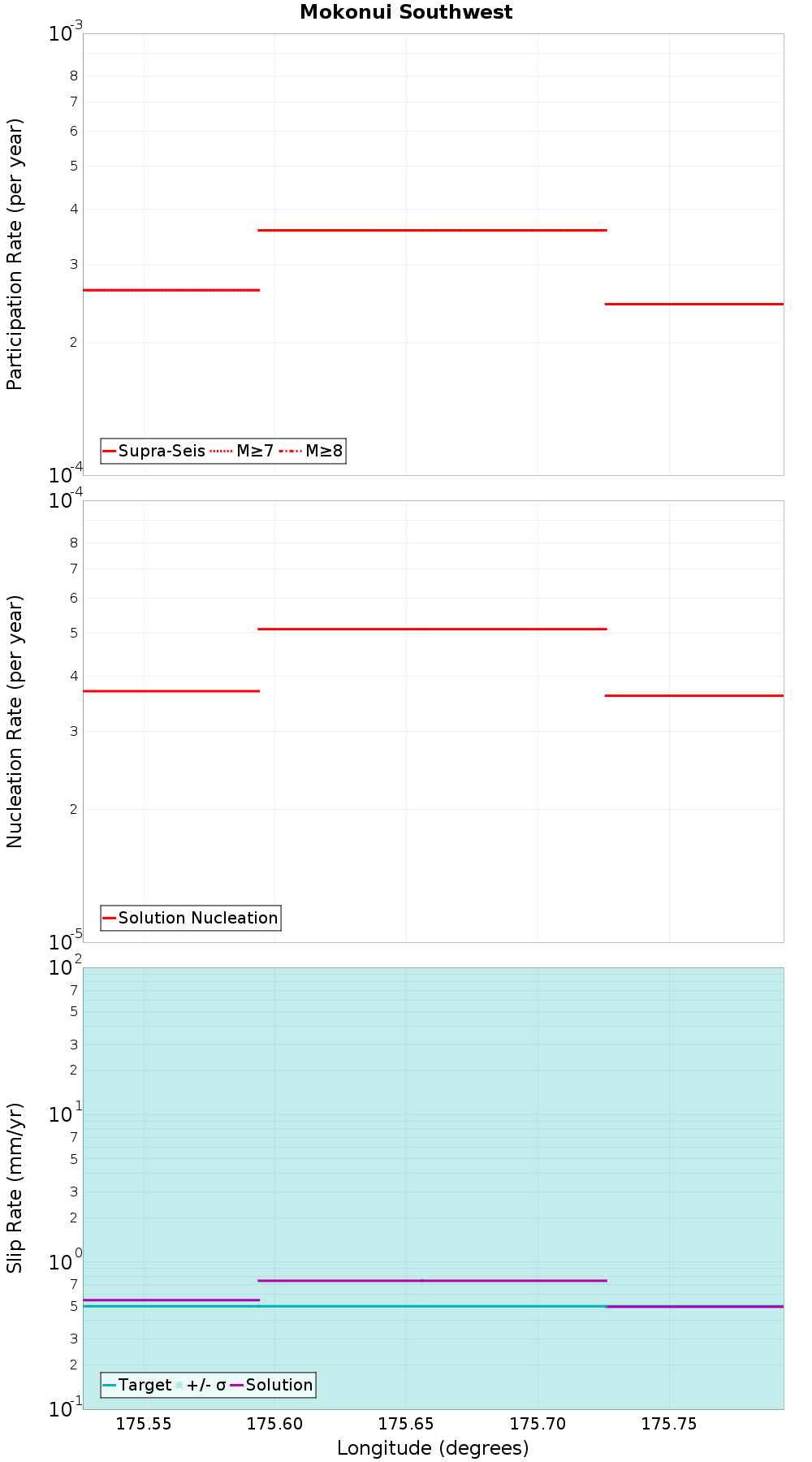

Along-Strike Values
Moment-Rates and b-Values

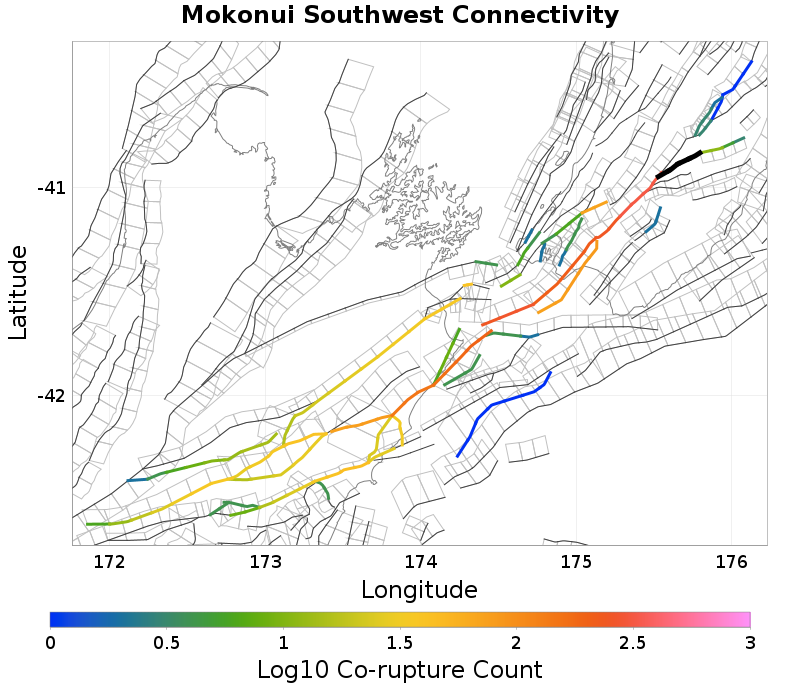

Connectivity
 |  |
|---|
Nearby Sections
Mokonui Northeast, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwODMuMGpHVkNh | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 11 |
| Co-rupture Rate | 2.4372606E-4 |
Wairarapa: 3, 0.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwODMuMGpHVkNh | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 322 |
| Co-rupture Rate | 0.0 |
Masterton, 2.89 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwODMuMGpHVkNh | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Carterton, 5.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwODMuMGpHVkNh | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Dreyers Rock, 9.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwODMuMGpHVkNh | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Alfredton South, 9.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwODMuMGpHVkNh | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 1.7524062E-5 |
Wellington: Tararua 2, 9.75 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwODMuMGpHVkNh | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pa Valley, 9.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwODMuMGpHVkNh | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3 |
| Co-rupture Rate | 1.1433464E-4 |
Wellington: Tararua 3, 9.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwODMuMGpHVkNh | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairarapa: 2, 12.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwODMuMGpHVkNh | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 318 |
| Co-rupture Rate | 0.0 |
Martinborough, 12.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwODMuMGpHVkNh | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
