Vernon 3 Details
| Property | Value |
|---|---|
| Rupture Count | 325 |
| Ruptures Above Sect Min Mag | 324 |
| Ruptures w/ Nonzero Rates | 54 |
| Magnitude Range | [6.26, 8.42] |
| Length Range | [5, 735] km |
| Total Rate | 2.0604716E-4 /yr |
| Multi-Fault Rate | 2.0604716E-4 /yr (100.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 45 |
Table Of Contents

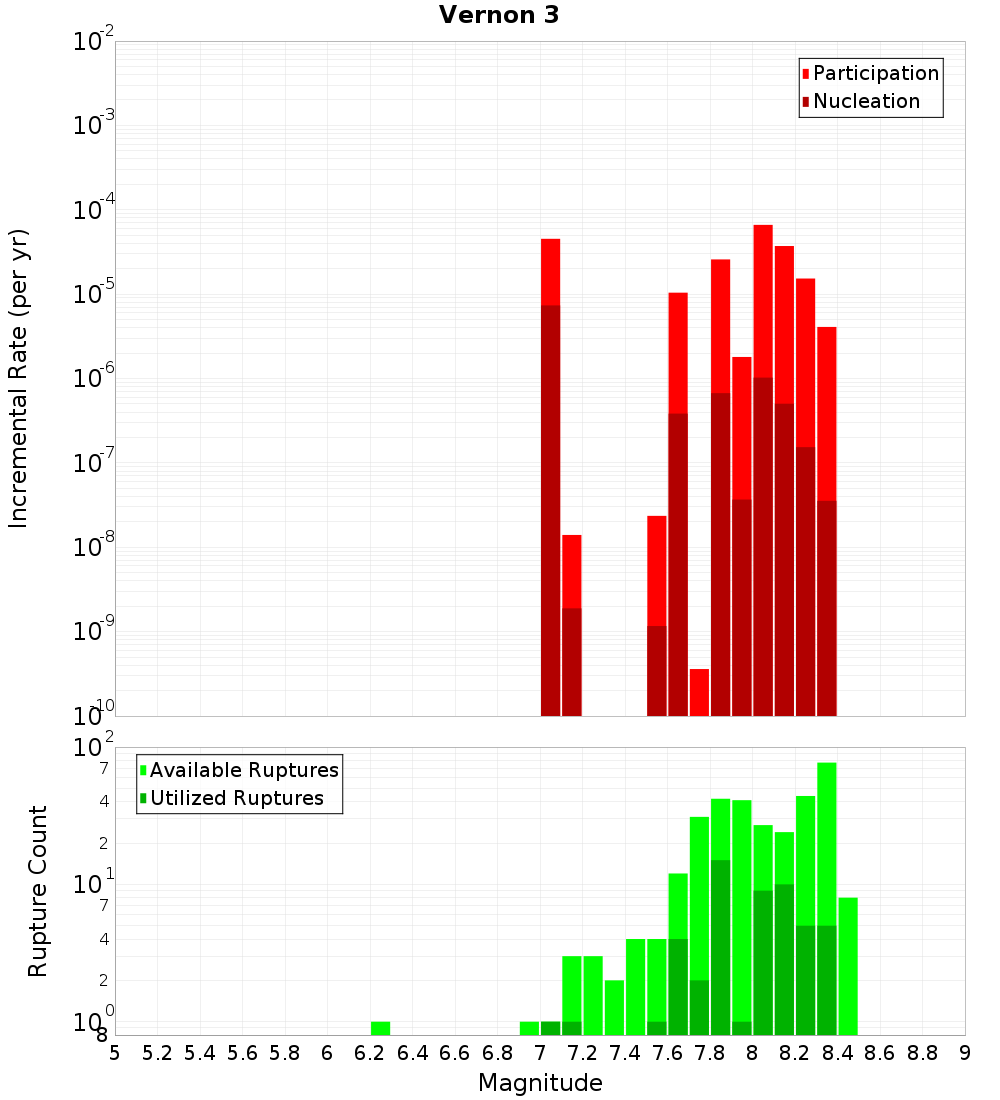

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

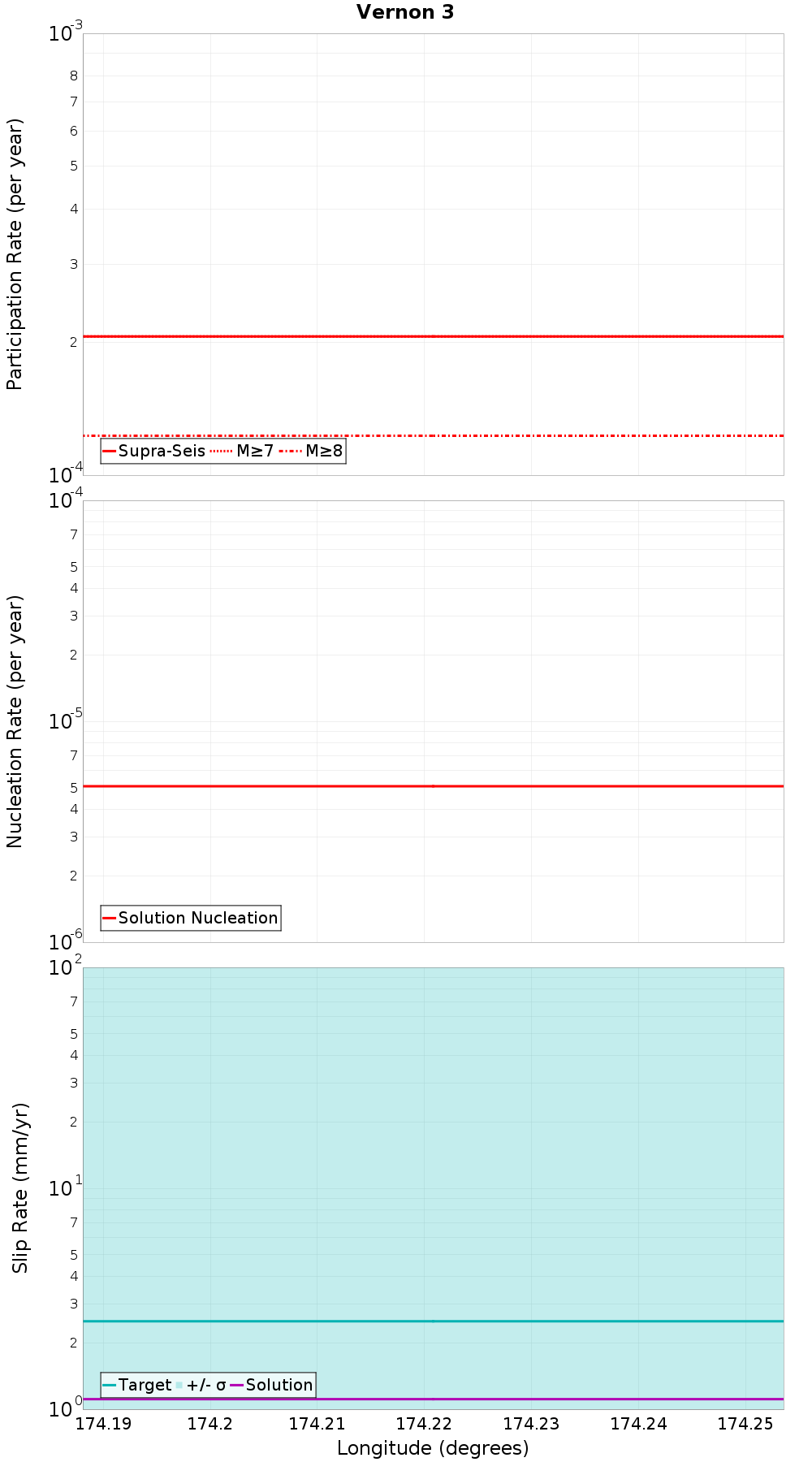

Along-Strike Values
Moment-Rates and b-Values

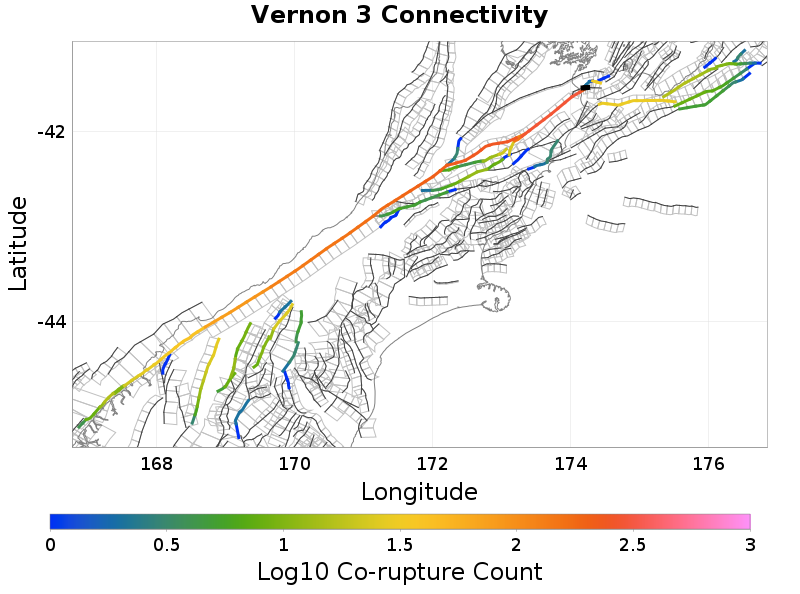

Connectivity
 |  |
|---|
Nearby Sections
Cloudy 1, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwODMuMGpHVkNh | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
Vernon 4, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwODMuMGpHVkNh | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Vernon 2, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwODMuMGpHVkNh | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Awatere: Northeast 2, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwODMuMGpHVkNh | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 324 |
| Co-rupture Rate | 2.0604716E-4 |
Cloudy 3, 4.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwODMuMGpHVkNh | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 30 |
| Co-rupture Rate | 2.5788027E-5 |
Vernon 1, 4.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwODMuMGpHVkNh | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cloudy 2, 7.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwODMuMGpHVkNh | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 4.525586E-5 |
Needles East 2, 8.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwODMuMGpHVkNh | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairarapa: Needles, 9.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwODMuMGpHVkNh | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Needles, 14.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwODMuMGpHVkNh | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
BooBoo, 14.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwODMuMGpHVkNh | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 29 |
| Co-rupture Rate | 2.5788027E-5 |
