Tauranga Trough West 2 Details

PropertyValue
Rupture Count52
Ruptures Above Sect Min Mag51
Ruptures w/ Nonzero Rates46
Magnitude Range[6.99, 7.69]
Length Range[24, 114] km
Total Rate2.287598E-5 /yr
Multi-Fault Rate2.2862887E-5 /yr (99.94%)
Directly-Connected Faults6
All Co-Rupturing Faults10

Table Of Contents

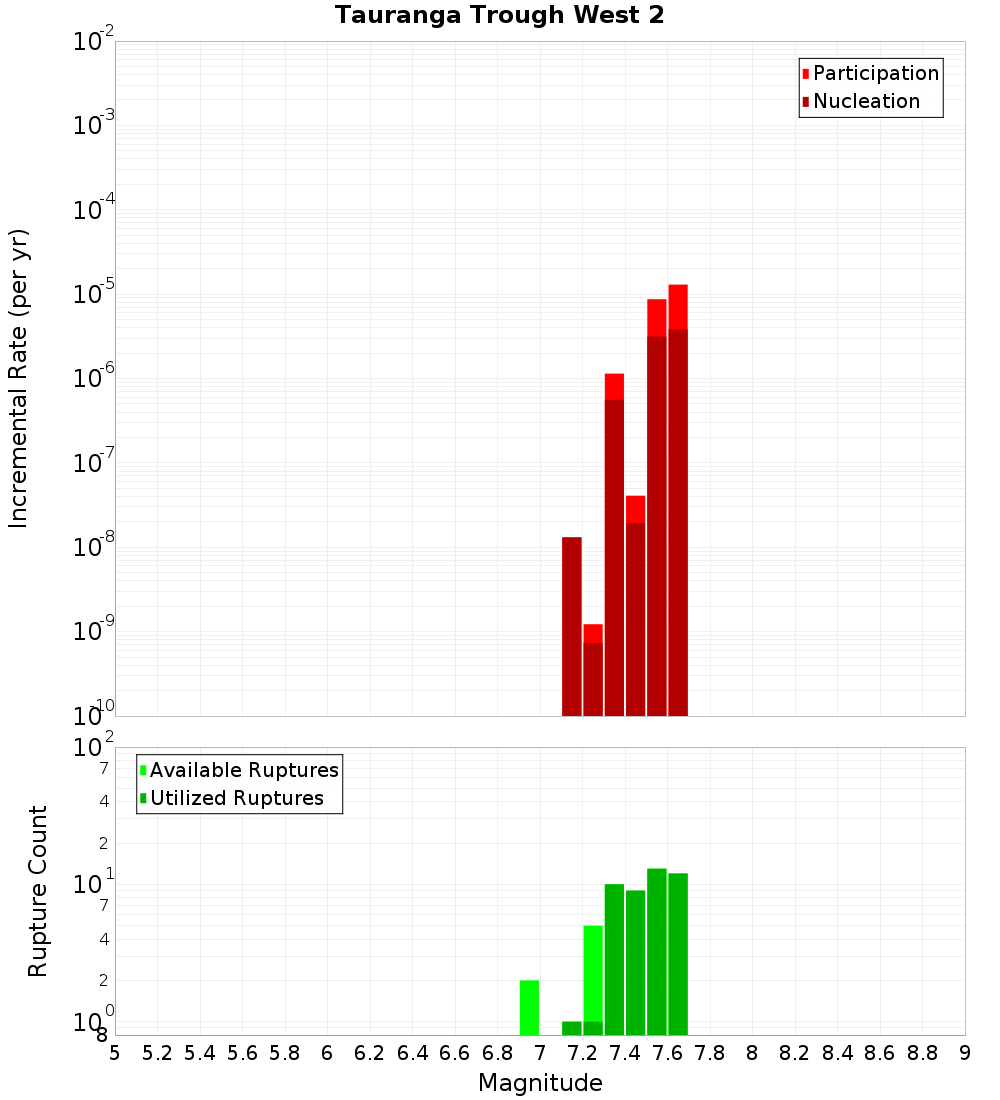

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

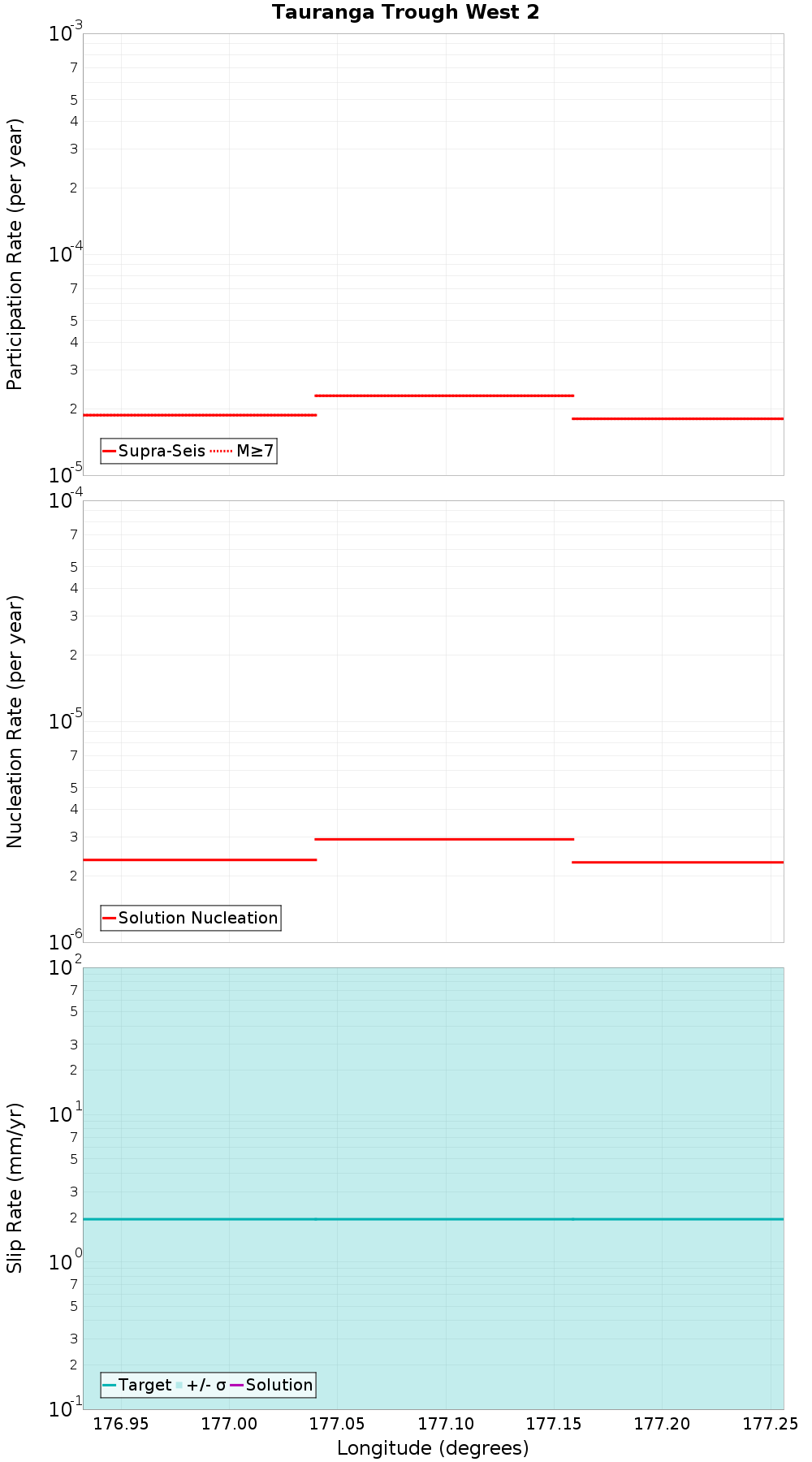

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

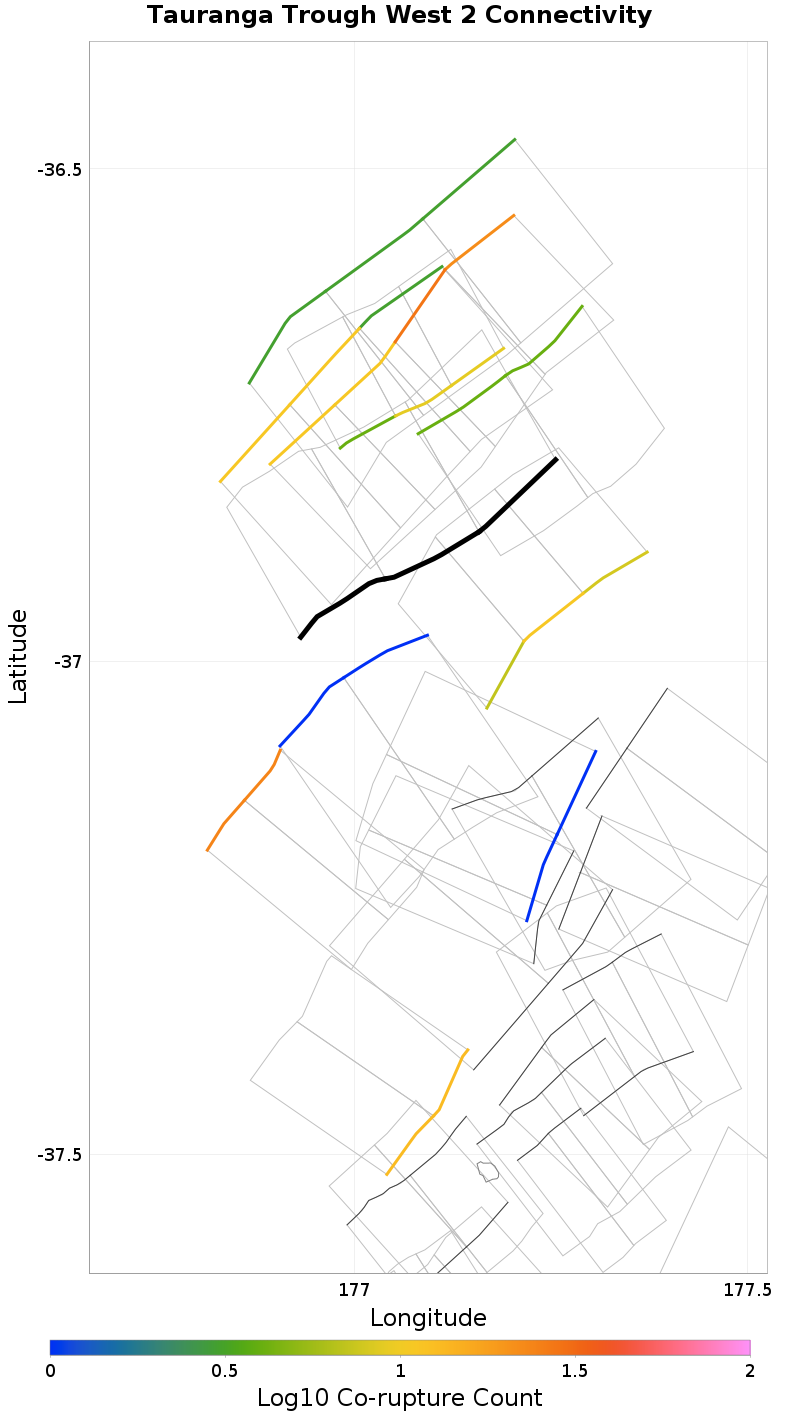

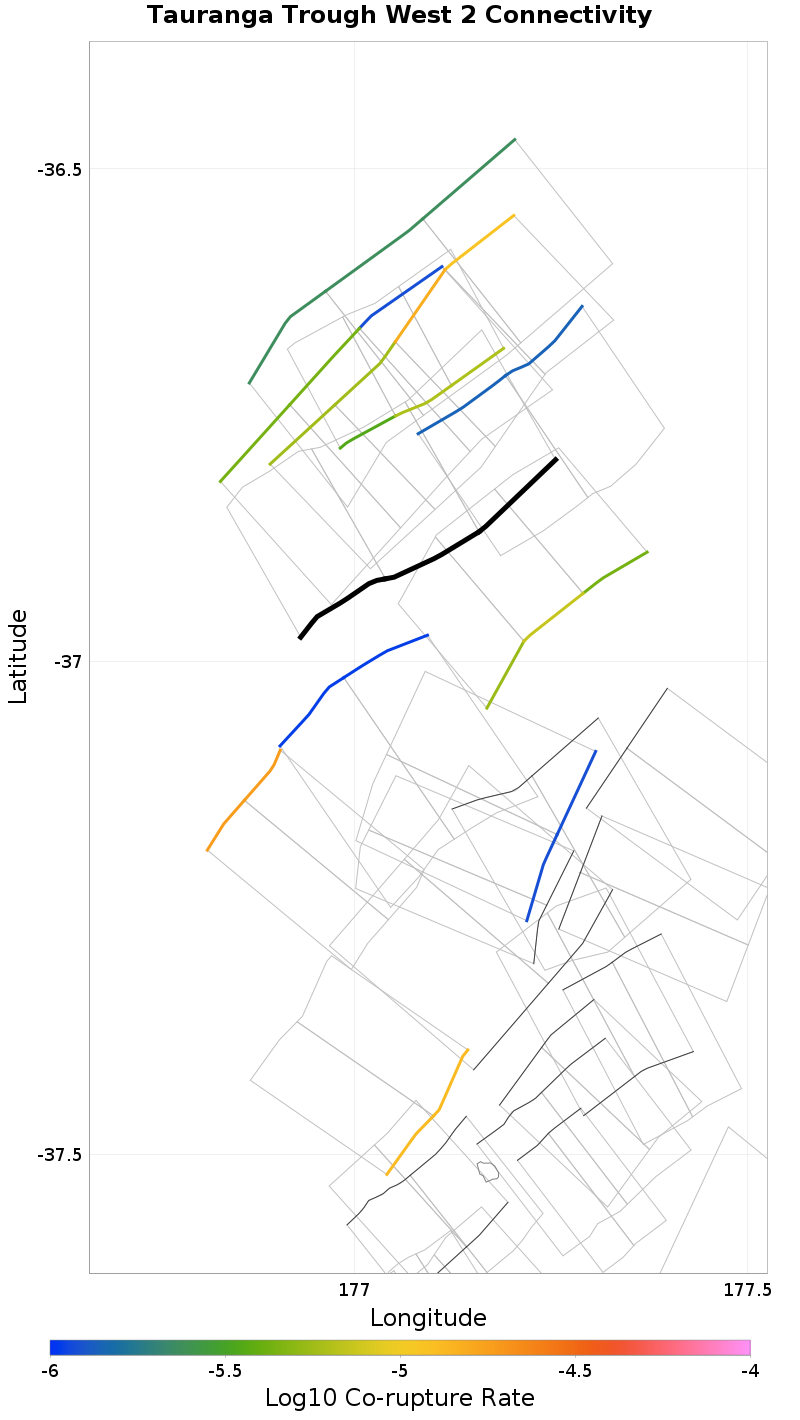

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ohena 3, 0.08 km away
Ohena 2, 0.13 km away
Ngatoro South 2, 0.18 km away
Ohena 4, 0.39 km away
Tuakana 7, 6.47 km away
Tauranga Trough East 2, 9.68 km away
Ngatoro South 5, 10.46 km away
Tuakana 6, 12.95 km away

Ohena 3, 0.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwOTcuMFk4UHo5
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate4.3123932E-6

Ohena 2, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwOTcuMFk4UHo5
Connected?true
Directly Connected?true
Co-rupture Count29
Co-rupture Rate1.5183075E-5

Ngatoro South 2, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwOTcuMFk4UHo5
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate1.3748258E-6

Ohena 4, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwOTcuMFk4UHo5
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate2.3394557E-6

Tuakana 7, 6.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwOTcuMFk4UHo5
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate1.0754652E-6

Tauranga Trough East 2, 9.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwOTcuMFk4UHo5
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate7.181385E-6

Ngatoro South 5, 10.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwOTcuMFk4UHo5
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate6.1765754E-6

Tuakana 6, 12.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwOTcuMFk4UHo5
Connected?true
Directly Connected?true
Co-rupture Count24
Co-rupture Rate1.850475E-5
