Hump Ridge Details
| Property | Value |
|---|---|
| Rupture Count | 95 |
| Ruptures Above Sect Min Mag | 88 |
| Ruptures w/ Nonzero Rates | 12 |
| Magnitude Range | [6.83, 7.98] |
| Length Range | [22, 273] km |
| Total Rate | 3.1280506E-4 /yr |
| Multi-Fault Rate | 5.6703382E-5 /yr (18.13%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 7 |
Table Of Contents

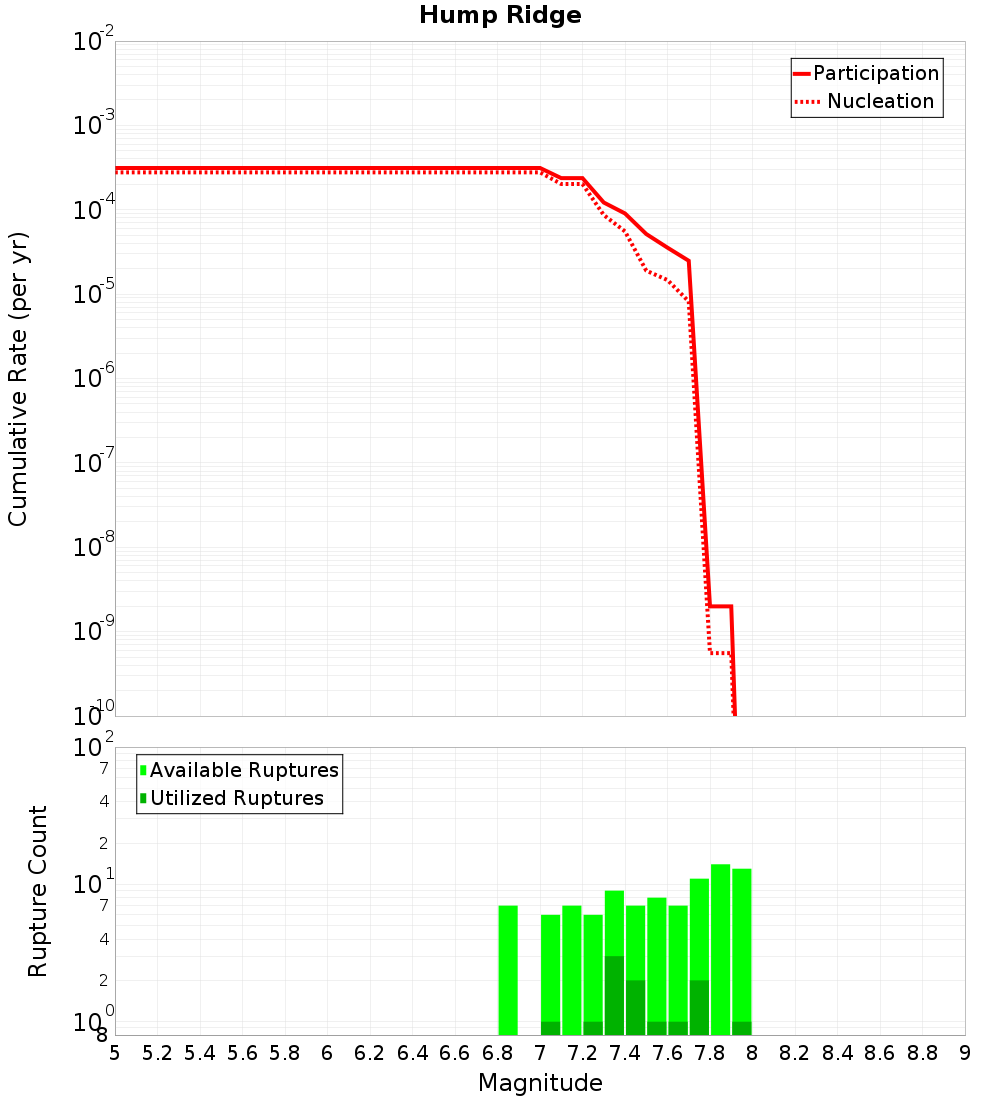

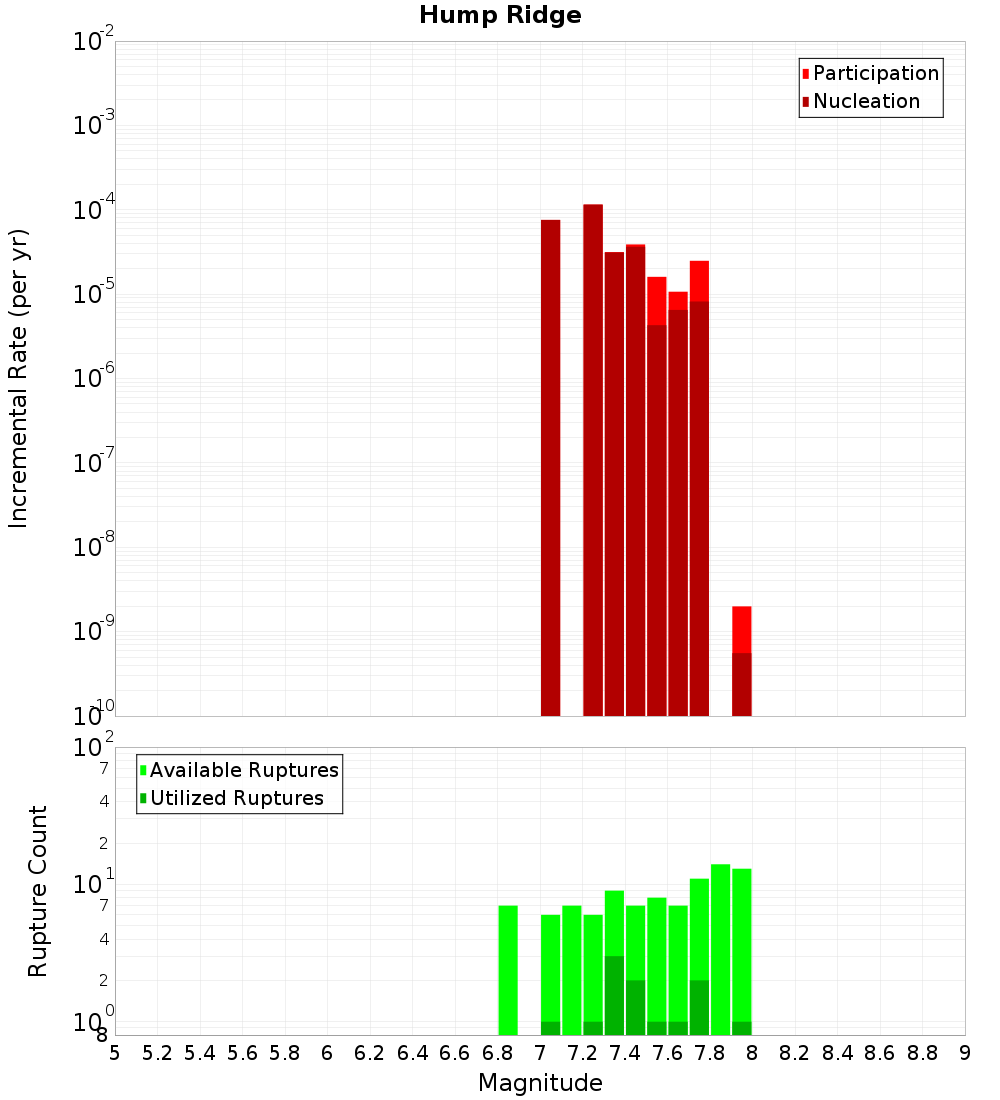

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

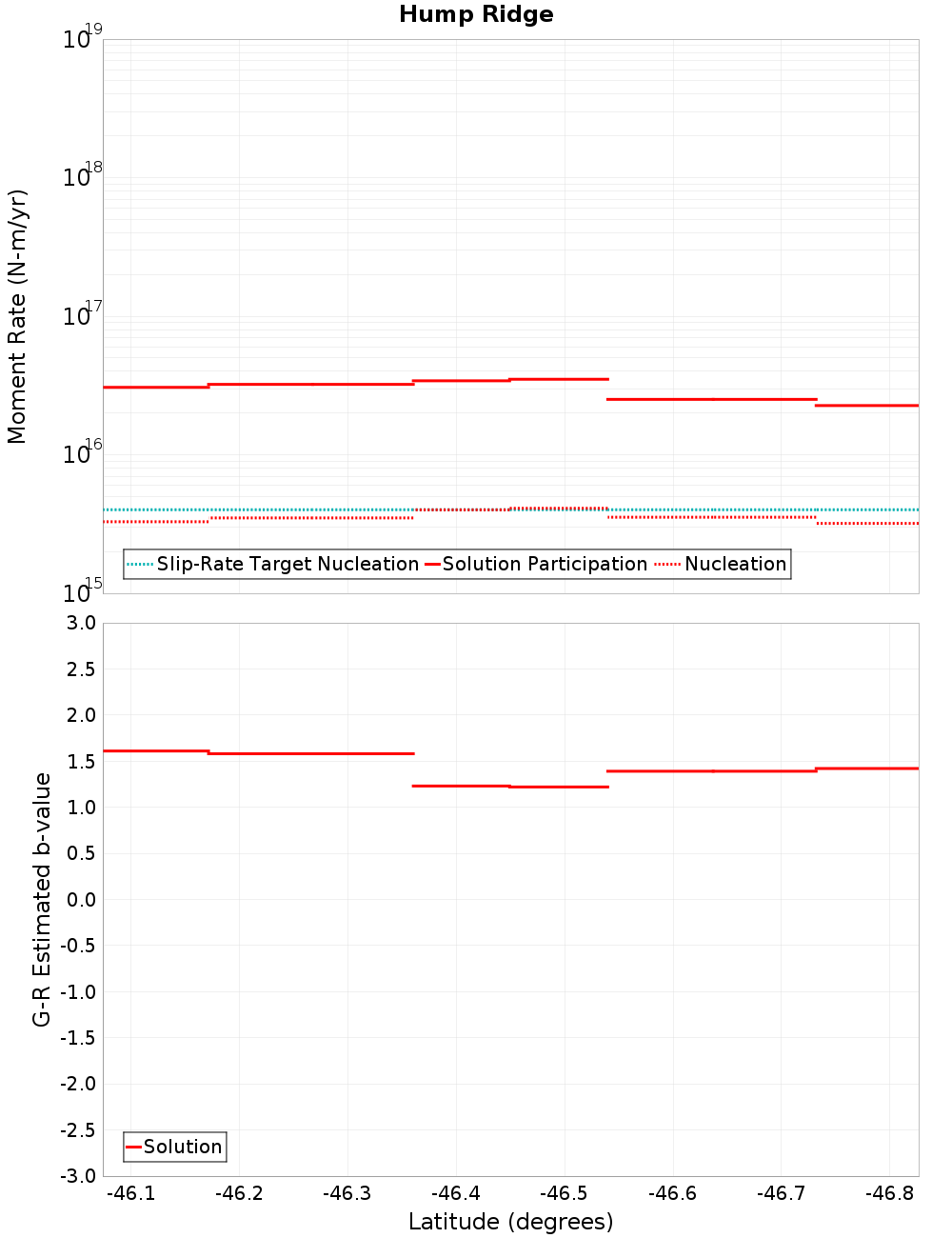

Moment-Rates and b-Values

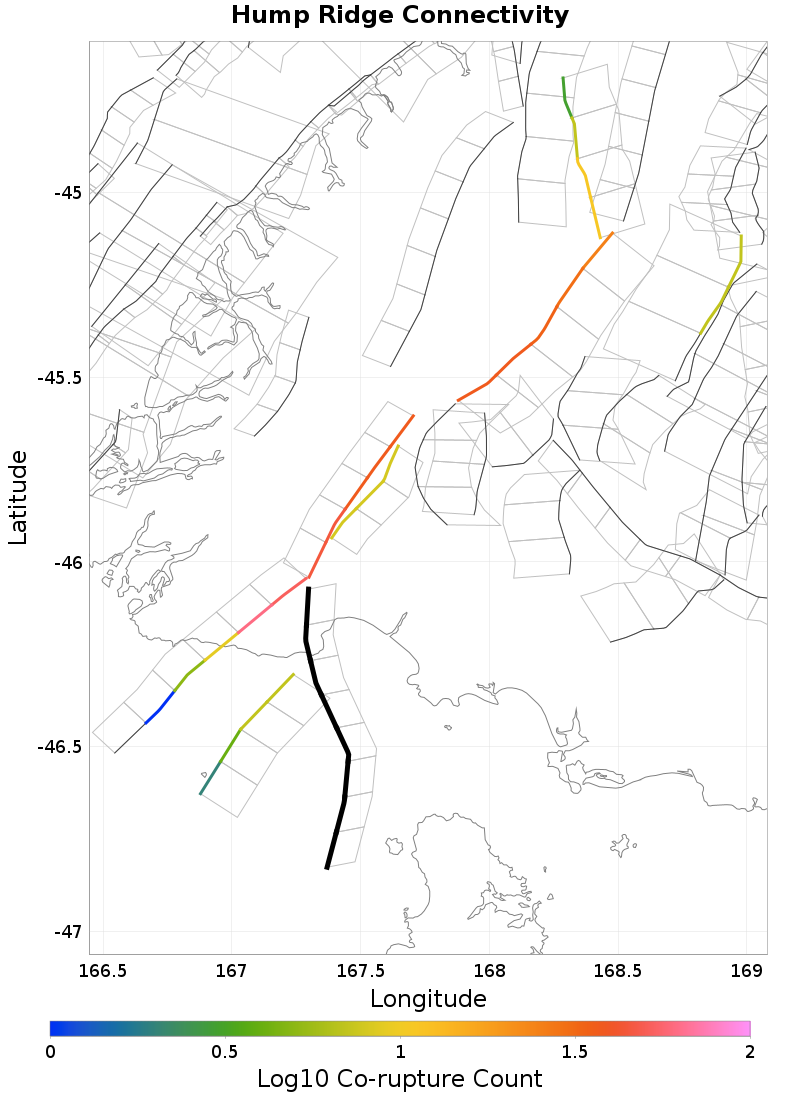

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hauroko: South, 3.03 km away |
| Hauroko: North, 3.59 km away |
| Solander, 5.29 km away |
| Monowai, 10.79 km away |
Hauroko: South, 3.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwOTcuMHdXbU5Y | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 61 |
| Co-rupture Rate | 5.155911E-5 |
Hauroko: North, 3.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwOTcuMHdXbU5Y | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 45 |
| Co-rupture Rate | 4.0875064E-5 |
Solander, 5.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwOTcuMHdXbU5Y | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7 |
| Co-rupture Rate | 2.4510815E-5 |
Monowai, 10.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwOTcuMHdXbU5Y | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 8 |
| Co-rupture Rate | 4.0873074E-5 |
