Cape Foulwind 2 Details
| Property | Value |
|---|---|
| Rupture Count | 2,538 |
| Ruptures Above Sect Min Mag | 2,529 |
| Ruptures w/ Nonzero Rates | 95 |
| Magnitude Range | [6.83, 8.10] |
| Length Range | [20, 369] km |
| Total Rate | 1.7183556E-4 /yr |
| Multi-Fault Rate | 9.823669E-5 /yr (57.17%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 11 |
Table Of Contents

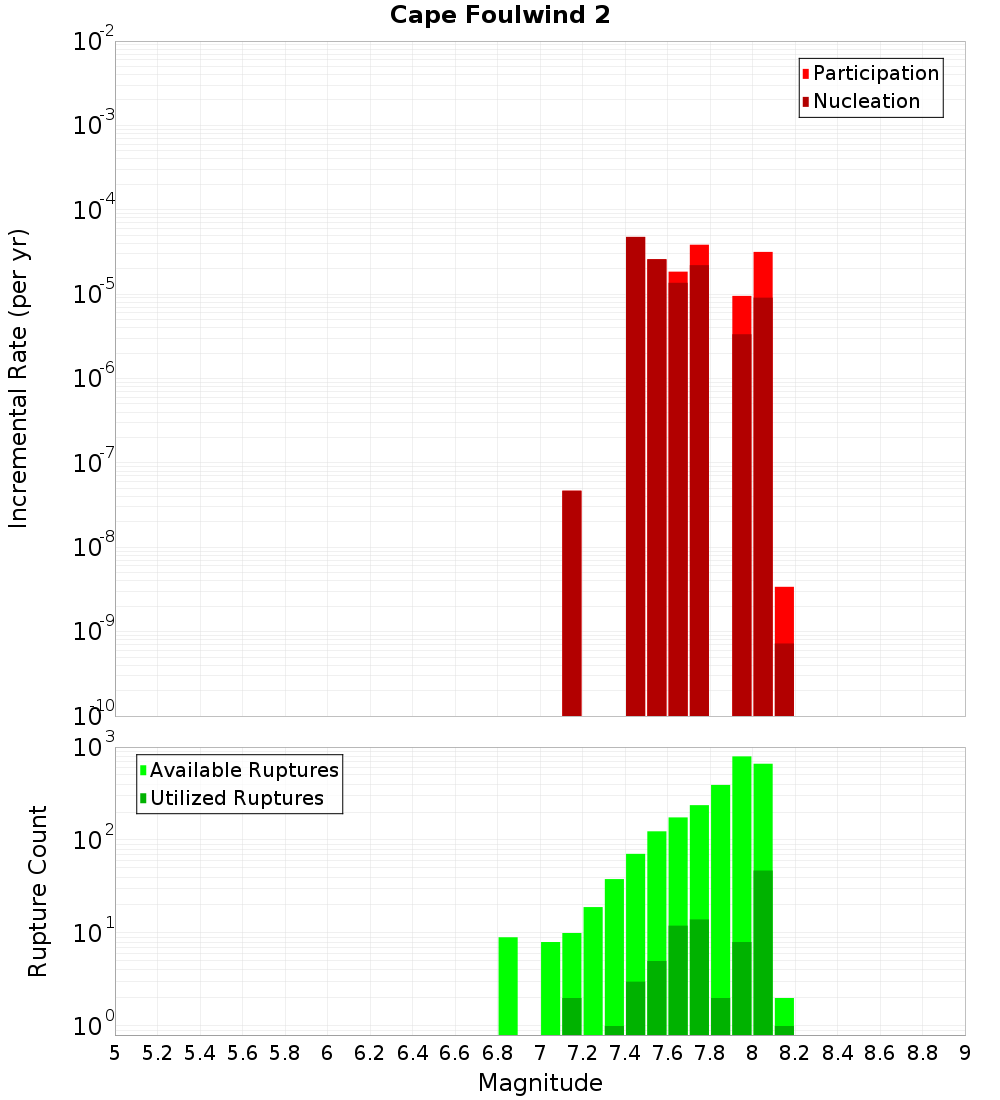

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

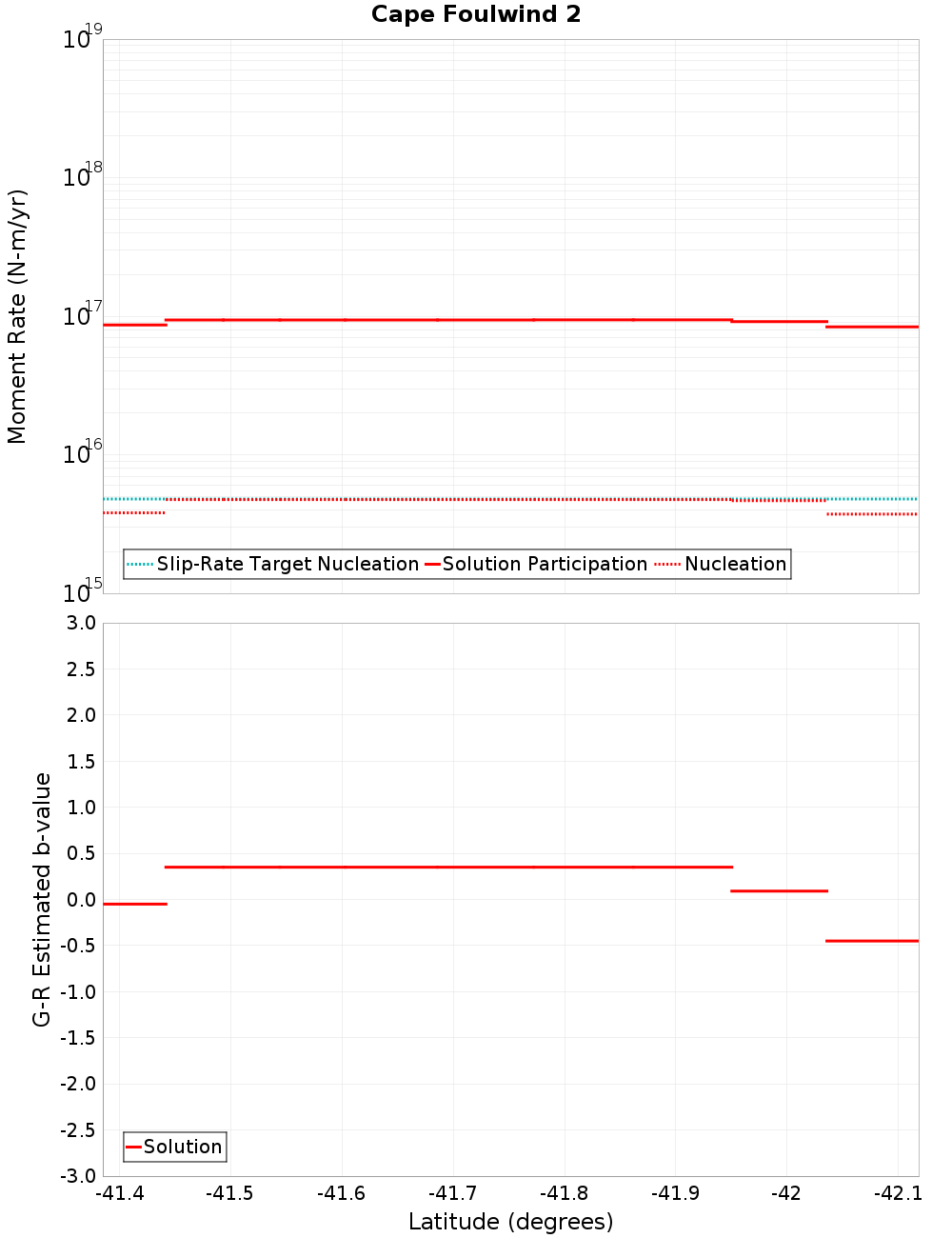

Moment-Rates and b-Values

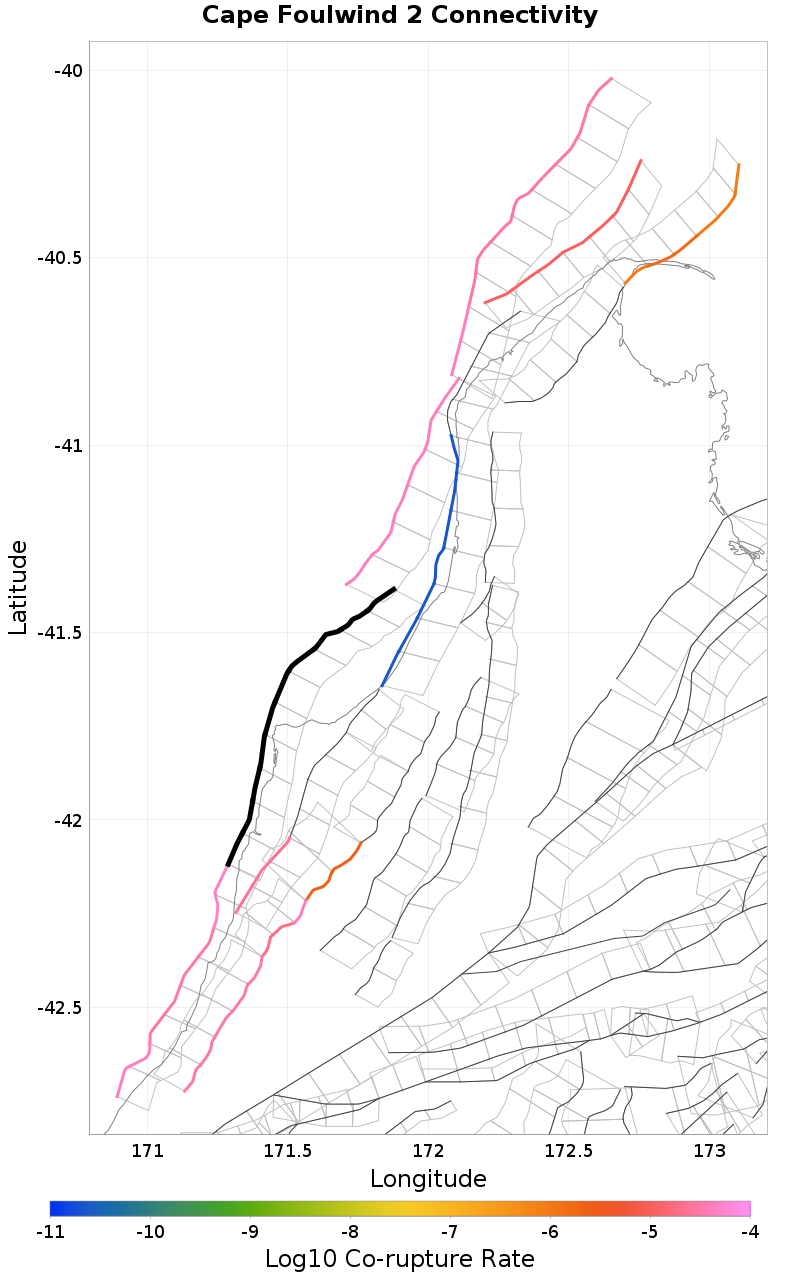

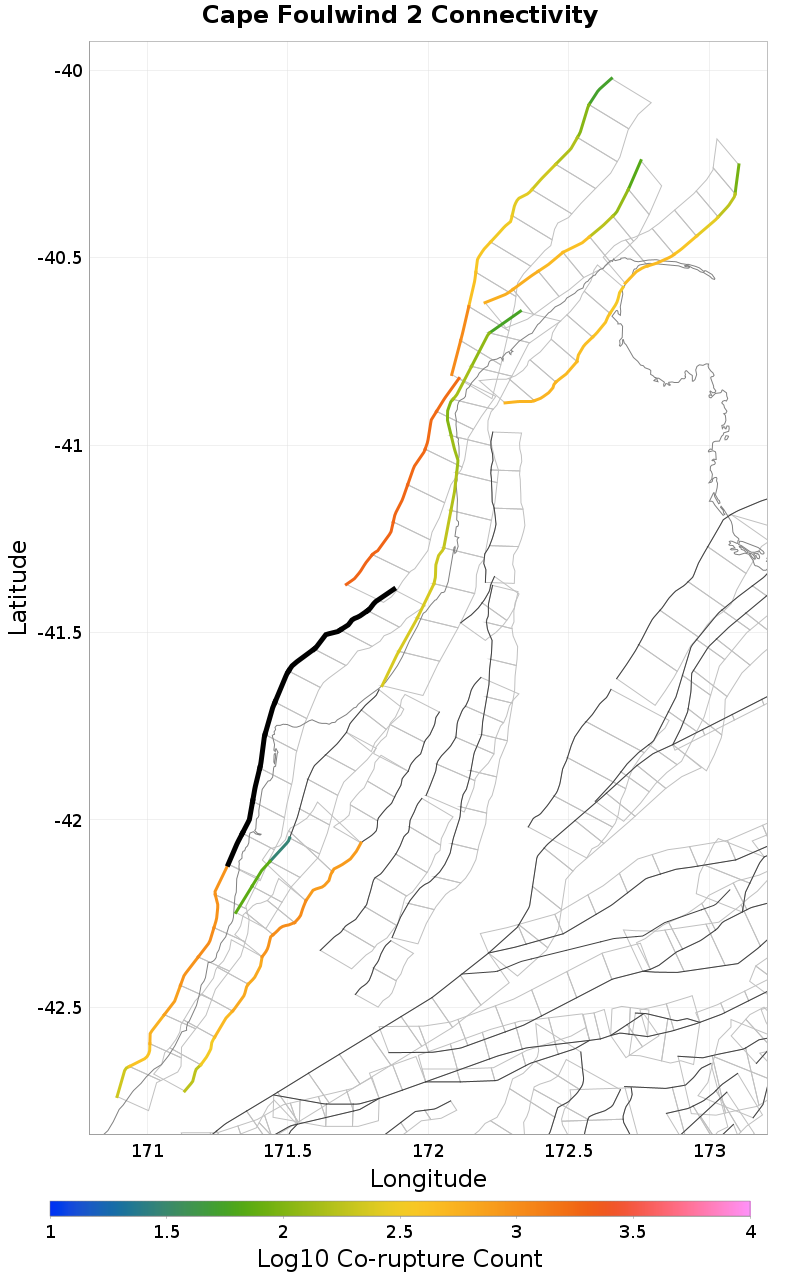

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Cape Foulwind 1, 0 km away |
| Maimai, 0.27 km away |
| Maimai: South, 4.77 km away |
| Paparoa West, 8.12 km away |
| Cape Foulwind 4, 8.22 km away |
| Kongahau, 8.54 km away |
| Maimai: North, 14.88 km away |
Cape Foulwind 1, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwOTkuMEYzalpS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,399 |
| Co-rupture Rate | 7.928007E-5 |
Maimai, 0.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwOTkuMEYzalpS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 805 |
| Co-rupture Rate | 2.2983108E-6 |
Maimai: South, 4.77 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwOTkuMEYzalpS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,040 |
| Co-rupture Rate | 4.096369E-5 |
Paparoa West, 8.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwOTkuMEYzalpS | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 71 |
| Co-rupture Rate | 2.4321902E-5 |
Cape Foulwind 4, 8.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwOTkuMEYzalpS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,901 |
| Co-rupture Rate | 4.120179E-5 |
Kongahau, 8.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwOTkuMEYzalpS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 294 |
| Co-rupture Rate | 2.2271374E-11 |
Maimai: North, 14.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwOTkuMEYzalpS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
