Ostler North Details

PropertyValue
Rupture Count4,143
Ruptures Above Sect Min Mag4,142
Ruptures w/ Nonzero Rates150
Magnitude Range[7.08, 8.44]
Length Range[24, 679] km
Total Rate2.5566213E-4 /yr
Multi-Fault Rate2.5566205E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults89

Table Of Contents

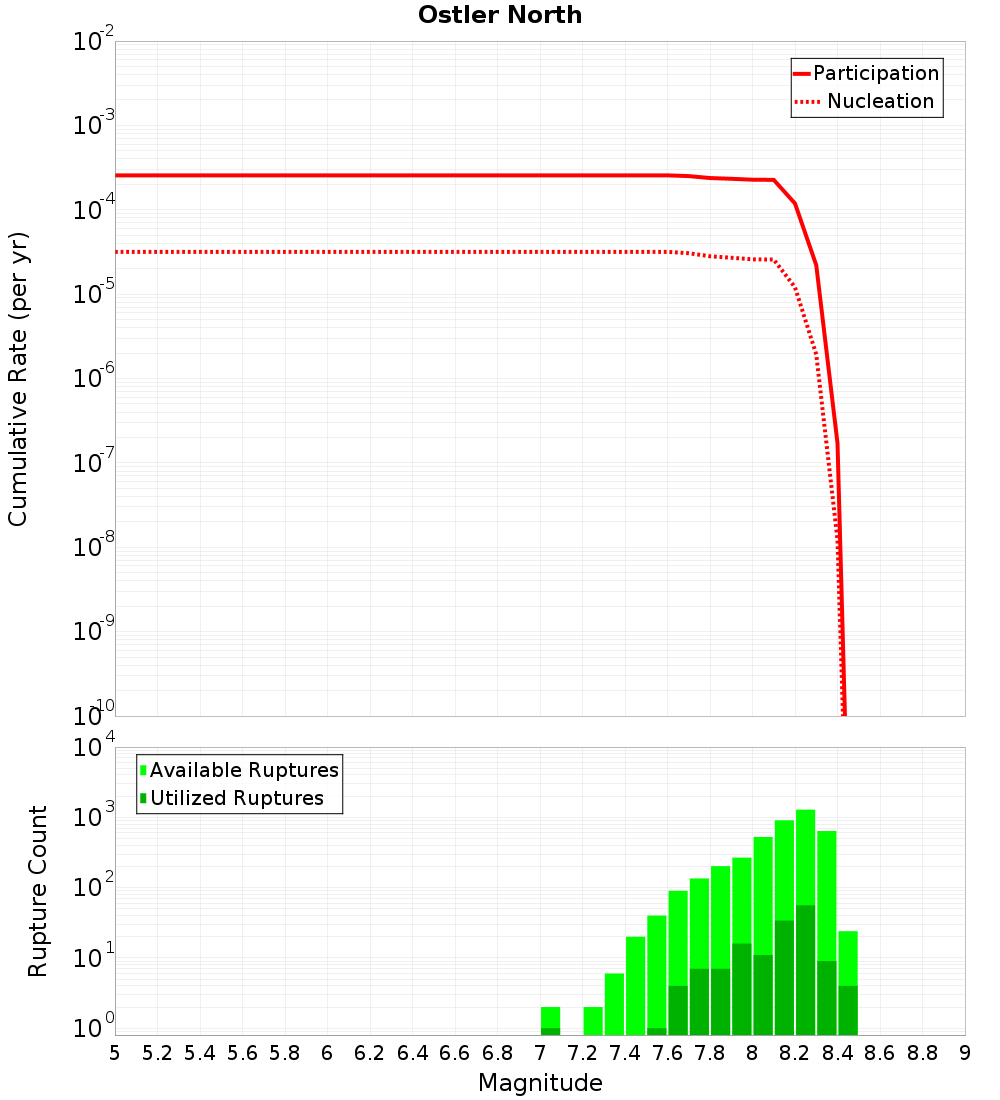

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

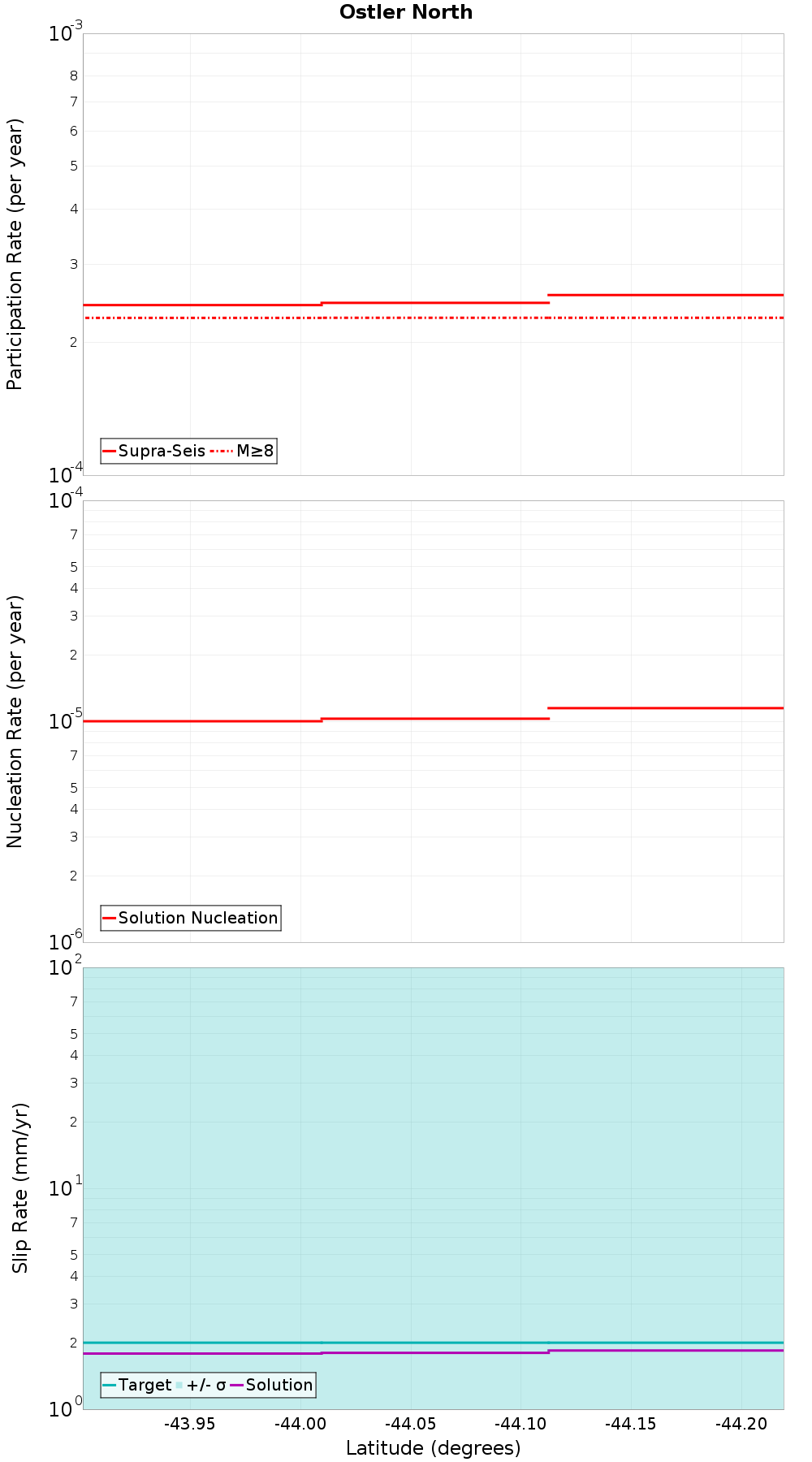

Along-Strike Values

(top)

Along-strike plot

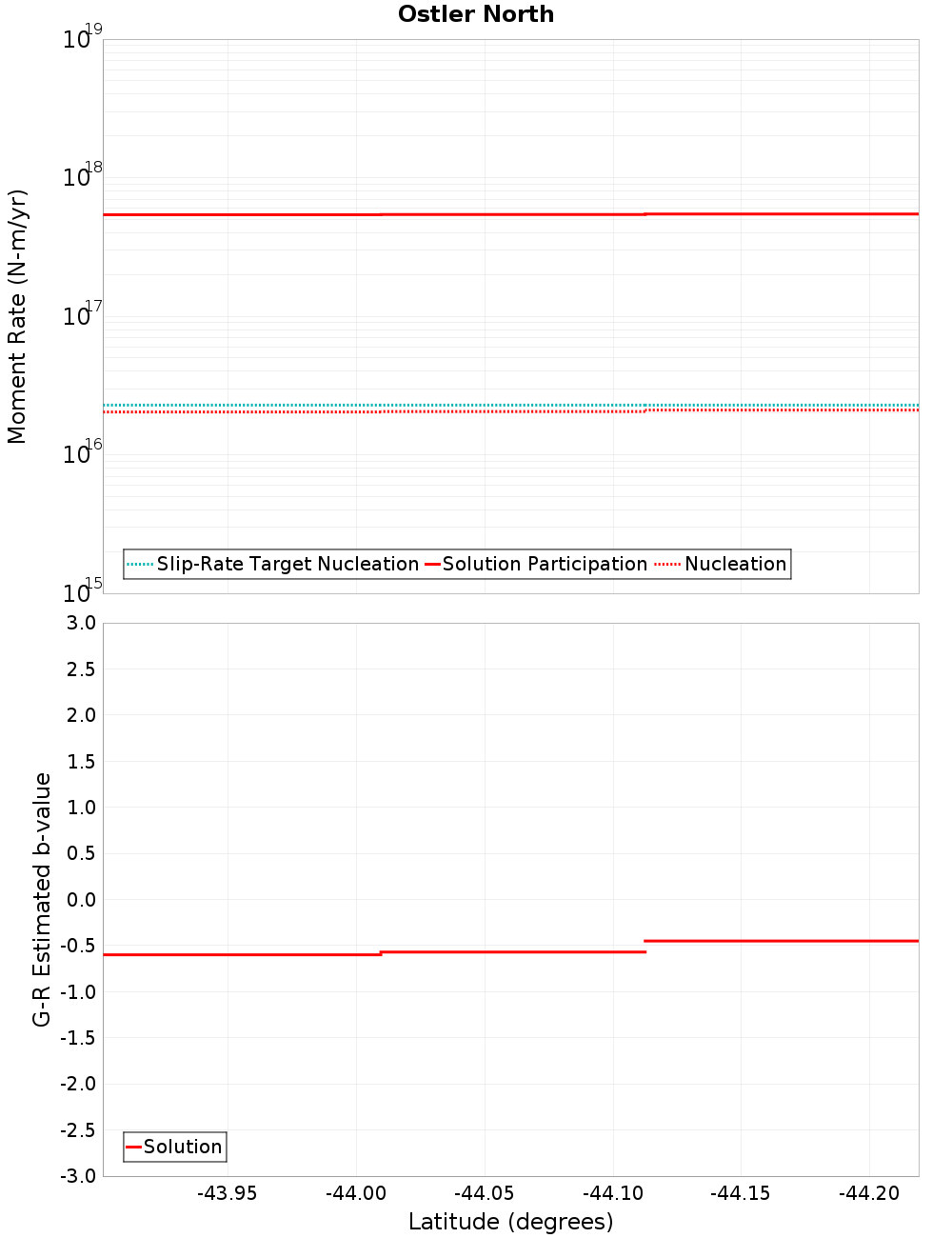

Moment-Rates and b-Values

(top)

Along-strike plot

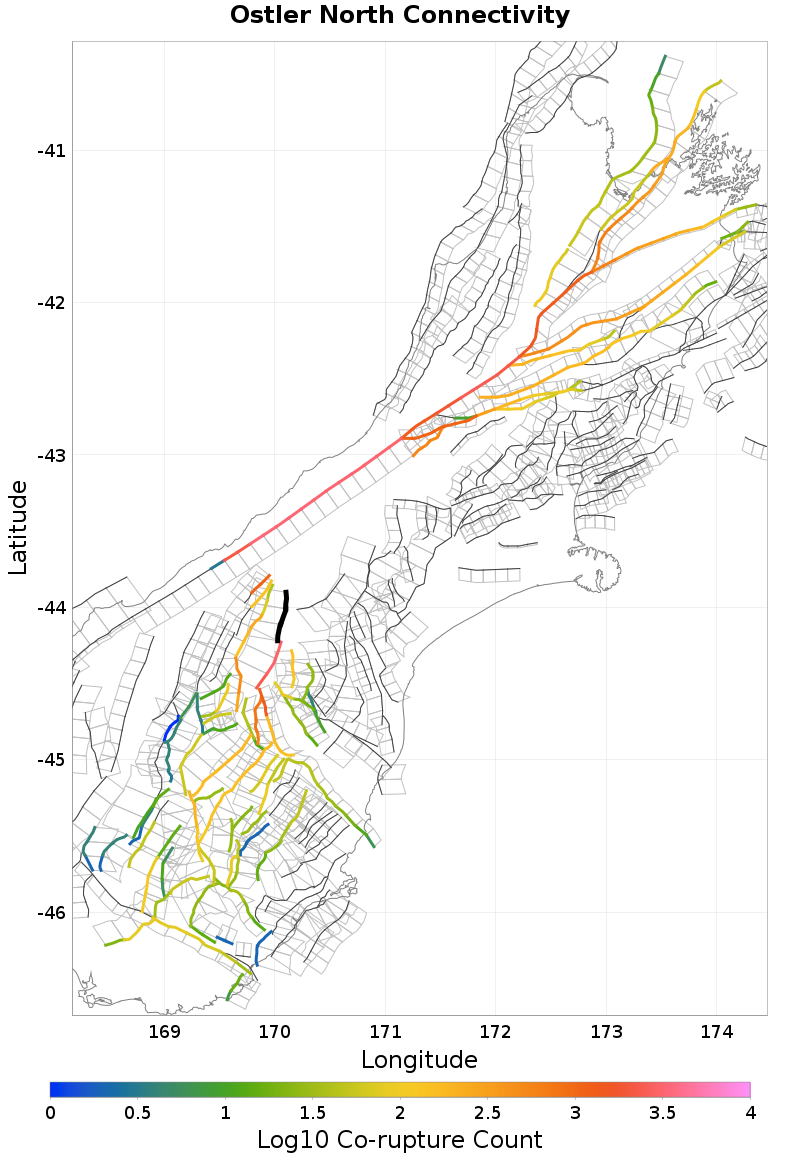

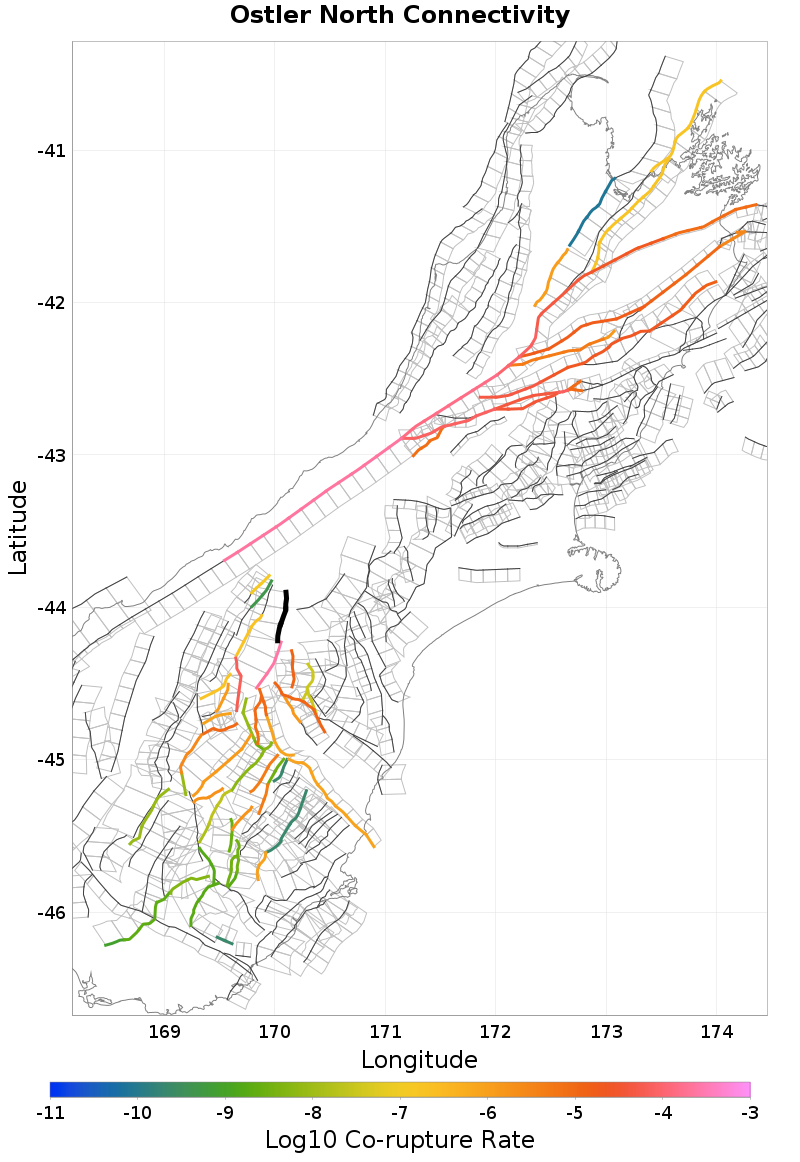

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ostler South, 1.89 km away
Barrier Range, 2.09 km away
Hopkins, 4.64 km away
Irishman Creek, 8.16 km away
Huxley, 10.38 km away
Falstone, 11.42 km away
Alpine: Jacksons to Kaniere, 14.33 km away

Ostler South, 1.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwOTkuMEYzalpS
Connected?true
Directly Connected?true
Co-rupture Count2,995
Co-rupture Rate2.5363013E-4

Barrier Range, 2.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwOTkuMEYzalpS
Connected?true
Directly Connected?true
Co-rupture Count252
Co-rupture Rate1.9131261E-7

Hopkins, 4.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwOTkuMEYzalpS
Connected?true
Directly Connected?true
Co-rupture Count140
Co-rupture Rate4.5350435E-10

Irishman Creek, 8.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwOTkuMEYzalpS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Huxley, 10.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwOTkuMEYzalpS
Connected?true
Directly Connected?true
Co-rupture Count1,091
Co-rupture Rate1.323204E-7

Falstone, 11.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwOTkuMEYzalpS
Connected?true
Directly Connected?true
Co-rupture Count138
Co-rupture Rate1.208941E-5

Alpine: Jacksons to Kaniere, 14.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAwOTkuMEYzalpS
Connected?true
Directly Connected?true
Co-rupture Count3,341
Co-rupture Rate2.2606165E-4
