Fisherman 3 Details

PropertyValue
Rupture Count209
Ruptures Above Sect Min Mag207
Ruptures w/ Nonzero Rates23
Magnitude Range[6.89, 7.89]
Length Range[20, 232] km
Total Rate1.0635078E-4 /yr
Multi-Fault Rate1.0635078E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults23

Table Of Contents

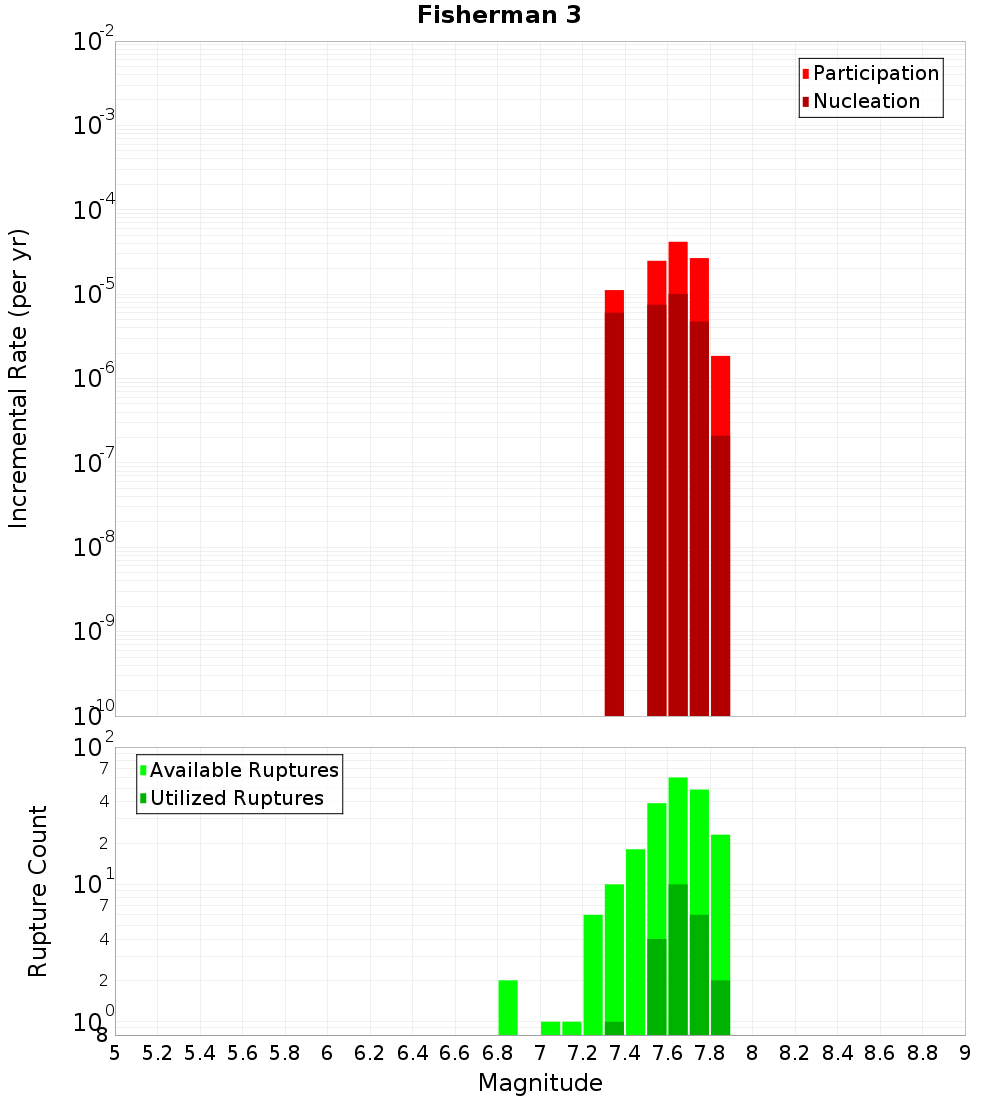

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

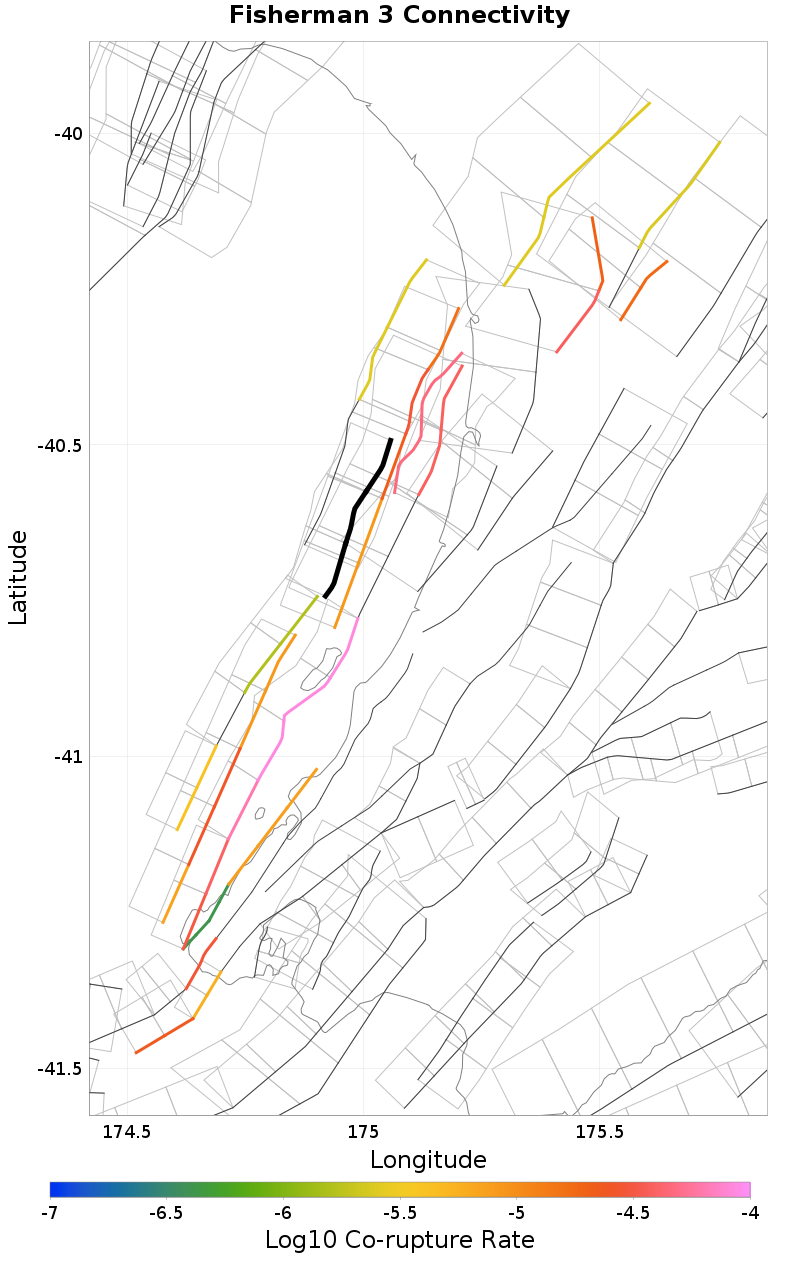

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mascarin, 0.15 km away
Onepoto, 0.22 km away
Otaheke North, 0.9 km away
Fisherman 2, 1.22 km away
Rangitikei Offshore 1, 2.73 km away
Poroutawhao, 6.43 km away
Otaheke South, 6.67 km away
Okupe 1, 8.61 km away
Himatangi, 12.2 km away
Levin Anticline, 13.22 km away

Mascarin, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMTkuMHBoeGZt
Connected?true
Directly Connected?true
Co-rupture Count52
Co-rupture Rate2.5053807E-6

Onepoto, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMTkuMHBoeGZt
Connected?true
Directly Connected?true
Co-rupture Count79
Co-rupture Rate2.8644869E-5

Otaheke North, 0.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMTkuMHBoeGZt
Connected?true
Directly Connected?true
Co-rupture Count10
Co-rupture Rate3.7626643E-5

Fisherman 2, 1.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMTkuMHBoeGZt
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate1.5806654E-6

Rangitikei Offshore 1, 2.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMTkuMHBoeGZt
Connected?true
Directly Connected?true
Co-rupture Count42
Co-rupture Rate4.6097153E-5

Poroutawhao, 6.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMTkuMHBoeGZt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaheke South, 6.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMTkuMHBoeGZt
Connected?true
Directly Connected?true
Co-rupture Count173
Co-rupture Rate8.425709E-5

Okupe 1, 8.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMTkuMHBoeGZt
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate2.9637124E-5

Himatangi, 12.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMTkuMHBoeGZt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Levin Anticline, 13.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMTkuMHBoeGZt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
