White Hill Details
| Property | Value |
|---|---|
| Rupture Count | 108 |
| Ruptures Above Sect Min Mag | 107 |
| Ruptures w/ Nonzero Rates | 10 |
| Magnitude Range | [6.98, 8.04] |
| Length Range | [23, 282] km |
| Total Rate | 9.0494104E-5 /yr |
| Multi-Fault Rate | 2.1323487E-5 /yr (23.56%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 21 |
Table Of Contents

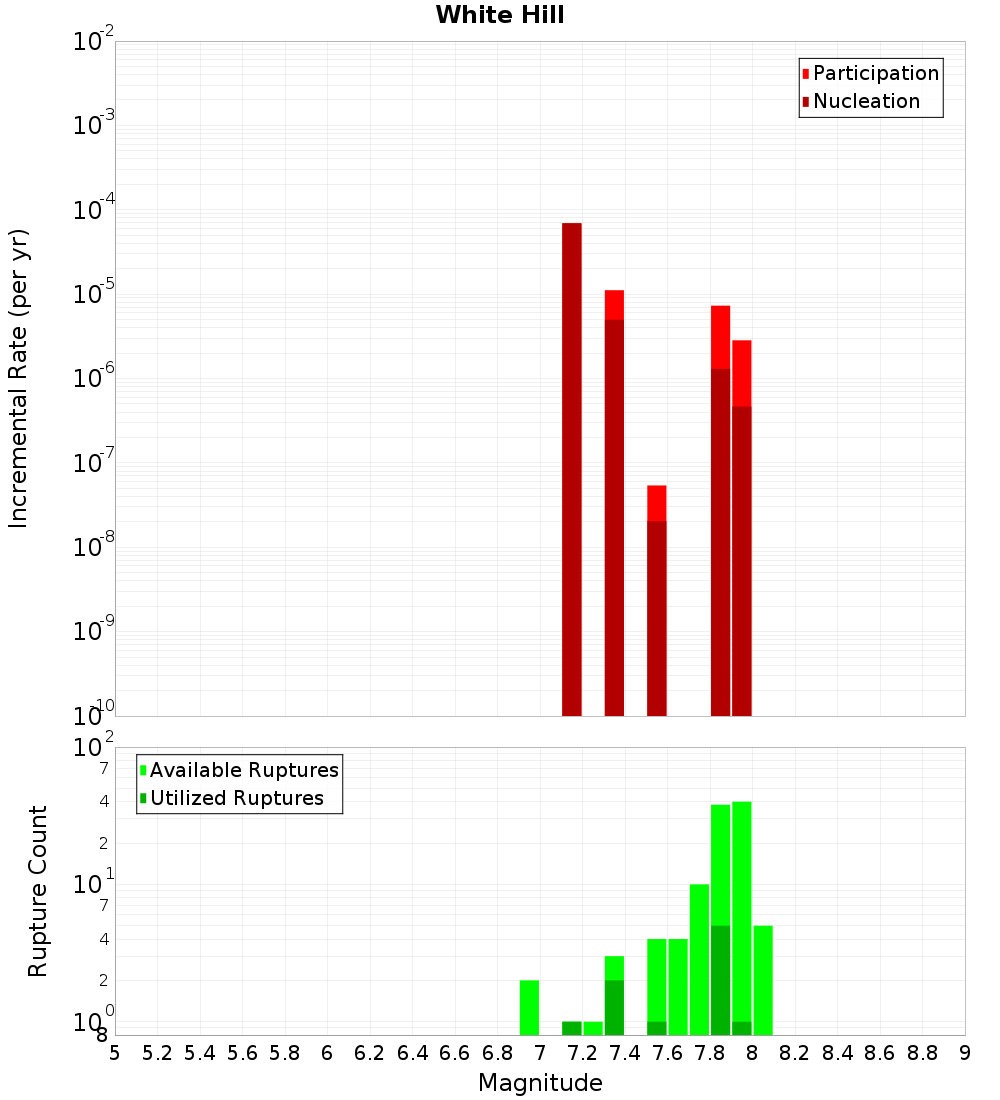

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hokonui, 0.25 km away |
| McKerchar, 1.38 km away |
| Acton, 3.1 km away |
| Mid Dome, 6.67 km away |
| Mossburn, 12.23 km away |
| Moonlight South, 14.52 km away |
Hokonui, 0.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMTkuMHBoeGZt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
McKerchar, 1.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMTkuMHBoeGZt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 19 |
| Co-rupture Rate | 1.1132528E-5 |
Acton, 3.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMTkuMHBoeGZt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 86 |
| Co-rupture Rate | 1.0190959E-5 |
Mid Dome, 6.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMTkuMHBoeGZt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mossburn, 12.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMTkuMHBoeGZt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Moonlight South, 14.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMTkuMHBoeGZt | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 17 |
| Co-rupture Rate | 0.0 |
