Needles East 2 Details

PropertyValue
Rupture Count1,279
Ruptures Above Sect Min Mag1,279
Ruptures w/ Nonzero Rates10
Magnitude Range[7.02, 8.50]
Length Range[25, 868] km
Total Rate4.881009E-5 /yr
Multi-Fault Rate4.881009E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults134

Table Of Contents

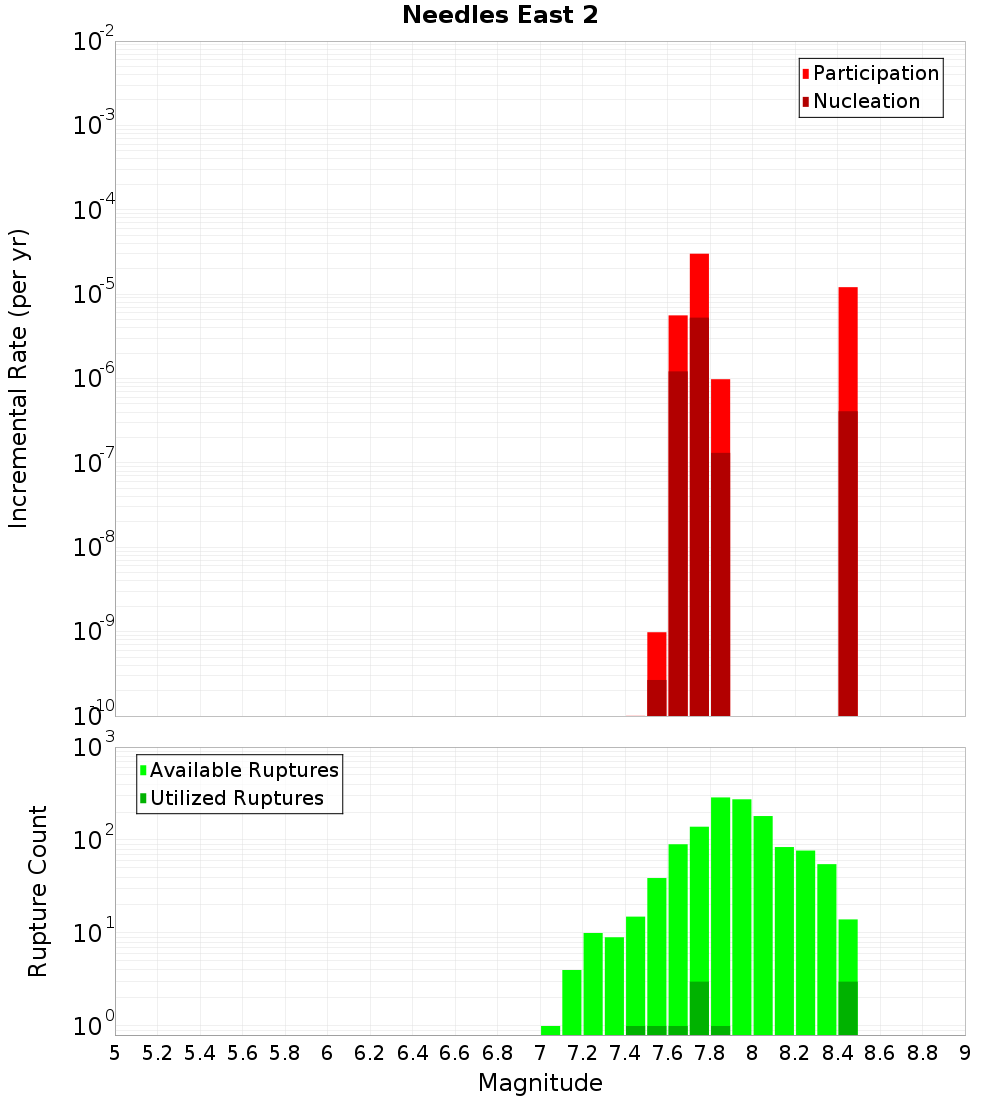

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

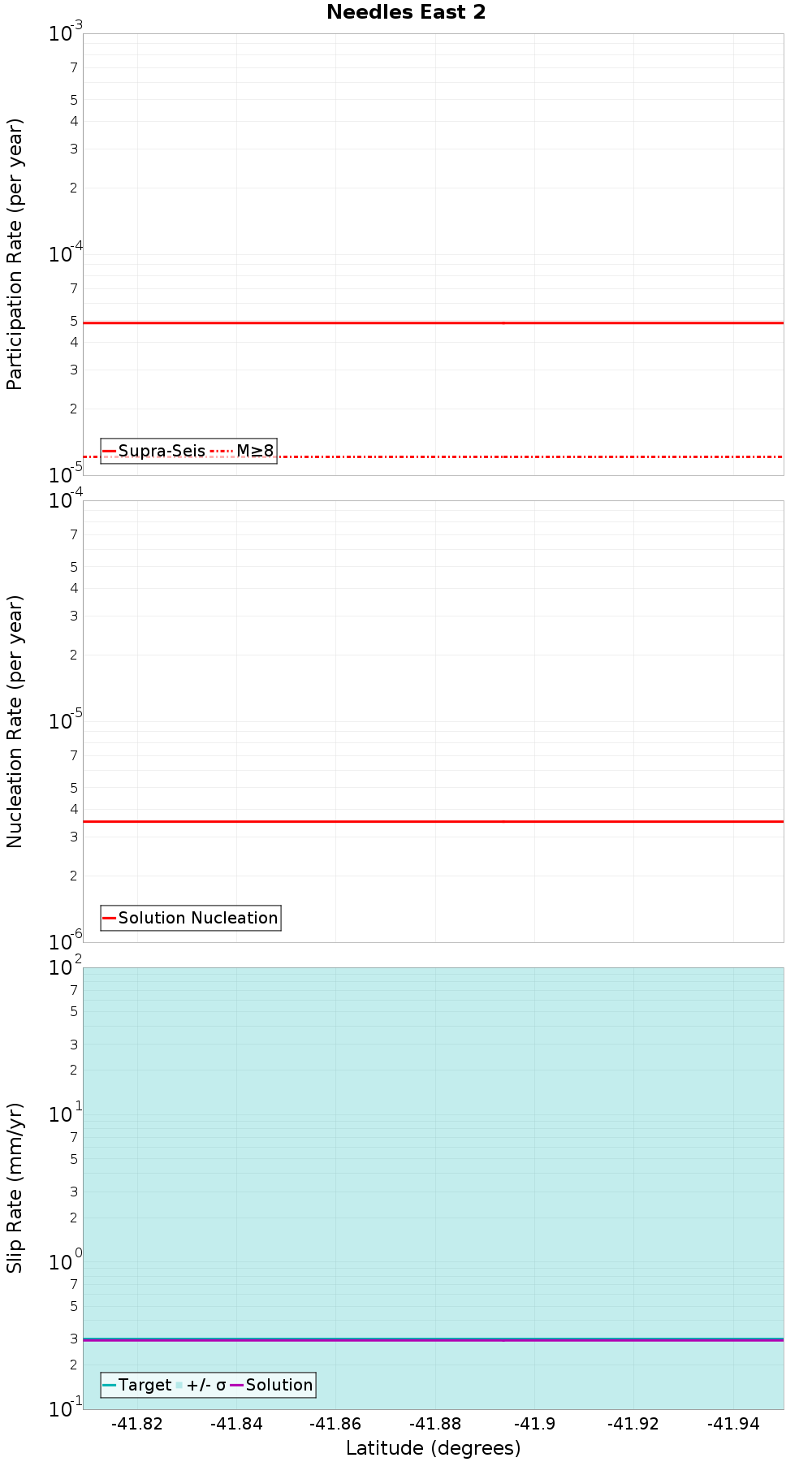

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

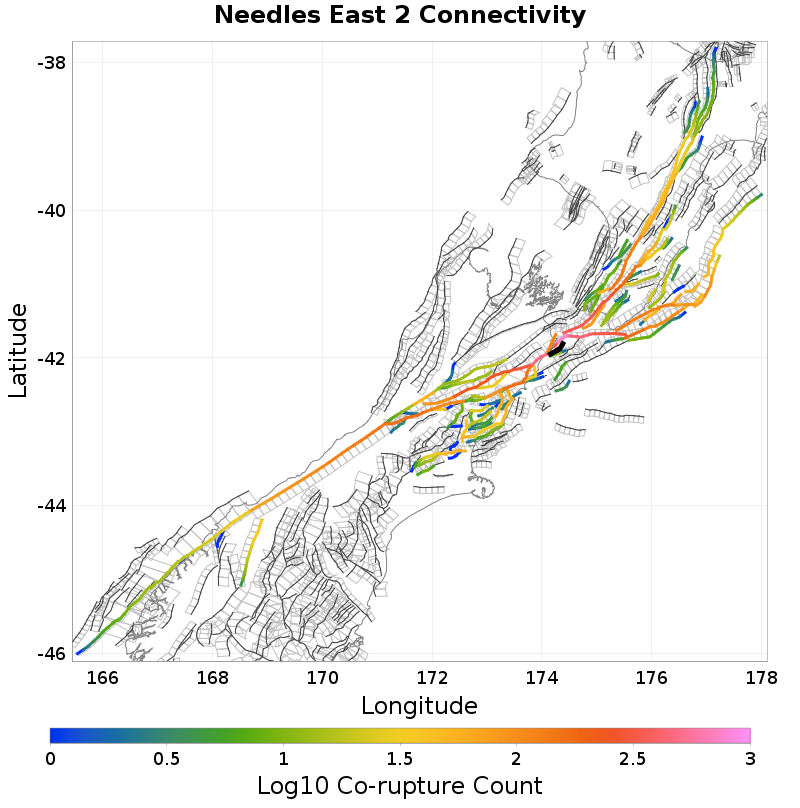

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Needles, 0.22 km away
London Hill, 0.29 km away
Chancet, 2.61 km away
Vernon 4, 4.12 km away
Kekerengu 1, 4.78 km away
Vernon 3, 8.28 km away
Clarence: Northeast, 8.38 km away
Wharanui, 9.25 km away
Vernon 1, 10.47 km away
BooBoo, 10.51 km away
Cloudy 3, 11.74 km away
Vernon 2, 12.36 km away
Wairarapa: Needles, 12.75 km away
Cloudy 1, 12.81 km away
Upper Slope, 13.52 km away

Needles, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzIuMDZCM1lY
Connected?true
Directly Connected?true
Co-rupture Count788
Co-rupture Rate0.0

London Hill, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzIuMDZCM1lY
Connected?true
Directly Connected?true
Co-rupture Count121
Co-rupture Rate0.0

Chancet, 2.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzIuMDZCM1lY
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate1.004033E-10

Vernon 4, 4.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzIuMDZCM1lY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kekerengu 1, 4.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzIuMDZCM1lY
Connected?true
Directly Connected?true
Co-rupture Count478
Co-rupture Rate4.8809987E-5

Vernon 3, 8.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzIuMDZCM1lY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Northeast, 8.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzIuMDZCM1lY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wharanui, 9.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzIuMDZCM1lY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 1, 10.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzIuMDZCM1lY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

BooBoo, 10.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzIuMDZCM1lY
Connected?true
Directly Connected?false
Co-rupture Count428
Co-rupture Rate0.0

Cloudy 3, 11.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzIuMDZCM1lY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 2, 12.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzIuMDZCM1lY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: Needles, 12.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzIuMDZCM1lY
Connected?true
Directly Connected?false
Co-rupture Count354
Co-rupture Rate0.0

Cloudy 1, 12.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzIuMDZCM1lY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Upper Slope, 13.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzIuMDZCM1lY
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate1.004033E-10
