Ohena 3 Details

PropertyValue
Rupture Count43
Ruptures Above Sect Min Mag42
Ruptures w/ Nonzero Rates10
Magnitude Range[7.03, 7.75]
Length Range[23, 126] km
Total Rate4.021909E-5 /yr
Multi-Fault Rate1.6039288E-5 /yr (39.88%)
Directly-Connected Faults5
All Co-Rupturing Faults9

Table Of Contents

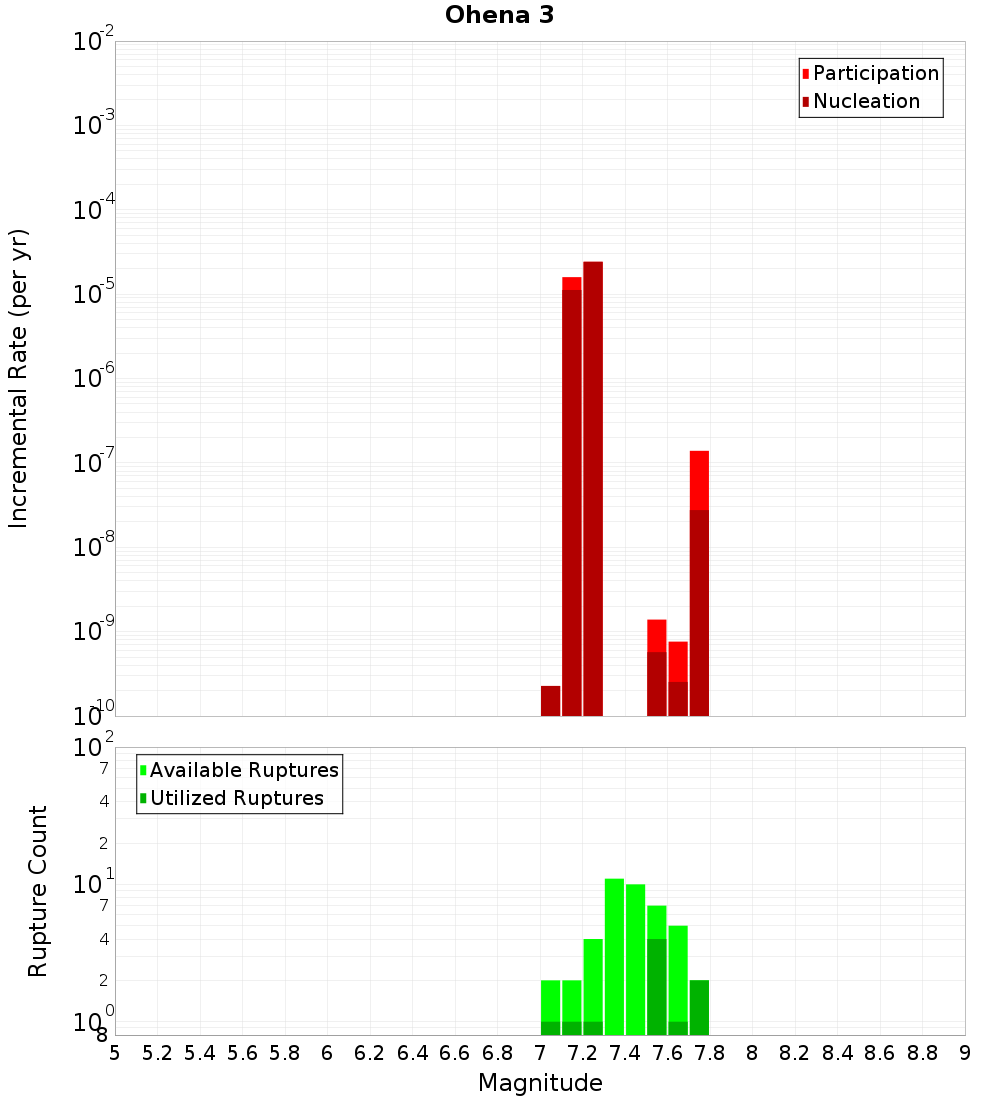

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

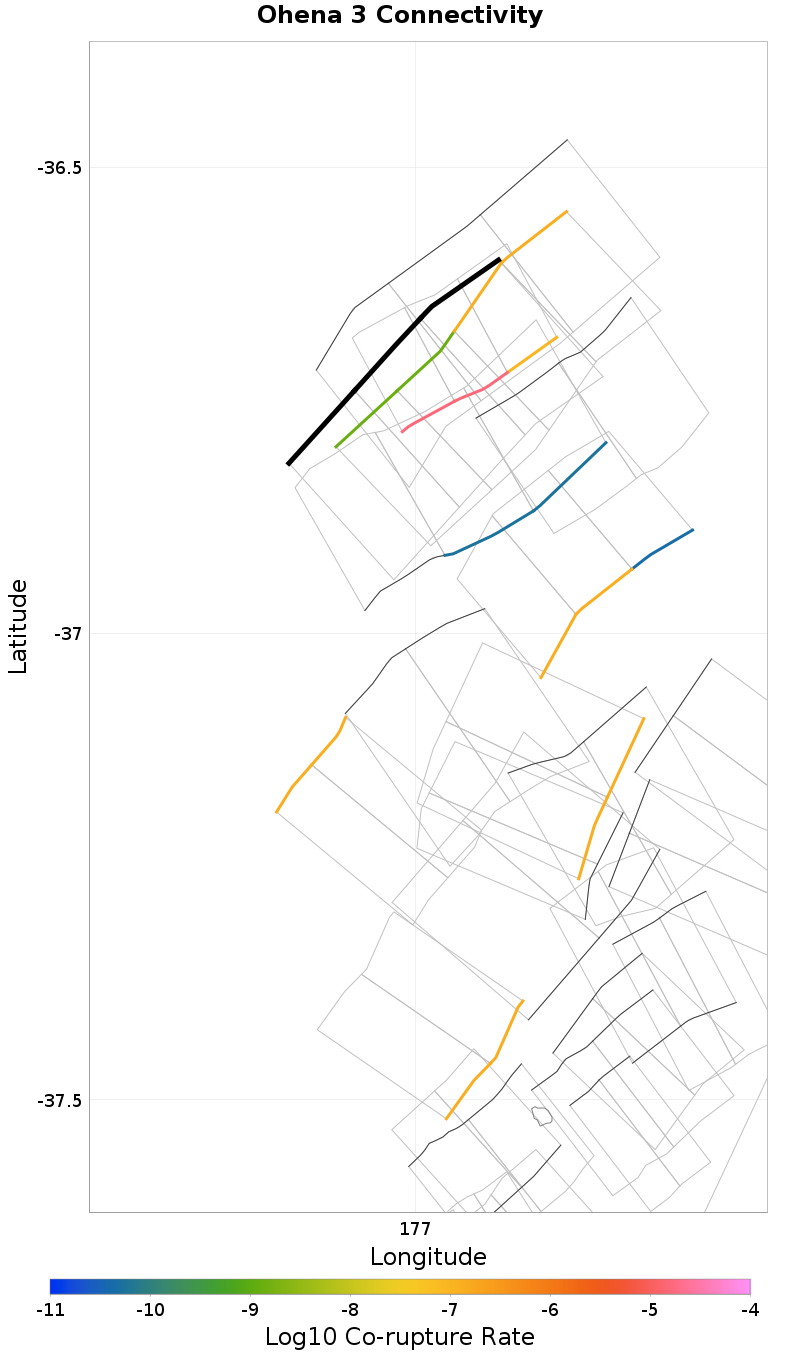

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Tauranga Trough West 2, 0.08 km away
Ngatoro South 5, 0.25 km away
Ohena 2, 0.49 km away
Ohena 4, 3.91 km away
Tauranga Trough East 2, 5.27 km away
Ngatoro South 2, 9.72 km away
Otara West 2, 13.25 km away

Tauranga Trough West 2, 0.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzIuMDZCM1lY
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate5.3233227E-11

Ngatoro South 5, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzIuMDZCM1lY
Connected?true
Directly Connected?true
Co-rupture Count12
Co-rupture Rate1.5996955E-5

Ohena 2, 0.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzIuMDZCM1lY
Connected?true
Directly Connected?true
Co-rupture Count21
Co-rupture Rate1.403832E-7

Ohena 4, 3.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzIuMDZCM1lY
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate0.0

Tauranga Trough East 2, 5.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzIuMDZCM1lY
Connected?true
Directly Connected?true
Co-rupture Count15
Co-rupture Rate1.411344E-7

Ngatoro South 2, 9.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzIuMDZCM1lY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara West 2, 13.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzIuMDZCM1lY
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate1.3975541E-7
