Balmoral Details
| Property | Value |
|---|---|
| Rupture Count | 1,386 |
| Ruptures Above Sect Min Mag | 1,386 |
| Ruptures w/ Nonzero Rates | 34 |
| Magnitude Range | [6.99, 8.13] |
| Length Range | [20, 417] km |
| Total Rate | 1.0206932E-4 /yr |
| Multi-Fault Rate | 1.0206932E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 45 |
Table Of Contents

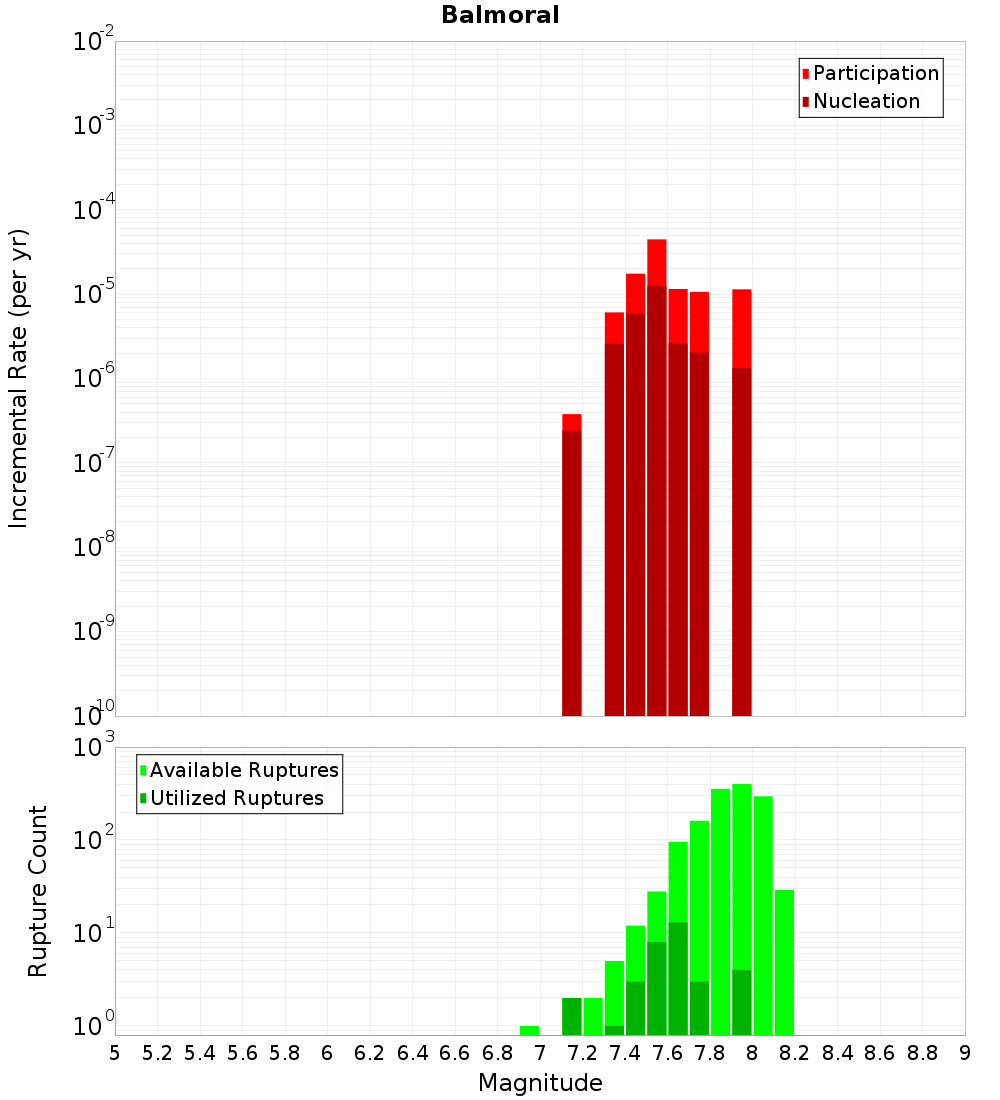

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

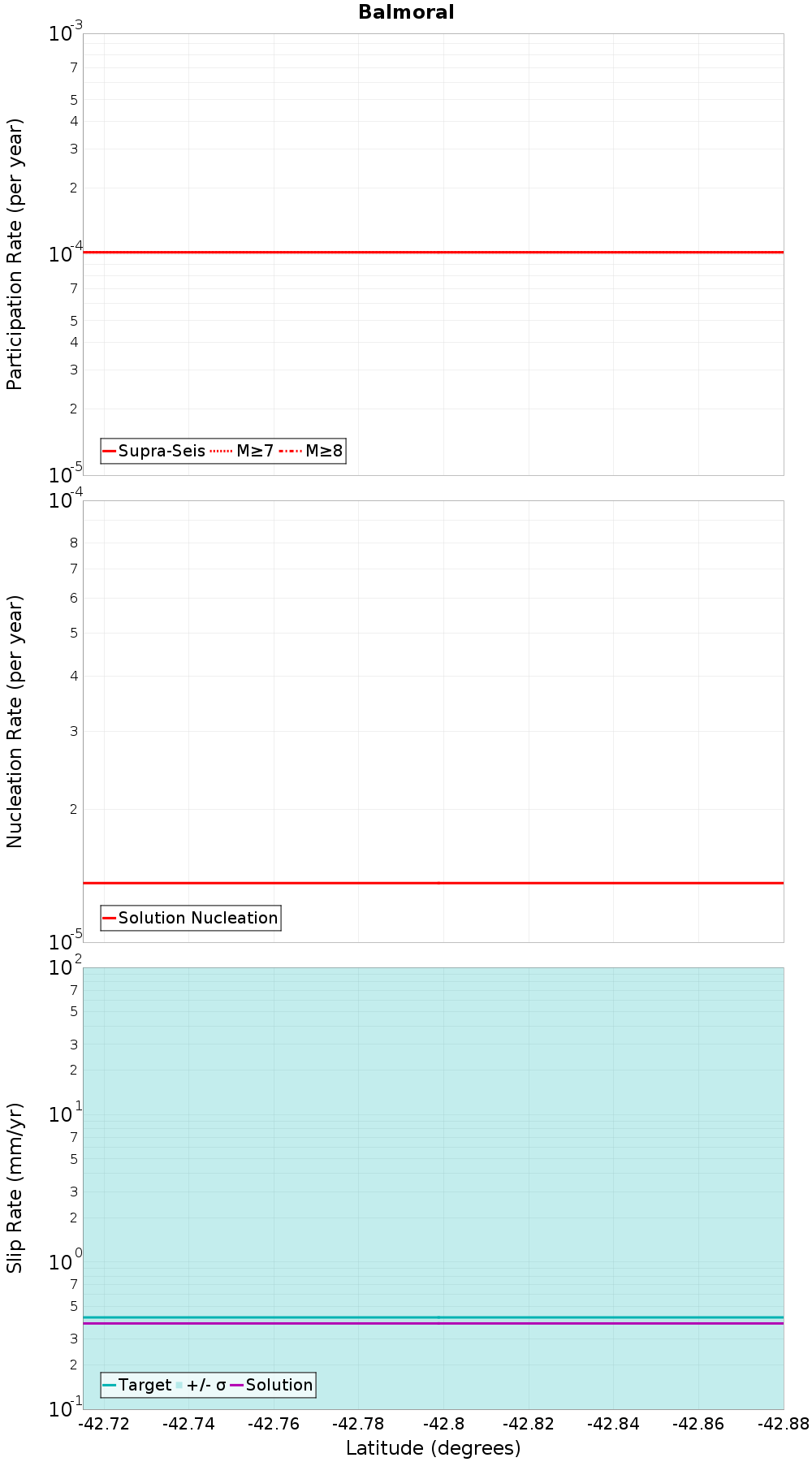

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Virginia, 0.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzYuMDZjVGM4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Doctors, 0.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzYuMDZjVGM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,299 |
| Co-rupture Rate | 6.581213E-5 |
Mt Culverden, 0.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzYuMDZjVGM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,225 |
| Co-rupture Rate | 8.640443E-5 |
Lowry, 0.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzYuMDZjVGM4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hurunui Peak, 2.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzYuMDZjVGM4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Alexander, 4.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzYuMDZjVGM4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kaiwara South, 8.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzYuMDZjVGM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 301 |
| Co-rupture Rate | 3.726257E-5 |
Leonard Mound, 11.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzYuMDZjVGM4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Esk North, 11.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzYuMDZjVGM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 82 |
| Co-rupture Rate | 1.5282827E-5 |
Hope: Hanmer NW, 12.75 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzYuMDZjVGM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Mt Arden, 14.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxMzYuMDZjVGM4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
