Rangefront Details

PropertyValue
Rupture Count7,714
Ruptures Above Sect Min Mag7,712
Ruptures w/ Nonzero Rates39
Magnitude Range[7.04, 8.42]
Length Range[21, 576] km
Total Rate7.438715E-5 /yr
Multi-Fault Rate7.438715E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults95

Table Of Contents

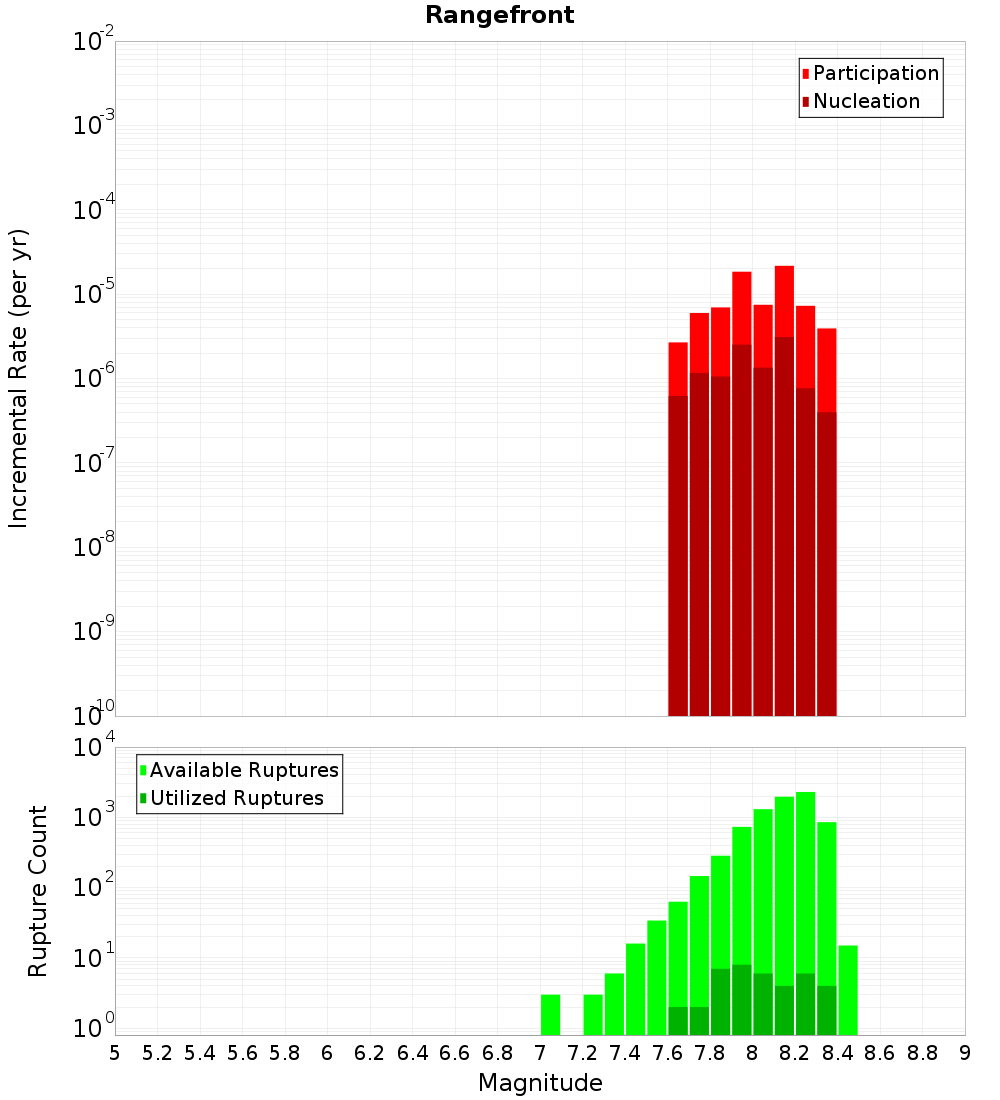

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

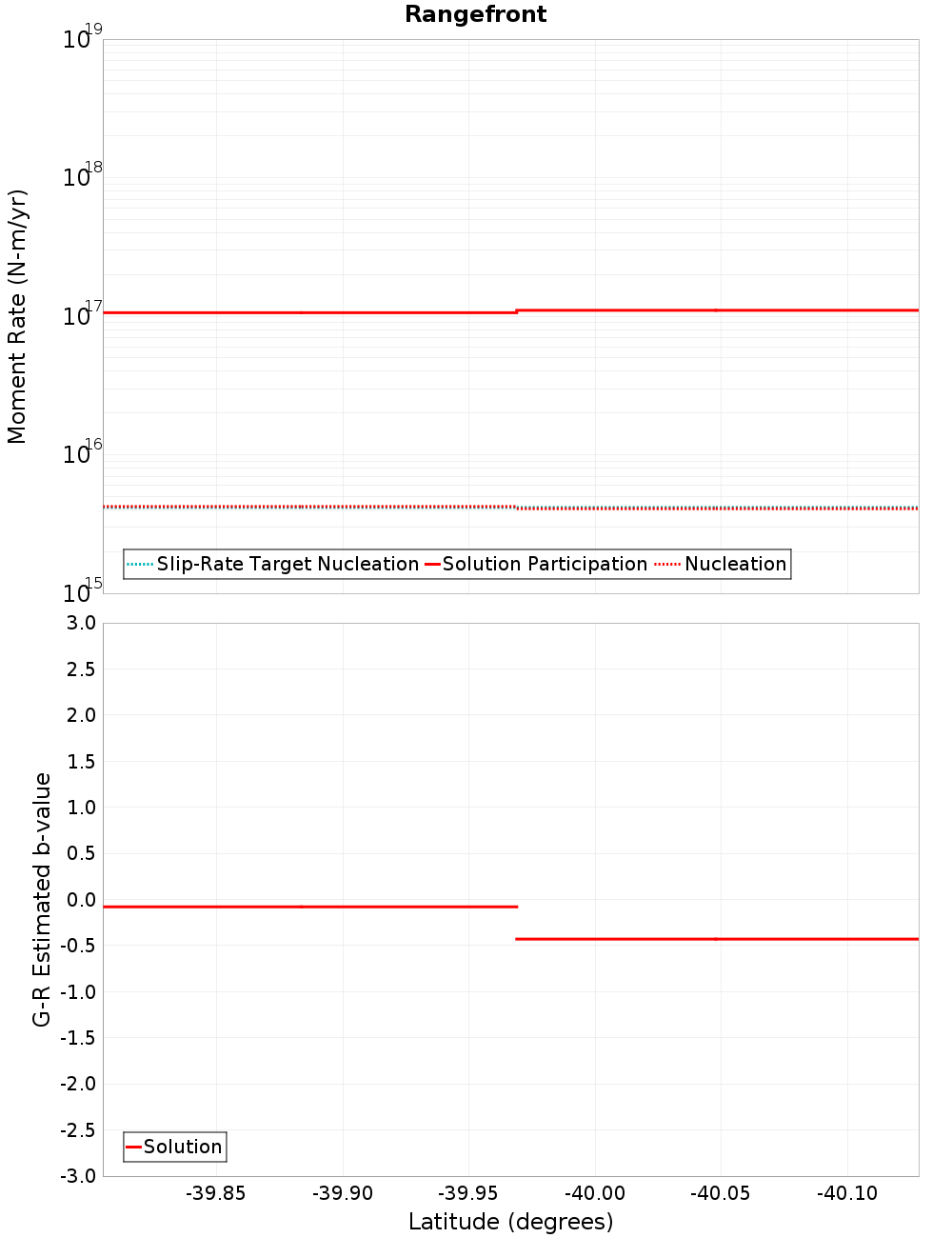

Moment-Rates and b-Values

(top)

Along-strike plot

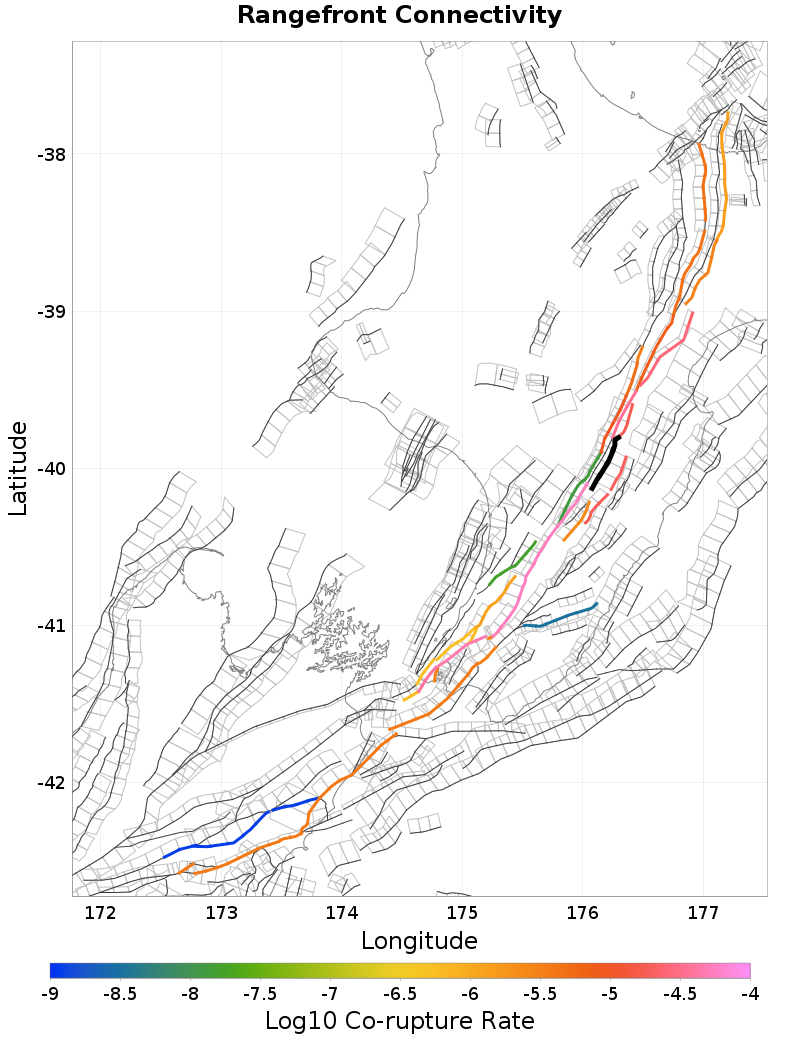

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wakarara, 0 km away
Ruahine: South, 0.19 km away
Ruahine: Central, 0.2 km away
Mohaka: South, 0.2 km away
Ruataniwha, 8.95 km away
Pahiatua, 9.78 km away
Maunga, 10.17 km away
Woodville, 10.84 km away
Pohangina, 12.41 km away

Wakarara, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDQuMHFHM1Nk
Connected?true
Directly Connected?true
Co-rupture Count396
Co-rupture Rate1.7307972E-5

Ruahine: South, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDQuMHFHM1Nk
Connected?true
Directly Connected?true
Co-rupture Count971
Co-rupture Rate1.2809556E-8

Ruahine: Central, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDQuMHFHM1Nk
Connected?true
Directly Connected?true
Co-rupture Count1,397
Co-rupture Rate9.3785975E-6

Mohaka: South, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDQuMHFHM1Nk
Connected?true
Directly Connected?true
Co-rupture Count10,336
Co-rupture Rate8.9832545E-5

Ruataniwha, 8.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDQuMHFHM1Nk
Connected?true
Directly Connected?true
Co-rupture Count414
Co-rupture Rate1.9211384E-5

Pahiatua, 9.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDQuMHFHM1Nk
Connected?true
Directly Connected?false
Co-rupture Count182
Co-rupture Rate2.44019E-6

Maunga, 10.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDQuMHFHM1Nk
Connected?true
Directly Connected?false
Co-rupture Count191
Co-rupture Rate1.9211384E-5

Woodville, 10.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDQuMHFHM1Nk
Connected?true
Directly Connected?false
Co-rupture Count223
Co-rupture Rate0.0

Pohangina, 12.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDQuMHFHM1Nk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
