Cape Egmont: Central Details
| Property | Value |
|---|---|
| Rupture Count | 21 |
| Ruptures Above Sect Min Mag | 20 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [6.73, 7.50] |
| Length Range | [13, 79] km |
| Total Rate | 9.5879404E-5 /yr |
| Multi-Fault Rate | 9.5879404E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 5 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

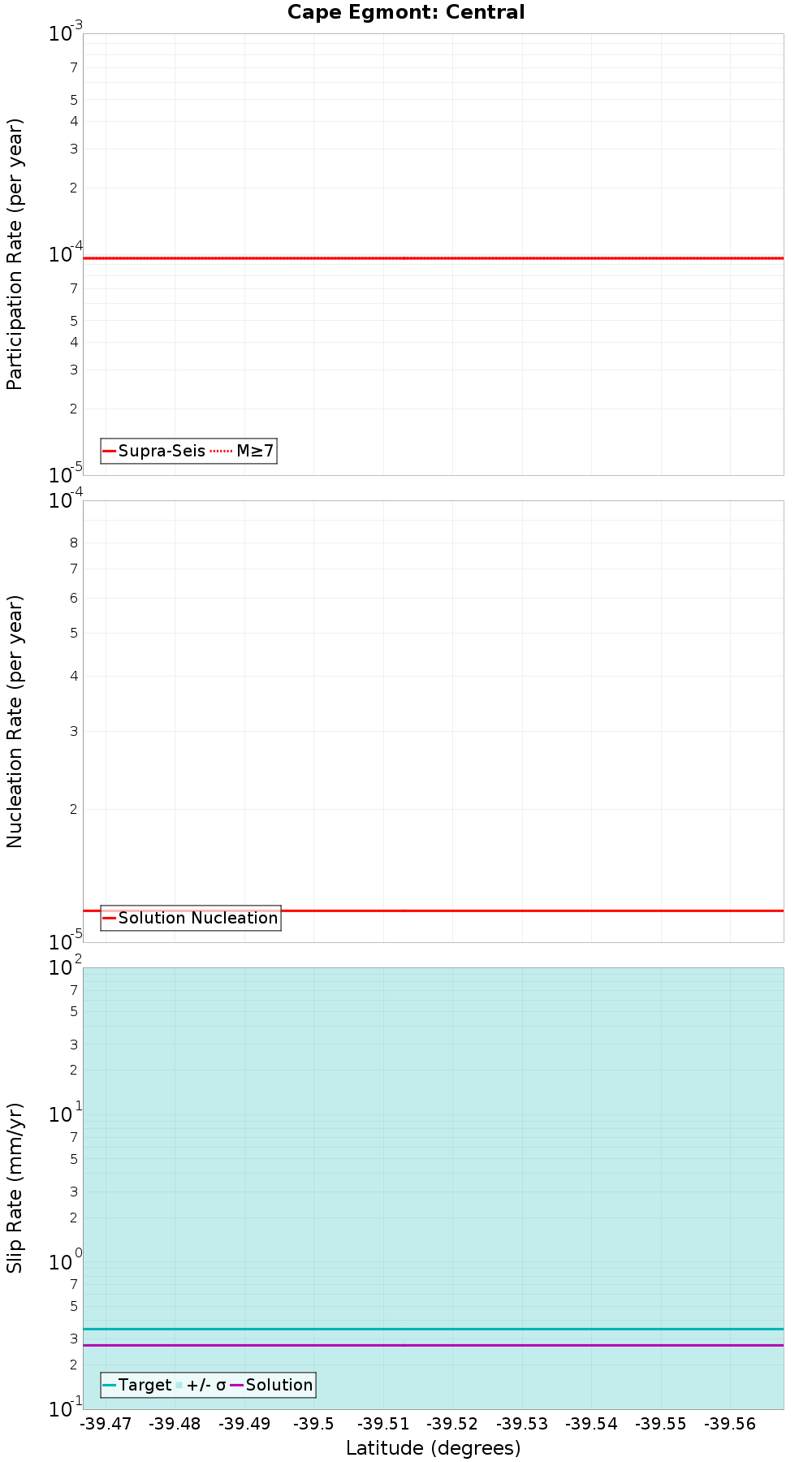

Along-Strike Values
Moment-Rates and b-Values

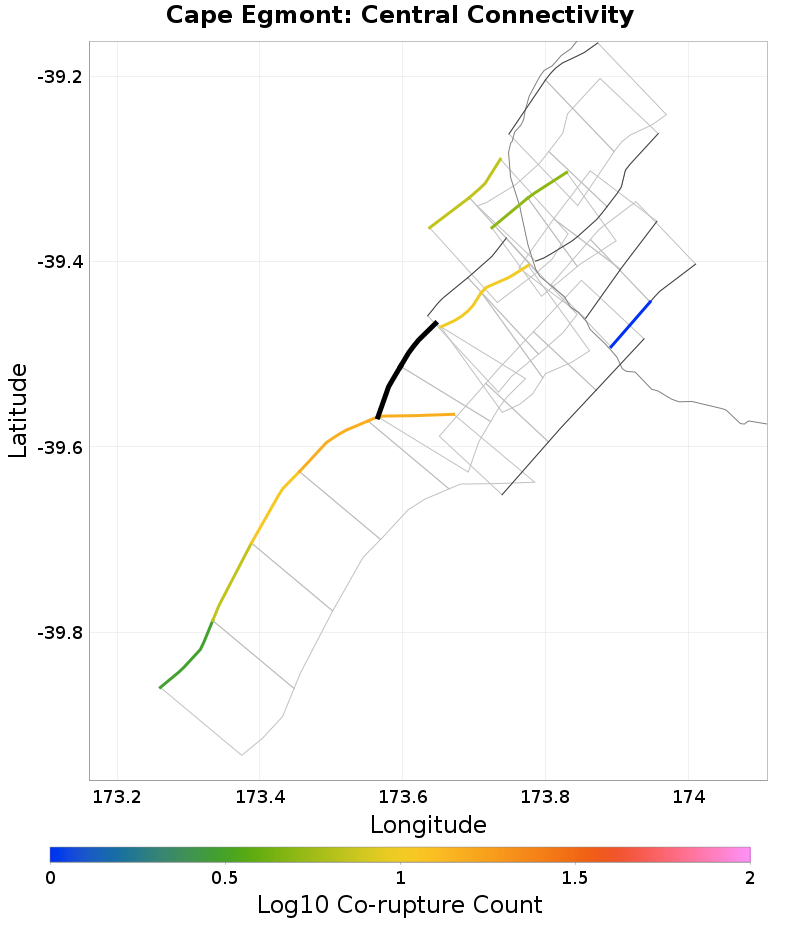

Connectivity
 |  |
|---|
Nearby Sections
Cape Egmont: South, 0.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 15 |
| Co-rupture Rate | 7.300046E-5 |
Pihama, 0.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Manahi 1, 0.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 10 |
| Co-rupture Rate | 1.47511455E-5 |
Cape Egmont: North, 0.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Manahi 2, 8.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7 |
| Co-rupture Rate | 8.1277985E-6 |
Rahotu, 9.89 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 2.1568678E-5 |
Ihaia, 10.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kiri, 10.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 8.1277985E-6 |
Oaonui, 13.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
