Fowlers Details

Property	Value
Rupture Count	11,342
Ruptures Above Sect Min Mag	11,335
Ruptures w/ Nonzero Rates	107
Magnitude Range	[6.89, 8.48]
Length Range	[21, 787] km
Total Rate	2.1601205E-4 /yr
Multi-Fault Rate	2.1601205E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	184

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

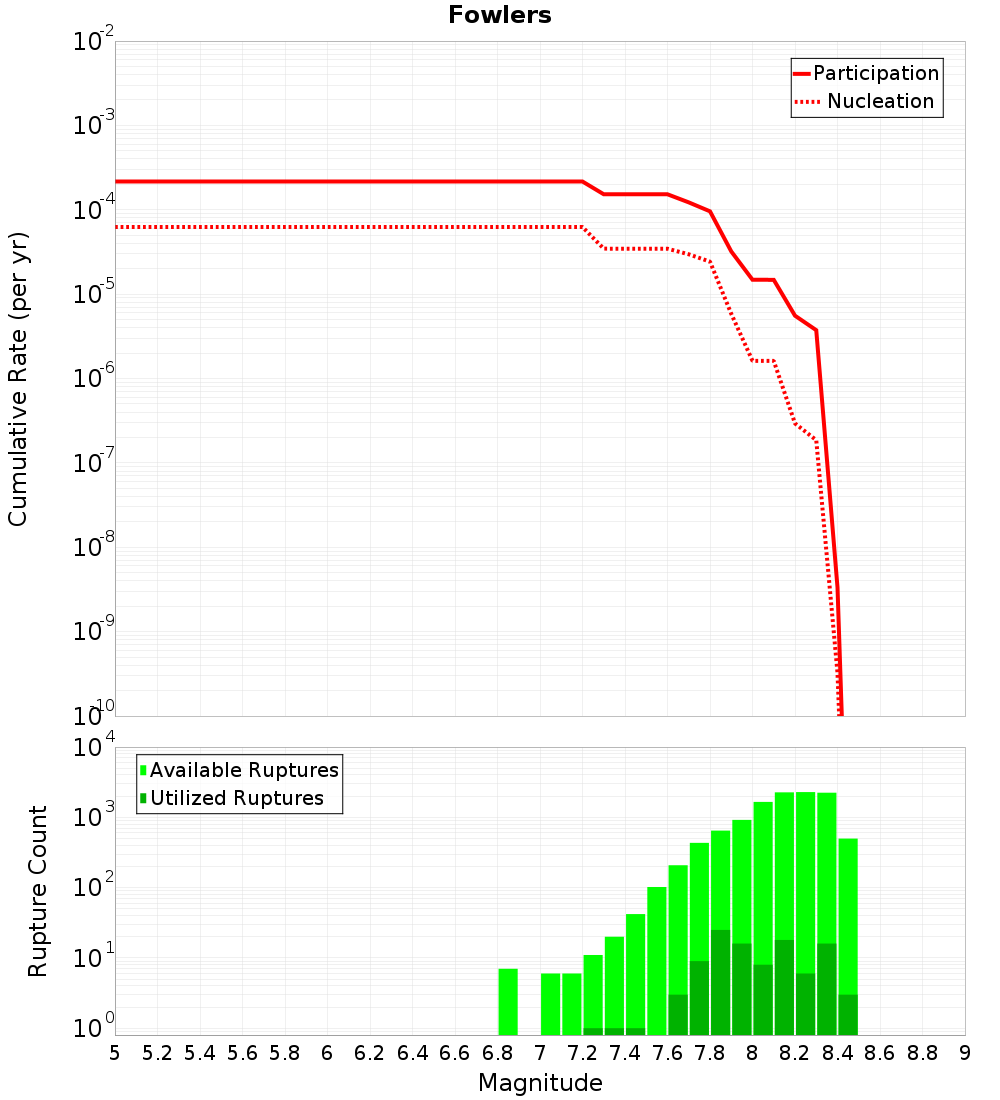

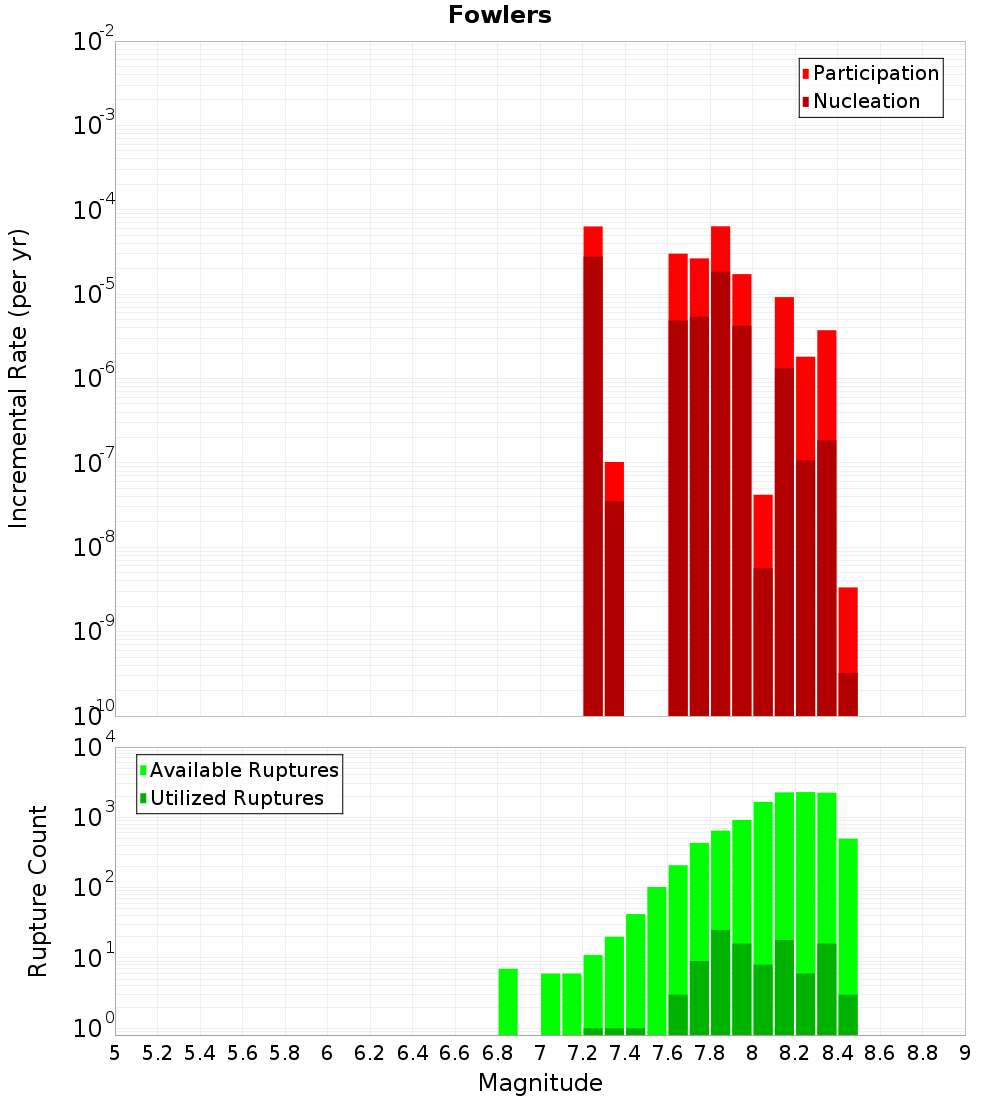

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

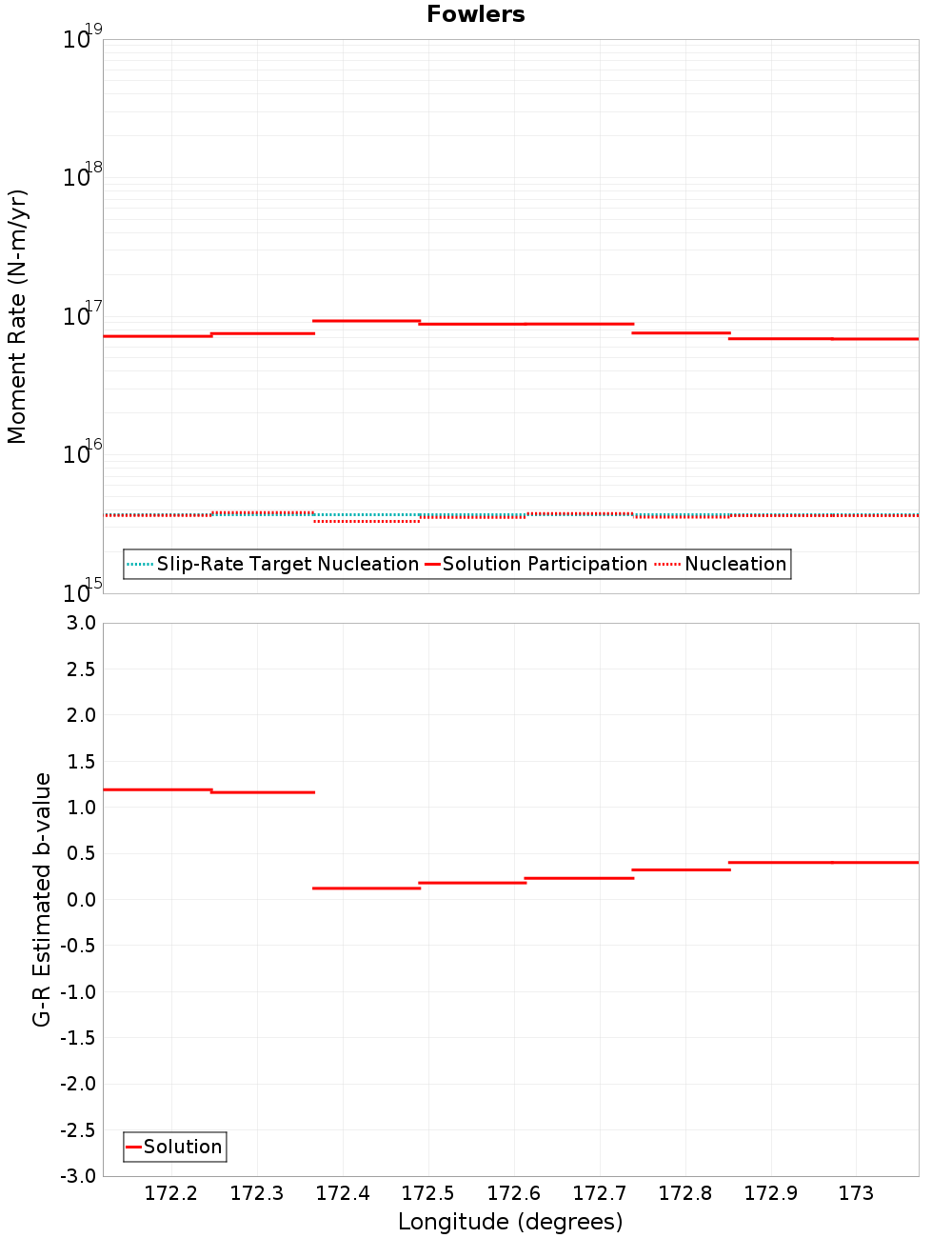

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Clarence: Central, 0.07 km away
Alpine: Springs Junction to Tophouse, 0.19 km away
Alpine: Kaniere to Springs Junction, 0.24 km away
Barefell, 0.26 km away
Elliott, 0.4 km away
Clarence: Southwest, 2.09 km away
Awatere: Southwest, 4.56 km away
Awatere: Northeast 1, 14.06 km away

Clarence: Central, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp
Connected?	true
Directly Connected?	true
Co-rupture Count	3,012
Co-rupture Rate	2.4776476E-5

Alpine: Springs Junction to Tophouse, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp
Connected?	true
Directly Connected?	true
Co-rupture Count	335
Co-rupture Rate	9.0951755E-5

Alpine: Kaniere to Springs Junction, 0.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp
Connected?	true
Directly Connected?	true
Co-rupture Count	5,408
Co-rupture Rate	2.0964775E-5

Barefell, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp
Connected?	true
Directly Connected?	true
Co-rupture Count	2,159
Co-rupture Rate	7.294743E-5

Elliott, 0.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp
Connected?	true
Directly Connected?	true
Co-rupture Count	1,114
Co-rupture Rate	1.4083994E-5

Clarence: Southwest, 2.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp
Connected?	true
Directly Connected?	true
Co-rupture Count	1,413
Co-rupture Rate	8.091438E-8

Awatere: Southwest, 4.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp
Connected?	true
Directly Connected?	true
Co-rupture Count	527
Co-rupture Rate	2.8609607E-5

Awatere: Northeast 1, 14.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp
Connected?	true
Directly Connected?	false
Co-rupture Count	2,348
Co-rupture Rate	7.415336E-5
