Kairakau South Details
| Property | Value |
|---|---|
| Rupture Count | 94 |
| Ruptures Above Sect Min Mag | 89 |
| Ruptures w/ Nonzero Rates | 43 |
| Magnitude Range | [6.71, 7.66] |
| Length Range | [17, 140] km |
| Total Rate | 7.6630304E-4 /yr |
| Multi-Fault Rate | 7.6630304E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 6 |
Table Of Contents

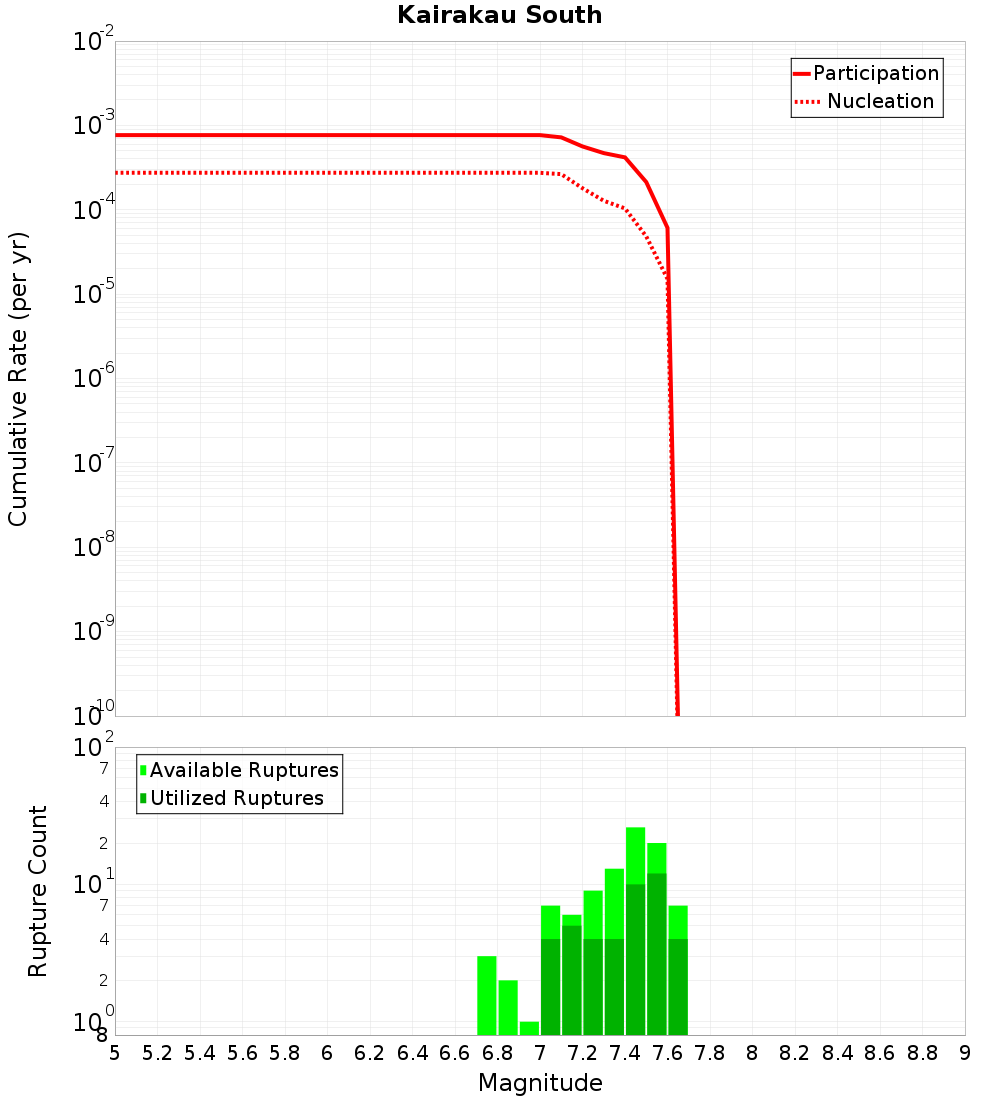

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

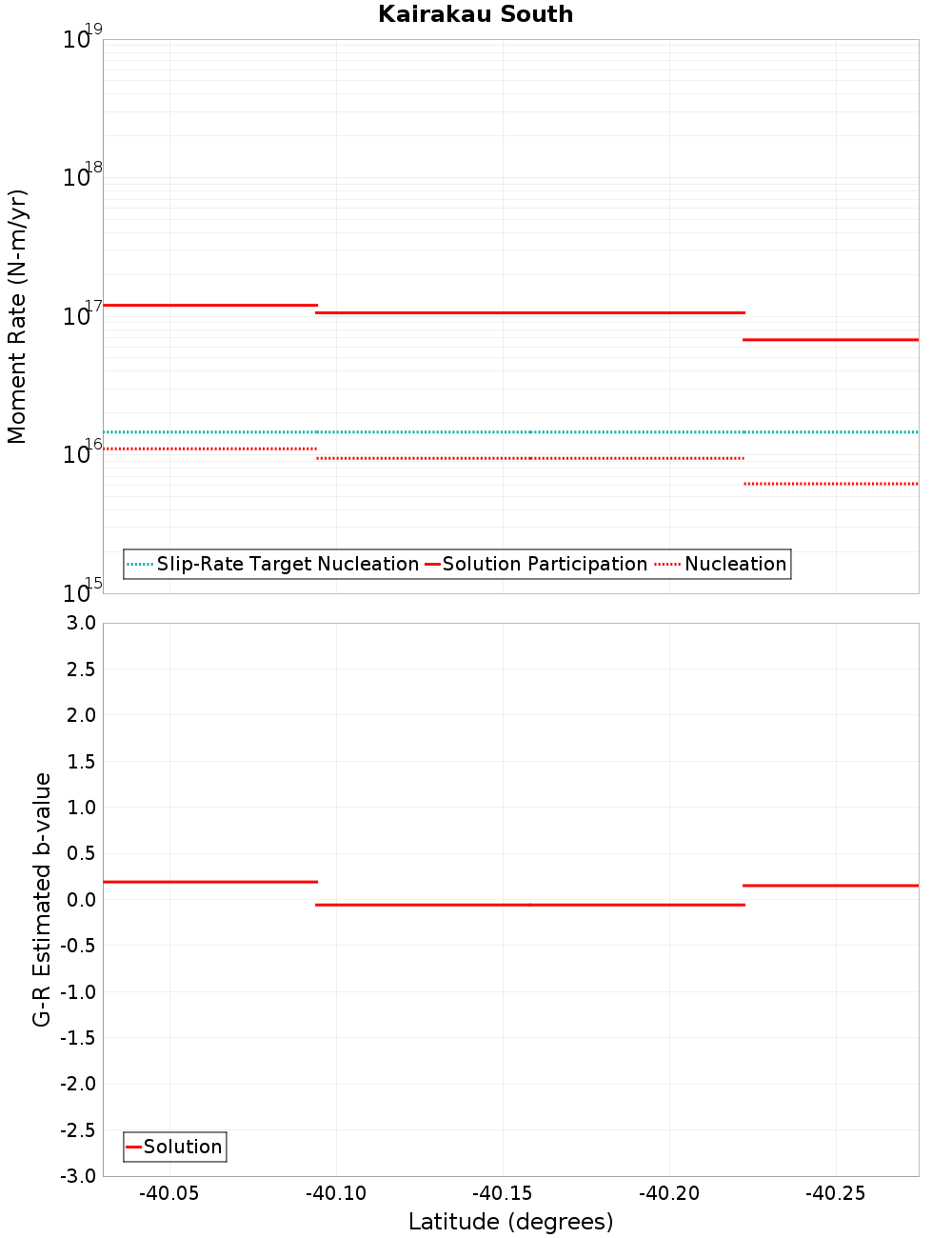

Moment-Rates and b-Values

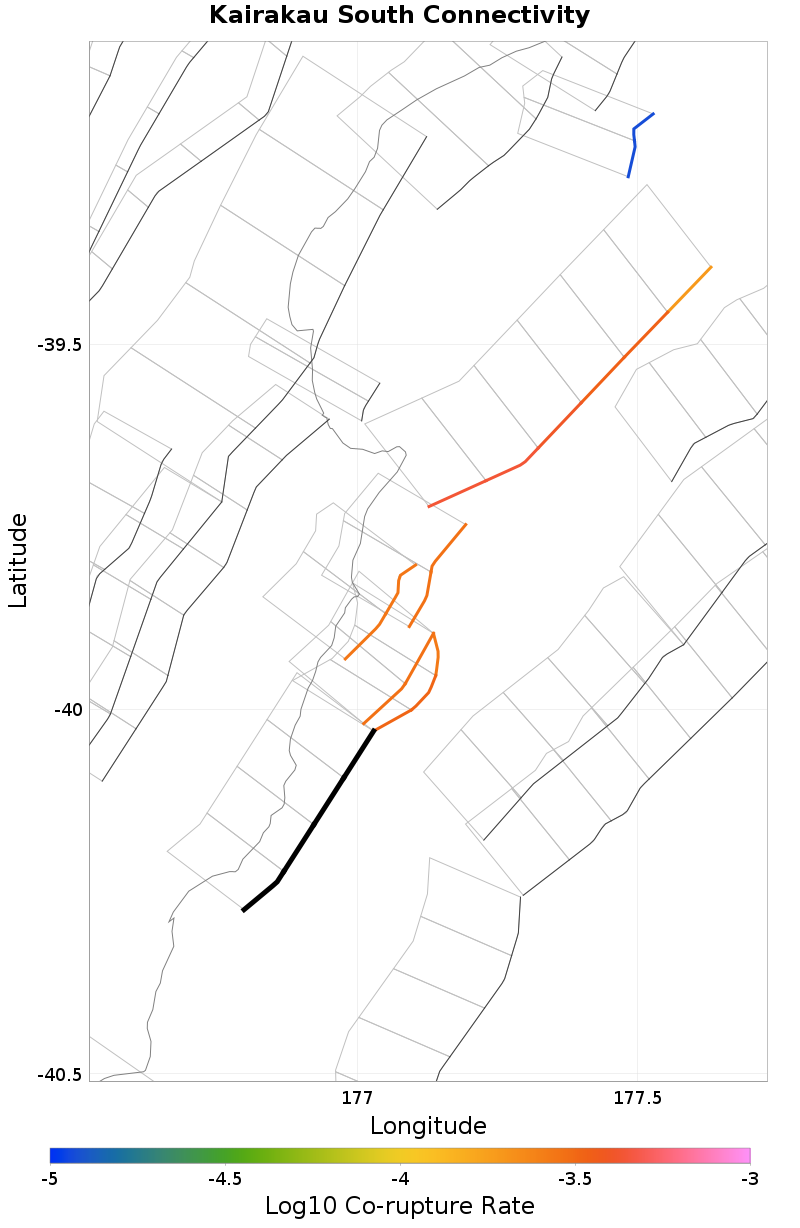

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kairakau 2, 0 km away |
| Kairakau North, 1.29 km away |
| Waimarama 1 & 2, 8.89 km away |
| Waimarama 3 & 4, 14.88 km away |
Kairakau 2, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 46 |
| Co-rupture Rate | 3.2718547E-4 |
Kairakau North, 1.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 31 |
| Co-rupture Rate | 2.911026E-4 |
Waimarama 1 & 2, 8.89 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 30 |
| Co-rupture Rate | 2.7699373E-4 |
Waimarama 3 & 4, 14.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 48 |
| Co-rupture Rate | 2.8966775E-4 |
