Raukumara 25 Details
| Property | Value |
|---|---|
| Rupture Count | 22 |
| Ruptures Above Sect Min Mag | 21 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [5.93, 7.70] |
| Length Range | [2, 101] km |
| Total Rate | 1.1979191E-5 /yr |
| Multi-Fault Rate | 1.1979191E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 9 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

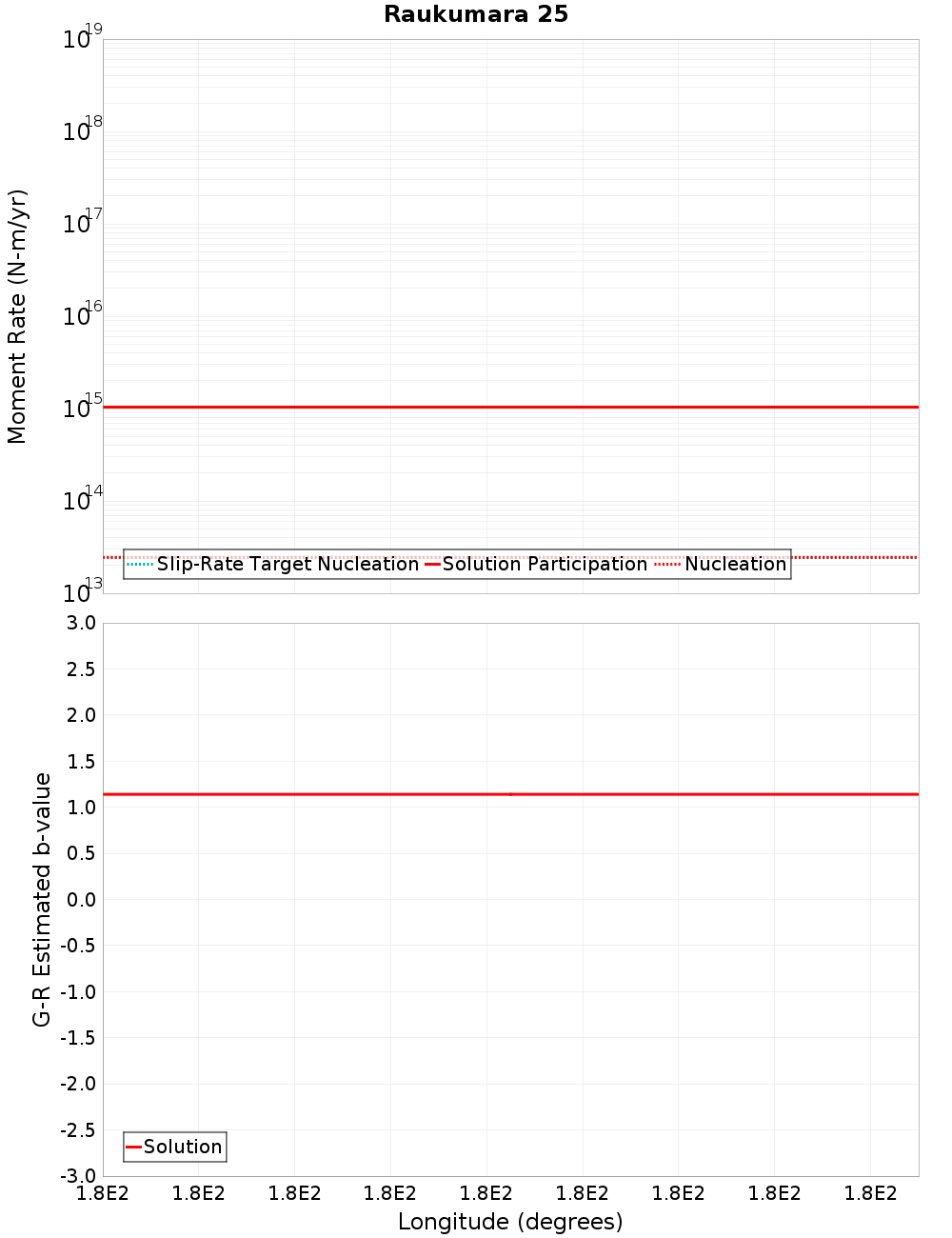

Moment-Rates and b-Values

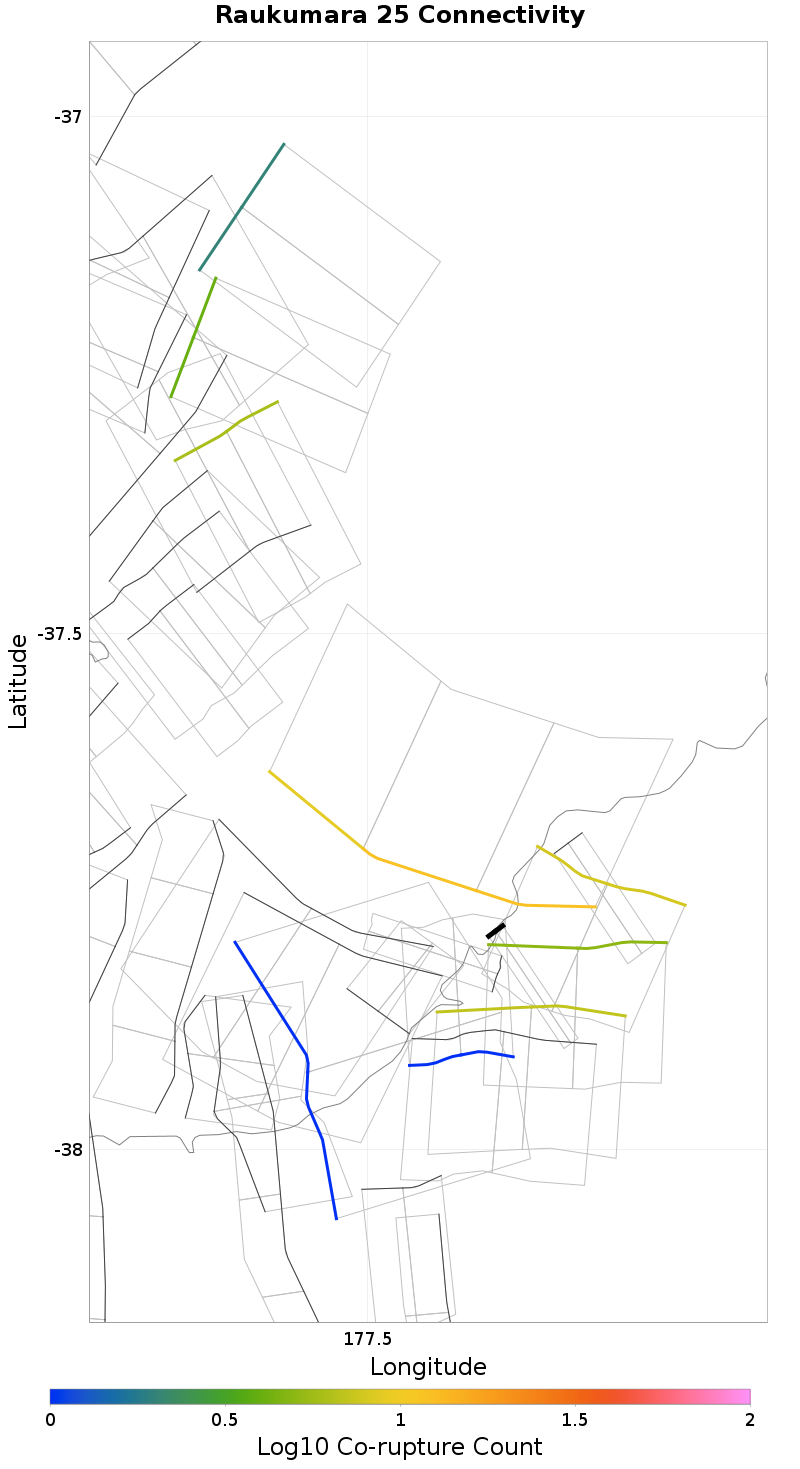

Connectivity
 |  |
|---|
Nearby Sections
Raukumara 21, 0.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5 |
| Co-rupture Rate | 2.8700722E-6 |
Raukumara 20, 0.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Raukumara 17, 1.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 2.8700722E-6 |
Kereu, 2.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8 |
| Co-rupture Rate | 9.10912E-6 |
Hariki, 2.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 12 |
| Co-rupture Rate | 0.0 |
Opape 1, 6.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Ohae 1, 6.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ohae 2, 6.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Motu River, 7.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7 |
| Co-rupture Rate | 9.10912E-6 |
Raukumara 18, 9.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ohae 3, 9.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Raukumara 24, 9.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
