West Wakatipu Details
| Property | Value |
|---|---|
| Rupture Count | 2,184 |
| Ruptures Above Sect Min Mag | 2,182 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [7.05, 8.54] |
| Length Range | [25, 865] km |
| Total Rate | 4.105838E-6 /yr |
| Multi-Fault Rate | 4.105838E-6 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 57 |
Table Of Contents

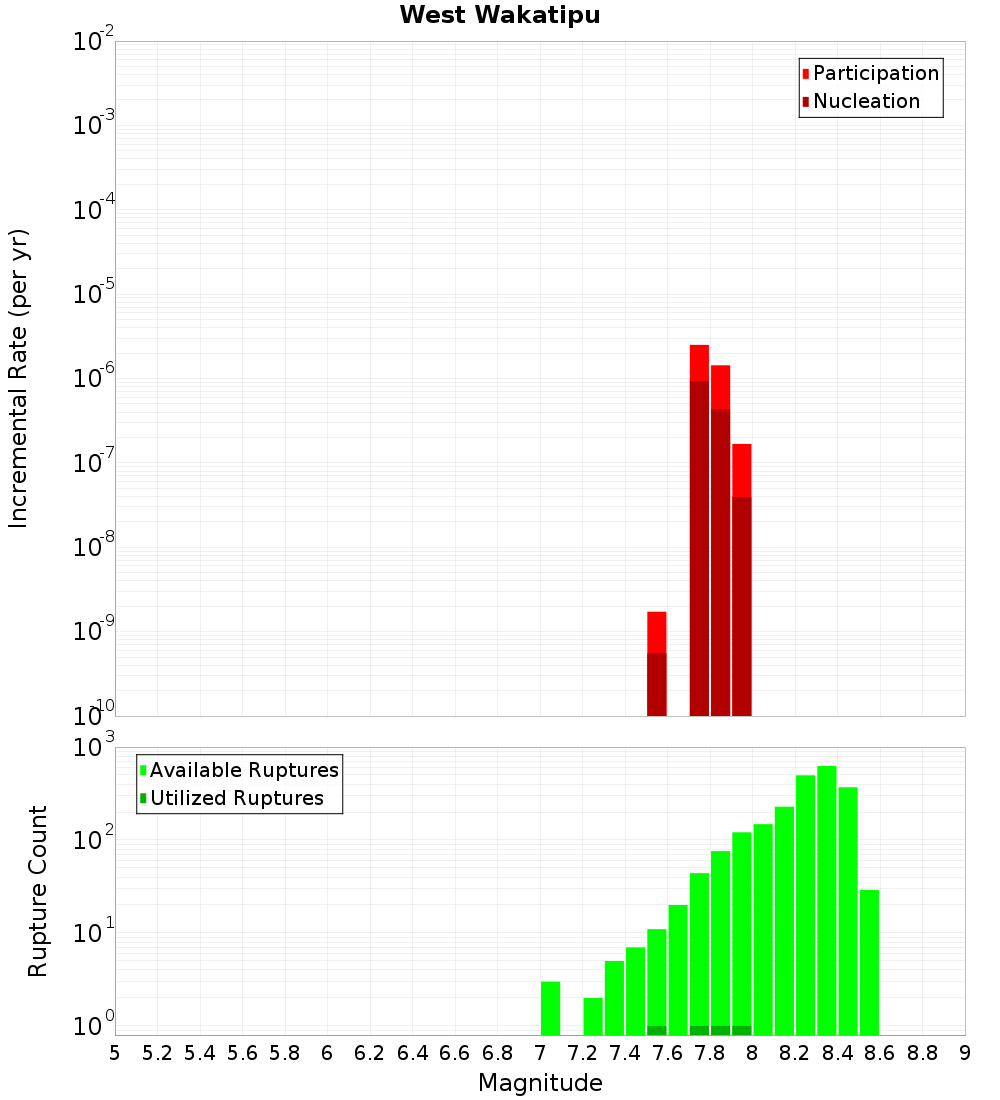

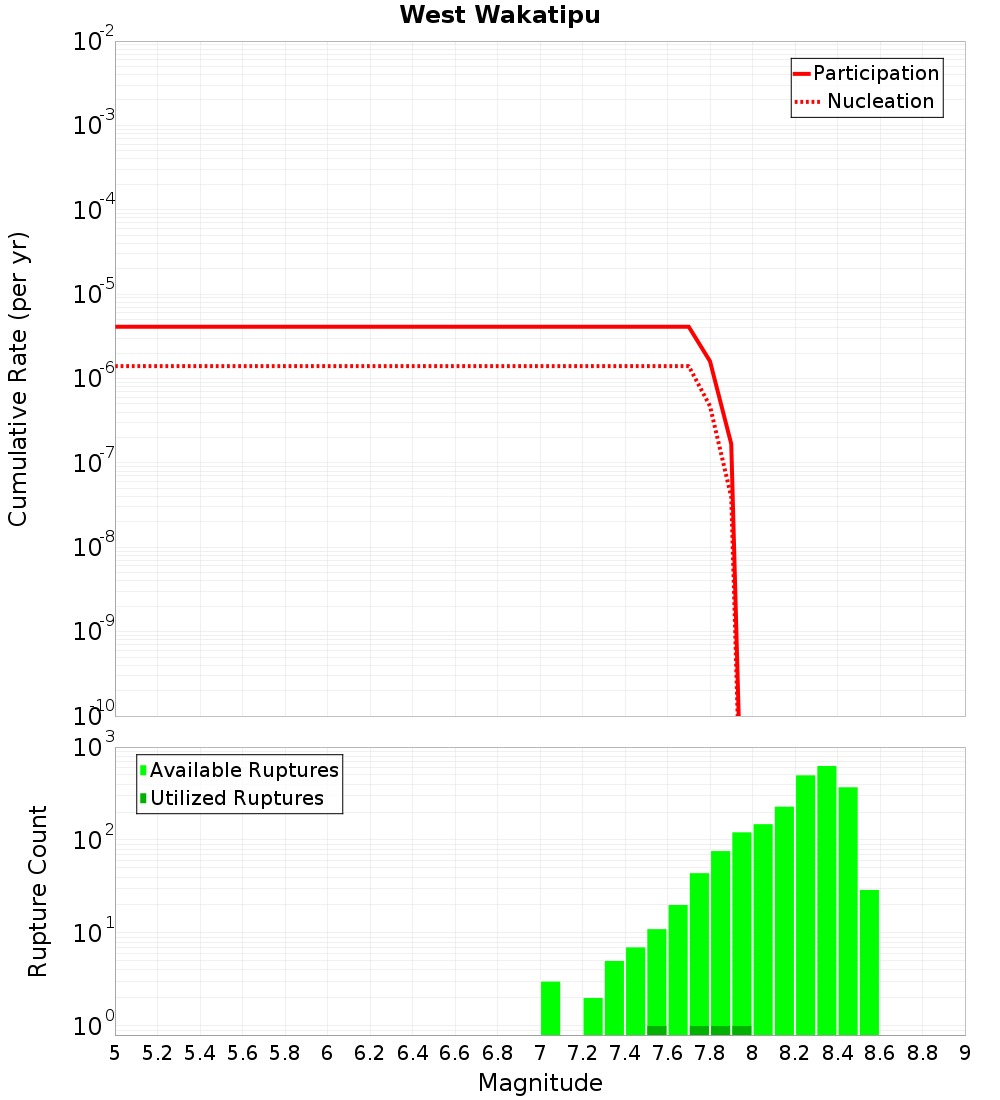

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Moonlight North, 0.14 km away |
| Moonlight South, 1.86 km away |
| Livingstone, 7.08 km away |
| Nevis, 7.52 km away |
| NW Cardrona South, 12.07 km away |
| Darran, 12.9 km away |
| Hollyford, 13.88 km away |
Moonlight North, 0.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,027 |
| Co-rupture Rate | 0.0 |
Moonlight South, 1.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,449 |
| Co-rupture Rate | 4.1041153E-6 |
Livingstone, 7.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 24 |
| Co-rupture Rate | 4.105838E-6 |
Nevis, 7.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 9 |
| Co-rupture Rate | 0.0 |
NW Cardrona South, 12.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Darran, 12.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hollyford, 13.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNDYuME5tSmhp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 11 |
| Co-rupture Rate | 4.105838E-6 |
