Lachlan 1 & 2 Details
| Property | Value |
|---|---|
| Rupture Count | 462 |
| Ruptures Above Sect Min Mag | 458 |
| Ruptures w/ Nonzero Rates | 62 |
| Magnitude Range | [6.82, 7.96] |
| Length Range | [18, 250] km |
| Total Rate | 4.7282616E-4 /yr |
| Multi-Fault Rate | 4.7031938E-4 /yr (99.47%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 13 |
Table Of Contents

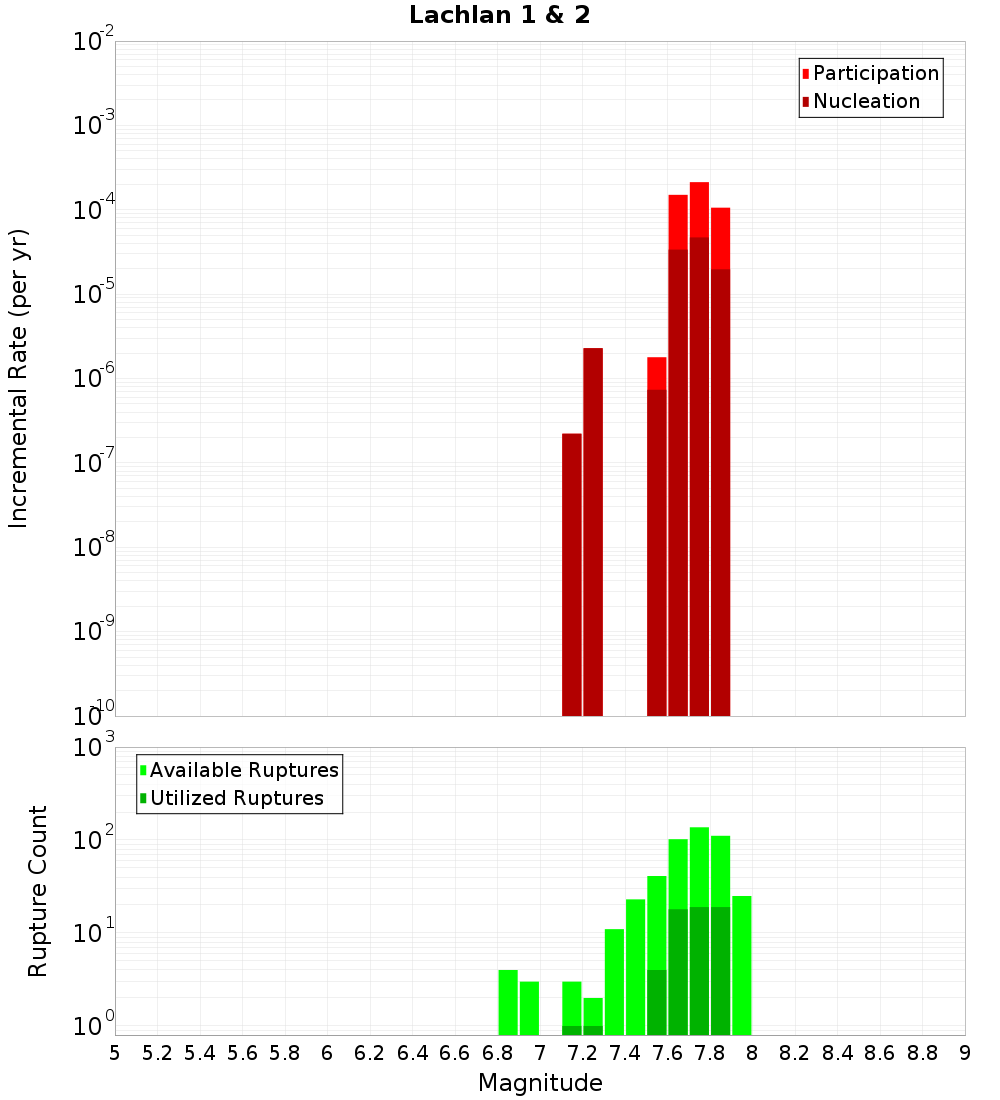

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

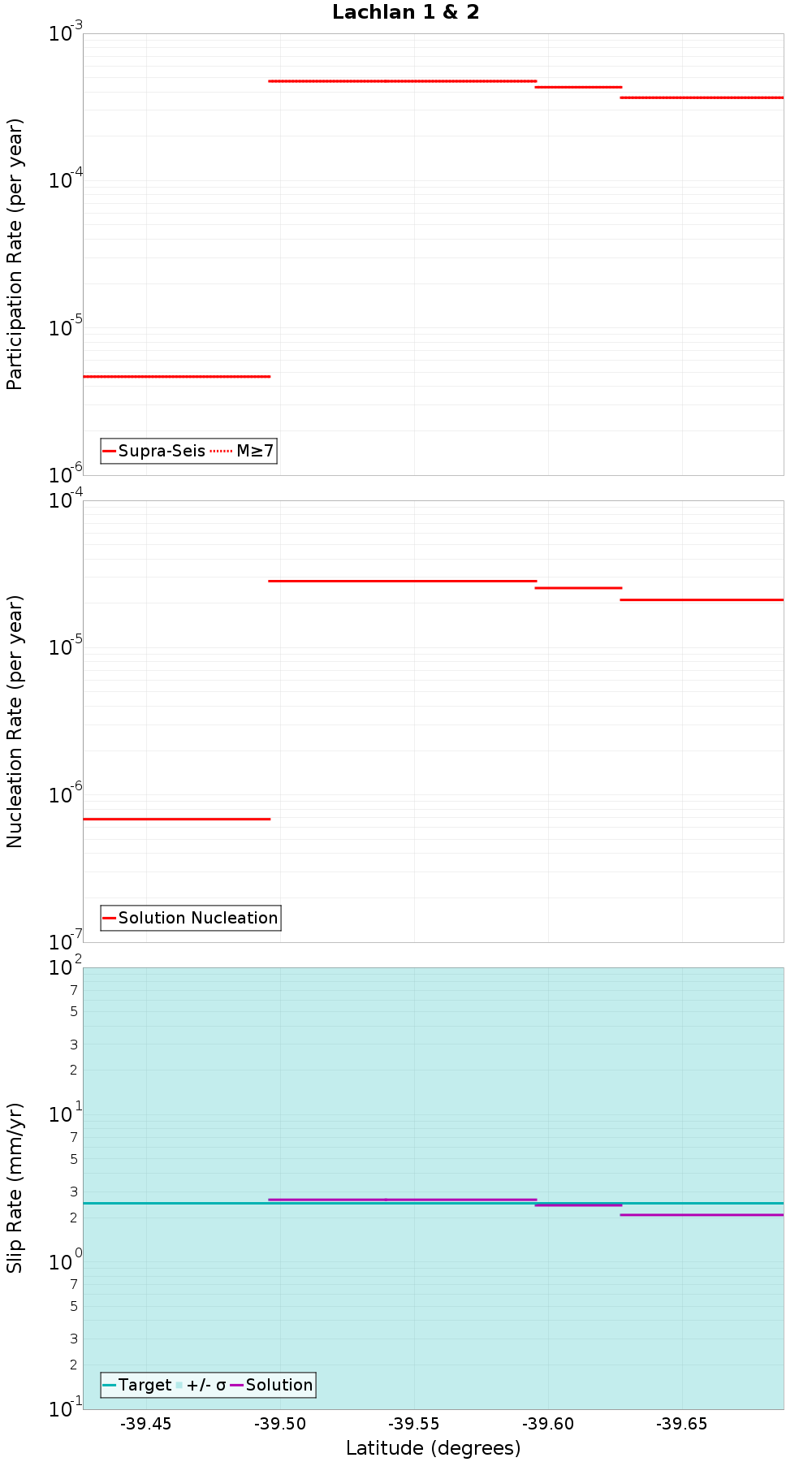

Along-Strike Values

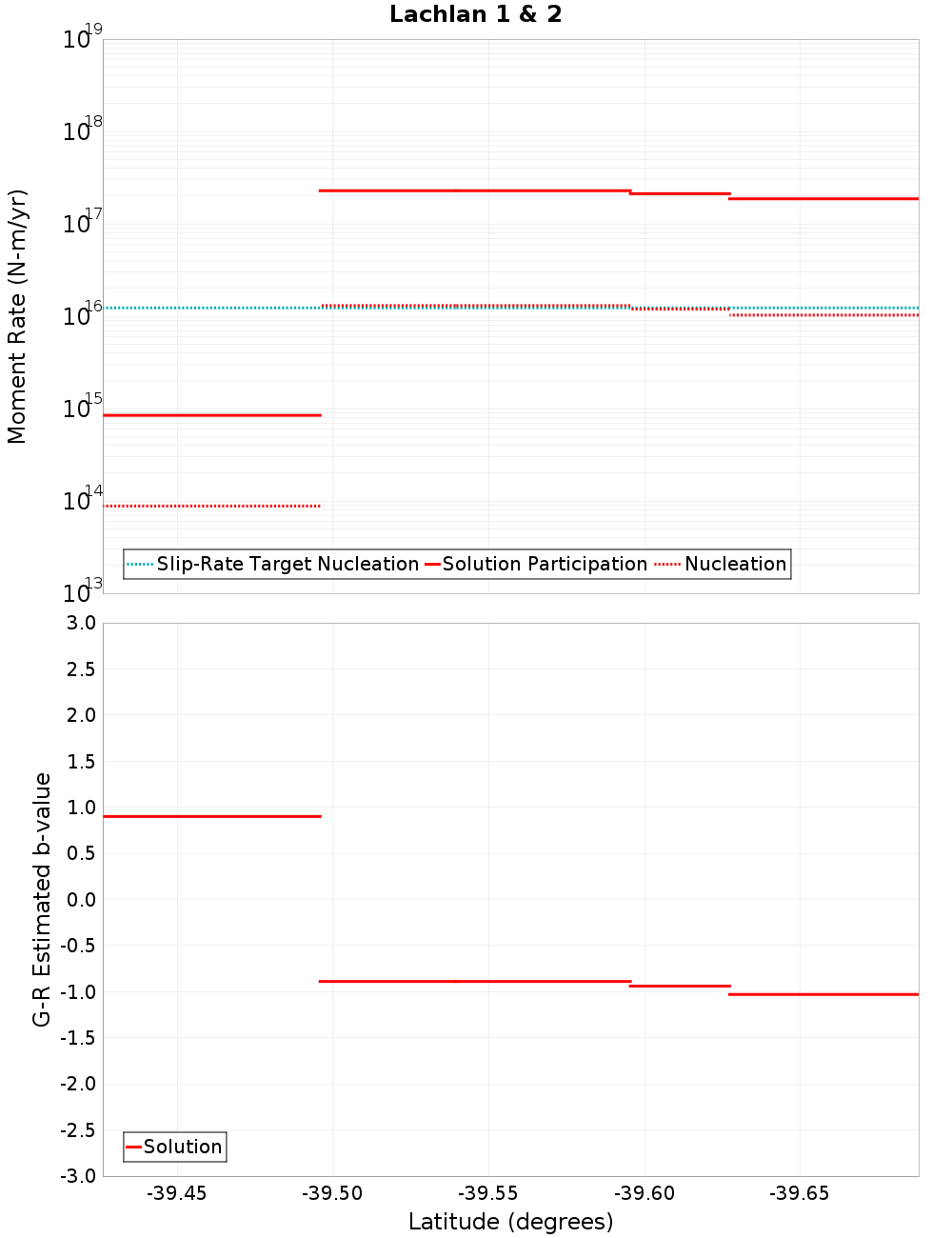

Moment-Rates and b-Values

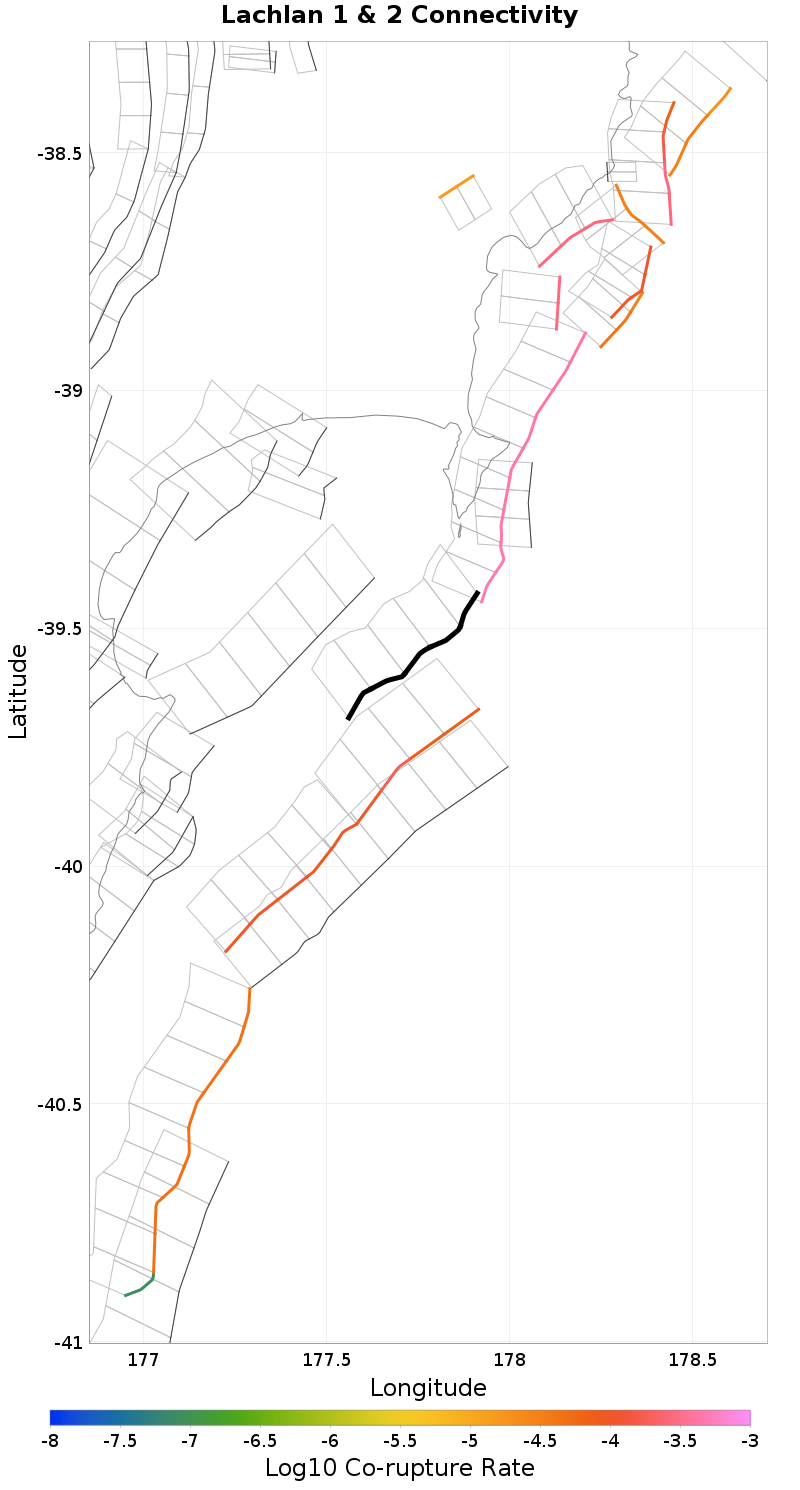

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Lachlan 3, 0.51 km away |
| Mahia 2, 7.45 km away |
| Motuokura North, 10.61 km away |
| Kidnappers Ridge, 10.9 km away |
Lachlan 3, 0.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNTQuMDM4UWFk | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 348 |
| Co-rupture Rate | 4.681633E-4 |
Mahia 2, 7.45 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNTQuMDM4UWFk | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Motuokura North, 10.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNTQuMDM4UWFk | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 380 |
| Co-rupture Rate | 1.7897351E-4 |
Kidnappers Ridge, 10.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNTQuMDM4UWFk | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
