Ariel Bank Details

Property	Value
Rupture Count	272
Ruptures Above Sect Min Mag	267
Ruptures w/ Nonzero Rates	96
Magnitude Range	[6.61, 7.89]
Length Range	[13, 220] km
Total Rate	8.653418E-4 /yr
Multi-Fault Rate	8.653418E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	10

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

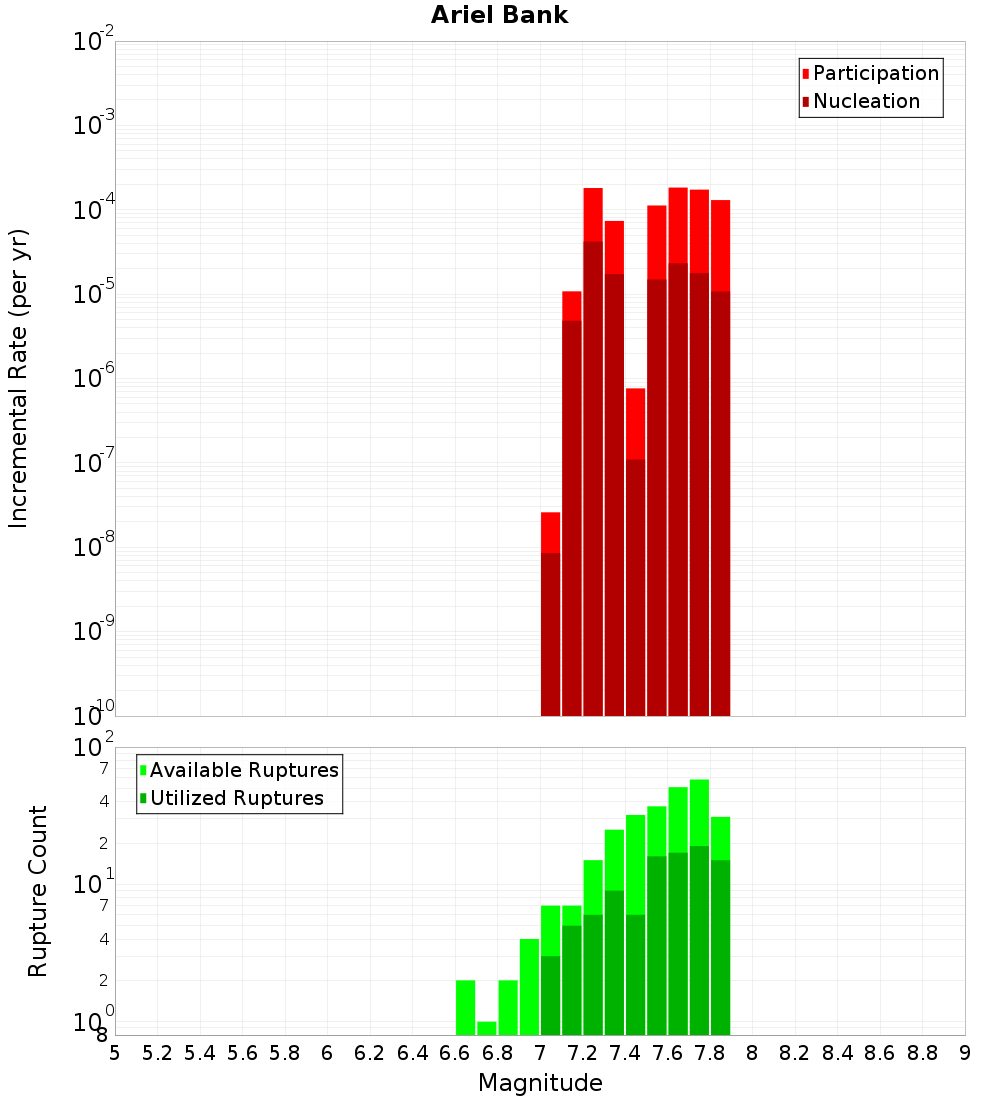

Magnitude-Frequency Distribution

Incremental	Cumulative

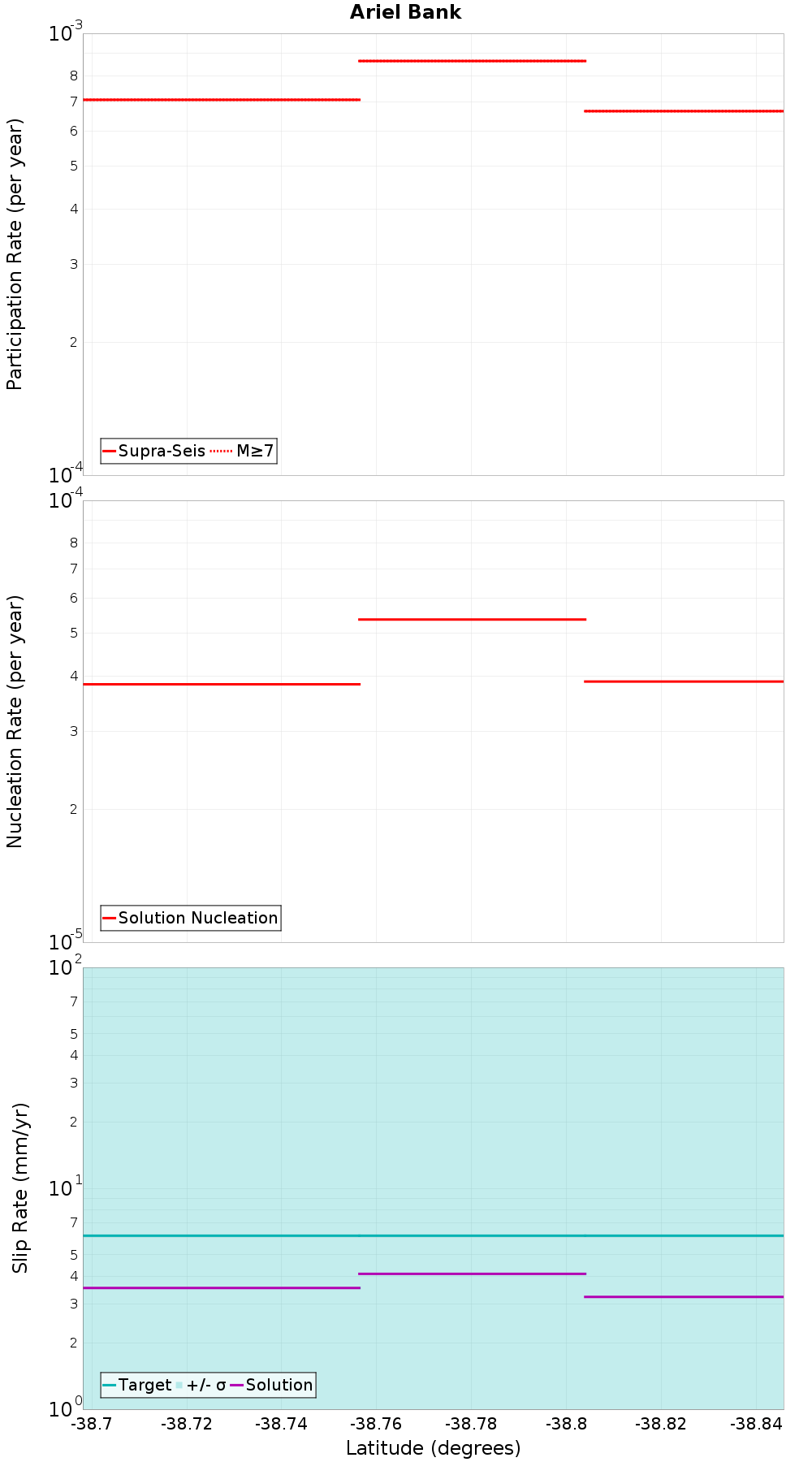

Along-Strike Values

Moment-Rates and b-Values

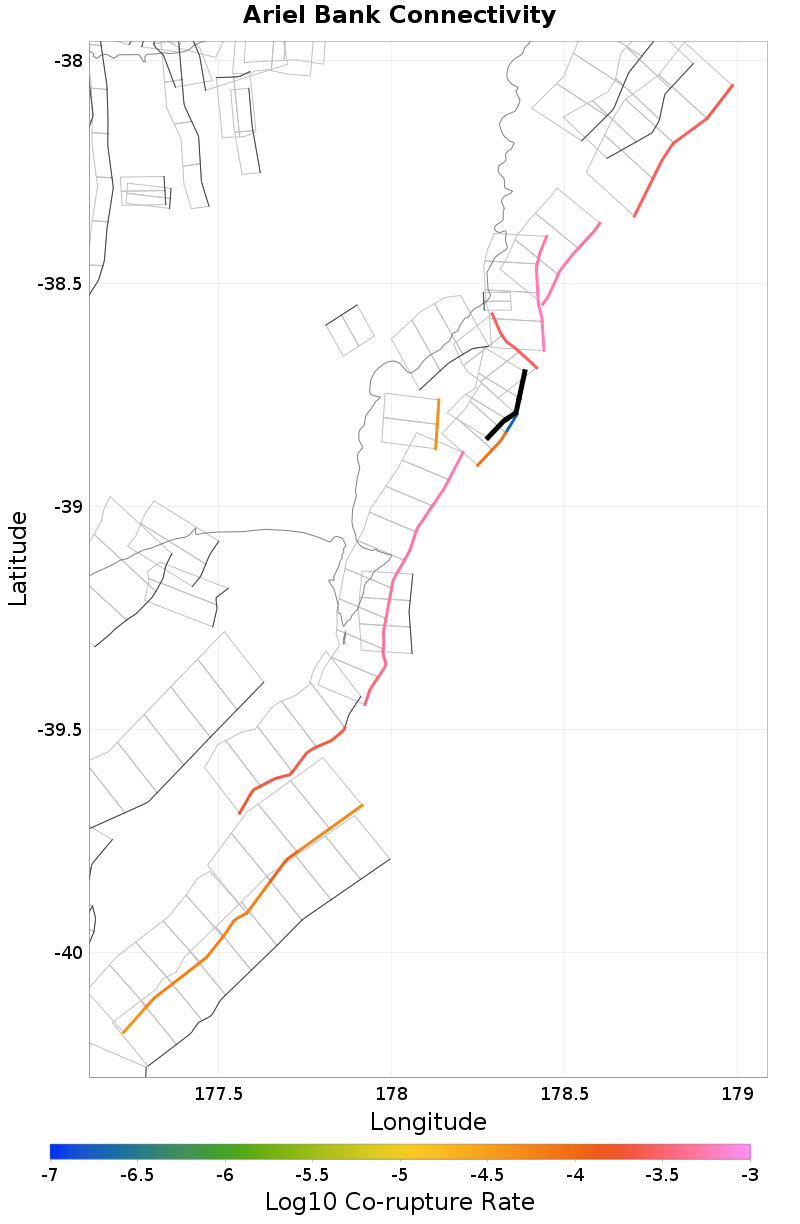

Connectivity

Nearby Sections

Fault Section
Te Ikaarongamai, 0.36 km away
Ariel East, 0.48 km away
Gable End North, 2.13 km away
Lachlan 3, 6.74 km away
Gable End South, 7.12 km away
Poverty Bay, 8.84 km away
Pakarae, 10.5 km away

Te Ikaarongamai, 0.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNjcuMGdxVDNn
Connected?	true
Directly Connected?	true
Co-rupture Count	25
Co-rupture Rate	2.6728108E-4

Ariel East, 0.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNjcuMGdxVDNn
Connected?	true
Directly Connected?	true
Co-rupture Count	109
Co-rupture Rate	8.450553E-5

Gable End North, 2.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNjcuMGdxVDNn
Connected?	true
Directly Connected?	true
Co-rupture Count	190
Co-rupture Rate	5.872795E-4

Lachlan 3, 6.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNjcuMGdxVDNn
Connected?	true
Directly Connected?	true
Co-rupture Count	232
Co-rupture Rate	5.6464924E-4

Gable End South, 7.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNjcuMGdxVDNn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Poverty Bay, 8.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNjcuMGdxVDNn
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	4.297248E-5

Pakarae, 10.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNjcuMGdxVDNn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
