Te Heka Details

PropertyValue
Rupture Count509
Ruptures Above Sect Min Mag508
Ruptures w/ Nonzero Rates34
Magnitude Range[7.01, 8.17]
Length Range[22, 324] km
Total Rate4.3719483E-5 /yr
Multi-Fault Rate3.8264778E-5 /yr (87.52%)
Directly-Connected Faults4
All Co-Rupturing Faults31

Table Of Contents

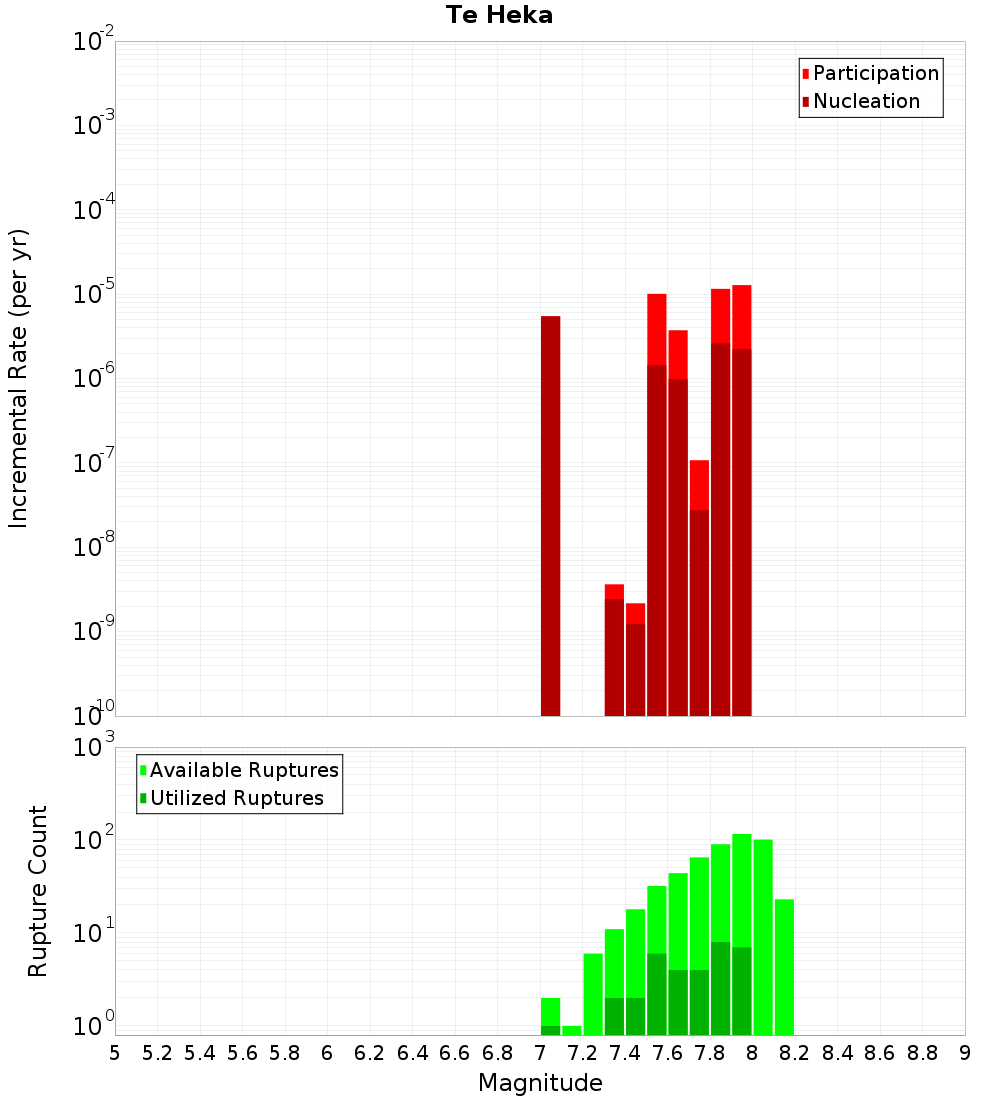

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

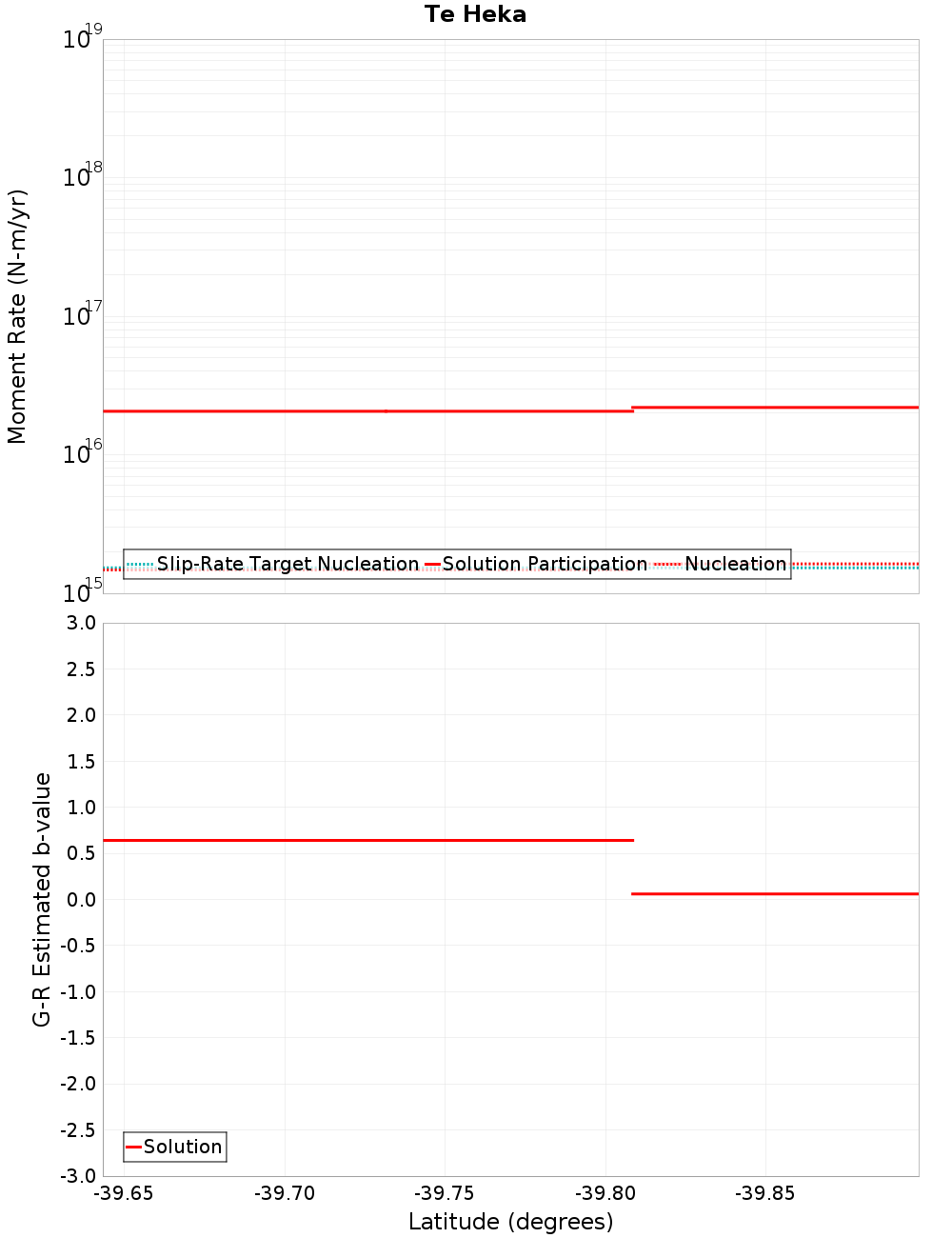

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Awanui, 0.14 km away
Waipukurau - Poukawa, 5.65 km away
Oruawharo - Mangatoro, 8.05 km away
Tukituki Thrust, 11.15 km away
Ruataniwha, 12.04 km away
Mohaka: North, 14.28 km away
Wakarara, 14.9 km away
Mohaka: South, 14.94 km away

Awanui, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNjcuMHlORkc3
Connected?true
Directly Connected?true
Co-rupture Count383
Co-rupture Rate1.4816868E-5

Waipukurau - Poukawa, 5.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNjcuMHlORkc3
Connected?true
Directly Connected?true
Co-rupture Count138
Co-rupture Rate1.3537009E-5

Oruawharo - Mangatoro, 8.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNjcuMHlORkc3
Connected?true
Directly Connected?true
Co-rupture Count260
Co-rupture Rate2.7389522E-5

Tukituki Thrust, 11.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNjcuMHlORkc3
Connected?true
Directly Connected?true
Co-rupture Count44
Co-rupture Rate1.0647961E-5

Ruataniwha, 12.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNjcuMHlORkc3
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate1.3040073E-8

Mohaka: North, 14.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNjcuMHlORkc3
Connected?true
Directly Connected?false
Co-rupture Count238
Co-rupture Rate1.9613082E-11

Wakarara, 14.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNjcuMHlORkc3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mohaka: South, 14.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxNjcuMHlORkc3
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate0.0
