Te Ikaarongamai Details

Property	Value
Rupture Count	91
Ruptures Above Sect Min Mag	87
Ruptures w/ Nonzero Rates	34
Magnitude Range	[6.58, 7.85]
Length Range	[12, 201] km
Total Rate	9.297173E-4 /yr
Multi-Fault Rate	9.297173E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	9

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

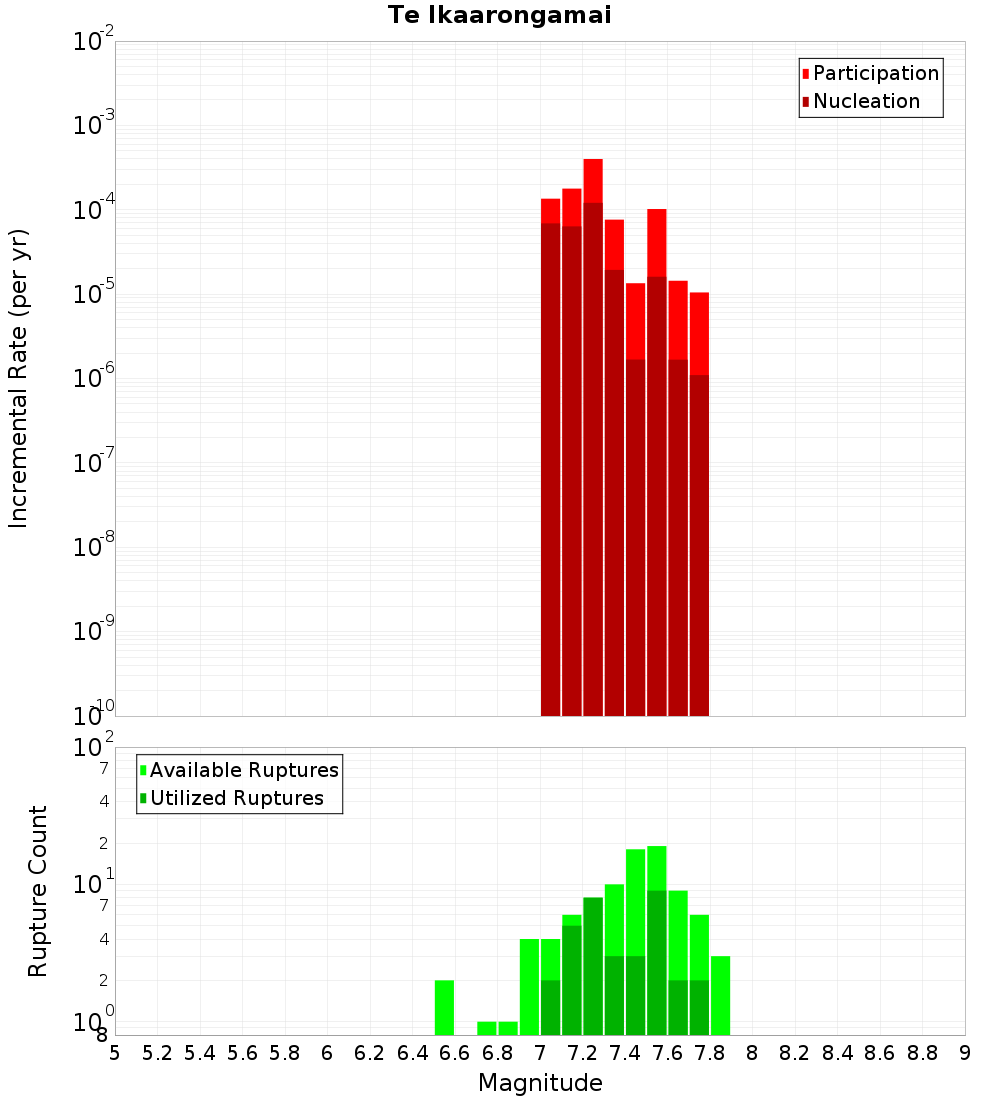

Magnitude-Frequency Distribution

Incremental	Cumulative

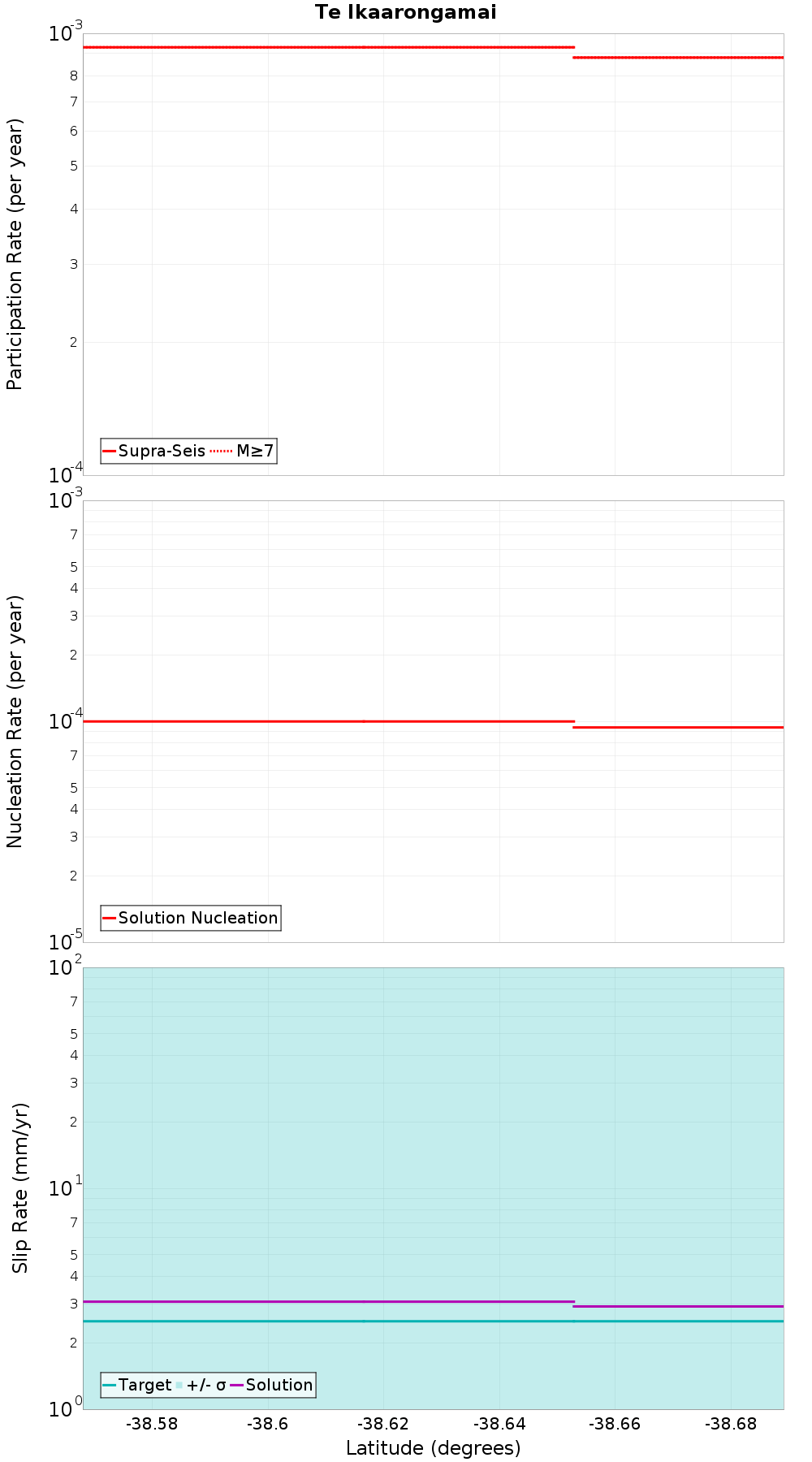

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Ariel Bank, 0.36 km away
Gable End South, 0.43 km away
Ariel East, 0.48 km away
Pakarae, 1.64 km away
Gable End North, 3.53 km away
Ariel Bank 2, 11.26 km away
Poverty Bay, 14.33 km away

Ariel Bank, 0.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxODYuMFhuQVRj
Connected?	true
Directly Connected?	true
Co-rupture Count	25
Co-rupture Rate	1.8984394E-4

Gable End South, 0.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxODYuMFhuQVRj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ariel East, 0.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxODYuMFhuQVRj
Connected?	true
Directly Connected?	true
Co-rupture Count	46
Co-rupture Rate	3.7869046E-4

Pakarae, 1.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxODYuMFhuQVRj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Gable End North, 3.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxODYuMFhuQVRj
Connected?	true
Directly Connected?	true
Co-rupture Count	9
Co-rupture Rate	2.1377257E-4

Ariel Bank 2, 11.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxODYuMFhuQVRj
Connected?	true
Directly Connected?	true
Co-rupture Count	68
Co-rupture Rate	7.817667E-4

Poverty Bay, 14.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxODYuMFhuQVRj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
