Hurunui Peak Details

Property	Value
Rupture Count	3,443
Ruptures Above Sect Min Mag	3,443
Ruptures w/ Nonzero Rates	29
Magnitude Range	[6.99, 8.35]
Length Range	[28, 781] km
Total Rate	1.8344983E-4 /yr
Multi-Fault Rate	1.8344983E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	86

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

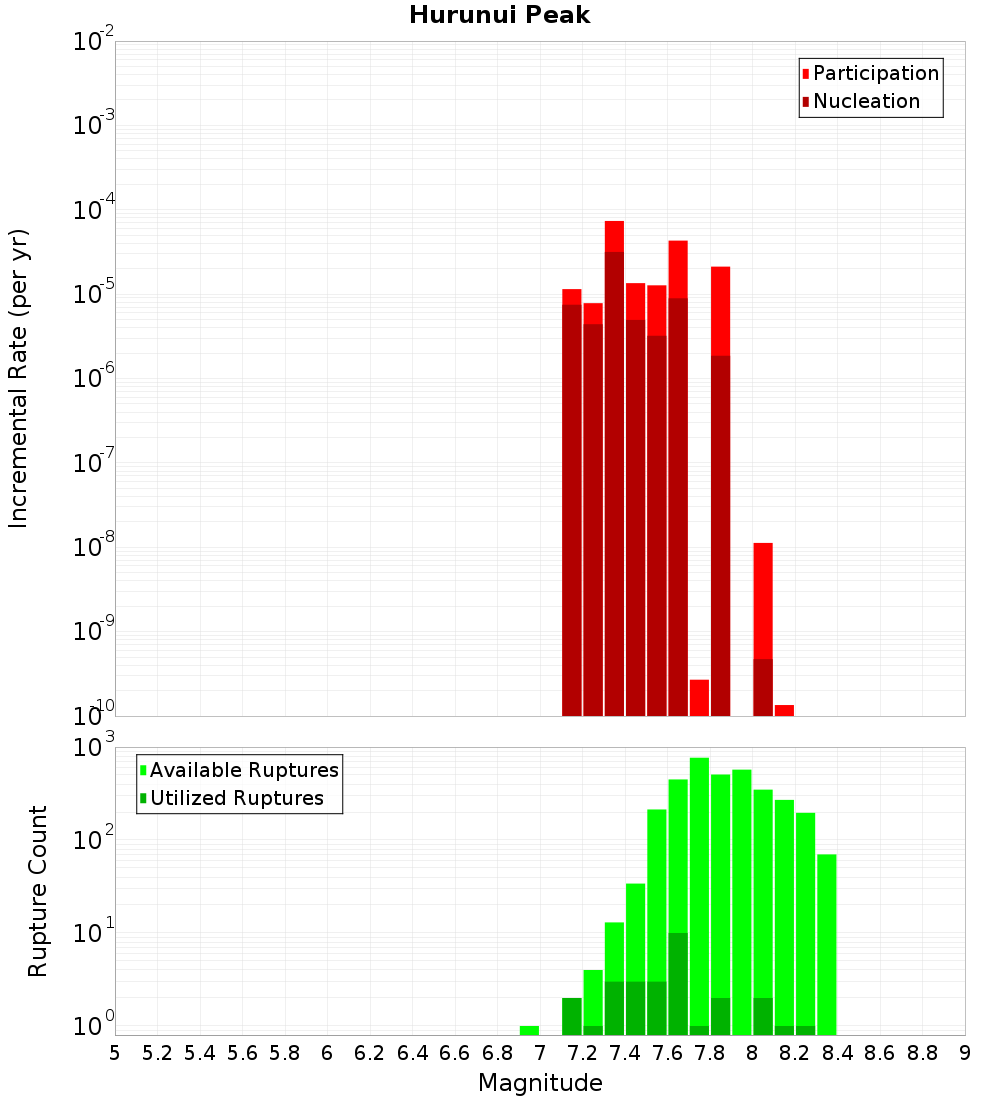

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

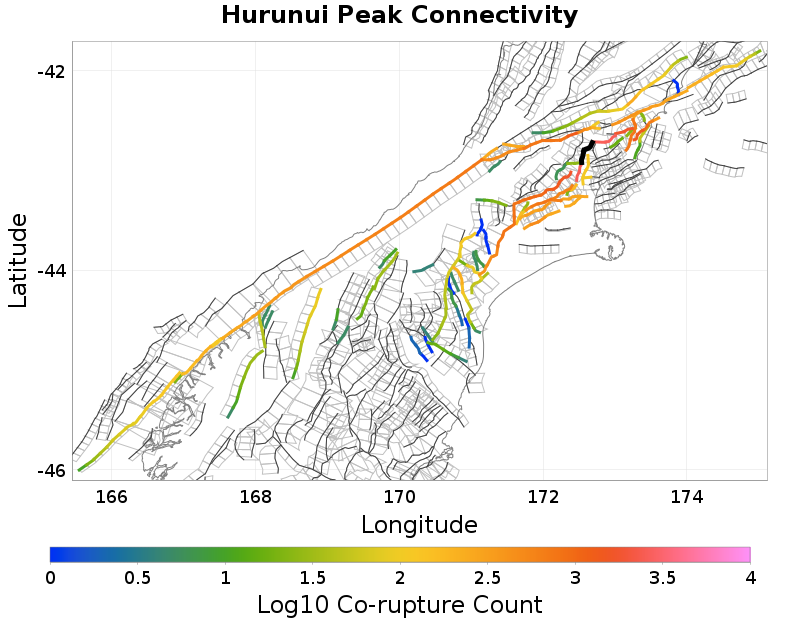

Connectivity

Nearby Sections

Fault Section
Virginia, 0.28 km away
Mt Arden, 0.35 km away
Mt Culverden, 1.53 km away
Balmoral, 2.6 km away
Esk North, 4.03 km away
Doctors, 5.51 km away
Kakapo, 5.94 km away
Pancake, 8.97 km away
Lowry, 9.05 km away
Hope: Hanmer NW, 10.96 km away
Hope: Hope River, 11.86 km away
Kaiwara South, 12.73 km away
Hope: Kakapo-2-Hamner, 12.99 km away
Hope: Hamner SW, 14.89 km away

Virginia, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxODcuMHR2R01V
Connected?	true
Directly Connected?	true
Co-rupture Count	25
Co-rupture Rate	9.4822164E-5

Mt Arden, 0.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxODcuMHR2R01V
Connected?	true
Directly Connected?	true
Co-rupture Count	2,465
Co-rupture Rate	4.8003563E-5

Mt Culverden, 1.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxODcuMHR2R01V
Connected?	true
Directly Connected?	true
Co-rupture Count	2,613
Co-rupture Rate	7.8218494E-5

Balmoral, 2.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxODcuMHR2R01V
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Esk North, 4.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxODcuMHR2R01V
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Doctors, 5.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxODcuMHR2R01V
Connected?	true
Directly Connected?	true
Co-rupture Count	125
Co-rupture Rate	1.169432E-5

Kakapo, 5.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxODcuMHR2R01V
Connected?	true
Directly Connected?	true
Co-rupture Count	1,326
Co-rupture Rate	1.1064053E-4

Pancake, 8.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxODcuMHR2R01V
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	0.0

Lowry, 9.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxODcuMHR2R01V
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Hanmer NW, 10.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxODcuMHR2R01V
Connected?	true
Directly Connected?	false
Co-rupture Count	106
Co-rupture Rate	1.5954328E-6

Hope: Hope River, 11.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxODcuMHR2R01V
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kaiwara South, 12.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxODcuMHR2R01V
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Kakapo-2-Hamner, 12.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxODcuMHR2R01V
Connected?	true
Directly Connected?	false
Co-rupture Count	377
Co-rupture Rate	9.376499E-5

Hope: Hamner SW, 14.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxODcuMHR2R01V
Connected?	true
Directly Connected?	false
Co-rupture Count	228
Co-rupture Rate	1.5954328E-6
