Rangipo South Details
| Property | Value |
|---|---|
| Rupture Count | 31 |
| Ruptures Above Sect Min Mag | 30 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [6.76, 8.08] |
| Length Range | [12, 239] km |
| Total Rate | 2.2794919E-5 /yr |
| Multi-Fault Rate | 2.2794919E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 10 |
Table Of Contents

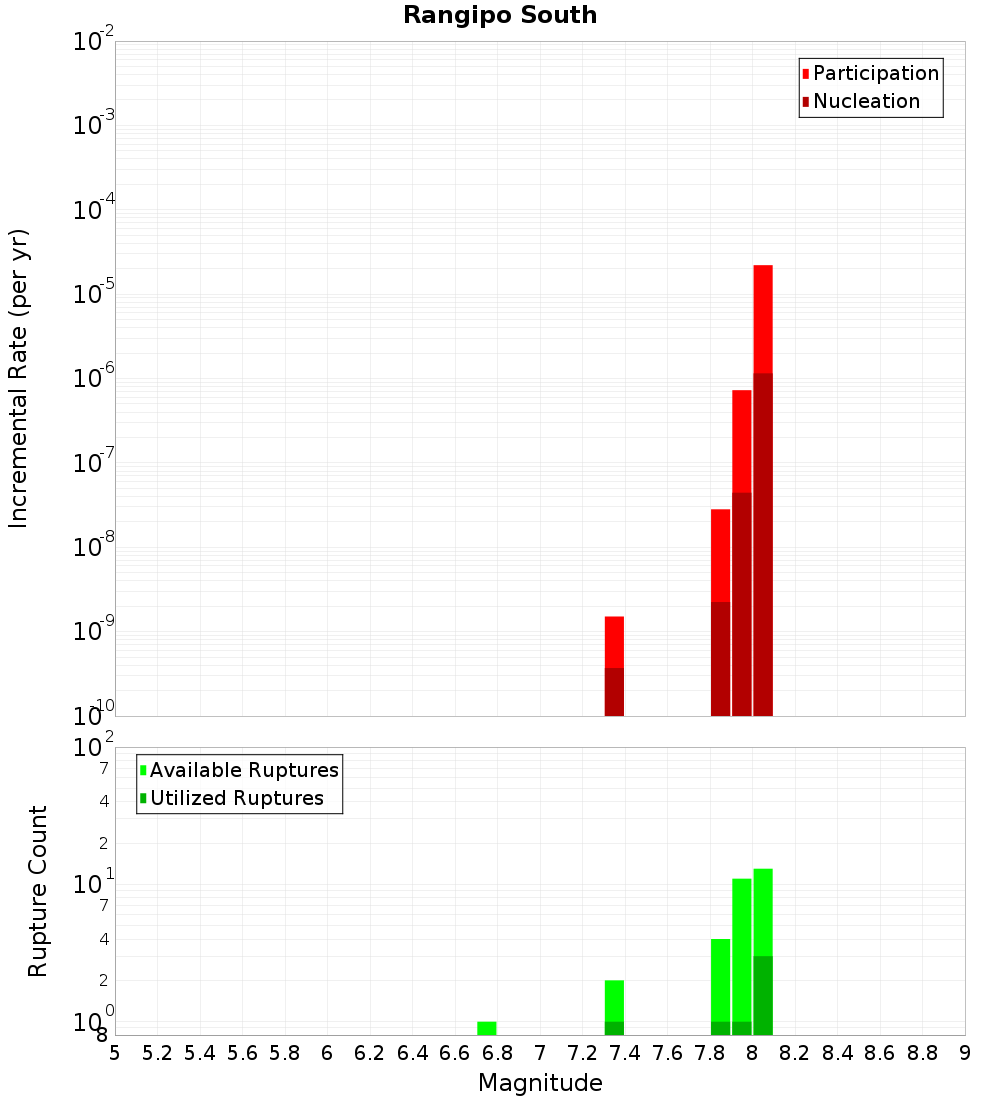

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

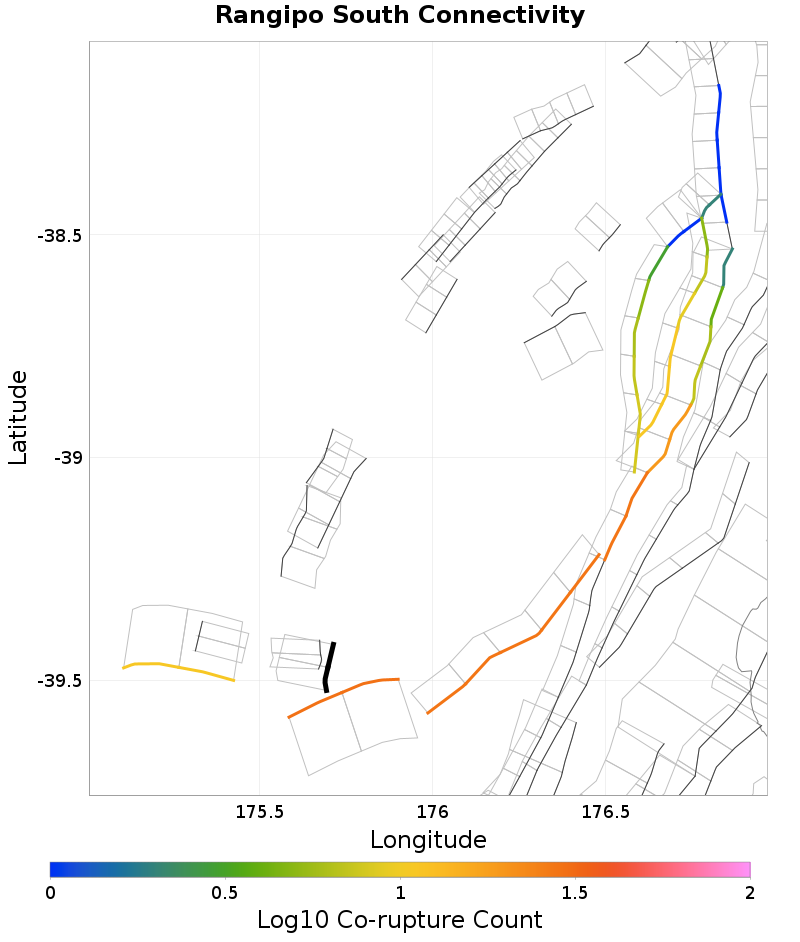

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Rangipo Central, 1.56 km away |
| Snowgrass, 2.02 km away |
| Harris Road, 8.77 km away |
| Waipuna, 10.71 km away |
| Waihi South, 12.88 km away |
Rangipo Central, 1.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxOTguMHYyM1ZX | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Snowgrass, 2.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxOTguMHYyM1ZX | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 29 |
| Co-rupture Rate | 2.2794919E-5 |
Harris Road, 8.77 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxOTguMHYyM1ZX | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waipuna, 10.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxOTguMHYyM1ZX | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 11 |
| Co-rupture Rate | 1.4659459E-5 |
Waihi South, 12.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAxOTguMHYyM1ZX | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
