Alpine: Springs Junction to Tophouse Details

PropertyValue
Rupture Count70,243
Ruptures Above Sect Min Mag70,237
Ruptures w/ Nonzero Rates352
Magnitude Range[6.90, 8.52]
Length Range[24, 1,132] km
Total Rate0.0018913065 /yr
Multi-Fault Rate0.0016624498 /yr (87.90%)
Directly-Connected Faults8
All Co-Rupturing Faults142

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

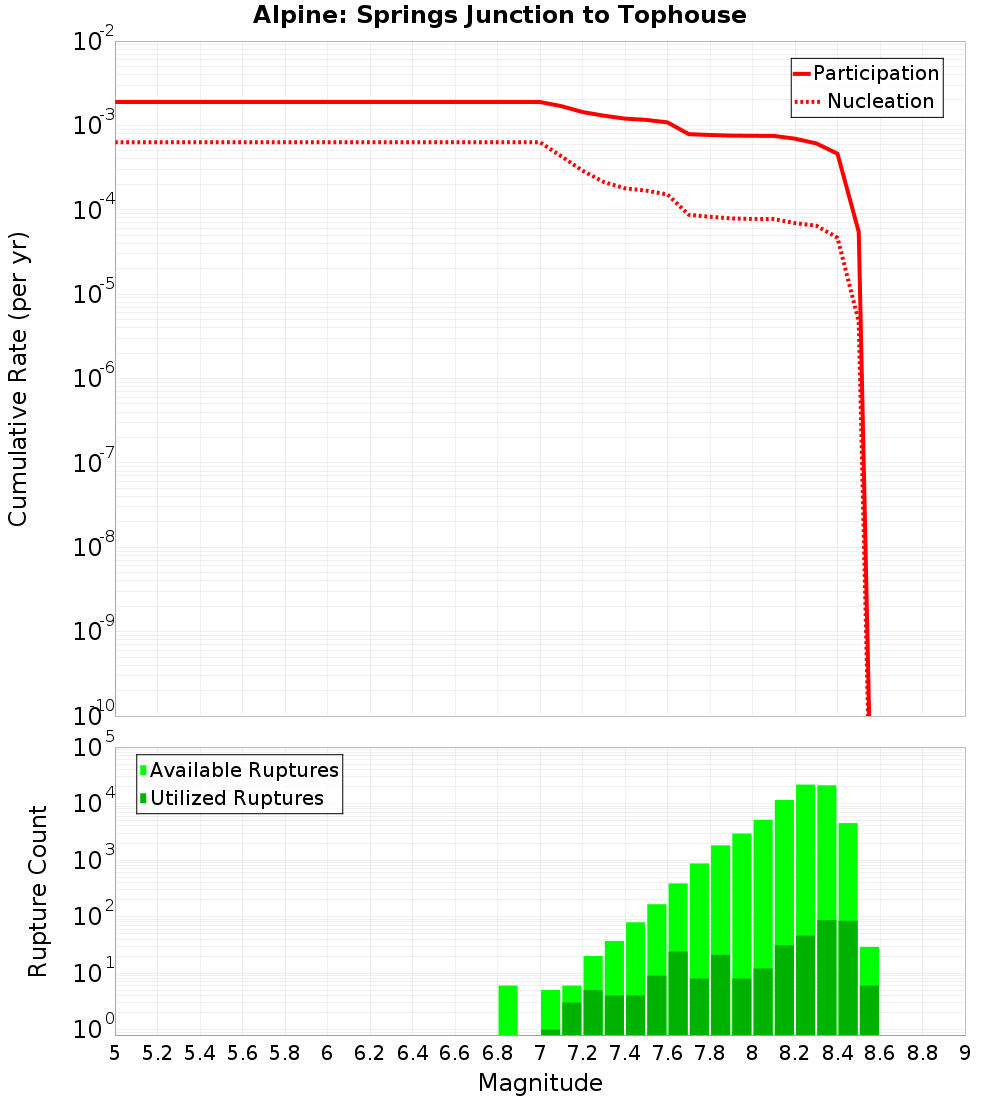

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Kaniere to Springs Junction, 0 km away
Whangamoa, 0 km away
Awatere: Southwest, 0 km away
Wairau, 0 km away
Tutaki, 0.13 km away
Fowlers, 0.19 km away
Flaxmore - Waimea - Tahunanui, 0.45 km away
Clarence: Southwest, 5.57 km away
Hope: Hope River, 13.43 km away

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyMDAuMHFCVEZk
Connected?true
Directly Connected?true
Co-rupture Count68,054
Co-rupture Rate0.0014684749

Whangamoa, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyMDAuMHFCVEZk
Connected?true
Directly Connected?true
Co-rupture Count31,470
Co-rupture Rate2.6177859E-5

Awatere: Southwest, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyMDAuMHFCVEZk
Connected?true
Directly Connected?true
Co-rupture Count692
Co-rupture Rate1.6669778E-4

Wairau, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyMDAuMHFCVEZk
Connected?true
Directly Connected?true
Co-rupture Count25,931
Co-rupture Rate5.757534E-4

Tutaki, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyMDAuMHFCVEZk
Connected?true
Directly Connected?true
Co-rupture Count7,144
Co-rupture Rate6.938285E-5

Fowlers, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyMDAuMHFCVEZk
Connected?true
Directly Connected?true
Co-rupture Count335
Co-rupture Rate4.4766668E-5

Flaxmore - Waimea - Tahunanui, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyMDAuMHFCVEZk
Connected?true
Directly Connected?true
Co-rupture Count5,883
Co-rupture Rate3.6165347E-5

Clarence: Southwest, 5.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyMDAuMHFCVEZk
Connected?true
Directly Connected?true
Co-rupture Count838
Co-rupture Rate3.850145E-5

Hope: Hope River, 13.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyMDAuMHFCVEZk
Connected?true
Directly Connected?false
Co-rupture Count6,599
Co-rupture Rate1.4956214E-4
