Tauranga Trough West 2 Details

PropertyValue
Rupture Count52
Ruptures Above Sect Min Mag50
Ruptures w/ Nonzero Rates12
Magnitude Range[6.89, 7.59]
Length Range[24, 114] km
Total Rate3.6704307E-5 /yr
Multi-Fault Rate2.7212516E-5 /yr (74.14%)
Directly-Connected Faults6
All Co-Rupturing Faults10

Table Of Contents

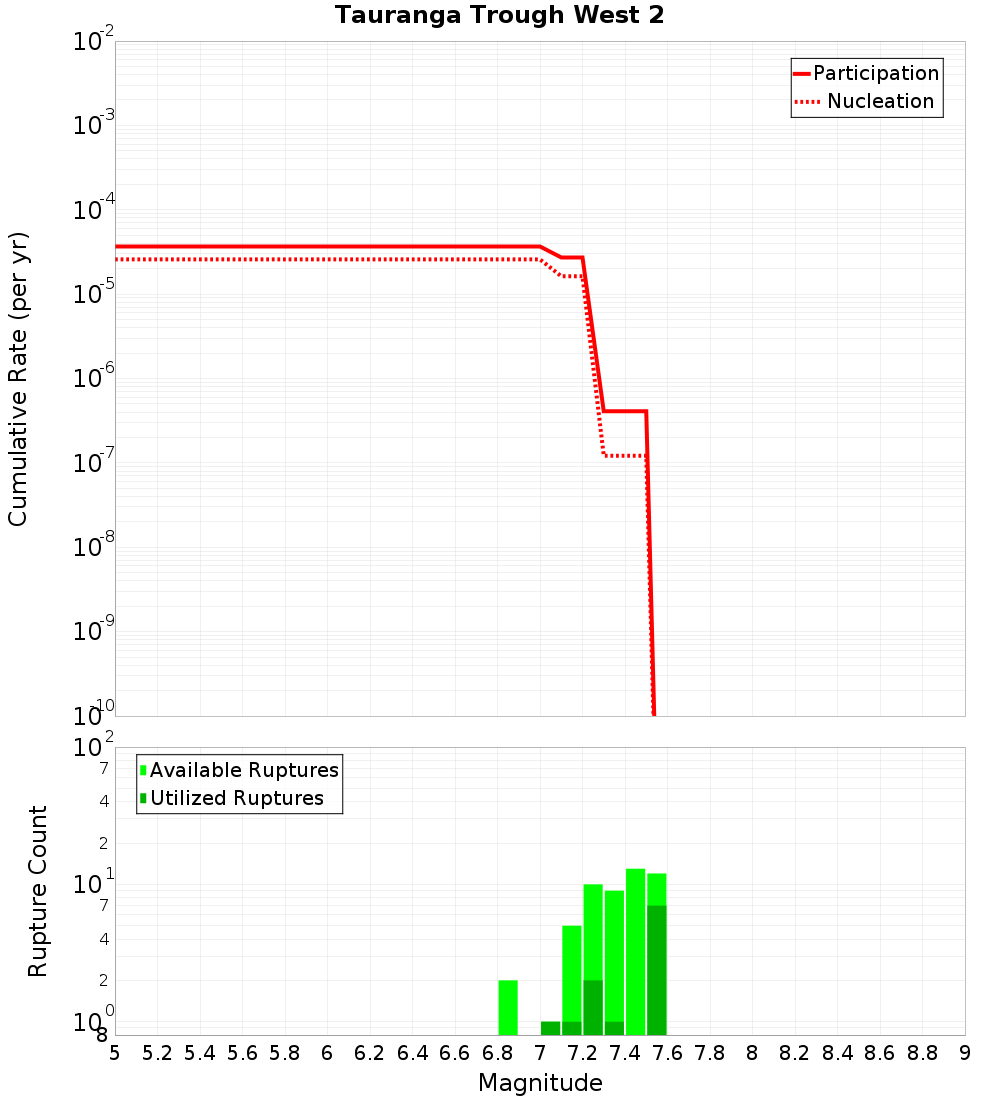

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

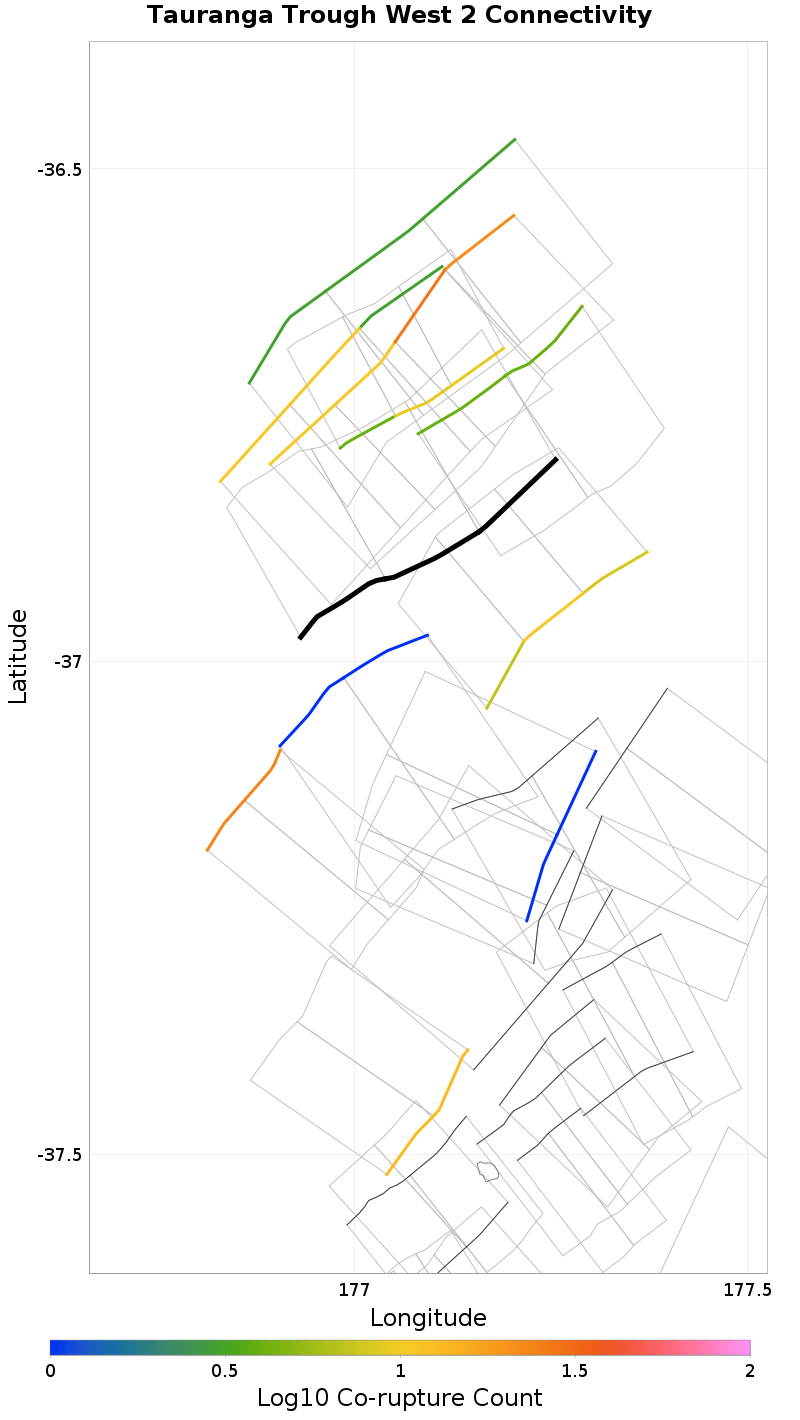

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ohena 3, 0.08 km away
Ohena 2, 0.13 km away
Ngatoro South 2, 0.18 km away
Ohena 4, 0.39 km away
Tuakana 7, 6.47 km away
Tauranga Trough East 2, 9.68 km away
Ngatoro South 5, 10.46 km away
Tuakana 6, 12.95 km away

Ohena 3, 0.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyMTkuMHFkb2d1
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate0.0

Ohena 2, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyMTkuMHFkb2d1
Connected?true
Directly Connected?true
Co-rupture Count29
Co-rupture Rate2.6768183E-7

Ngatoro South 2, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyMTkuMHFkb2d1
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate2.6796148E-5

Ohena 4, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyMTkuMHFkb2d1
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate5.3868188E-8

Tuakana 7, 6.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyMTkuMHFkb2d1
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Tauranga Trough East 2, 9.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyMTkuMHFkb2d1
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate2.103031E-7

Ngatoro South 5, 10.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyMTkuMHFkb2d1
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate1.4644182E-7

Tuakana 6, 12.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjAyMTkuMHFkb2d1
Connected?true
Directly Connected?true
Co-rupture Count24
Co-rupture Rate4.0856168E-7
